AB304 Datasheet

Description

The AB304 Offset Bracket is compatible with AH301 Flush Mounts or AH302 Box Mounts.

AB304 Contentes

Ordering

Model Part Number Description
AB304 AB304-K Black Offset Bracket

Available from the Ciholas Webshop.

Contents

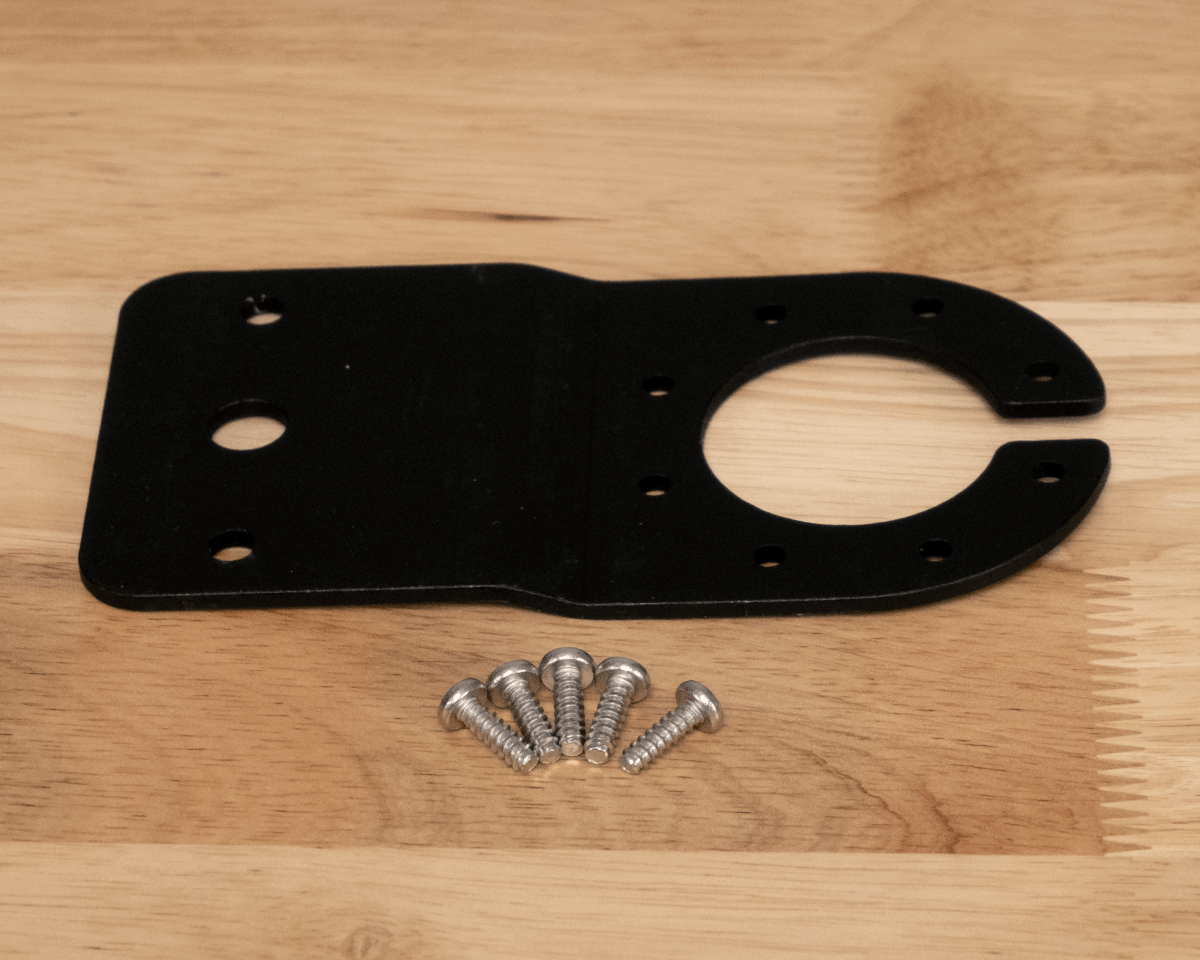

  • (1) Offset Bracket
  • (5) #8 1/2” T20 Torx Self Tapping Screws

Mechanical

Parameter Description Min. Typ. Max Units
Unit Mass Aluminum   66   g

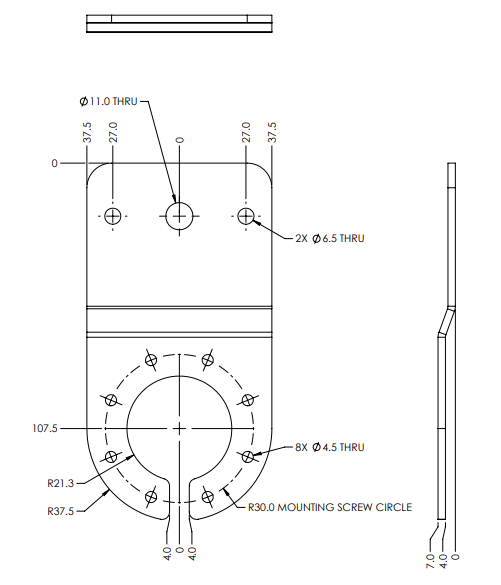

AB304 Mechanical Drawing

All dimensions are in millimeters unless otherwise stated.

Usage and Application

Intended for deployments where AN302 units need a offset mounting option. The Offset Bracket is installed with the AH301 Flush Mounts or AH302 Box Mounts.

Additional hardware may be required for mounting.

Assembly View

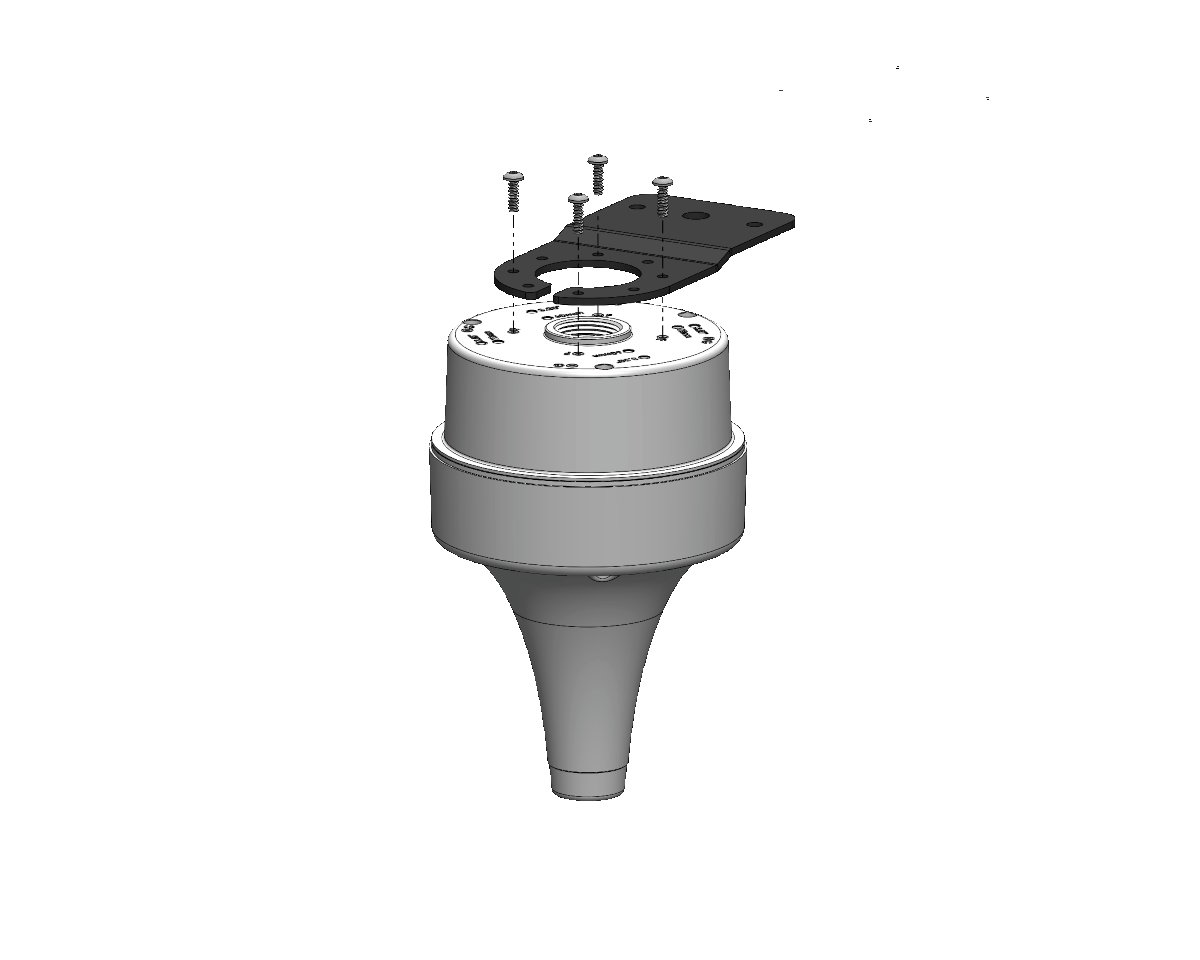

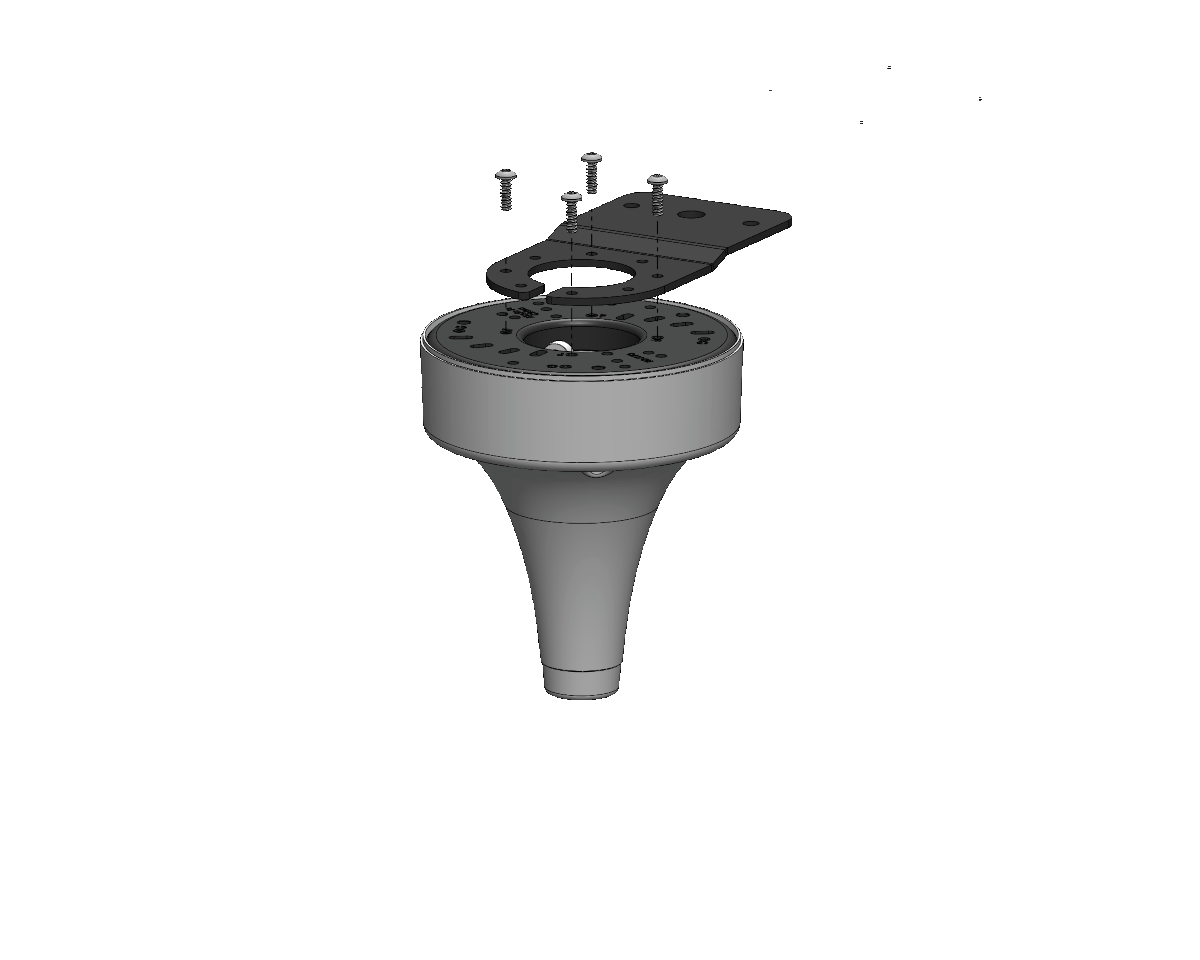

AB304 Exploded View AB304 Exploded View
AB304 with AH301 Flush Mount AB304 with AH302 Box Mount

Mounting Instructions

AH301

  1. Align AB304 with the F hole pattern on the back of AH301.

  2. Using the #8 1/2-inch self-tapping screws, attach AB304 to AH301. Use four screws in total; one spare is provided by Ciholas.

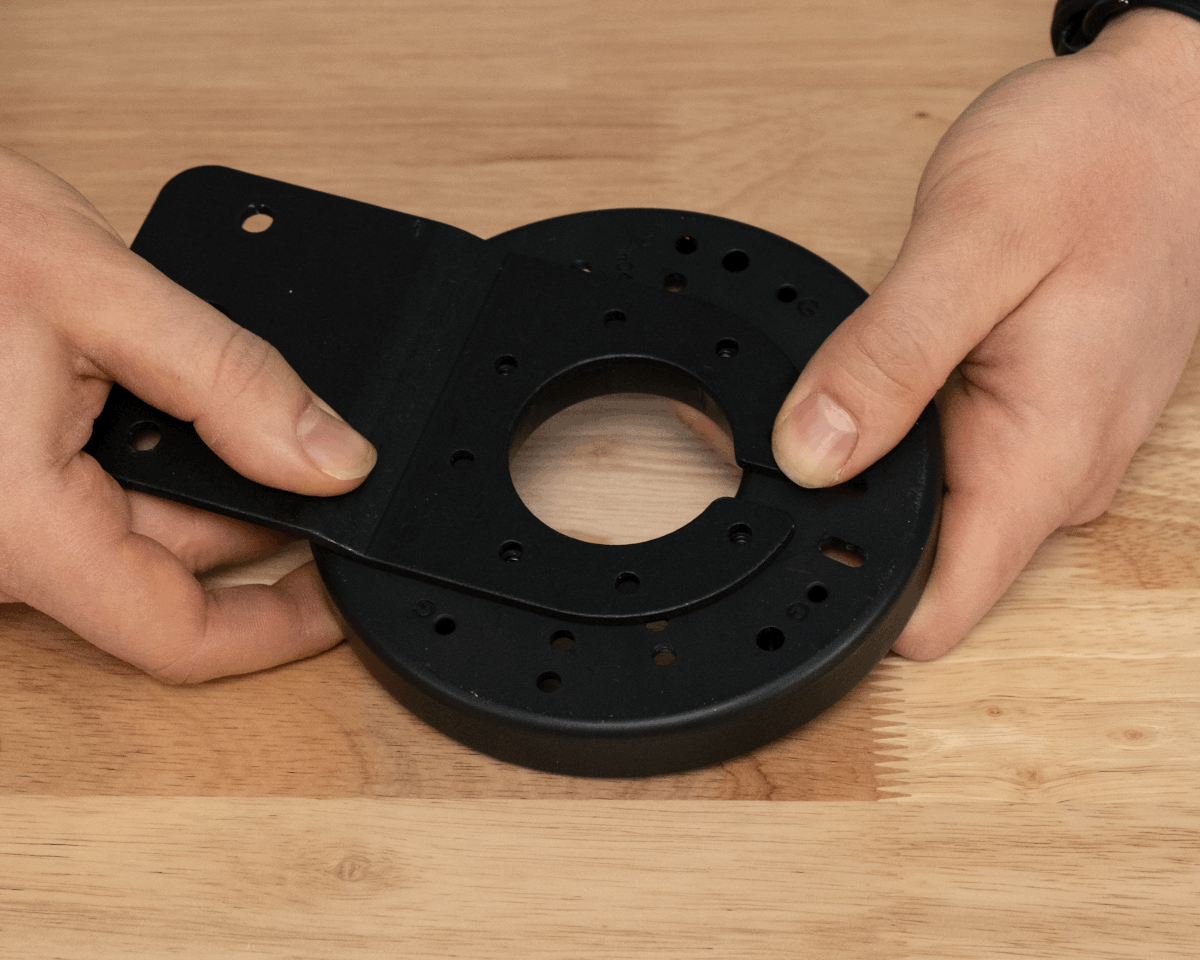

    AB304 AH301 ASSEMBLY STEP01 AB304 AH301 ASSEMBLY STEP02
    Step 1 Step 2
  3. Install AB304 with appropriate hardware to the mounting location.
  4. Follow steps 4 through 7 in the AH301 Datasheet to attach Anchor to AH301.

AH302

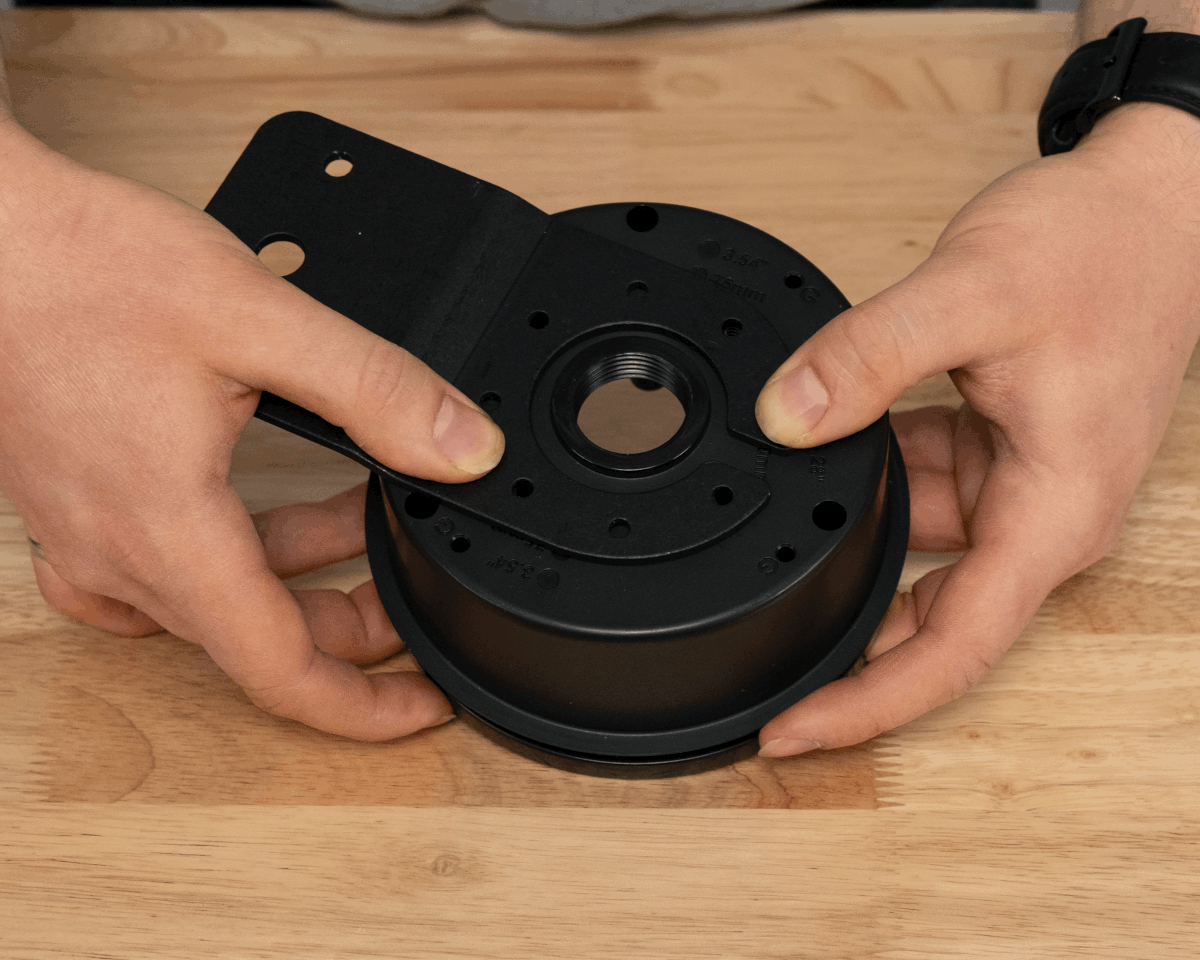

  1. Align AB304 with the F hole pattern on the back of AH302.

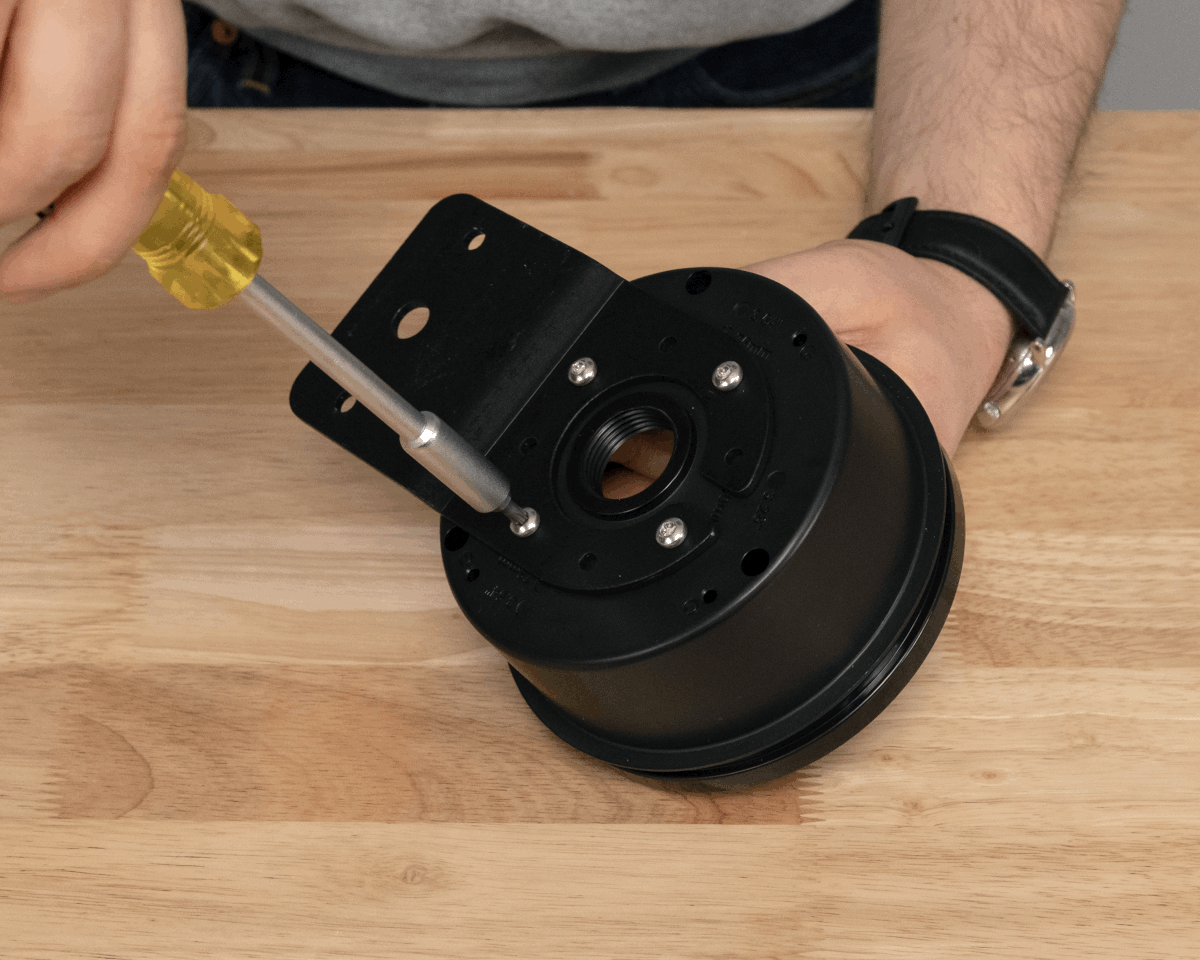

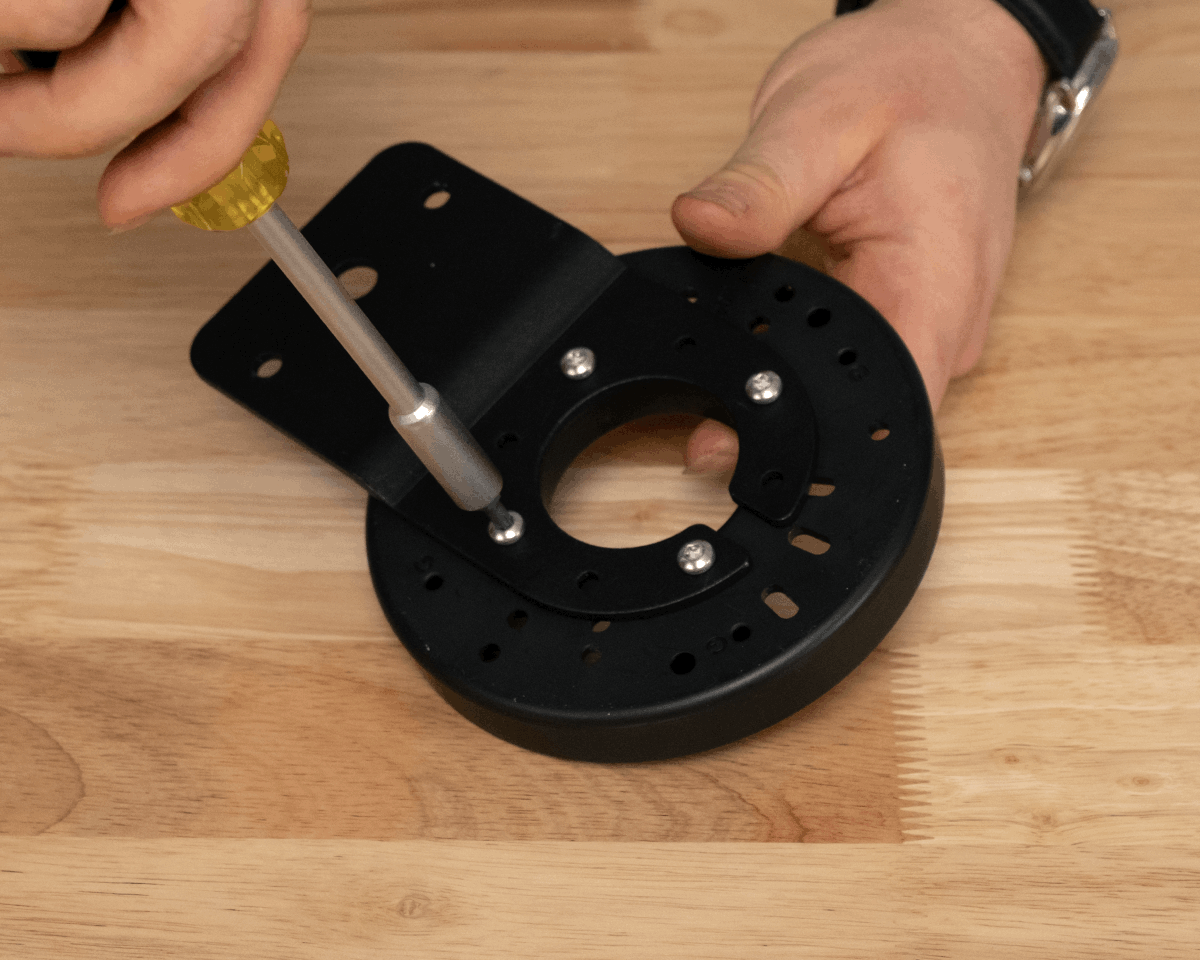

  2. Using the #8 1/2-inch self-tapping screws, attach AB304 to AH302. Use four screws in total; one spare is provided by Ciholas.

    AB304 AH302 ASSEMBLY STEP01 AB304 AH302 ASSEMBLY STEP02
    Step 1 Step 2
  3. Install AB304 with appropriate hardware to the mounting location.
  4. Follow steps 3 through 7 in AH302 Datasheet to attach Anchor to AH302.

Unistrut Mounting

These instructions are written for use with the AH301. The AH302 may be used in its place. The instructions apply to both vertically and horizontally orientated Unistrut.

This mounting style requires additional hardware that is not provided by Ciholas.

  1. Align AB304 with the hole pattern labeled “F” on AH301.

  2. Using the #8 1/2-inch self-tapping screws, attach AB304 to AH302. Use four screws in total; one spare is provided by Ciholas.

    AB304 AH301 ASSEMBLY STEP01 AB304 AH301 ASSEMBLY STEP02
    Step 1 Step 2

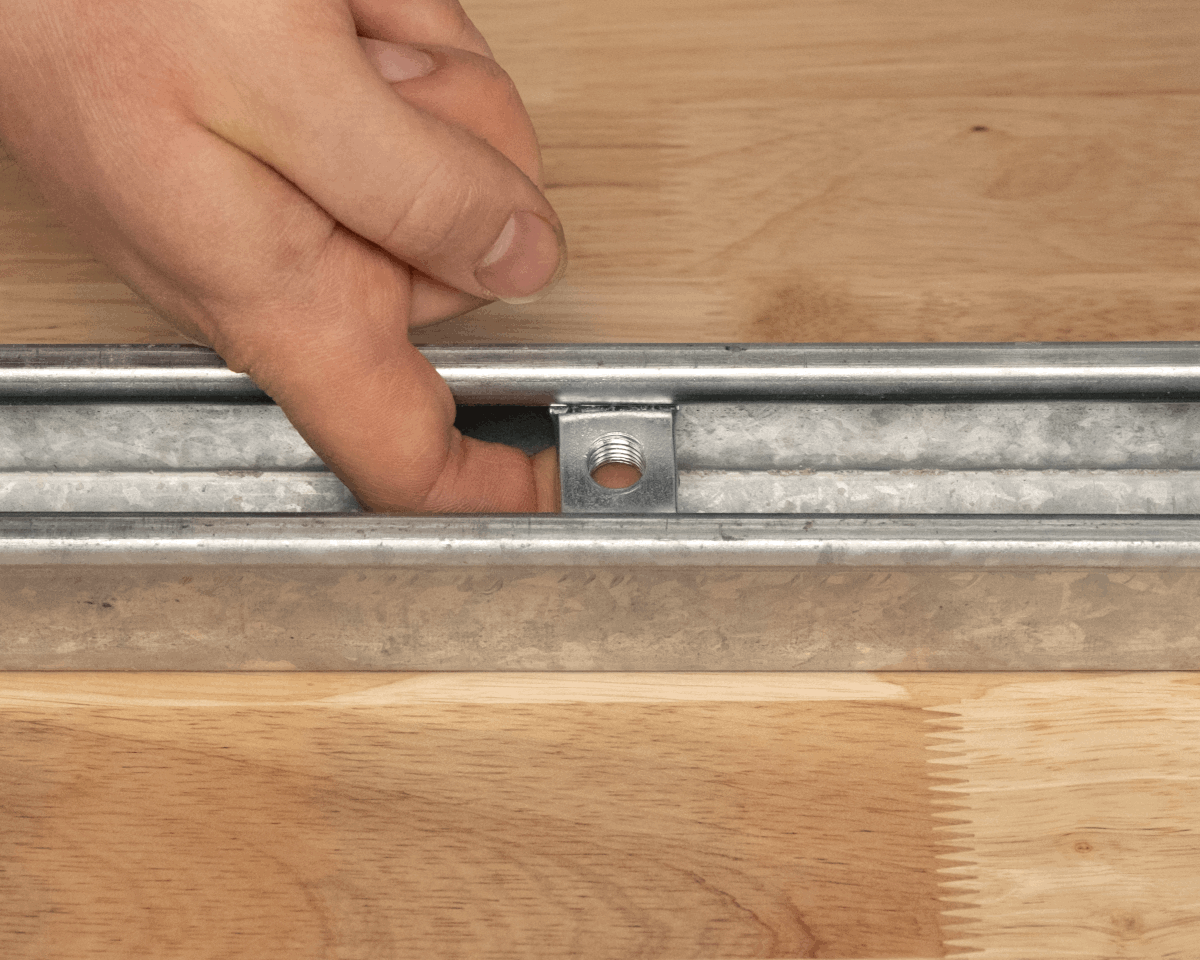

  3. Insert channel nut(s) into the Unistrut channel and position appropriately.

  4. Align the hole(s) in AB304 with the Unistrut channel nut(s) and pass screw(s) through the AB301 component into the channel nut(s). Tighten the screw(s) to fix the bracket component into place.

    AB304 UNISTRUT STEP03 AB304 UNISTRUT STEP04
    Step 3 Step 4
  5. Pass Ethernet cable(s) through the back of the AH301. Provide enough cable length for a service loop to allow the AN302 to be removed and disconnected.

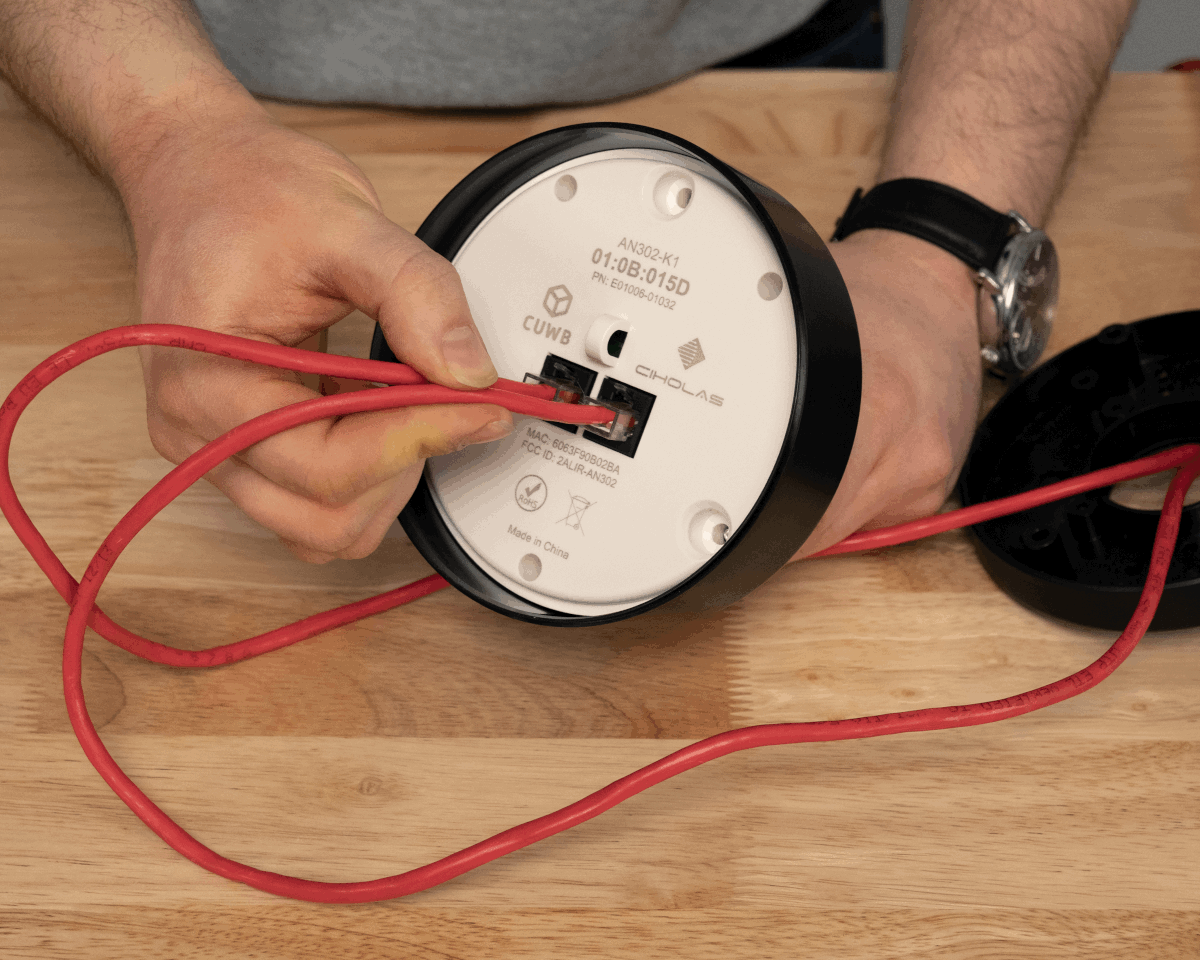

  6. Plug the Ethernet cable(s) into the AN302 connectors.

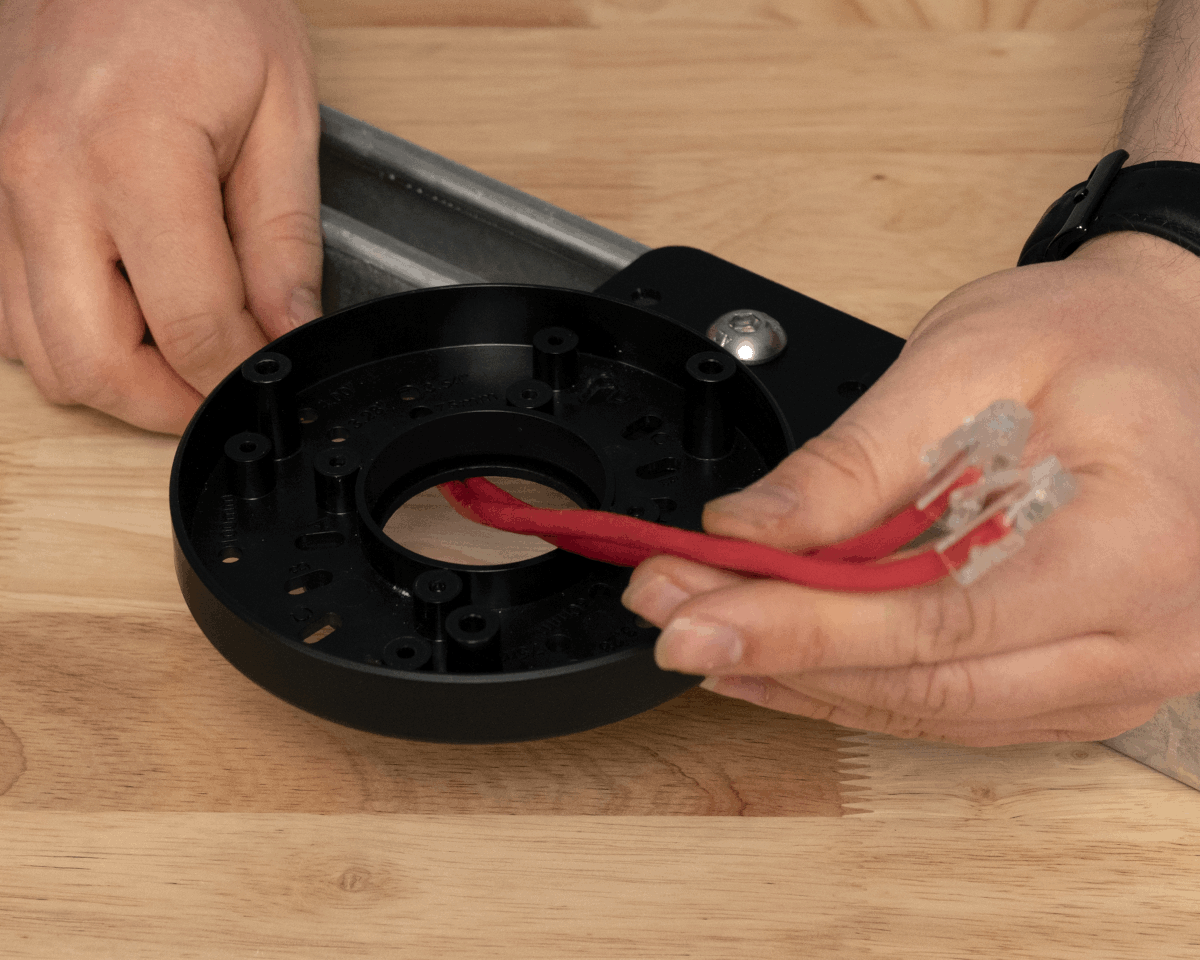

    AB304 UNISTRUT STEP05 AB304 UNISTRUT STEP06
    Step 5 Step 6

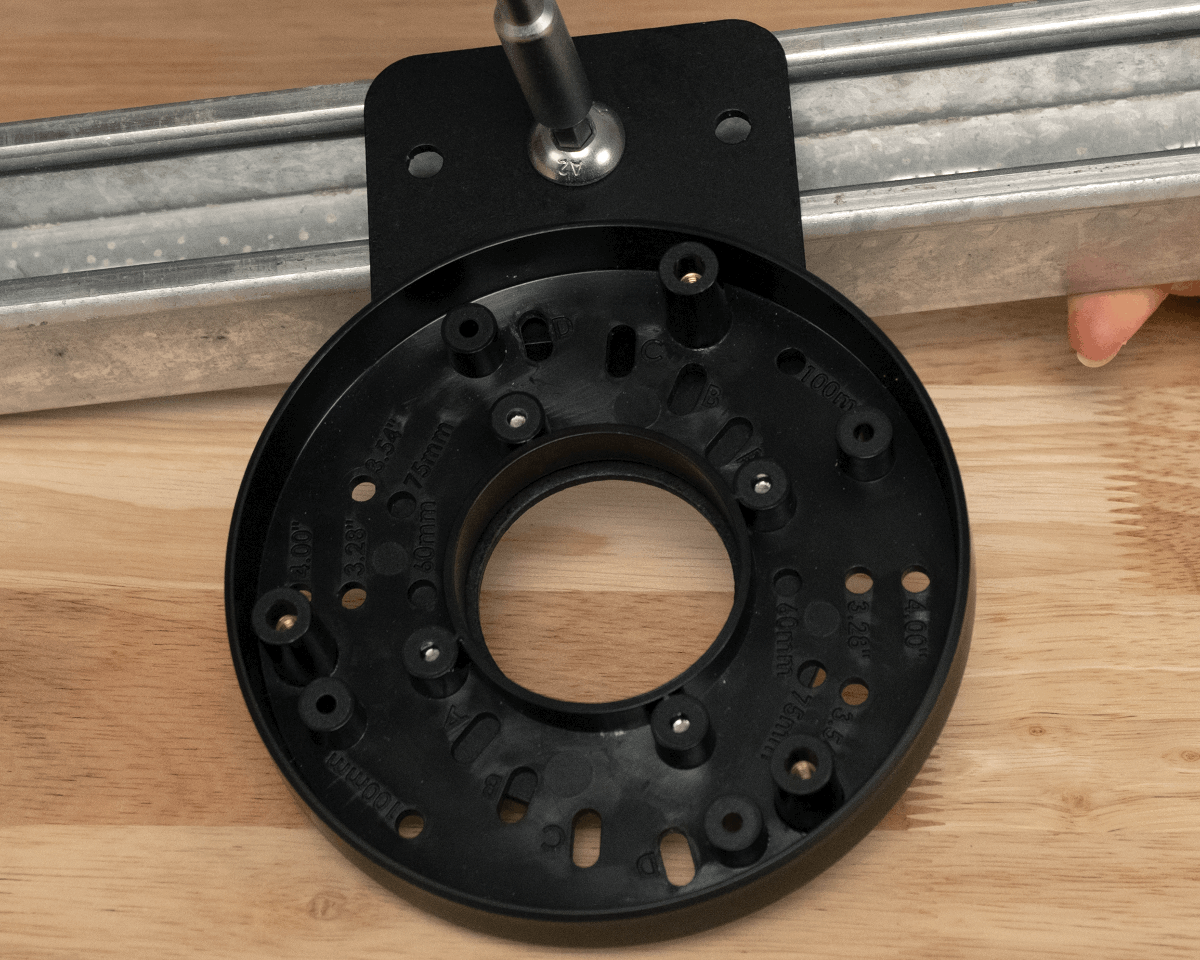

  7. Align the AN302 backplate with the threaded bosses in AH301. Twist to adjust as needed; press AN302 and AH301 together.

  8. Attach AN302 to AH301 using the captive screws. Use a T20 drive set to 0.68 N-m (6 in-lb) of torque.

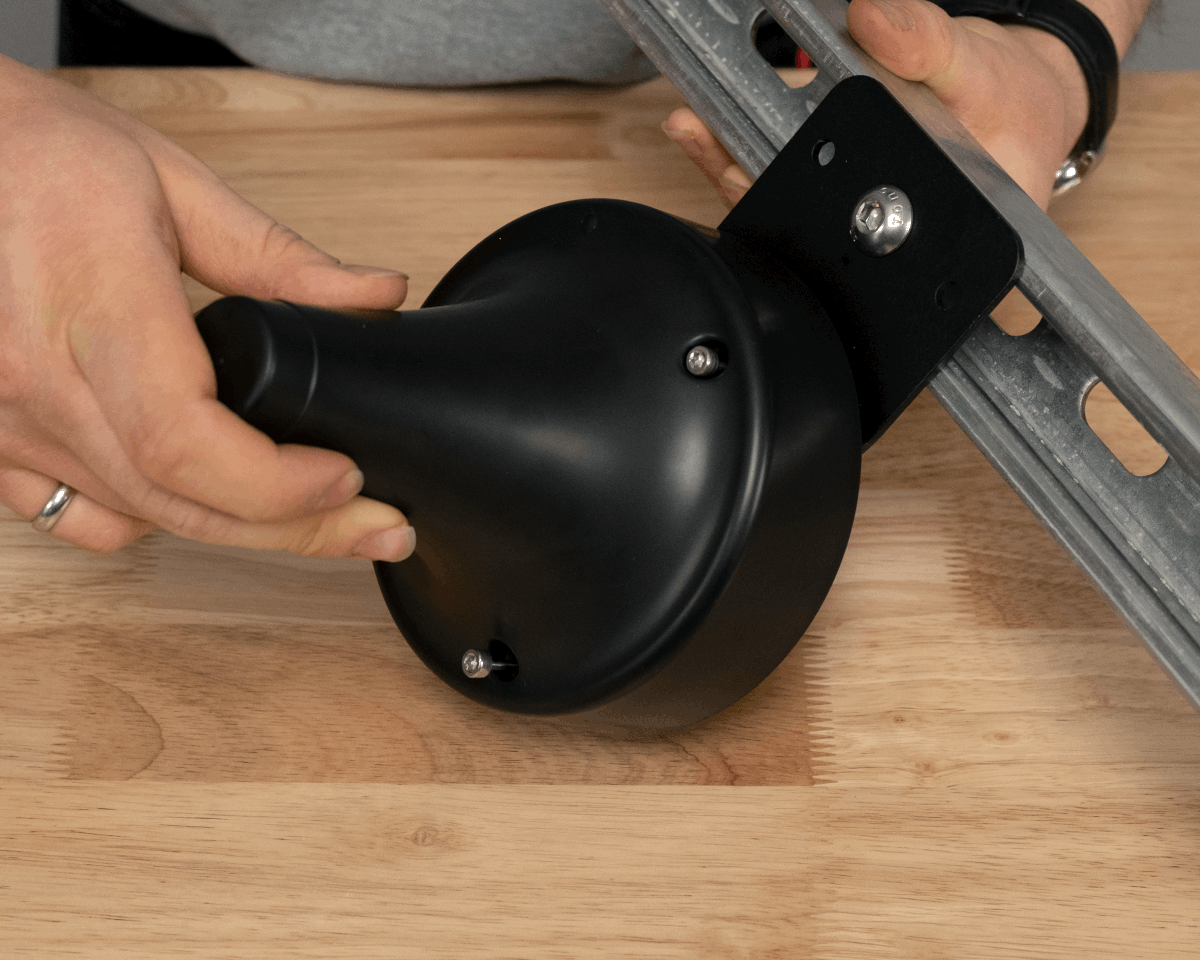

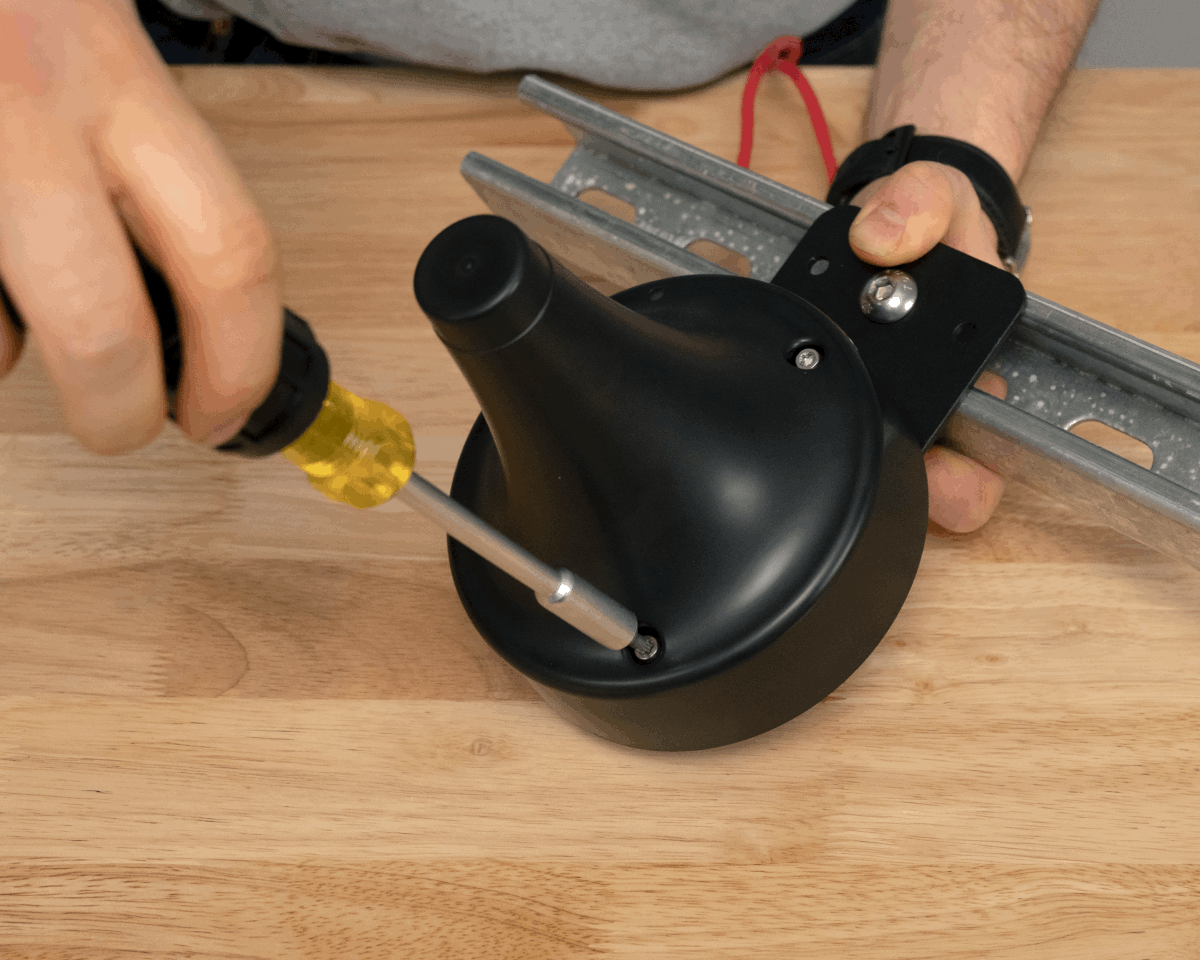

    AB304 UNISTRUT STEP07 AB304 UNISTRUT STEP08
    Step 7 Step 8

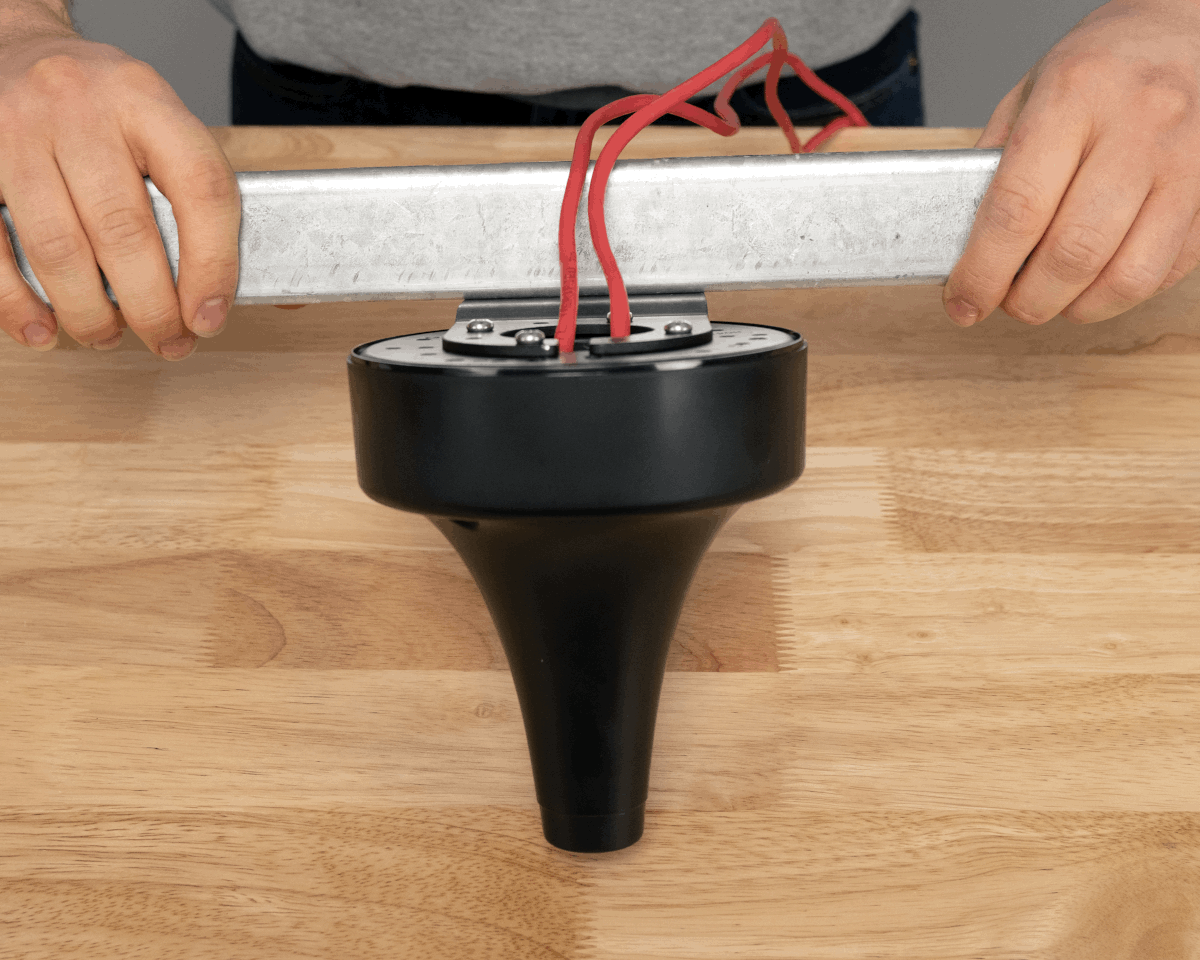

Finished View: AB304 Unistrut Install Finished

Revision

Version Date Change Description
5.0.0 2026-02-27 Initial Public Release
