Preloaded Host PC Manual

Description

The Host PC is a mini PC that contains preloaded CUWB RTLS system software and diagnostic tools. The underlying preloaded Host PC hardware may vary.

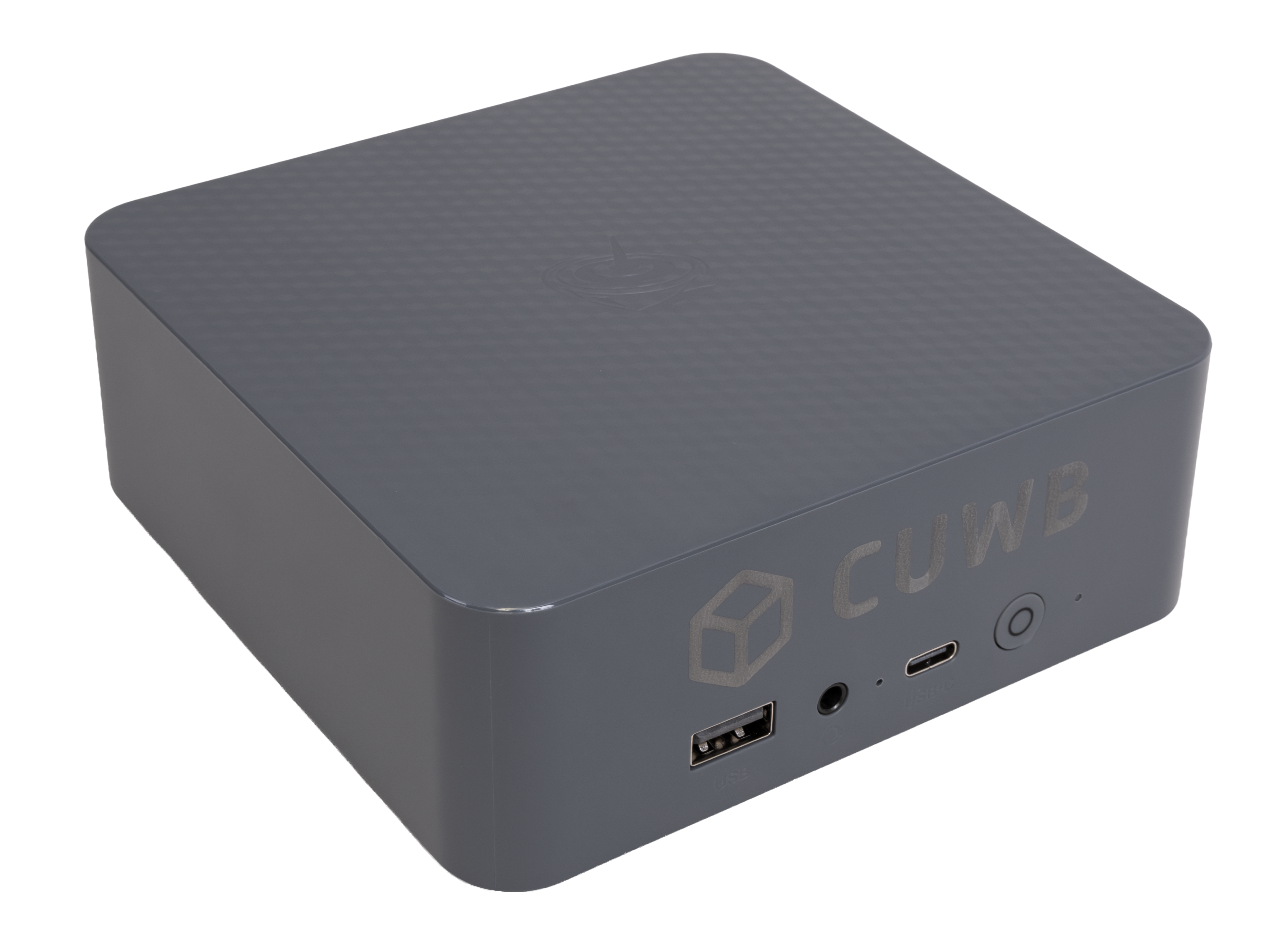

PC302 CUWB Host Pc

Ordering

Model Part Number Manufacturer Description
PC301 PC301 OUMAX Preconfigured Host PC with GPU and 2 NICs
PC302 PC302 Beelink Preconfigured Host PC with GPU and 2 NICs

Available from the Ciholas Webshop, preloaded with CUWB software. CUWB Software Packages available on the Software Downloads page.

Contents

  • Mini PC
  • US NEMA 1-15 plug
  • Original paper Mini PC User Manual

Electrical

Ratings

AC Input: 100-240V ~50/60Hz 1.5A

Ships with US NEMA 1-15 Plug.

See manufacturer’s website for original manual and safety information.

PC301 Ports (Oumax)

The available ports on the preloaded Host PC may vary depending on the exact model of the Mini PC used.

Front

PC301 CUWB Host PC Front

Back

PC301 CUWB Host PC Back

The available ports on the preloaded Host PC may vary depending on the exact model of the Mini PC used.

Front

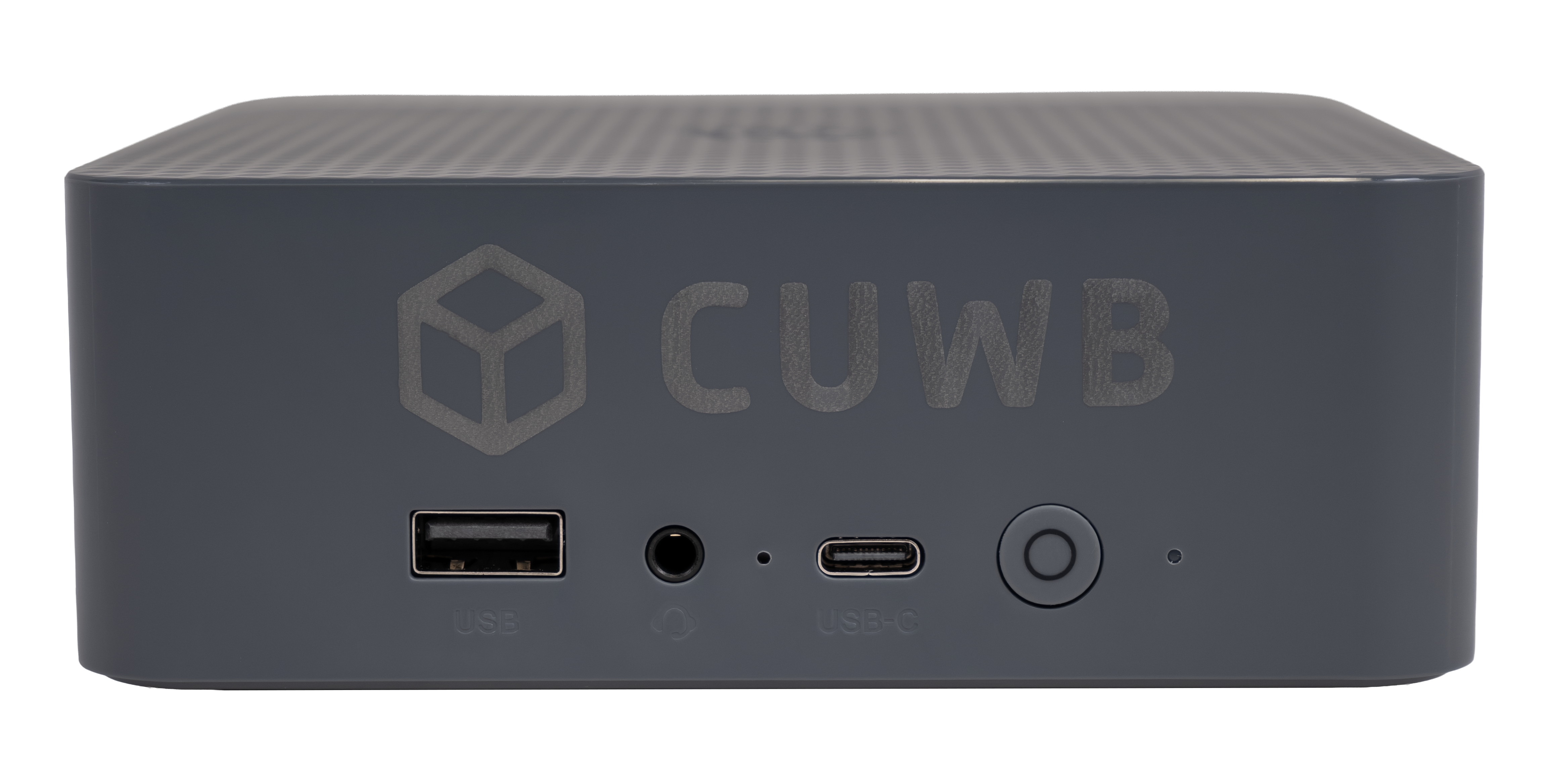

PC302 CUWB Host PC Front

Back

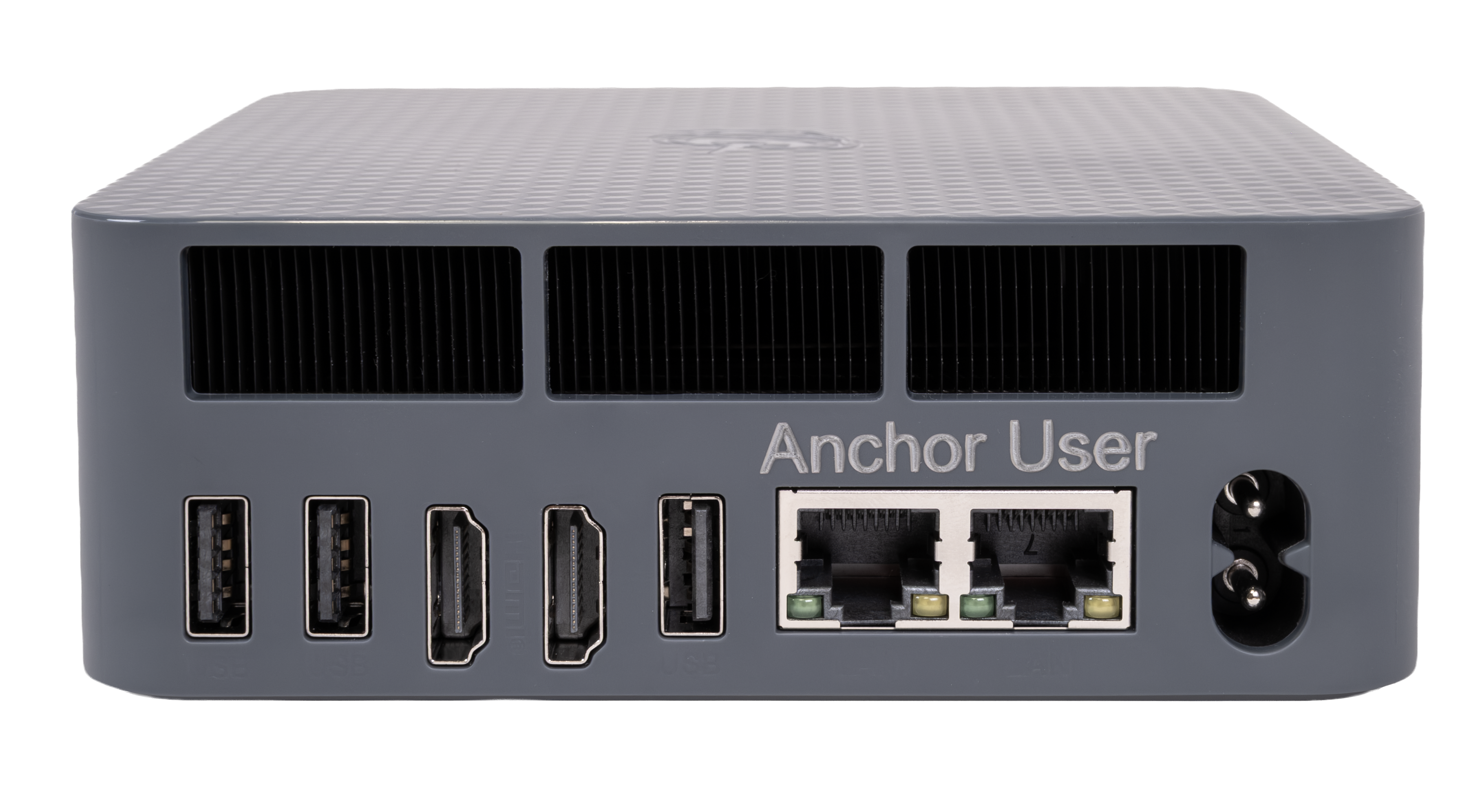

PC302 CUWB Host PC Back

Operation

Additional equipment is required for using the preloaded Host PC with the CUWB RTLS System:

  • Keyboard & Mouse
  • Monitor
  • PoE Ethernet Switch
  • Ethernet Cables
  • Tags
  • Anchors

The preloaded Host PC is recommended for Anchor Arrays of 50 Anchors or less.

PC Access

The preloaded Host PC has been setup with a temporary user and password:

  • User: cuwbadmin
  • Password: cuwb
  • Host Name: PC301

It is recommended to change the user name and password after receiving the PC.

Preloaded Software

The Host PC has been loaded with the following software:

  • Ubuntu Linux 24.04 OS
  • Static NIC Netplan
  • CUWB Manager
  • CUWB Viewer
  • CUWB Migrate
  • CUWB USB Driver
  • AN302 Firmware
  • PT301 Firmware

The loaded packages may not be the latest software releases. See Software Packages to download the most up-to-date software releases.

The preloaded Host PC utilizes the Ciholas PPA to download the software packages. The software packages may update to the latest revision when prompted by the Ubuntu package manager.

Network Interface Cards (NICs)

The preloaded Host PC contains two network interface cards. The network interface cards are preconfigured with a static netplan for the Anchor Stream and User Stream.

PC302 CUWB Host PC Back

On the back of the mini PC, the Ethernet ports have been labeled with Anchor and User. The Anchor port is intended to connect to the Anchor Array and is configured for link-local addressing. The User port is intended to connect to the user’s LAN using DHCP.

Revision

Version Date Change Description
5.1.0 2026-07-30 Added PC302 specifications
5.0.0 2025-11-21 Initial Public Release
