ANT110

Description

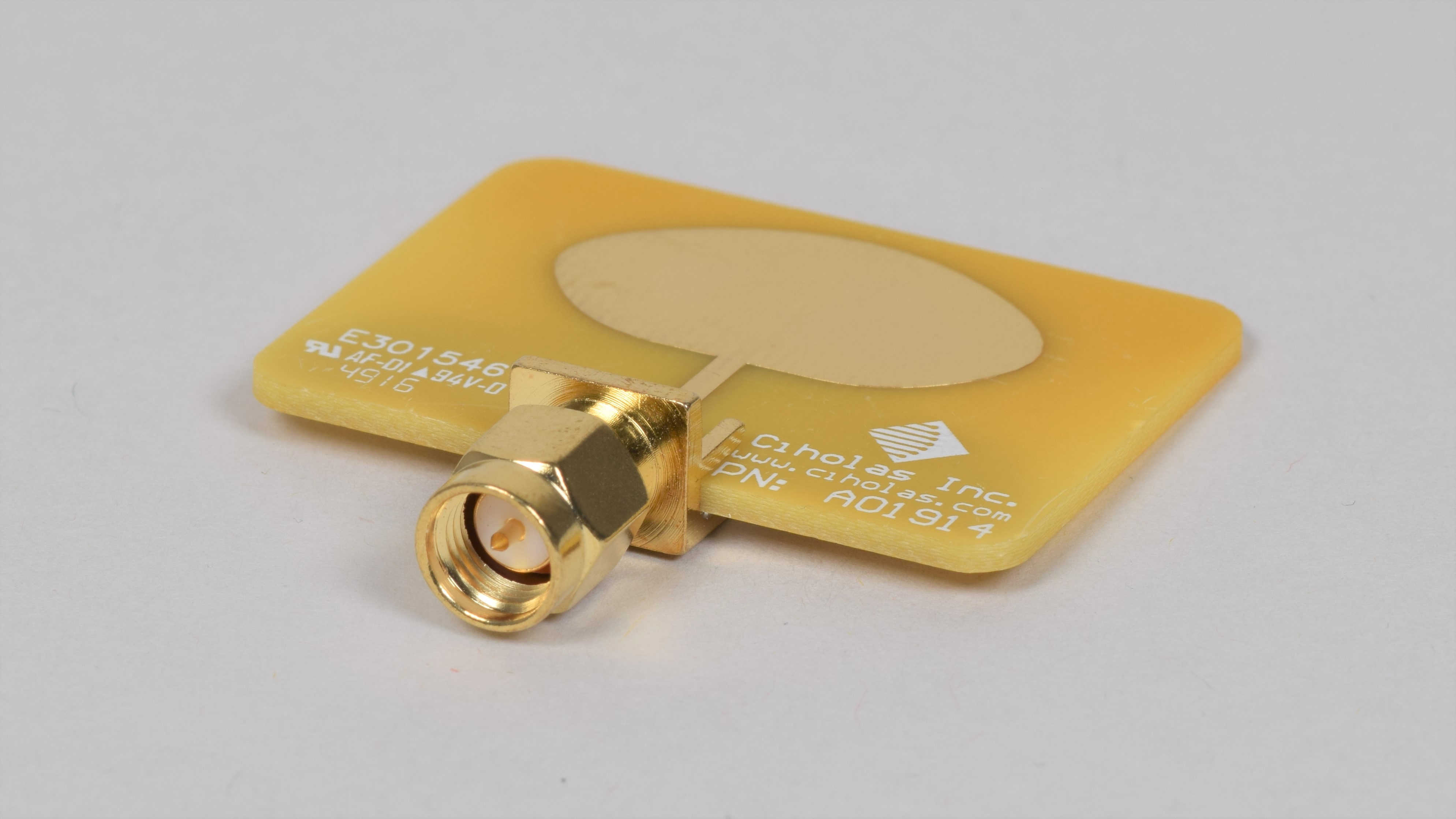

The Ciholas ANT110 is a monopole antenna designed to operate from 3.2 GHz to 7 GHz. It is intended for use in Ultra-Wideband (UWB) applications and is provided in the DWUSB kit for use with the DWUSB-SMA. The antenna is small enough to allow implementation in portable devices and has a standard polarity SMA connector.

Features

• Frequency Range: 3.2 GHz to 7.0 GHz
• High Efficiency
• Semi-Omnidirectional radiation pattern
• Peak Gain: 3.6 dBi
• Standard polarity SMA male plug

Ordering

Model	Part Number	Description
ANT110	A00981-01917	1-SMA Plug PCB Antenna

Available from the Ciholas Webshop

Electrical

Parameter	Description	Min.	Typ.	Max	Units
Impedance	Nominal Antenna Impedance		50		Ω

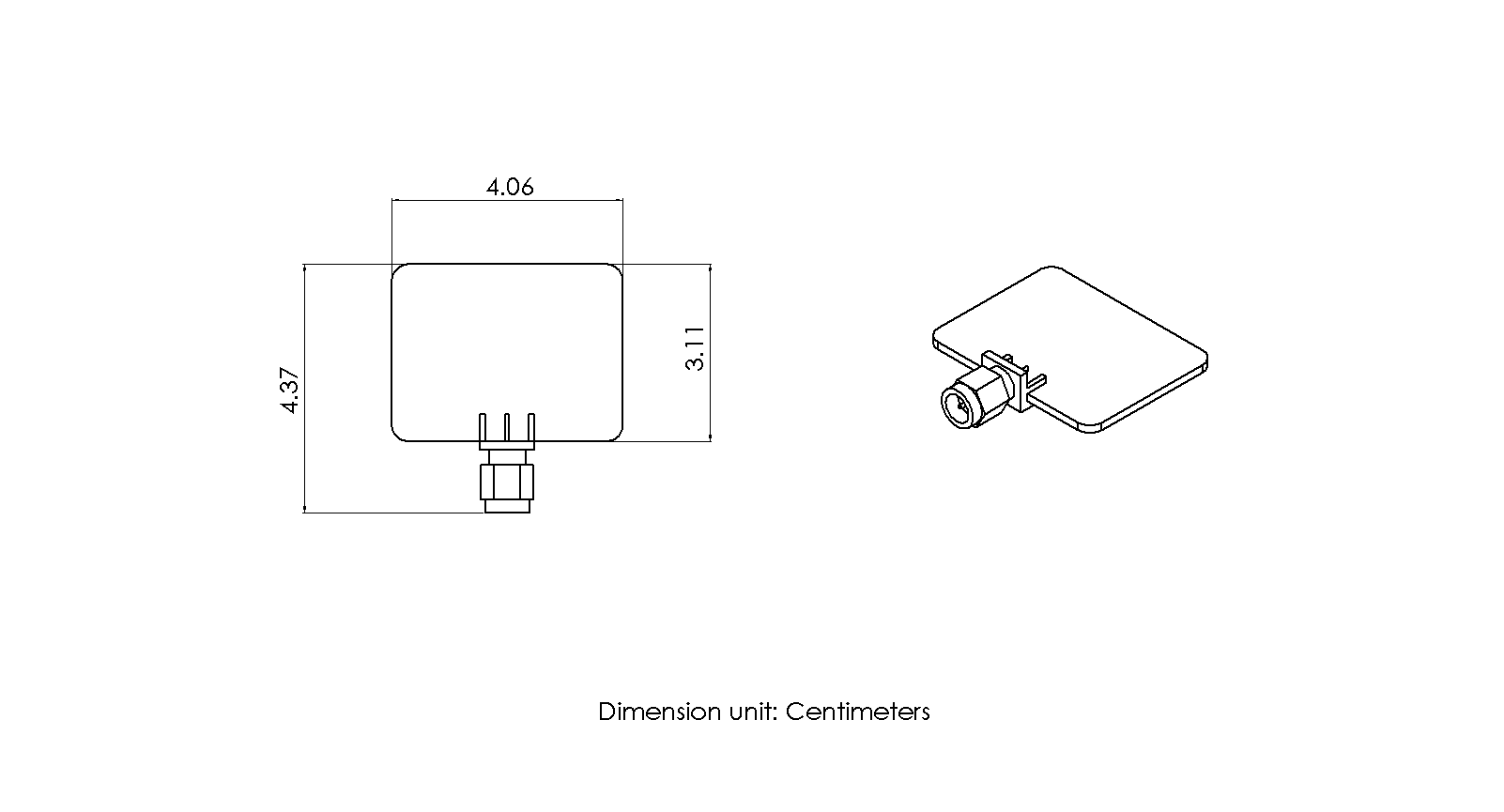

Mechanical

Parameter	Description	Min.	Typ.	Max	Units
Mass	Antenna Mass		7.8		g

Radiation Patterns

Axis Reference

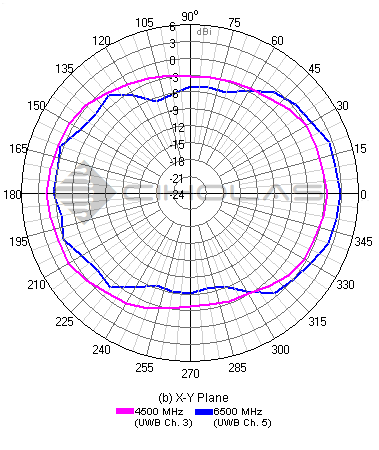

XY Plane

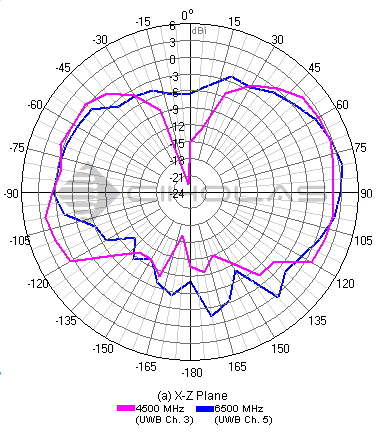

XZ Plane

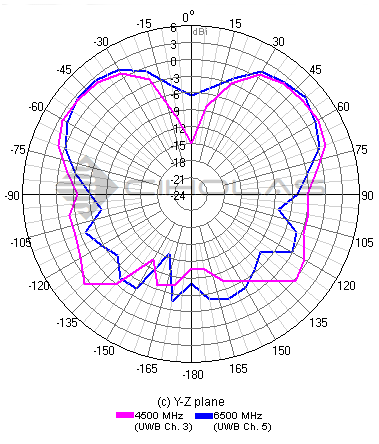

YZ Plane

More Information

Please visit the following links for more information and documentation regarding Ciholas UWB systems and products:

• Documentation, installation, and usage instructions visit CUWB.io
• To purchase Ciholas UWB products, please visit the Ciholas Shop
• Ask other users questions and find community information in the Community Forum
• Compare CUWB Hardware and Software Features
• Learn more about Ciholas services at www.ciholas.com

ANT110 Datasheet Change Log

Version	Date	Change Description
1.0	2018-05-10	Initial Public Release
