AB301 Datasheet

Description

The articulated mounting bracket can be used standalone, with a pipe clamp, or with a theatrical clamp for a variety of mounting needs.

The articulated mounting bracket attaches to either the AH301 mounting plate or the AH302 mounting box.













Ordering

Model Part Number Description
AB301 AB301-K AN300 Series Articulated Bracket
AB302 AB302-S Pipe Clamp for Articulated Bracket
AB303 AB303-K Fixed Theatrical Clamp for Articulated Bracket

Available from the Ciholas Webshop

Contents

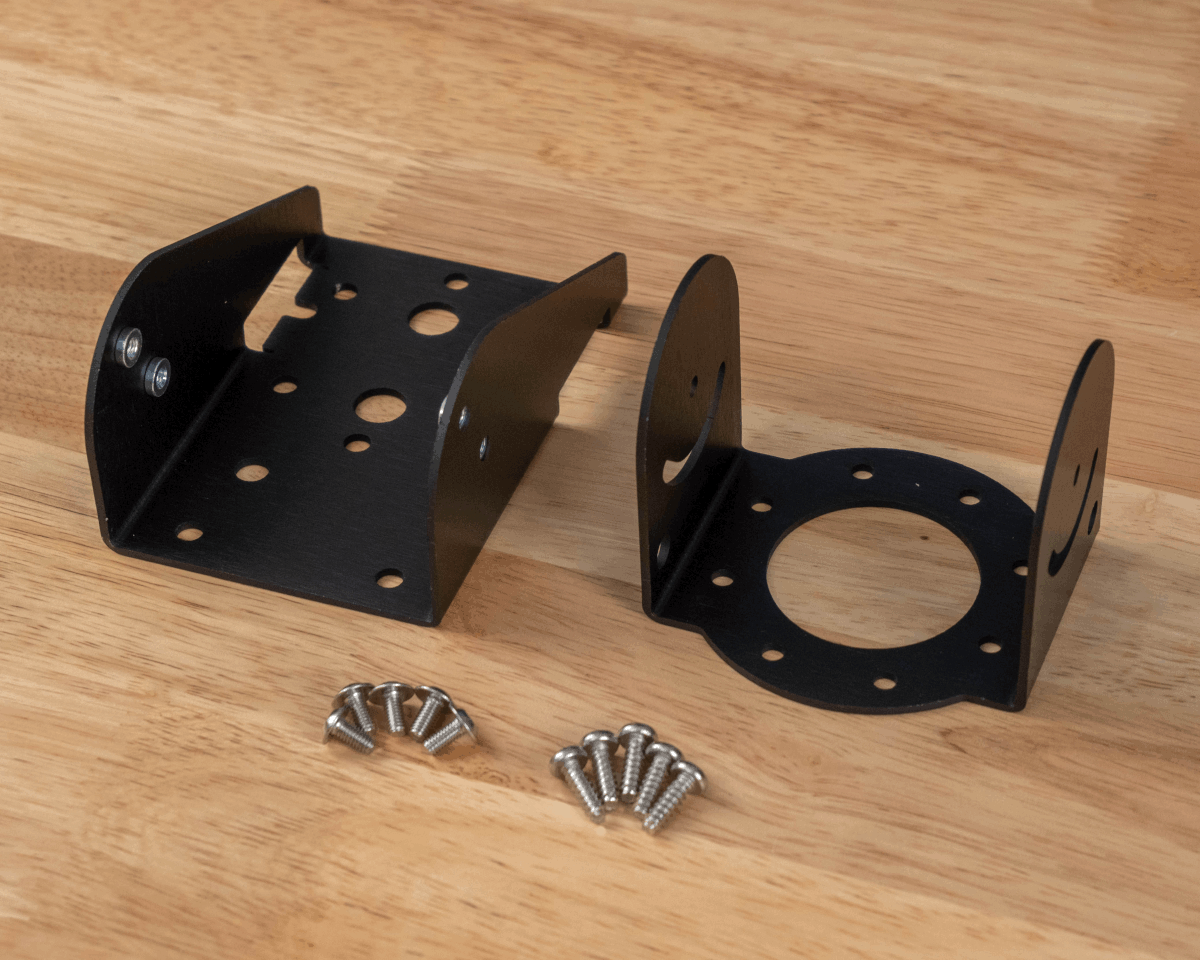

  • (1) Articulated Bracket Part A
  • (1) Articulated Bracket Part B
  • (5) M4 8mm Flanged Head Screws
  • (5) #8 1/2” Self Tapping Screws for Plastic

Mechanical

Parameter Description Min. Typ. Max Units
Unit Mass Aluminum   126   g
Hanging Weight Do not exceed     TBD kg

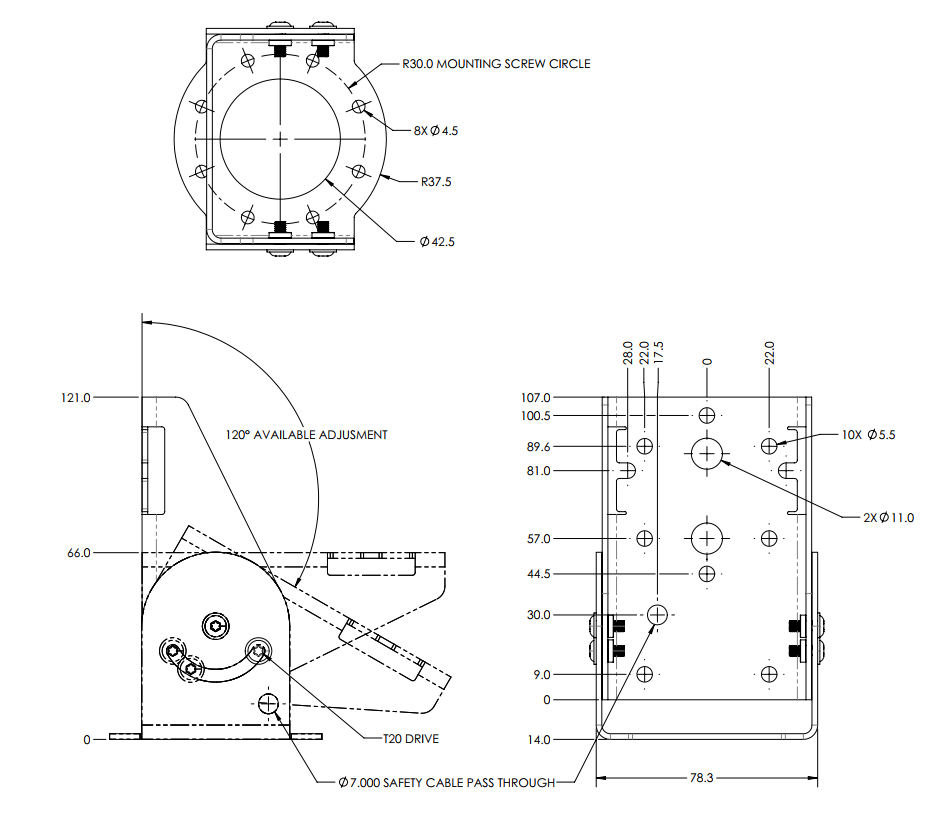

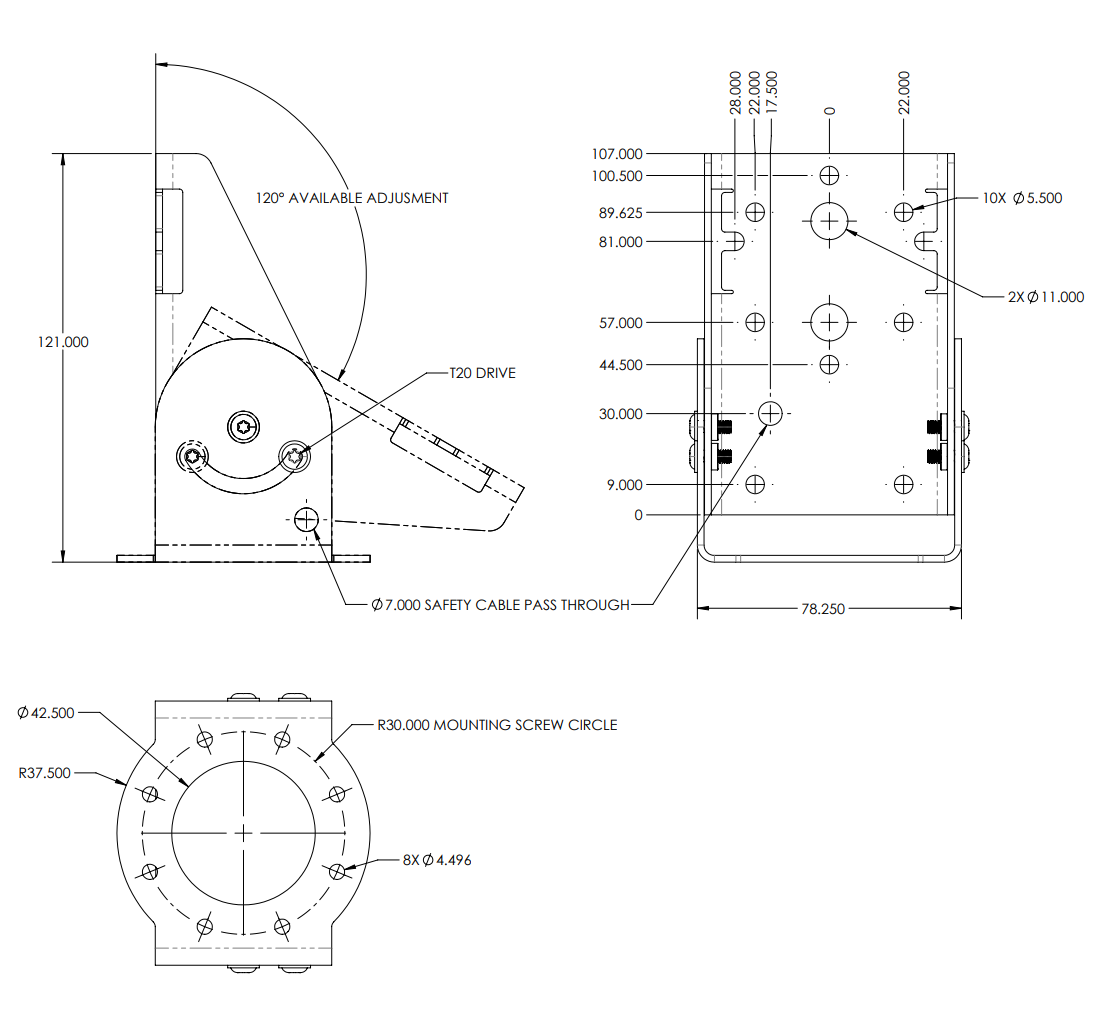

AB301 Mechanical Drawing

All dimensions are in millimeters unless otherwise stated.

Usage and Application

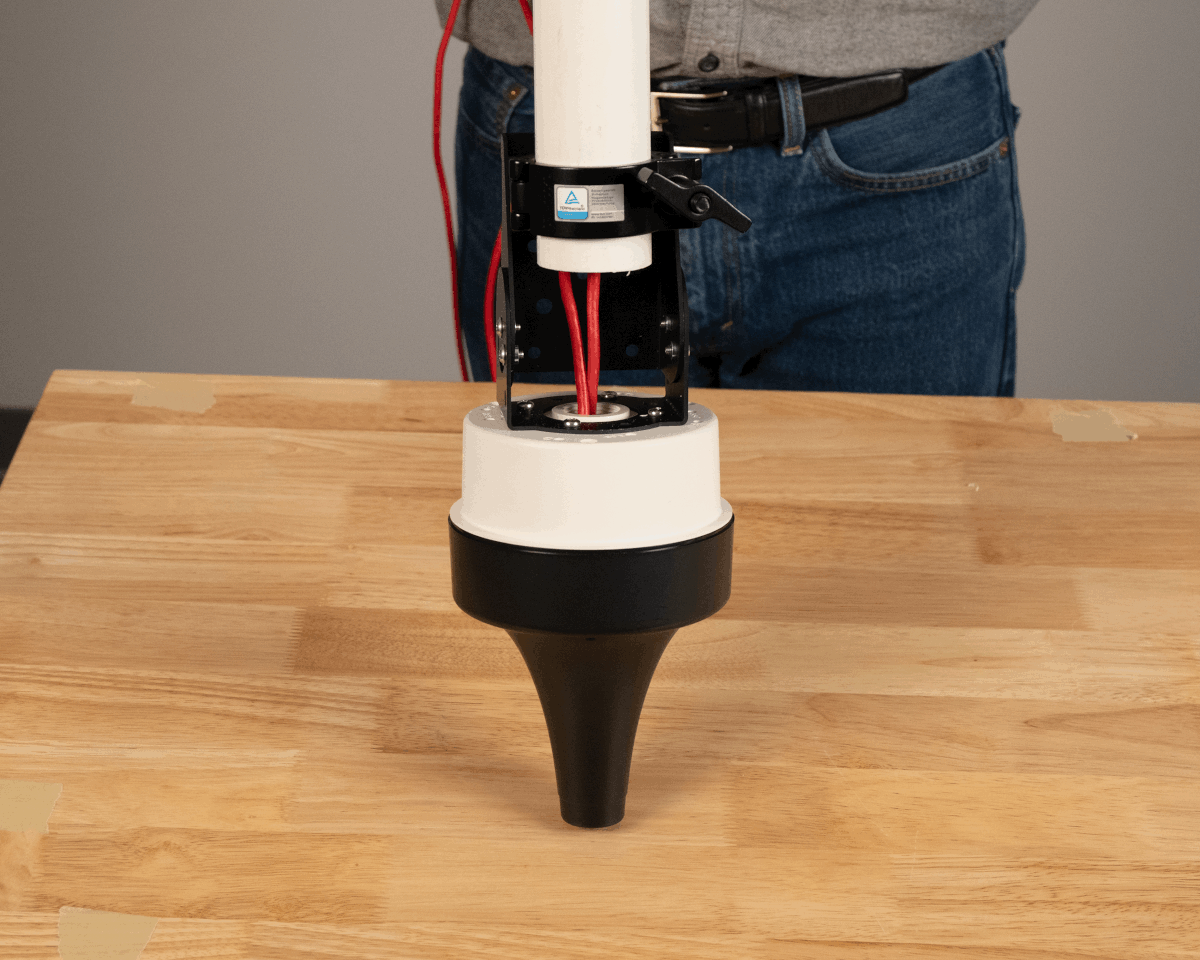

Intended for deployments where AN302 units need a flexible mounting option. The adjustable bracket is installed with the AH301 mounting plate or AH302 mounting box and then can adapt with the following mounting schemes:

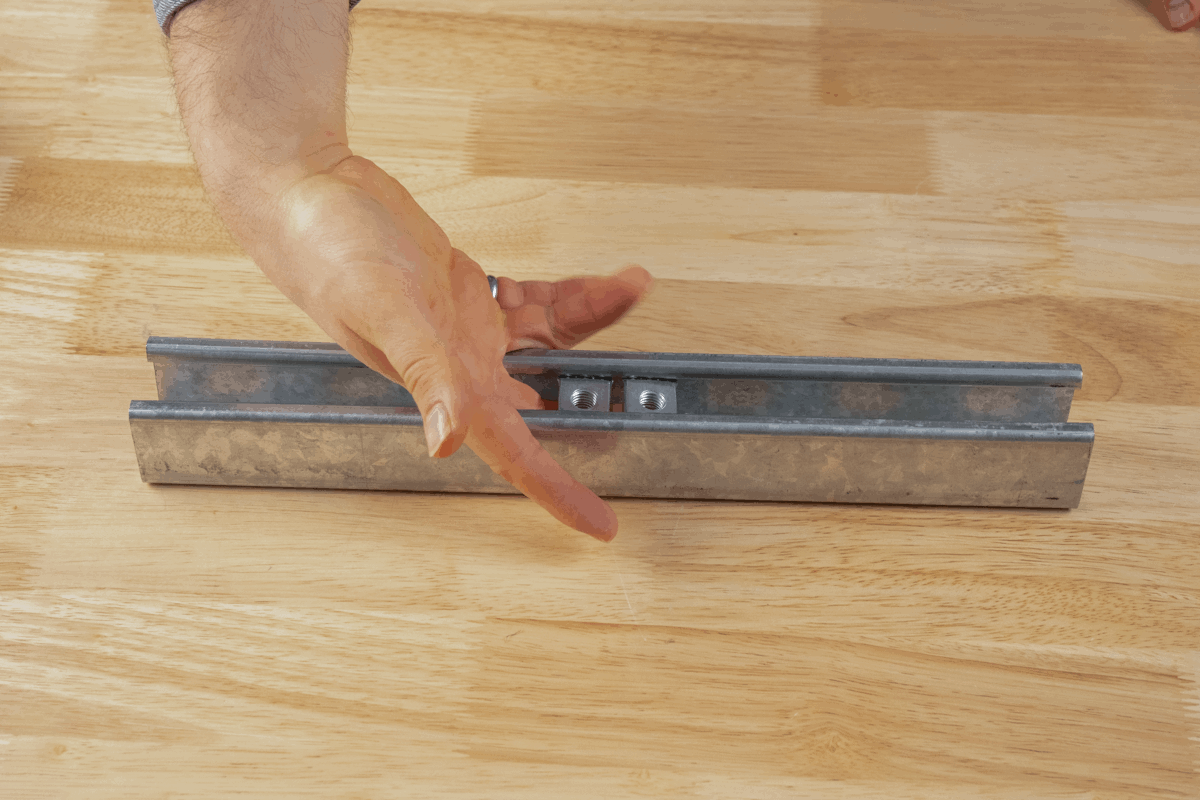

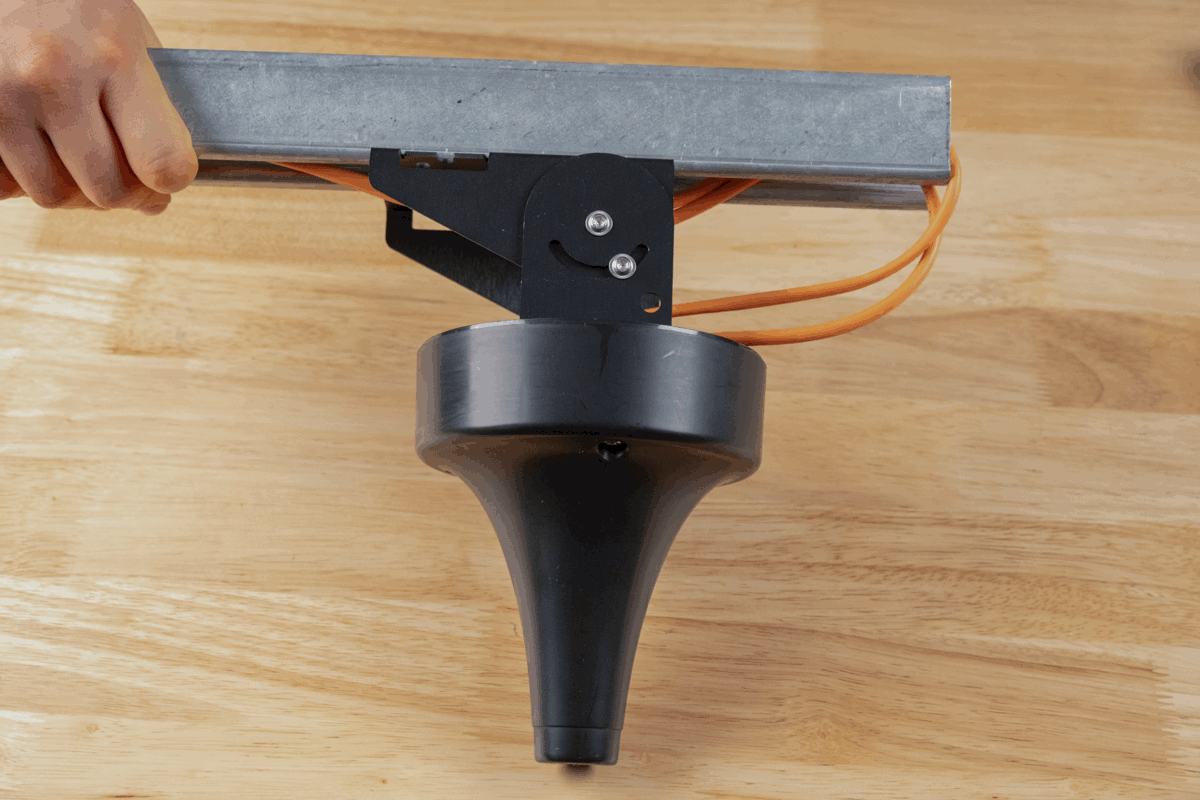

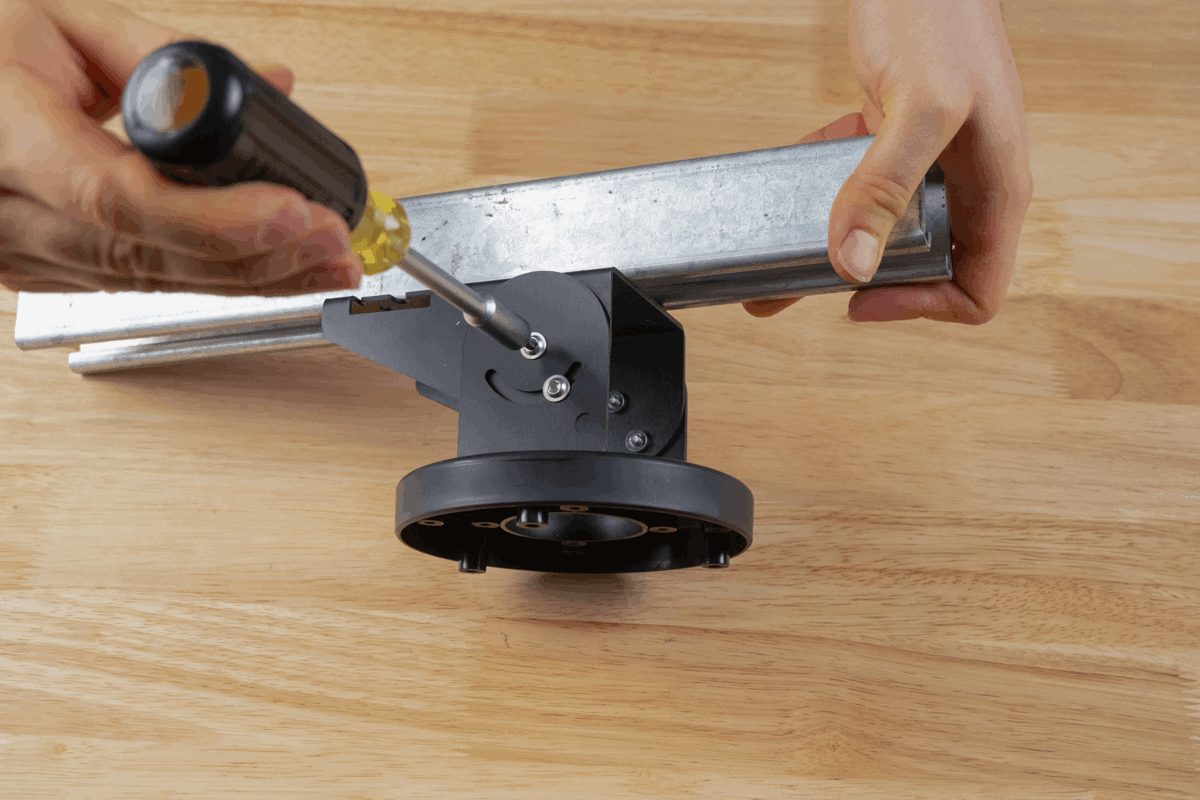

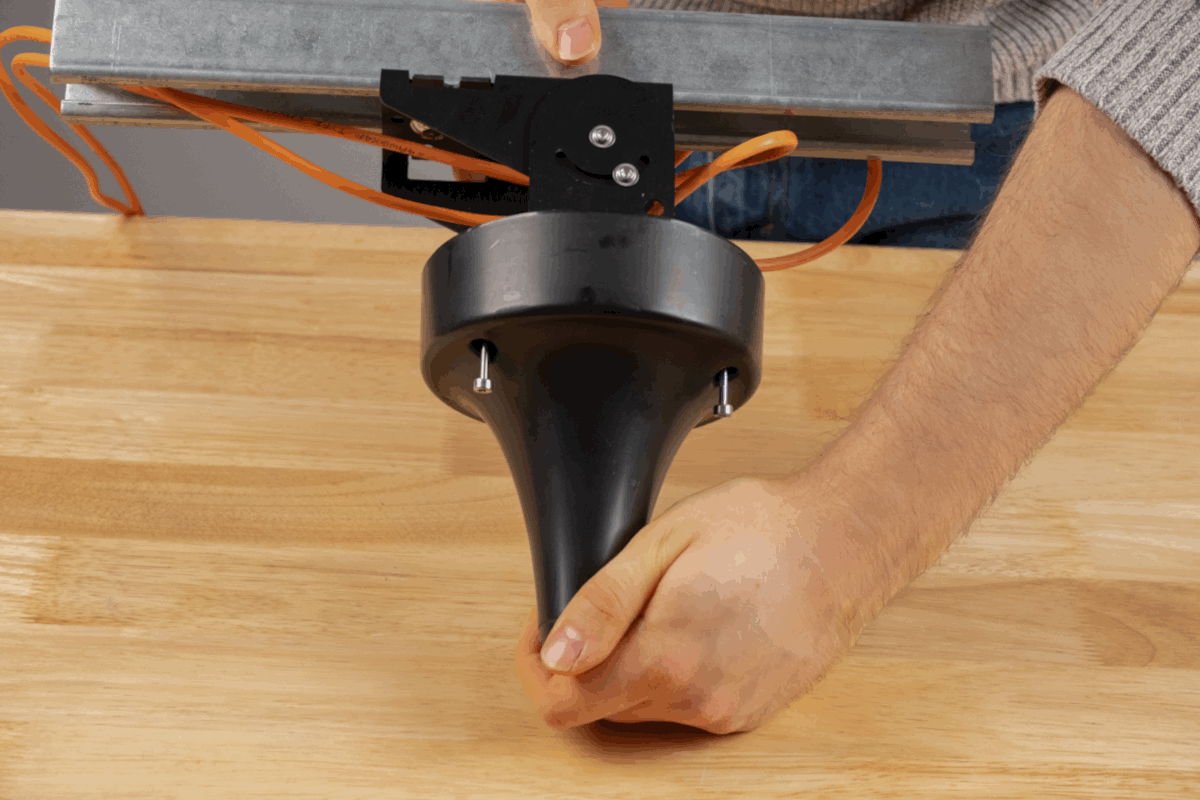

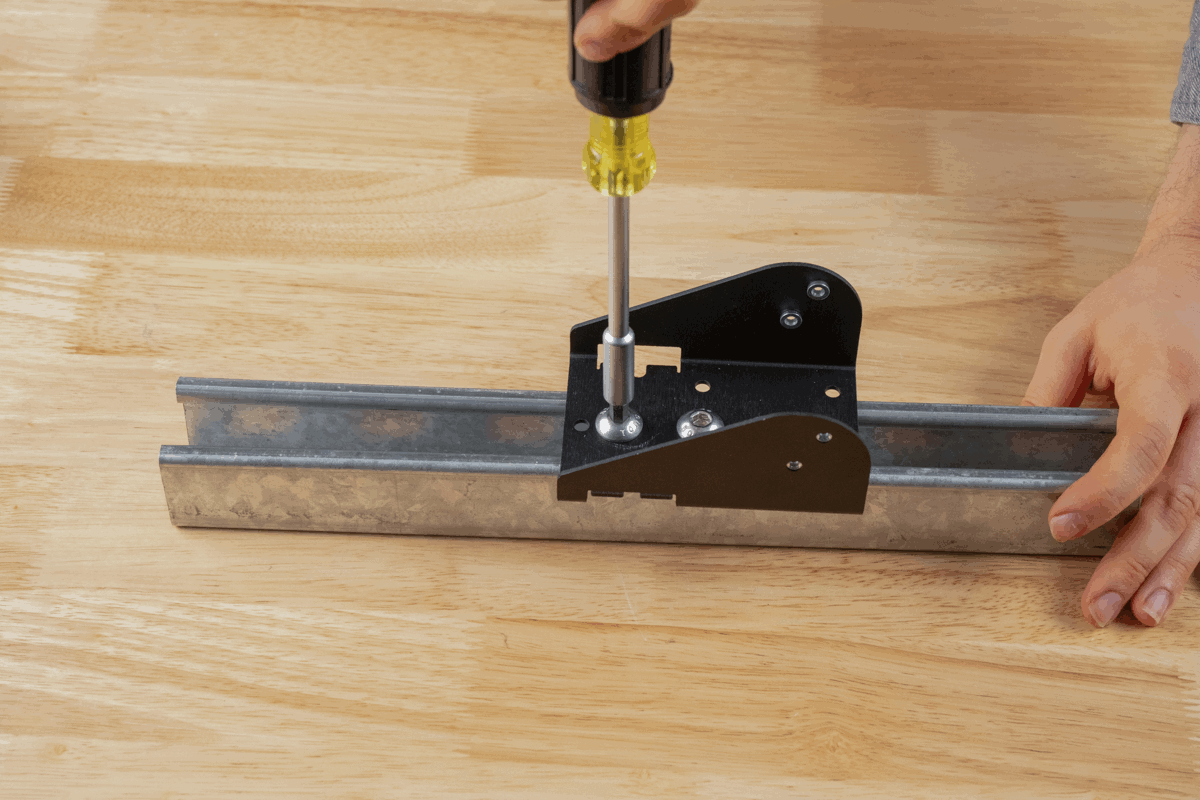

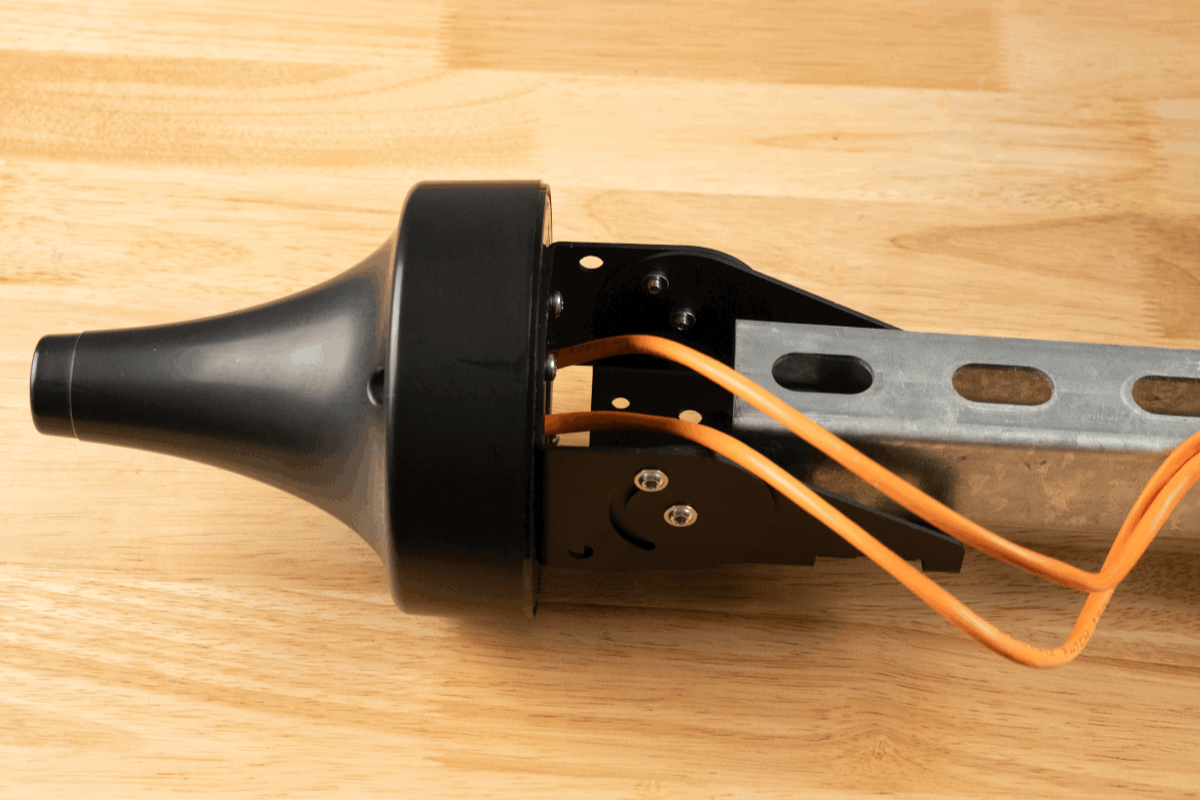

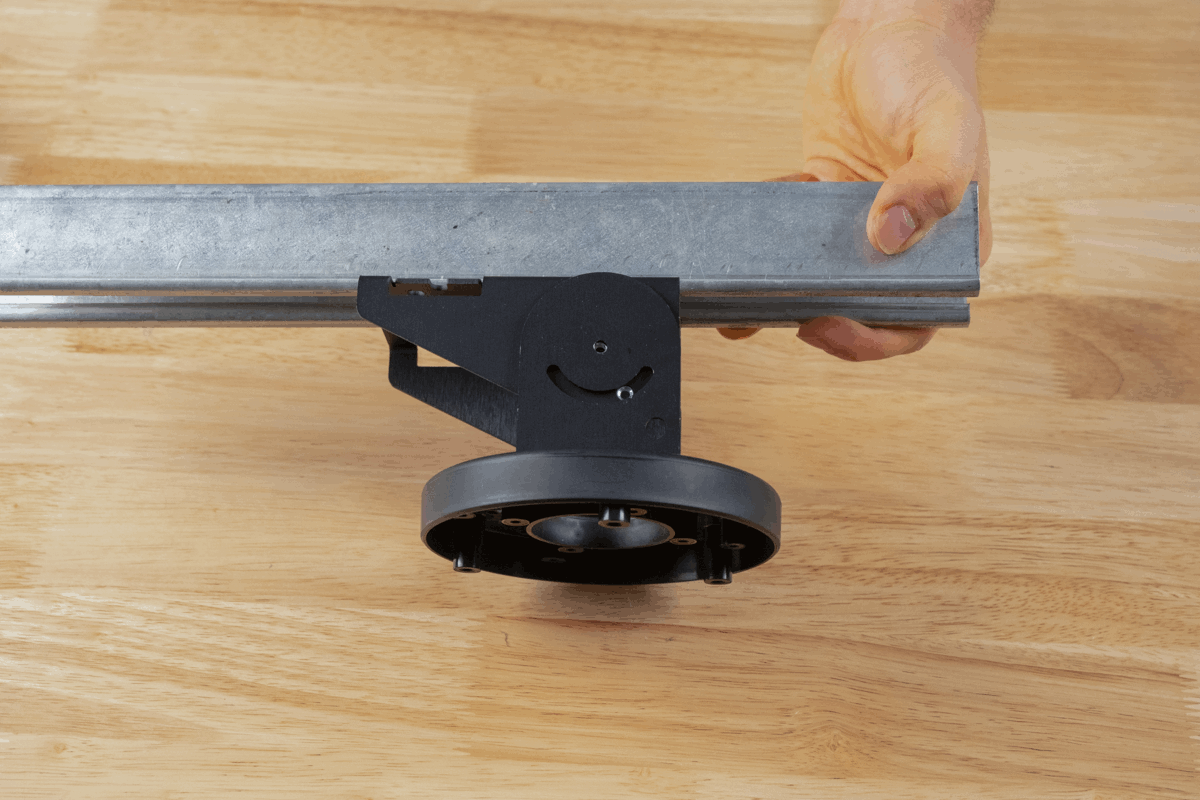

  • Unistrut, either vertical or horizontal
  • V-block pipe clamp
  • Fixed theatrical pipe clamp
  • Beam mount

Additional hardware may be required for mounting.

Assembly

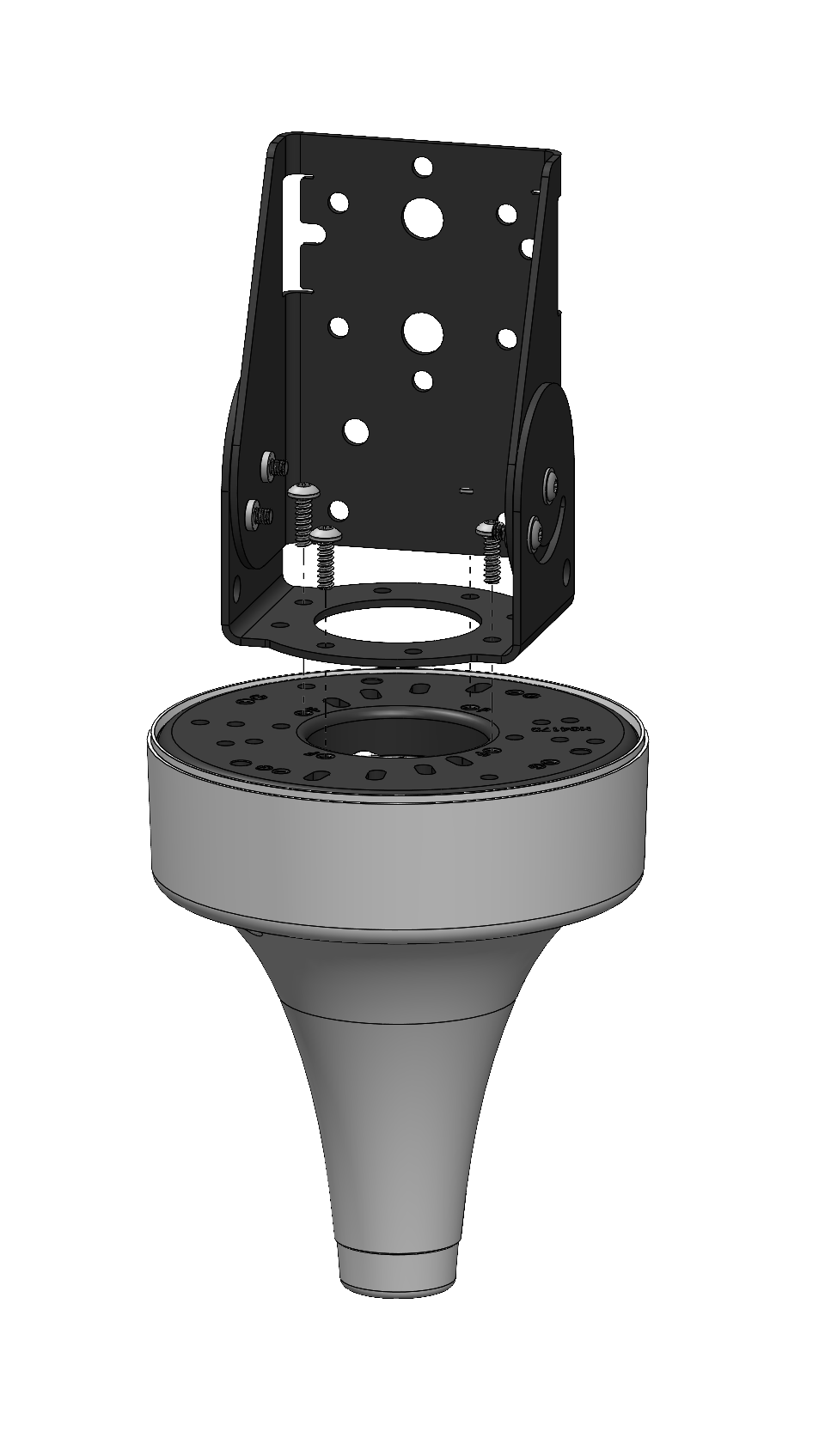

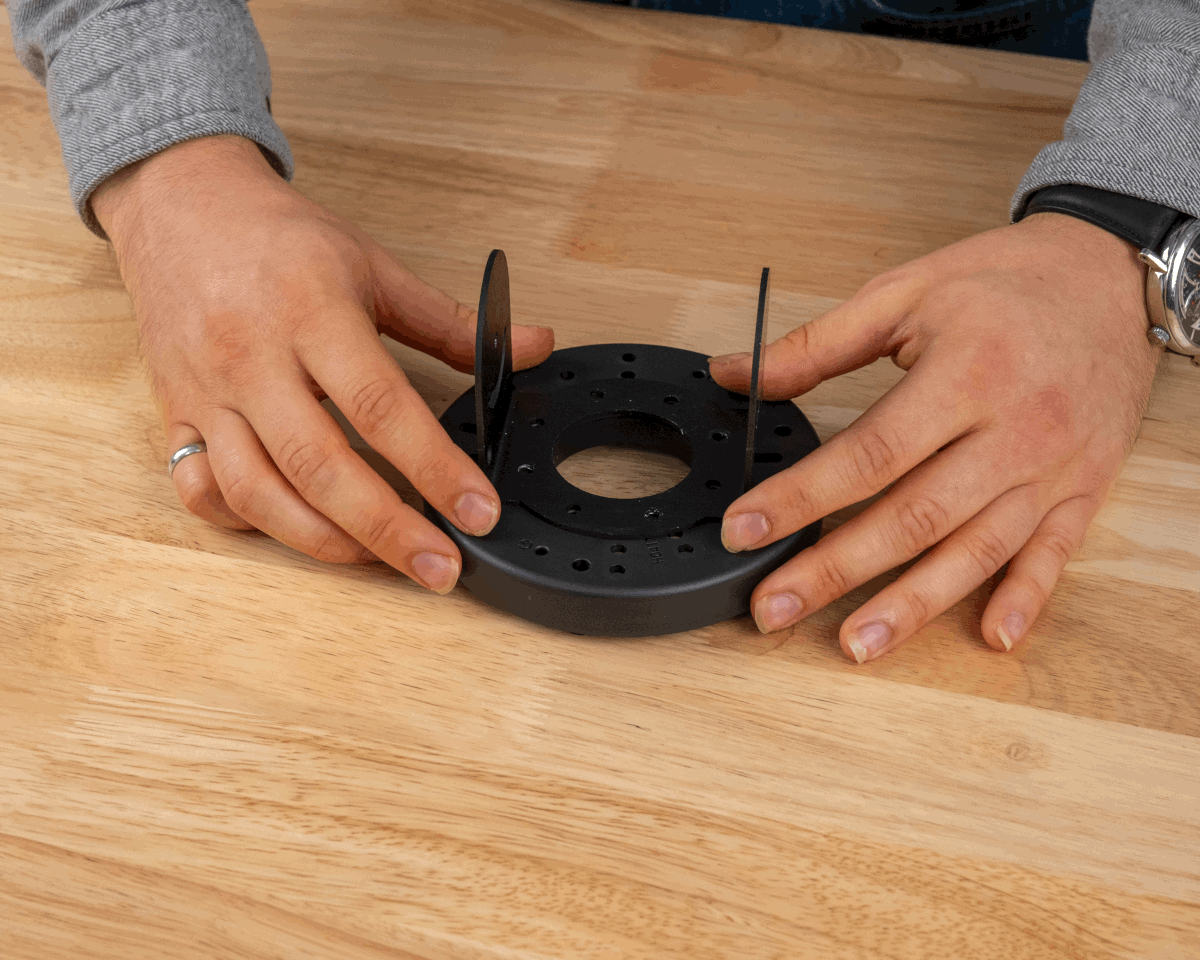

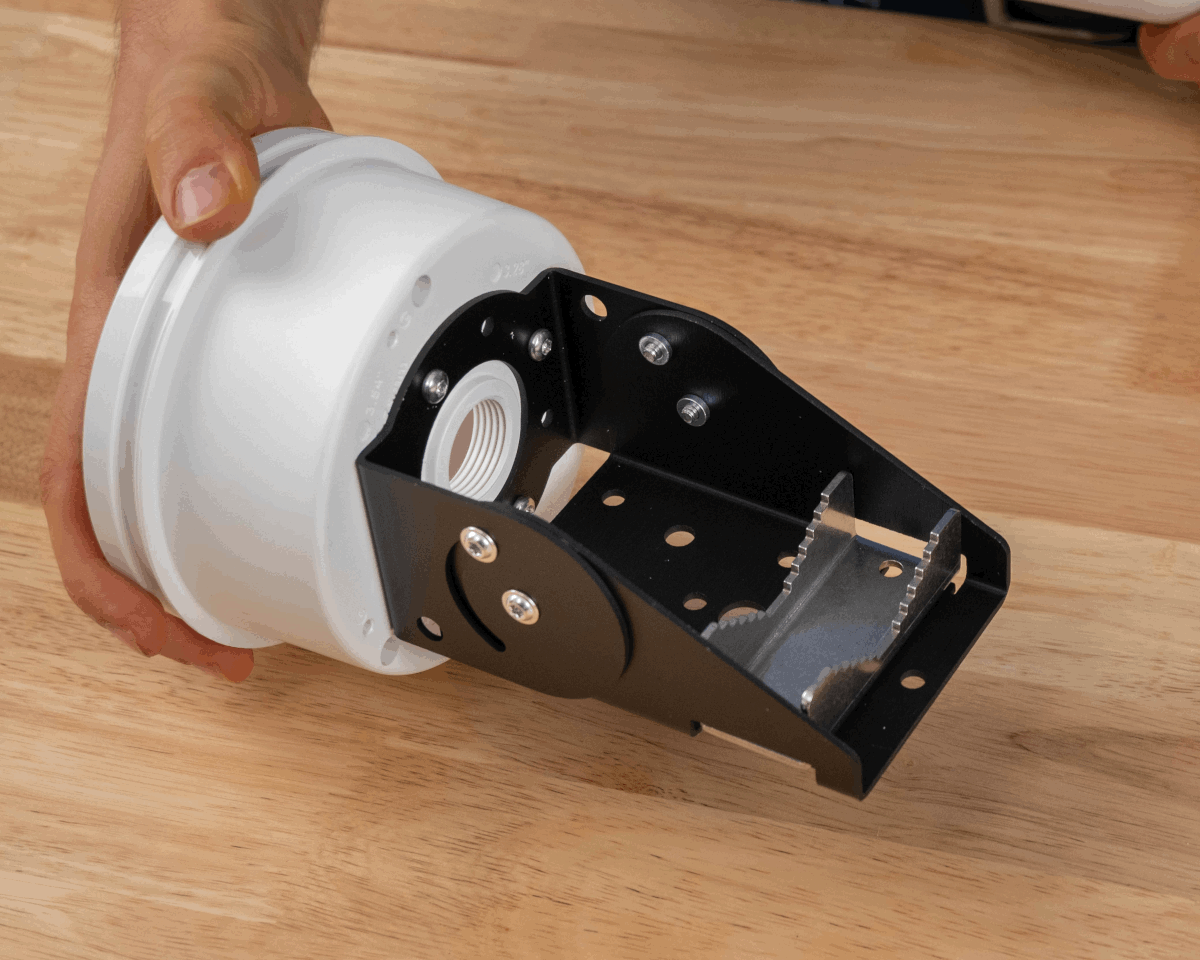

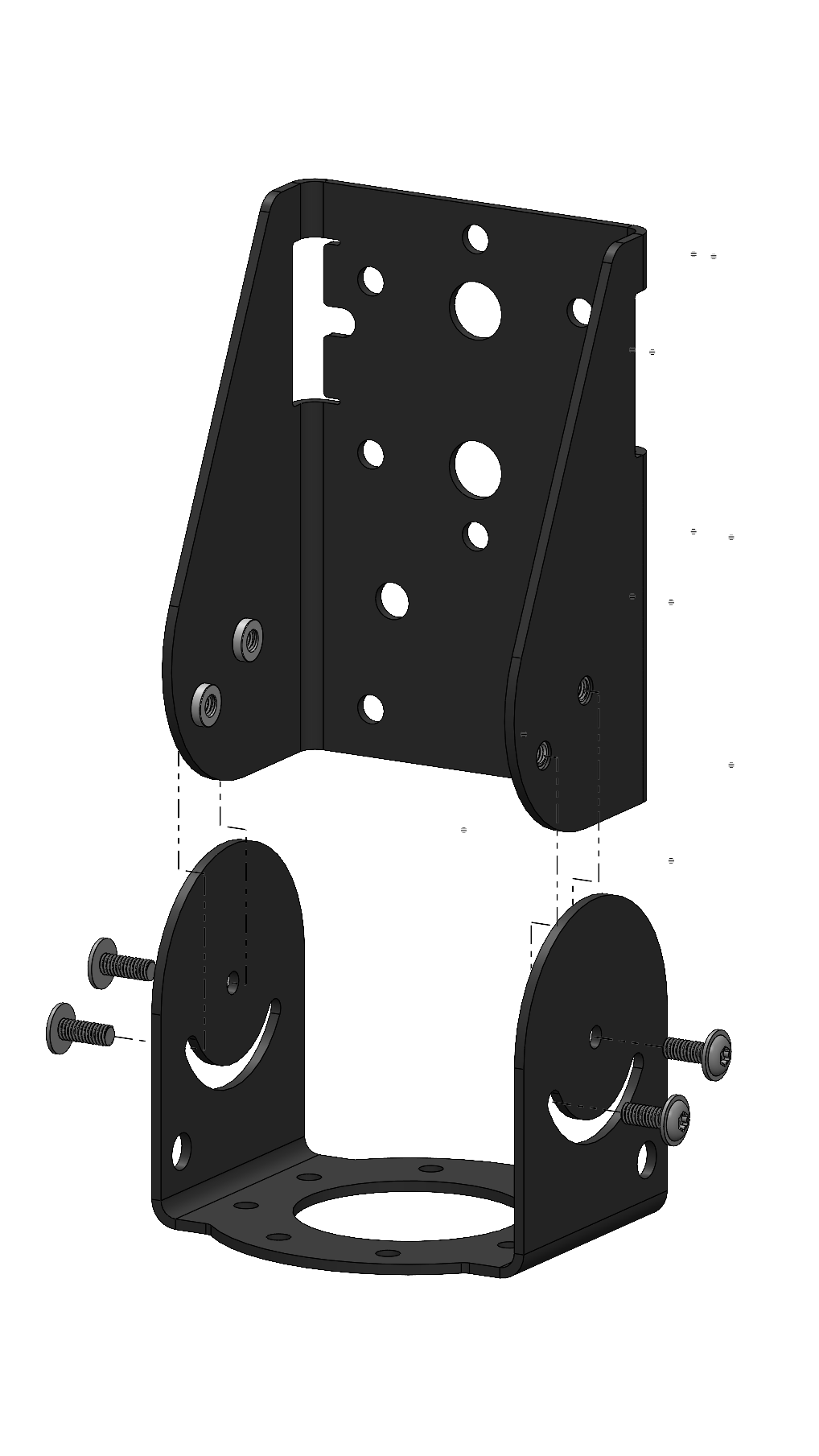

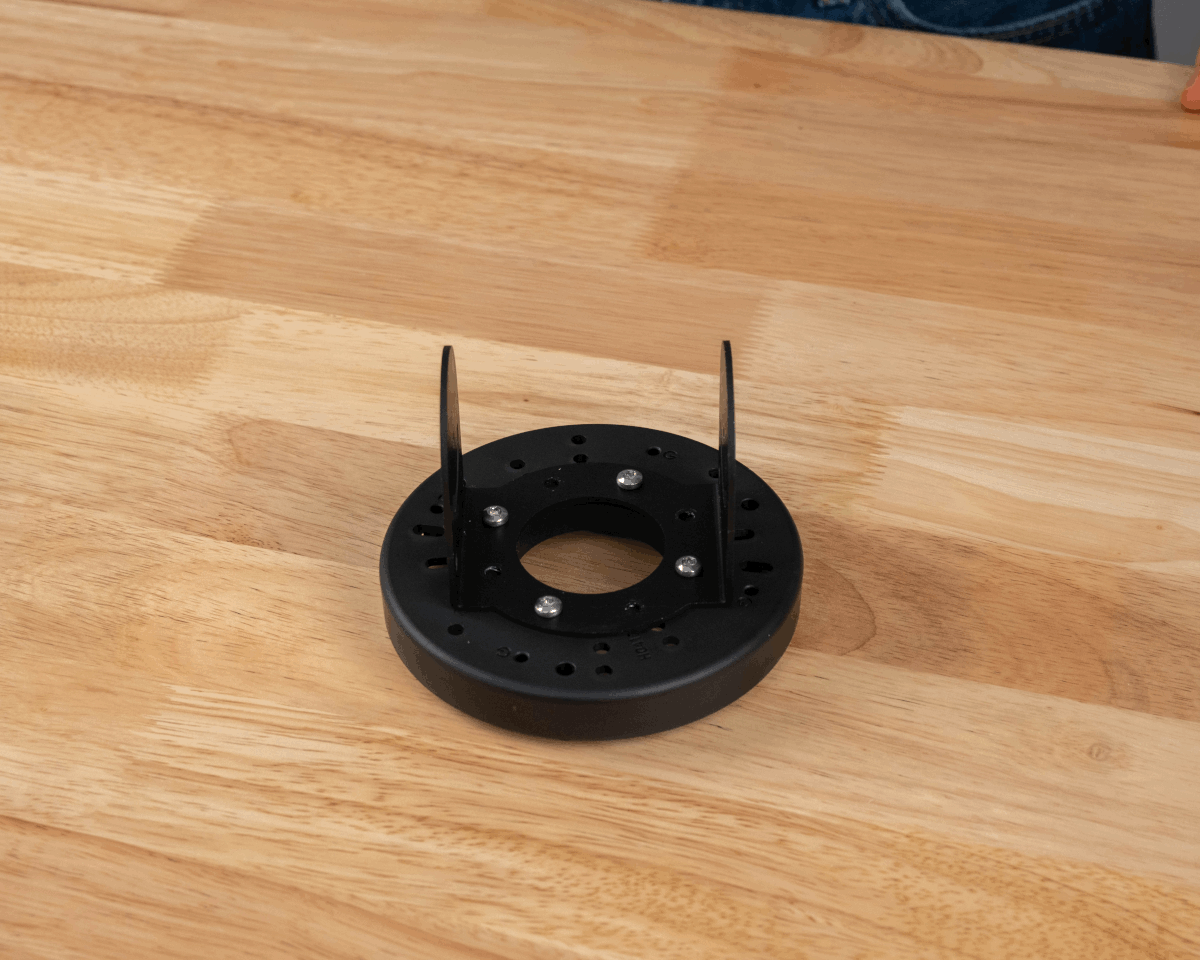

AB301 Parts A & B

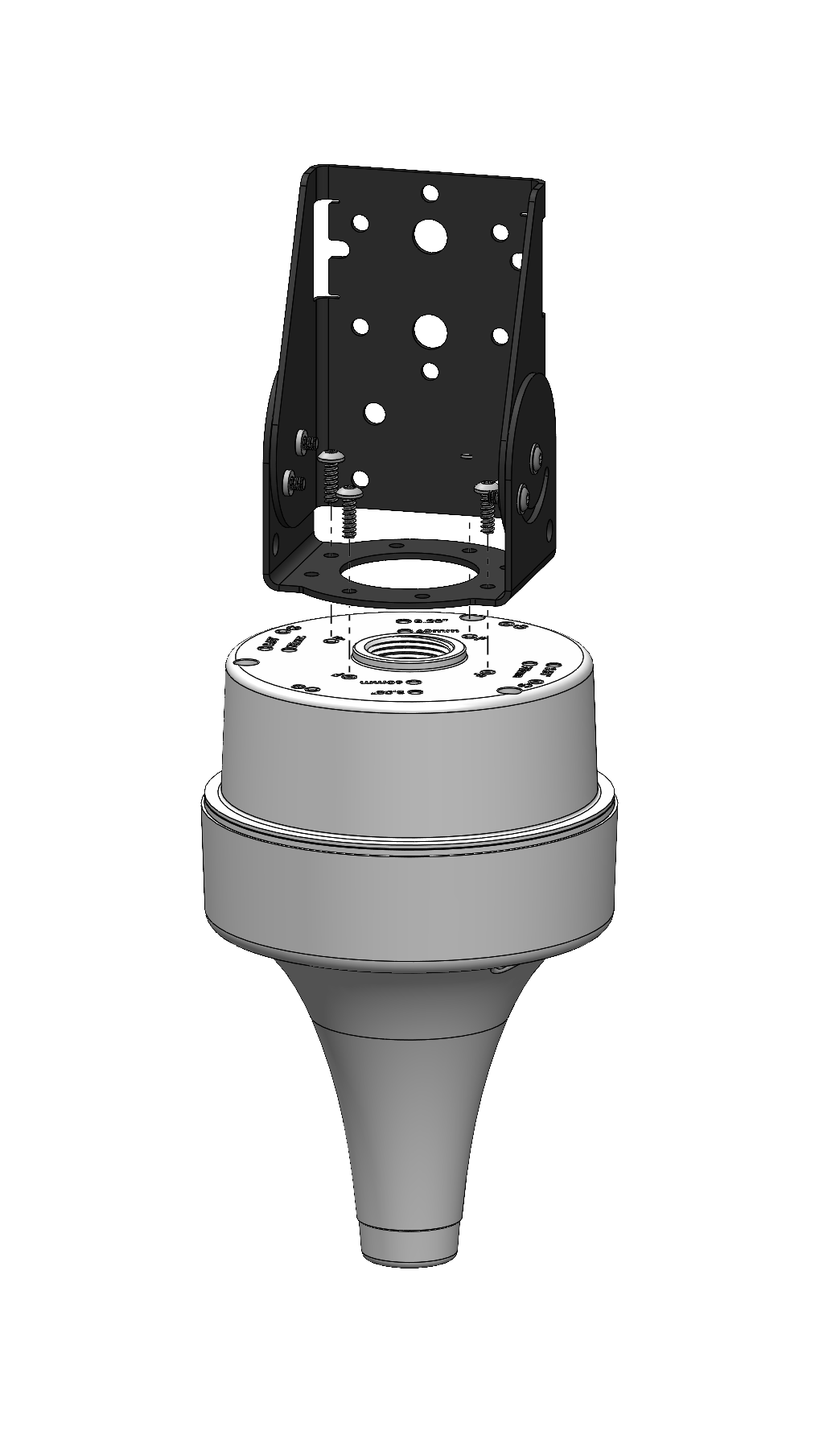

AB301 with AH301 and AH302

AB301 with AH301 Plate AB301 with AH302 Box

Mounting Instructions

AH301

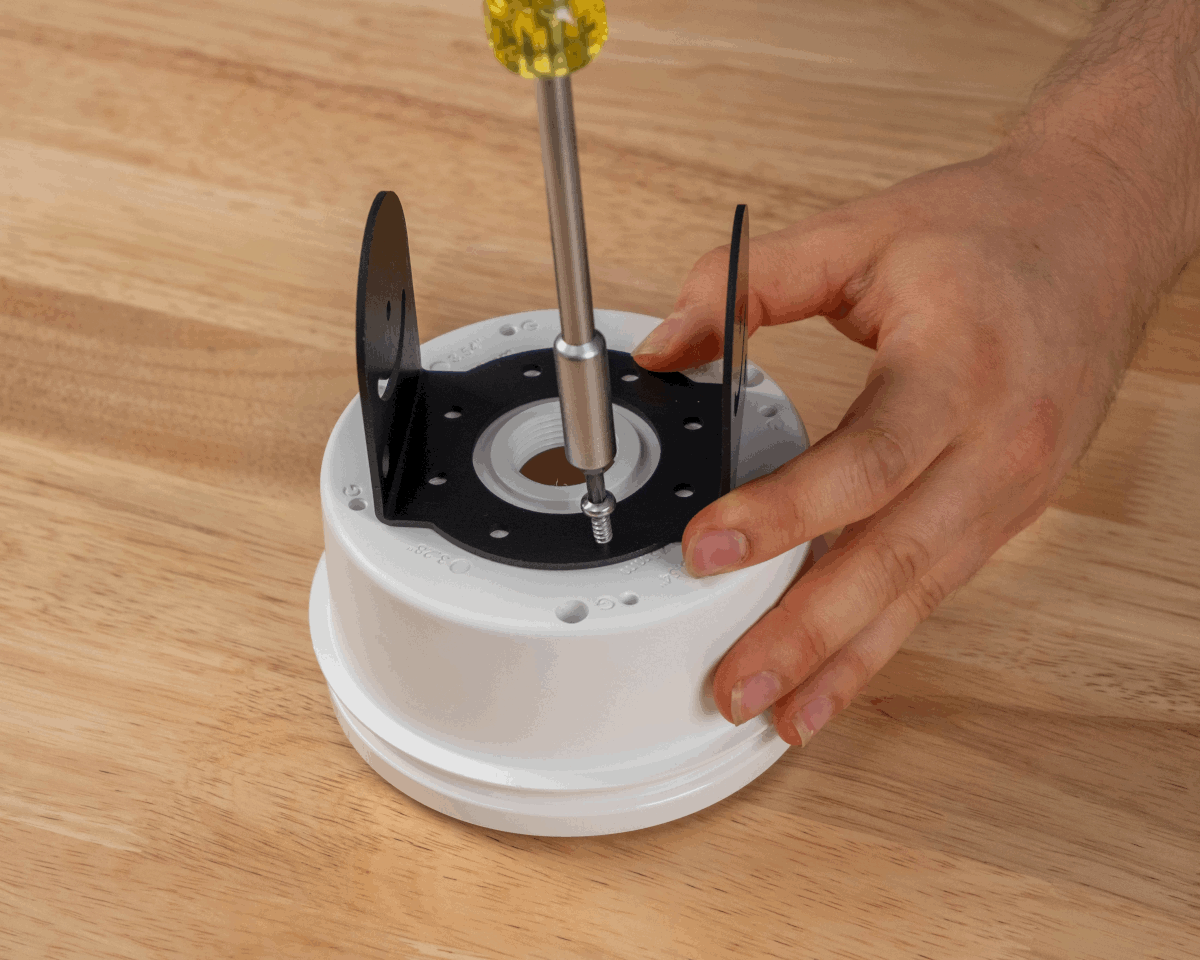

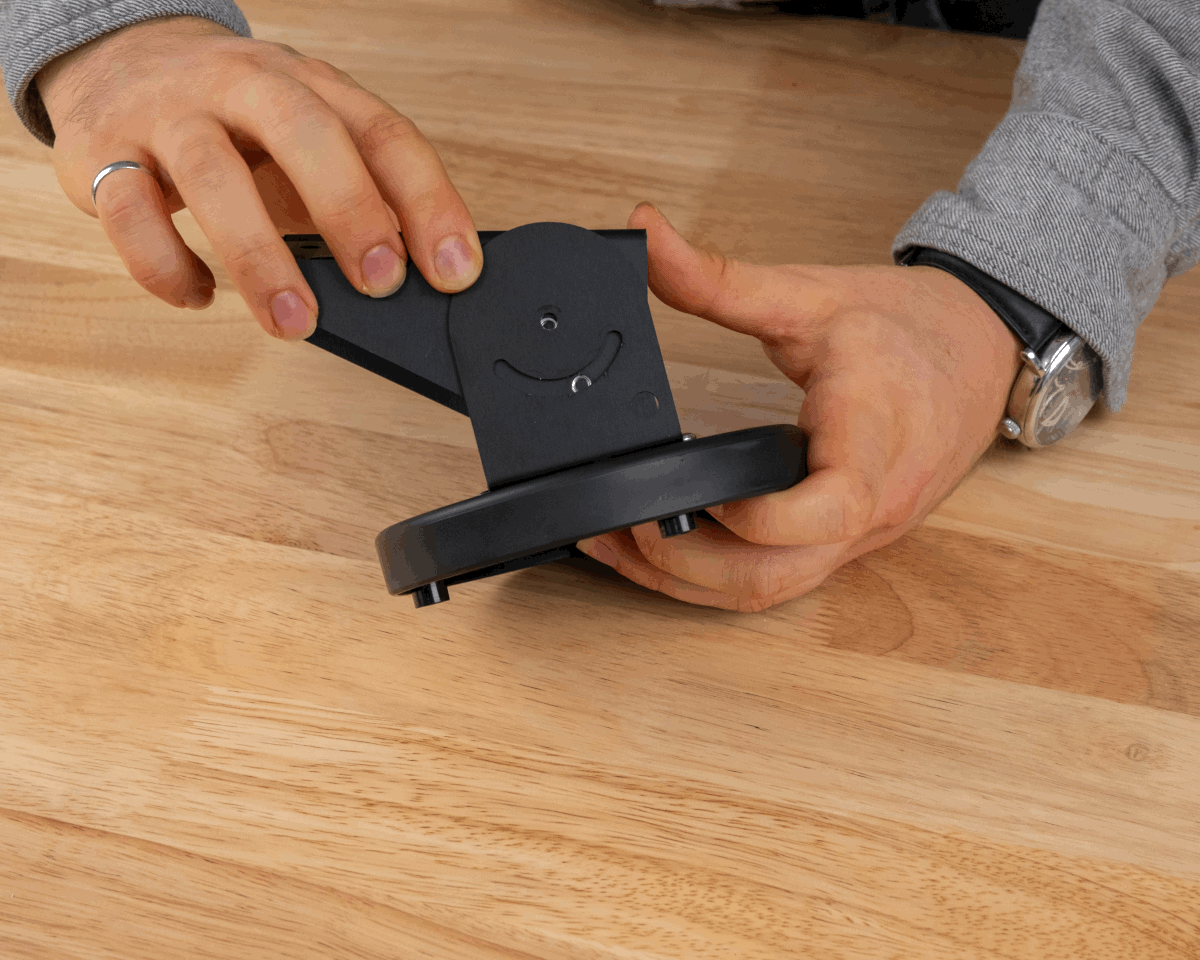

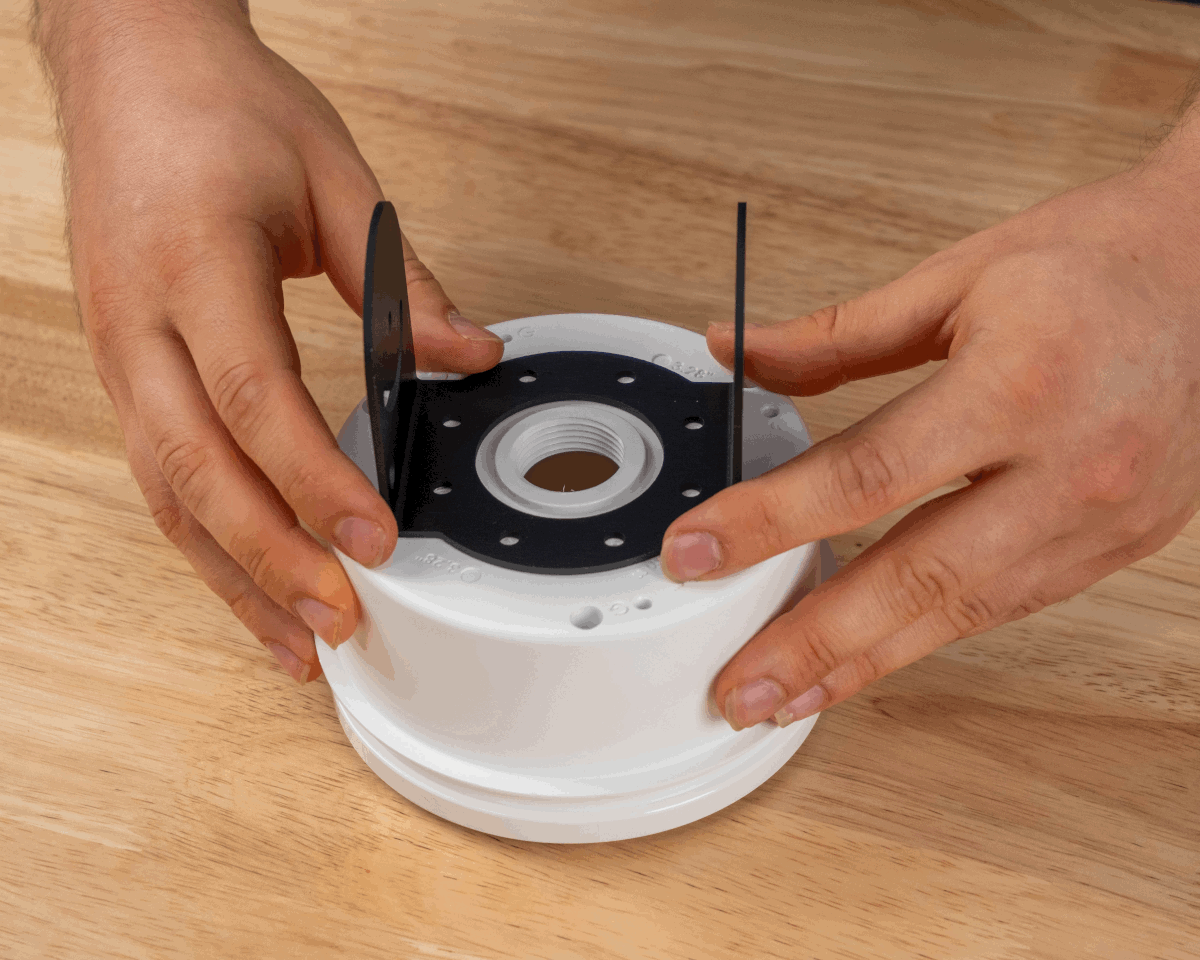

  1. Align AB301 Part B with the F hole pattern on the back of AH301.

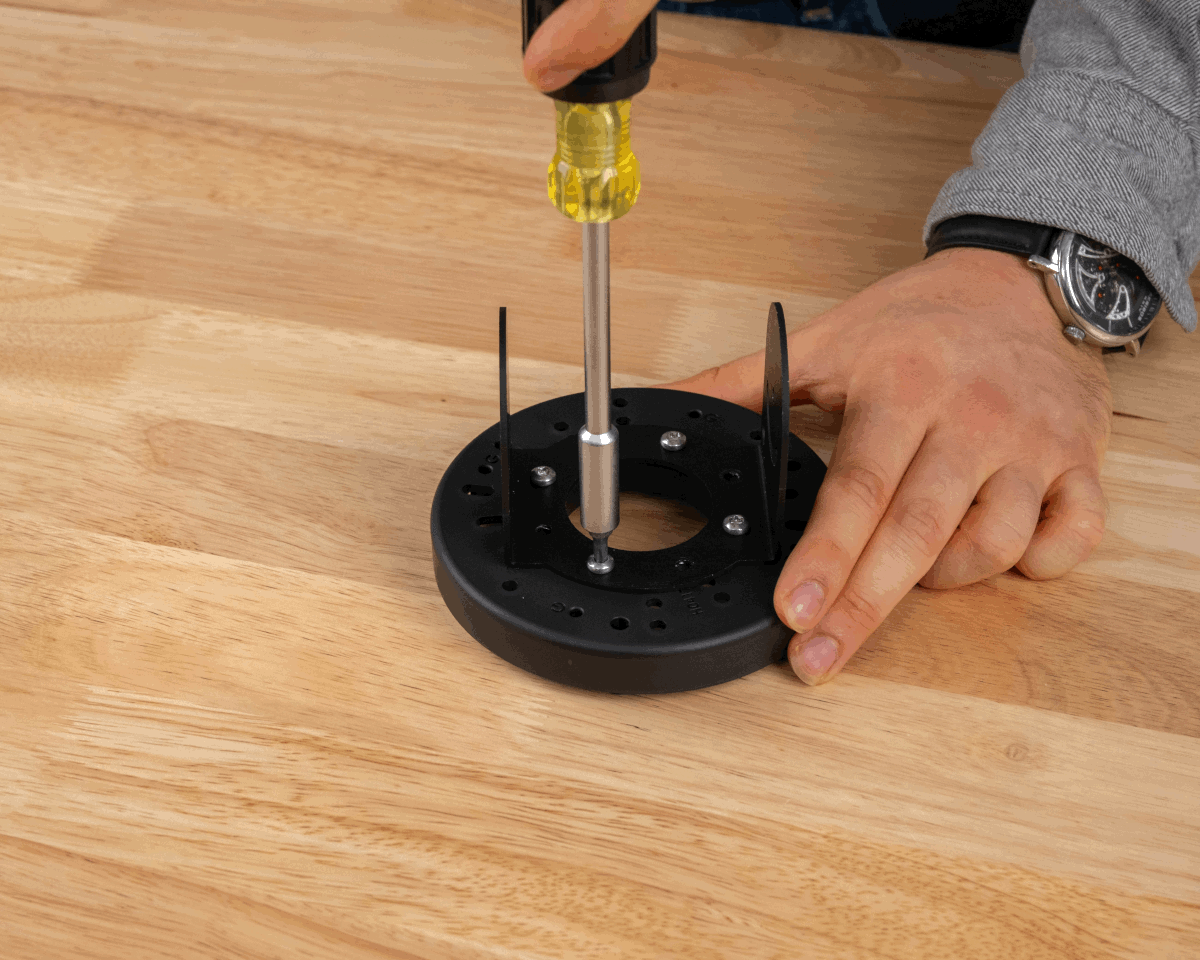

  2. Using the #8 1/2-inch self-tapping screws, install AB301 Part B to AH301. Use four screws in total. Ciholas provides one spare.

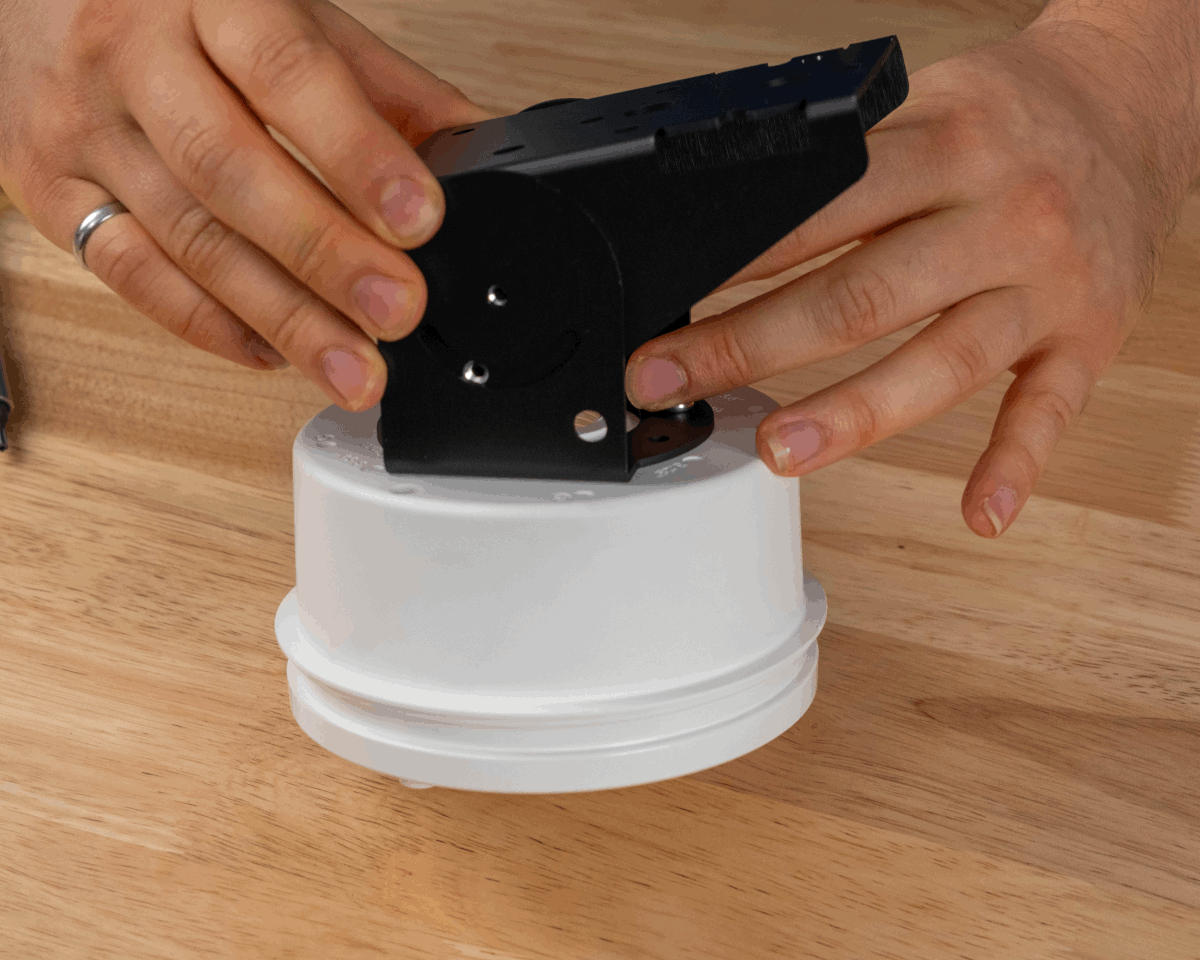

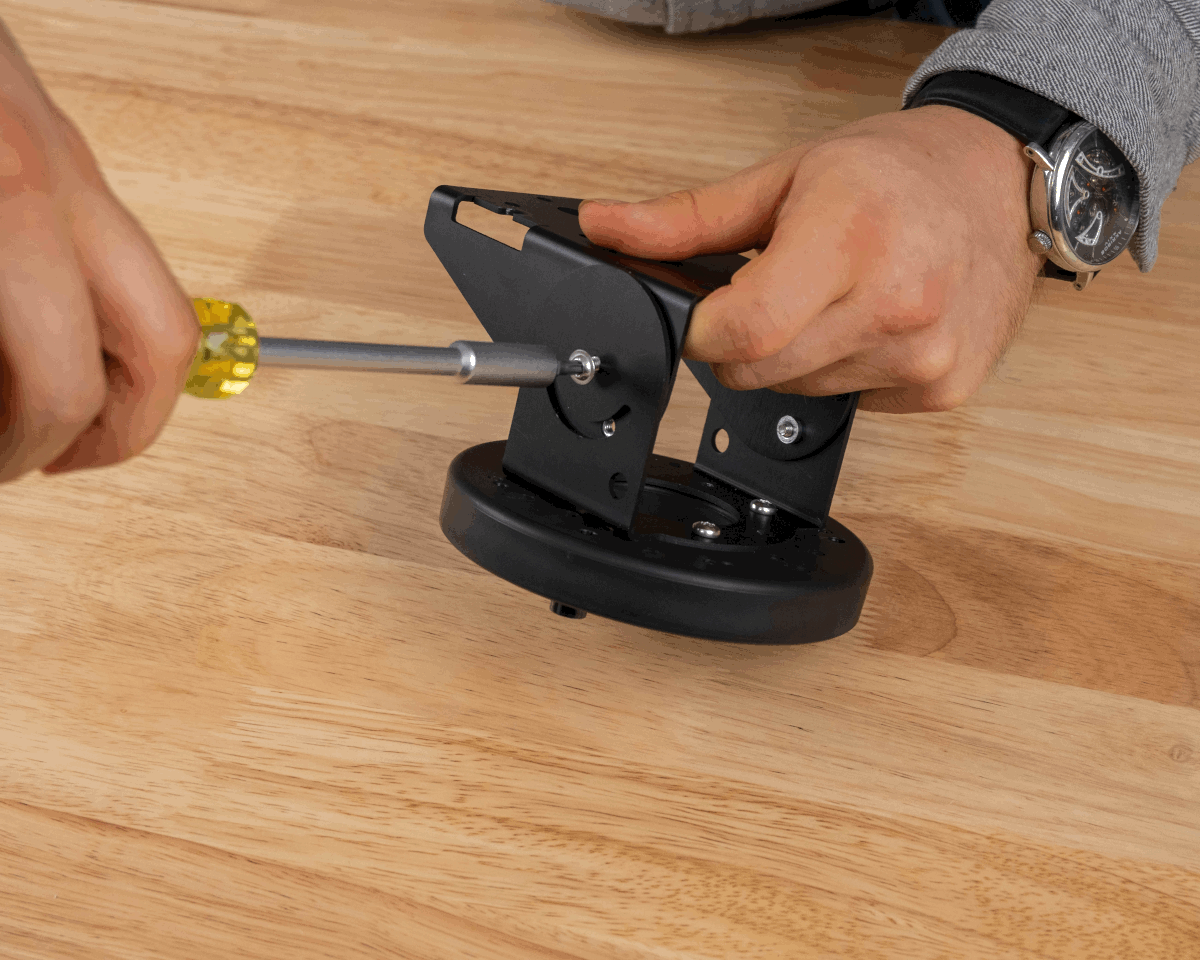

  3. Align AB301 Part A with Part B. Using the M4 8mm flanged head screws, install AB301 Part A to AB301 Part B. Adjust the required angle for the bracket as needed.


  4. Install AB301 to mounting location directly or with AB302 or AB303 accessories.

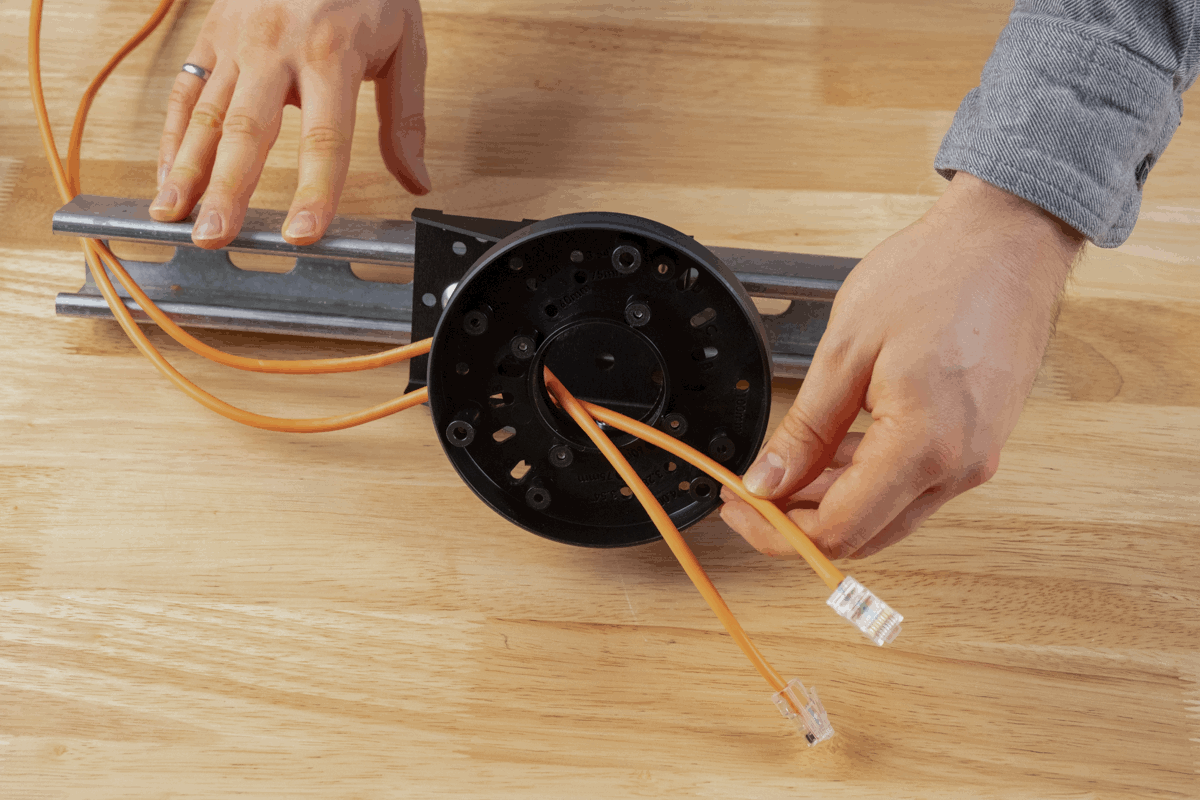

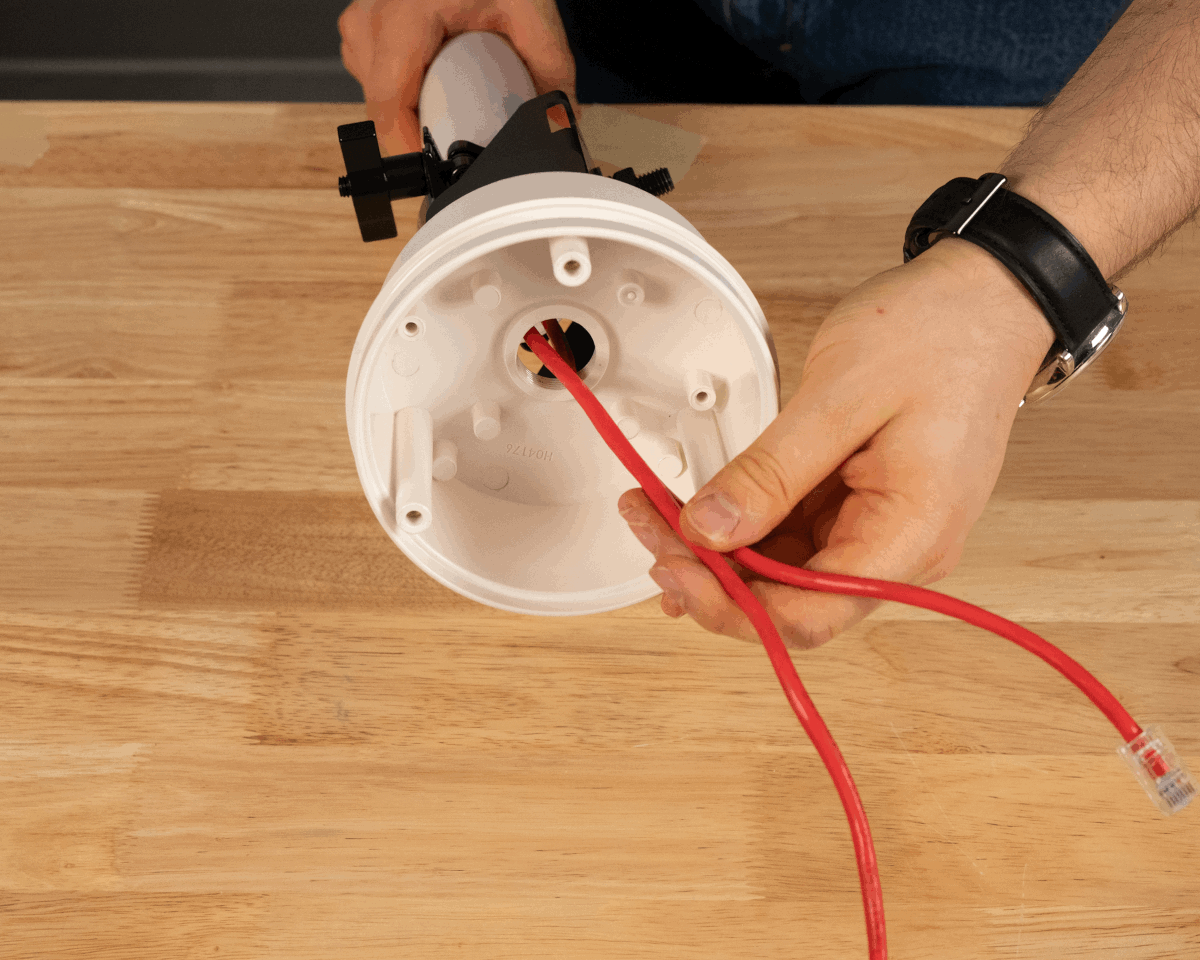

  5. Route cables through the mount.

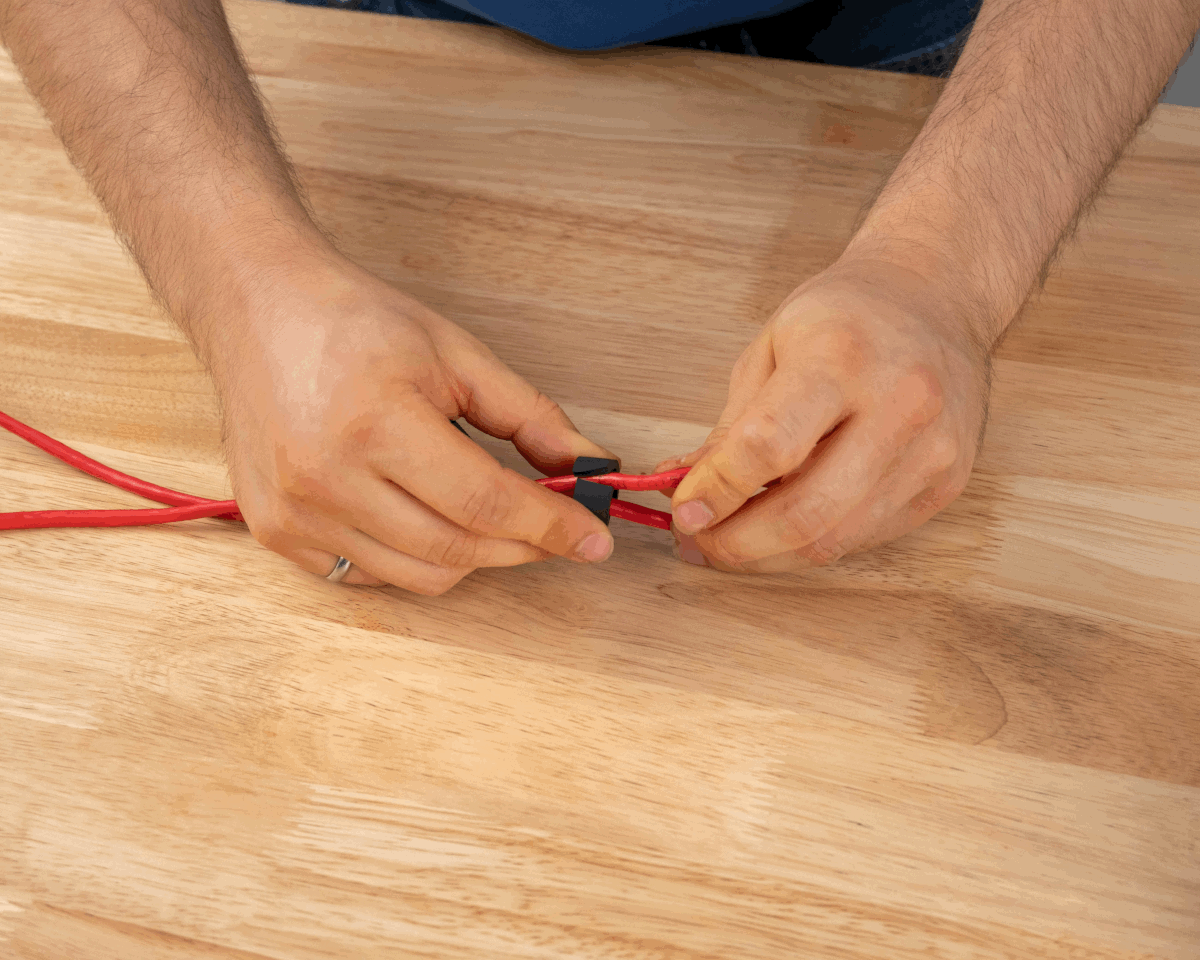

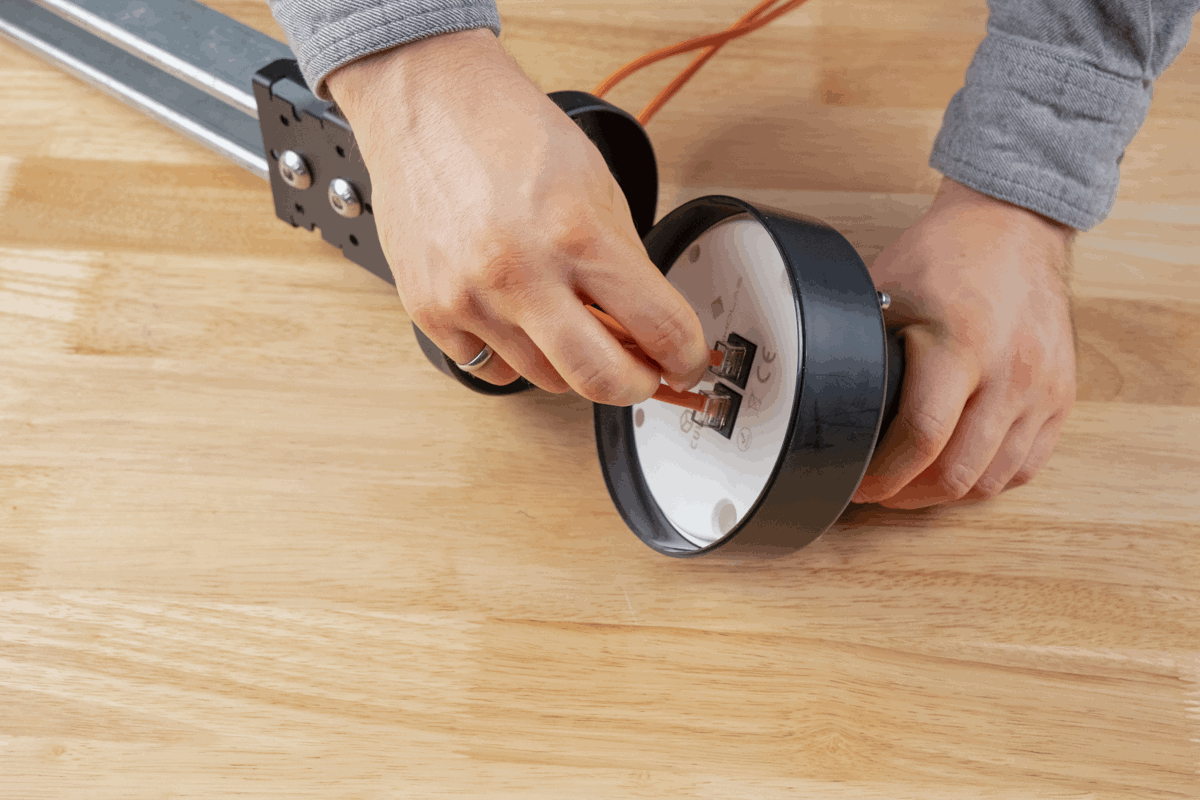

  6. Provide enough cable for a service loop and plug cable(s)

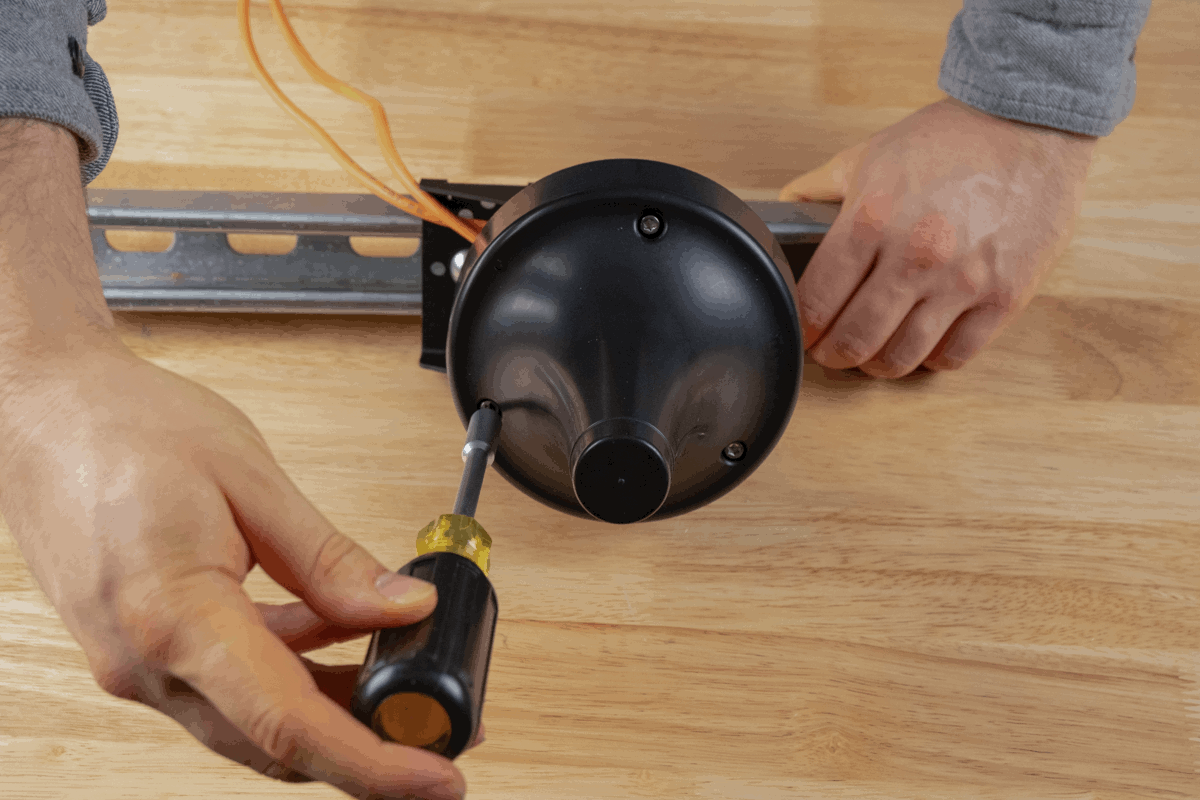

  7. Install AN302 to AH301 using the captive screws.

AH302

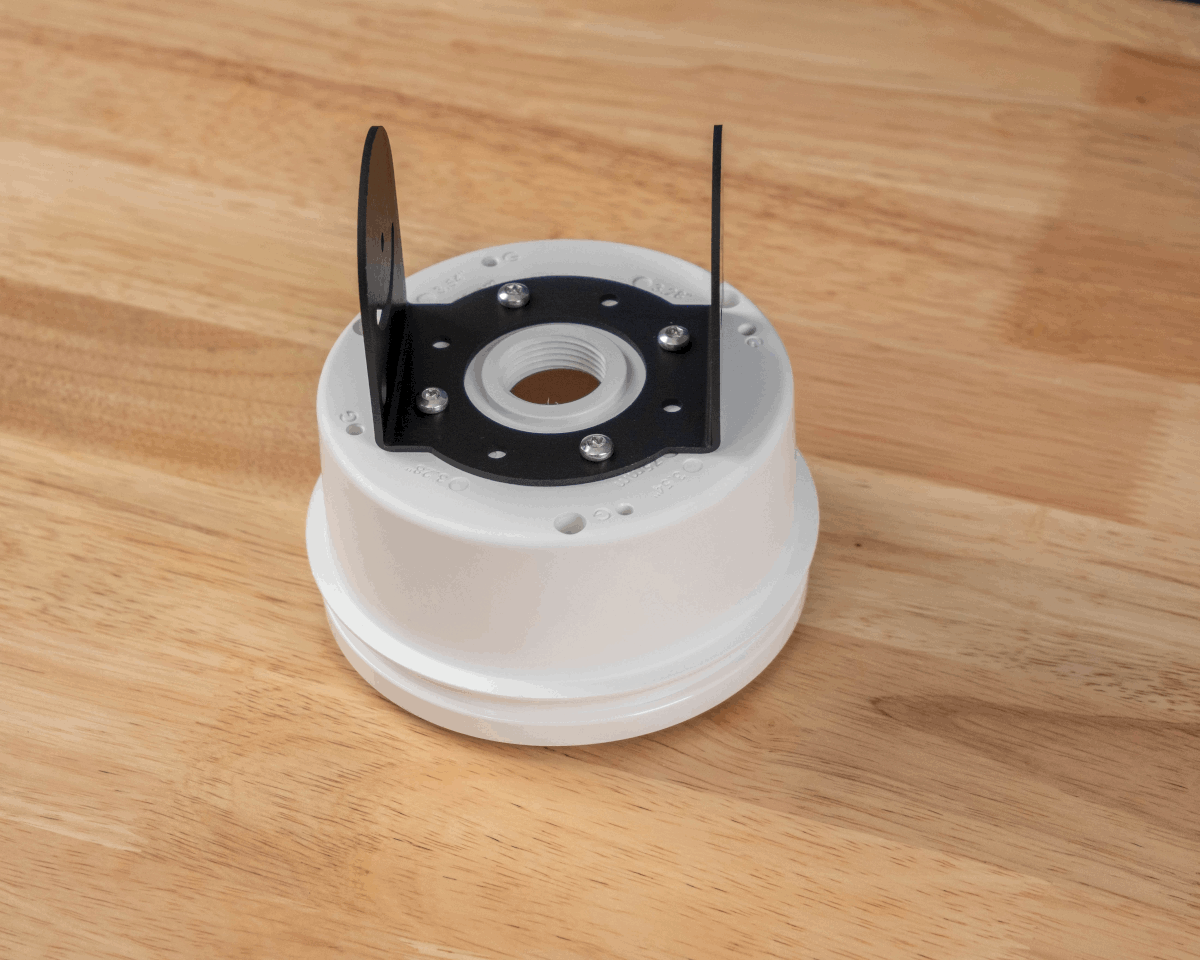

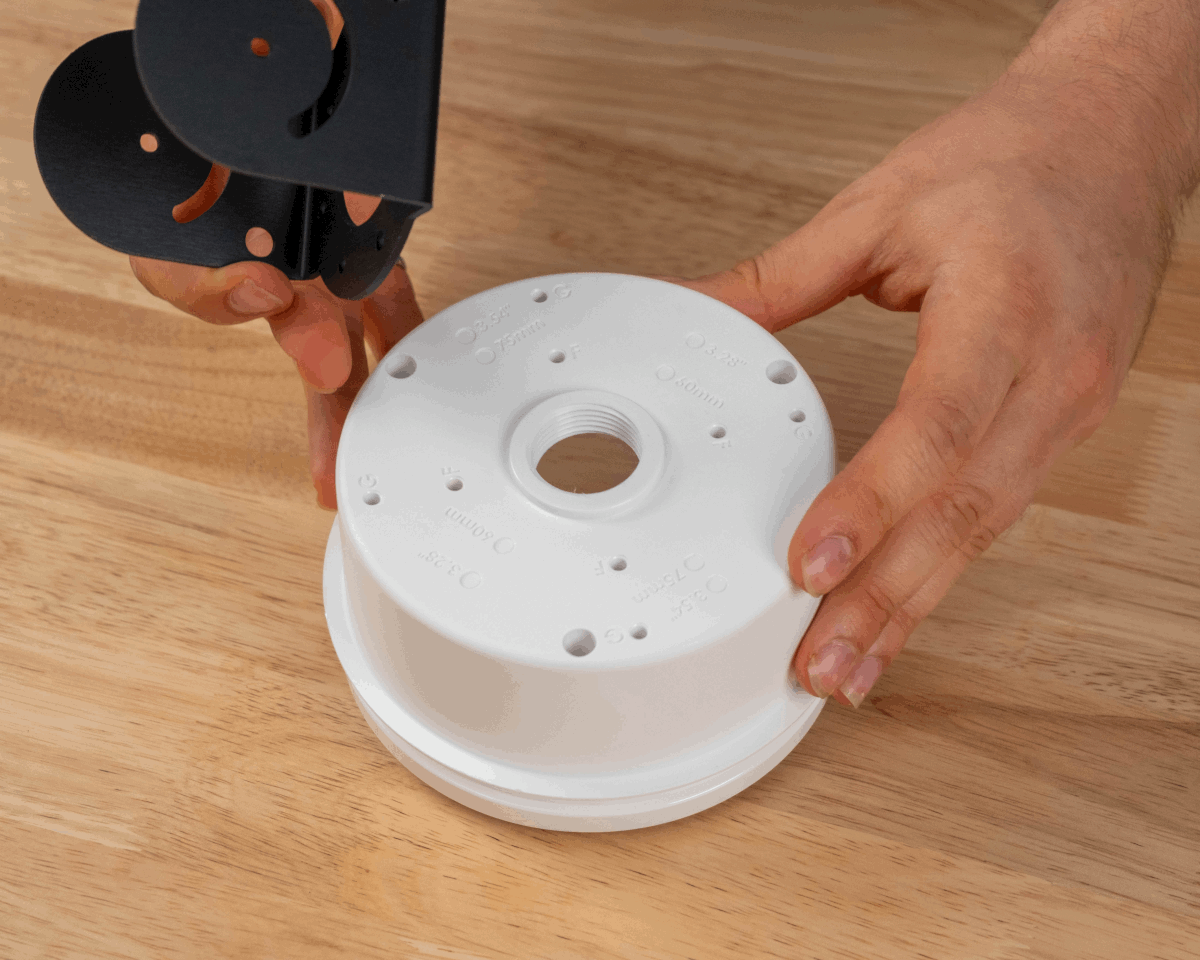

  1. Align AB301 Part B with the F hole pattern on the back of AH302.


  2. Using the #8 1/2-inch self-tapping screws, install AB301 Part B to AH302. Use four screws in total. Ciholas provides one spare.


  3. Align AB301 Part A with Part B. Using the M4 8mm flanged head screws, install AB301 Part A to AB301 Part B. Adjust the required angle for the bracket as needed.


  4. Install AB301 to mounting location directly or with AB302 or AB303 accessories.
  5. Route cables through the mount.
  6. Provide enough cable for a service loop and plug cable(s)
  7. Install AN302 to AH302 using the captive screws.

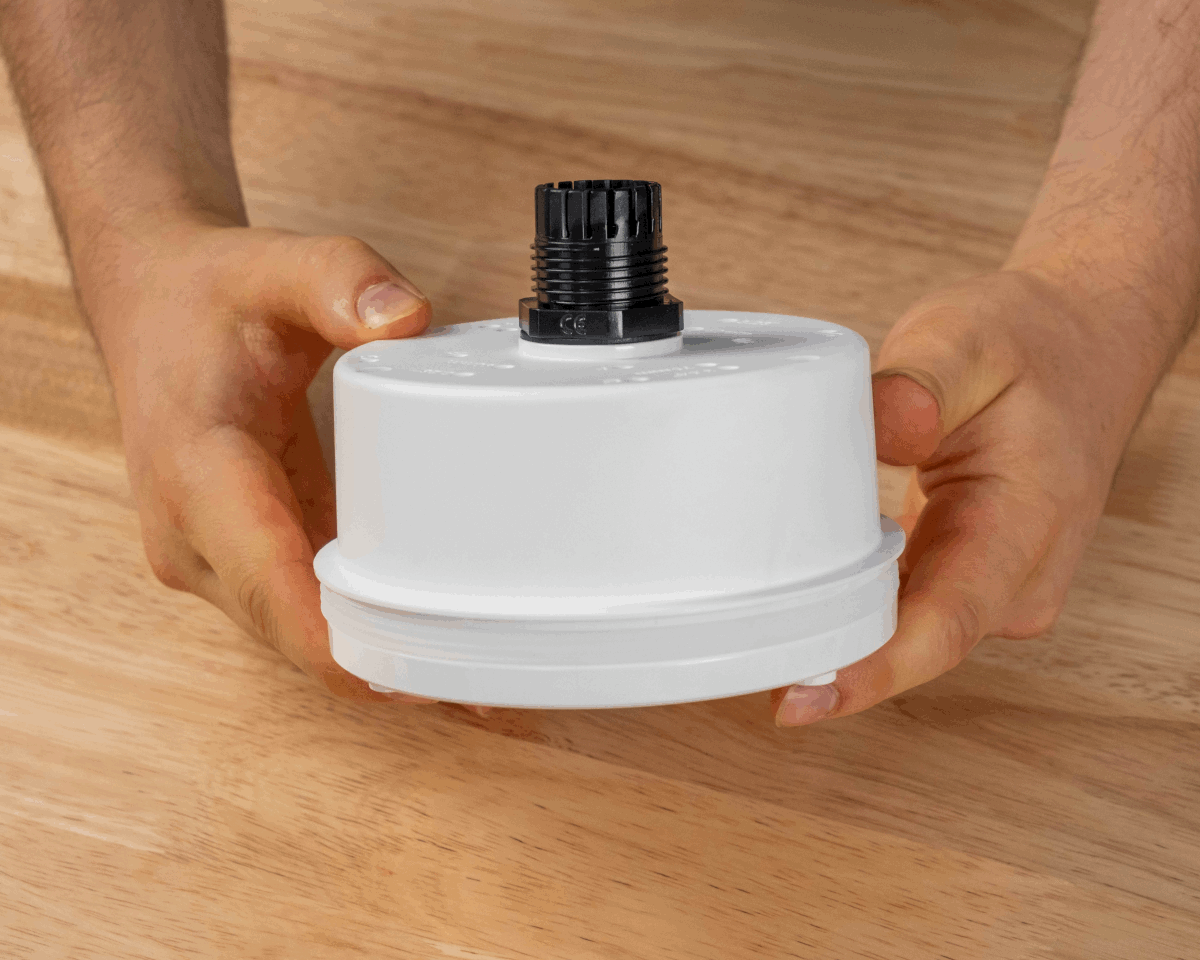

AH302 with AH303 Sealing Kit

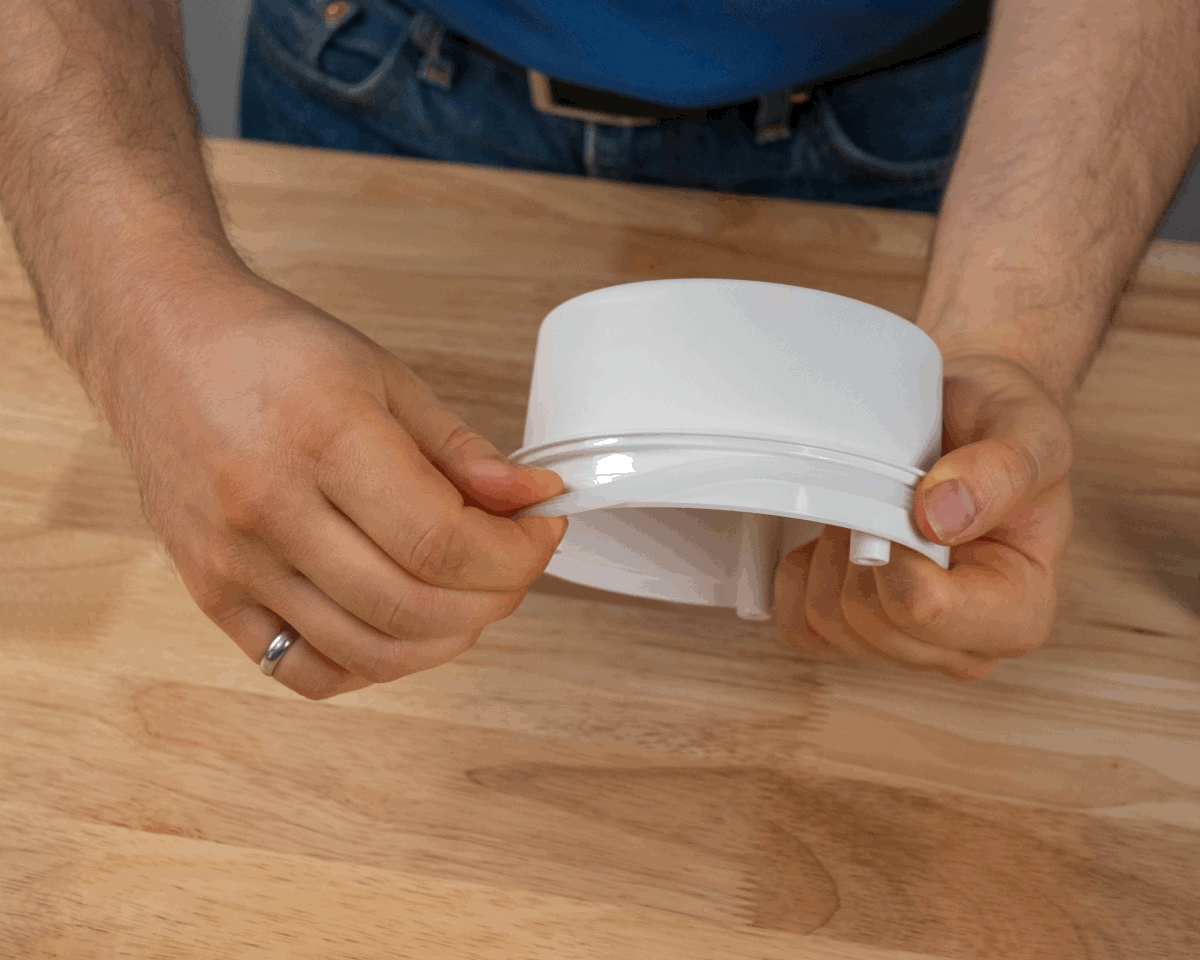

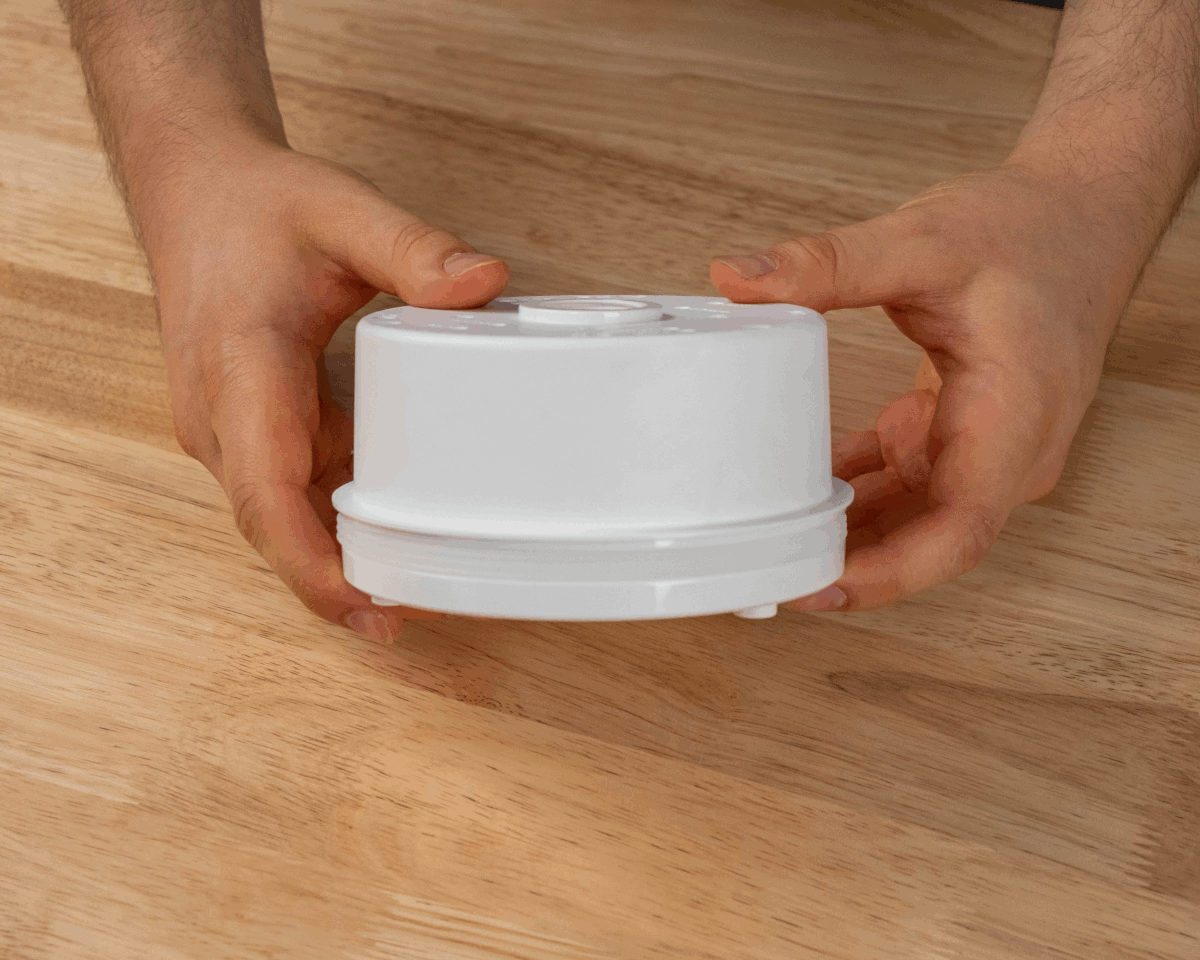

  1. Insert the sealing gasket into the groove of the AH302 Mounting Box with the large “teeth” facing outwards. Verify the seal is stretched evenly.

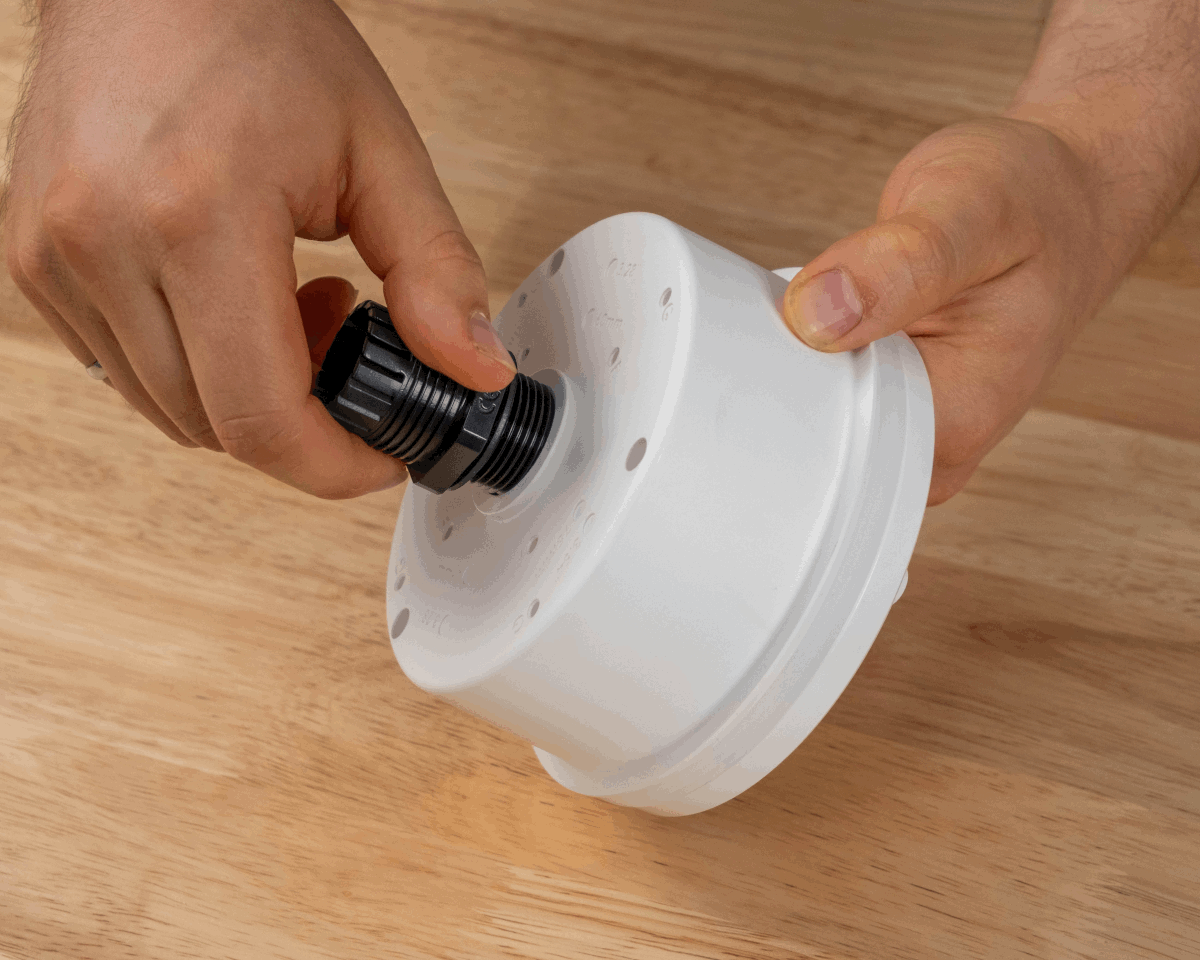

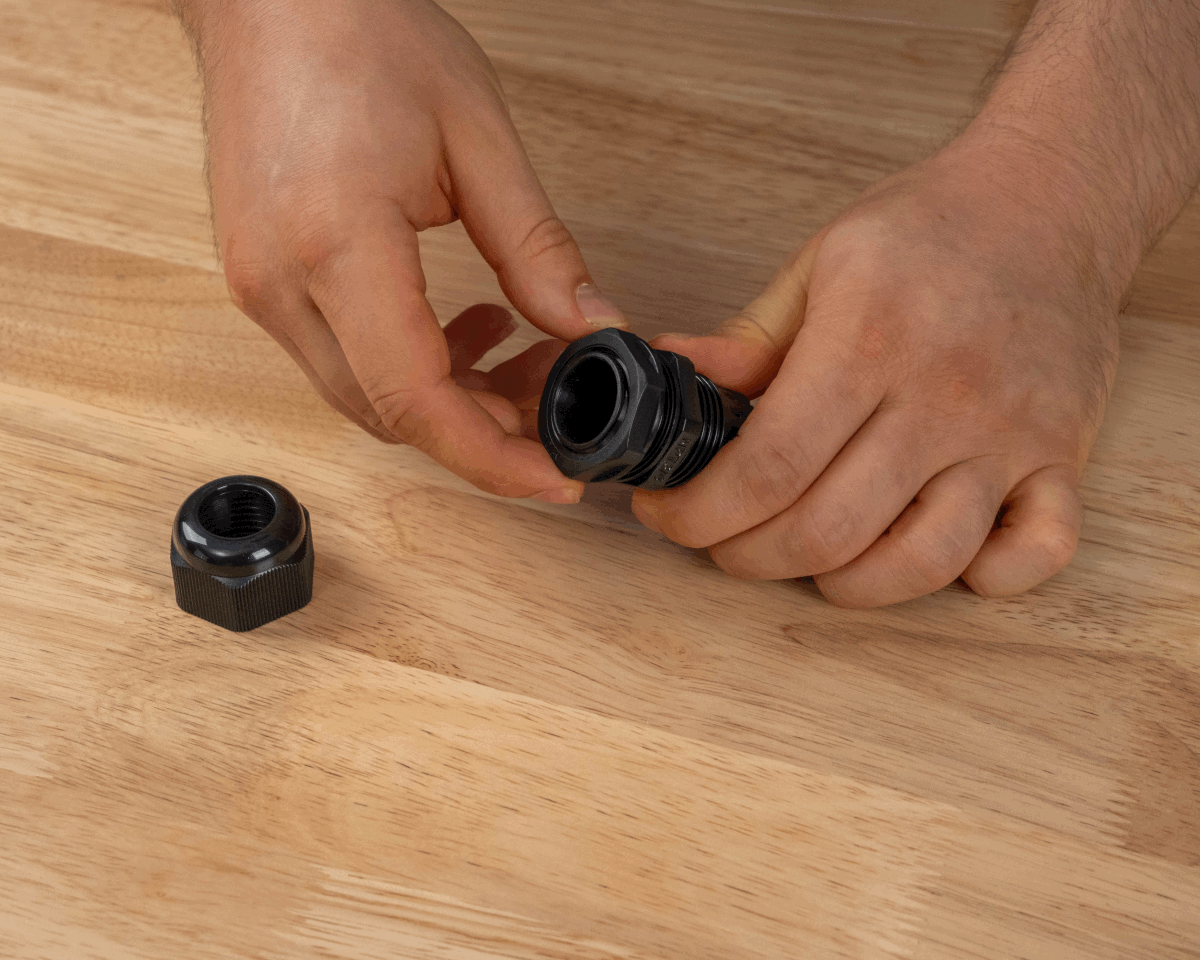

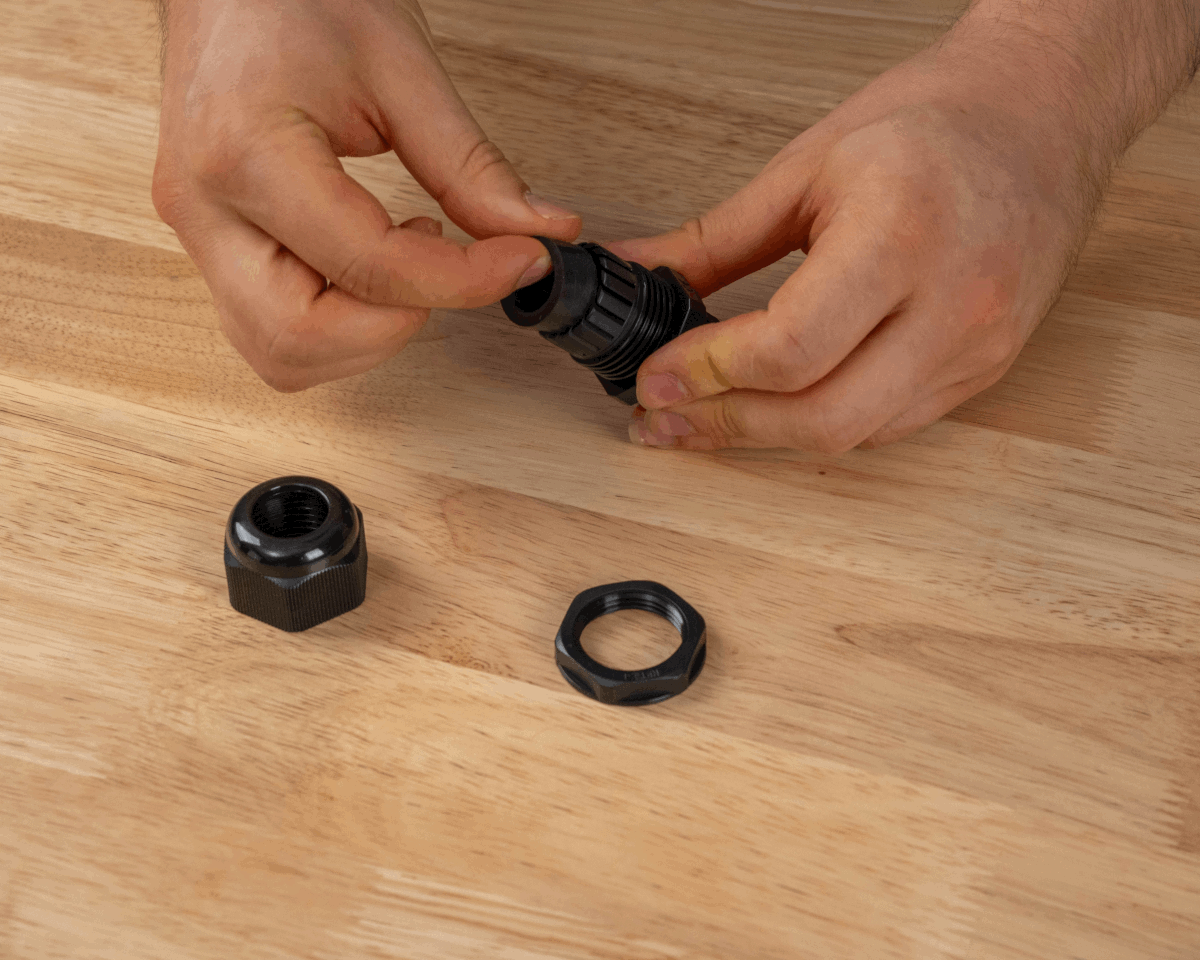

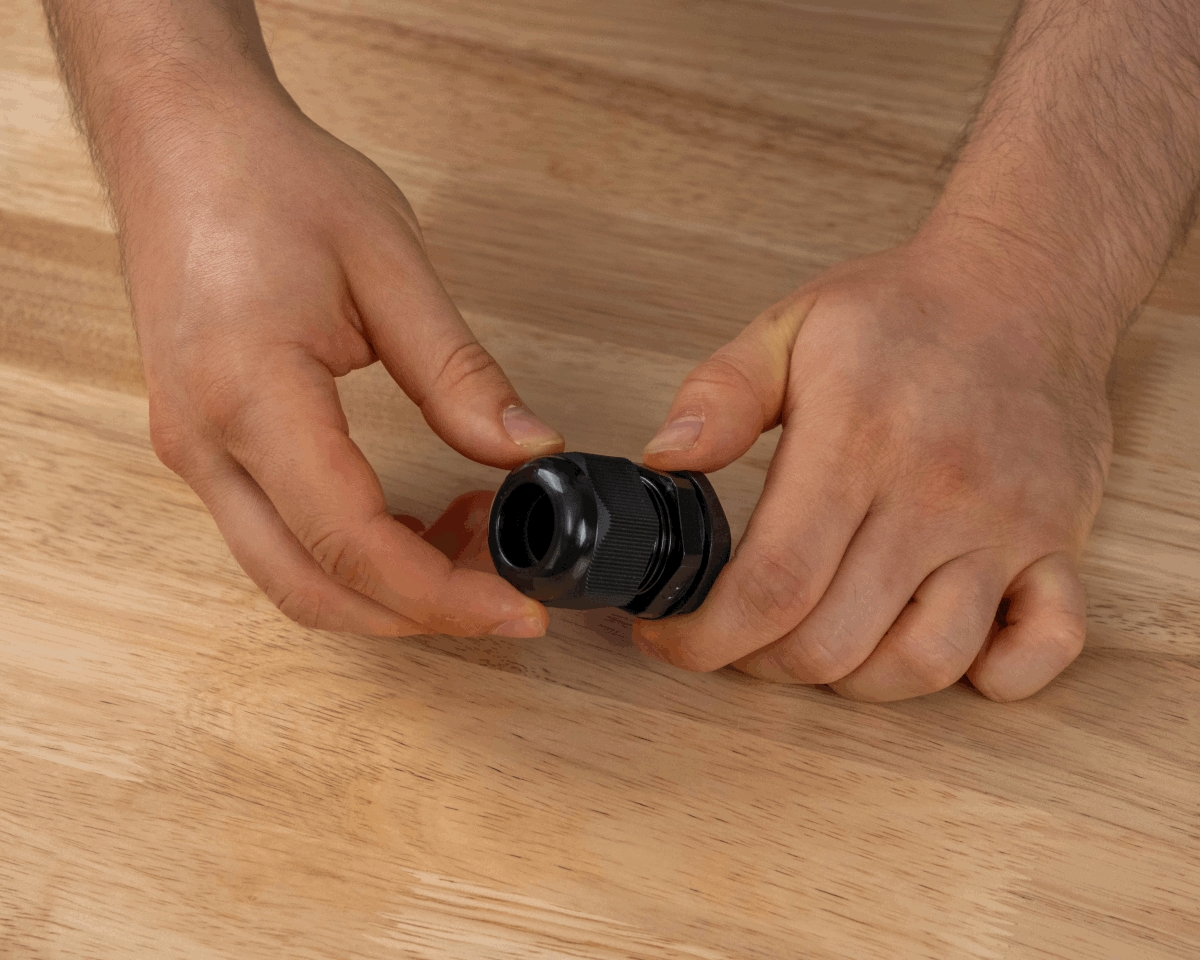

  2. Unscrew the cap and hex nut from the 3/4-inch NPT cable gland. The hex nut will not be used.


  3. Remove the pre-installed rubber cable seal from the cable gland.


  4. Screw the end of the cable gland to the AH302 Mounting Box. Fully seat the flat rubber gasket onto the plastic and tighten to create a seal.

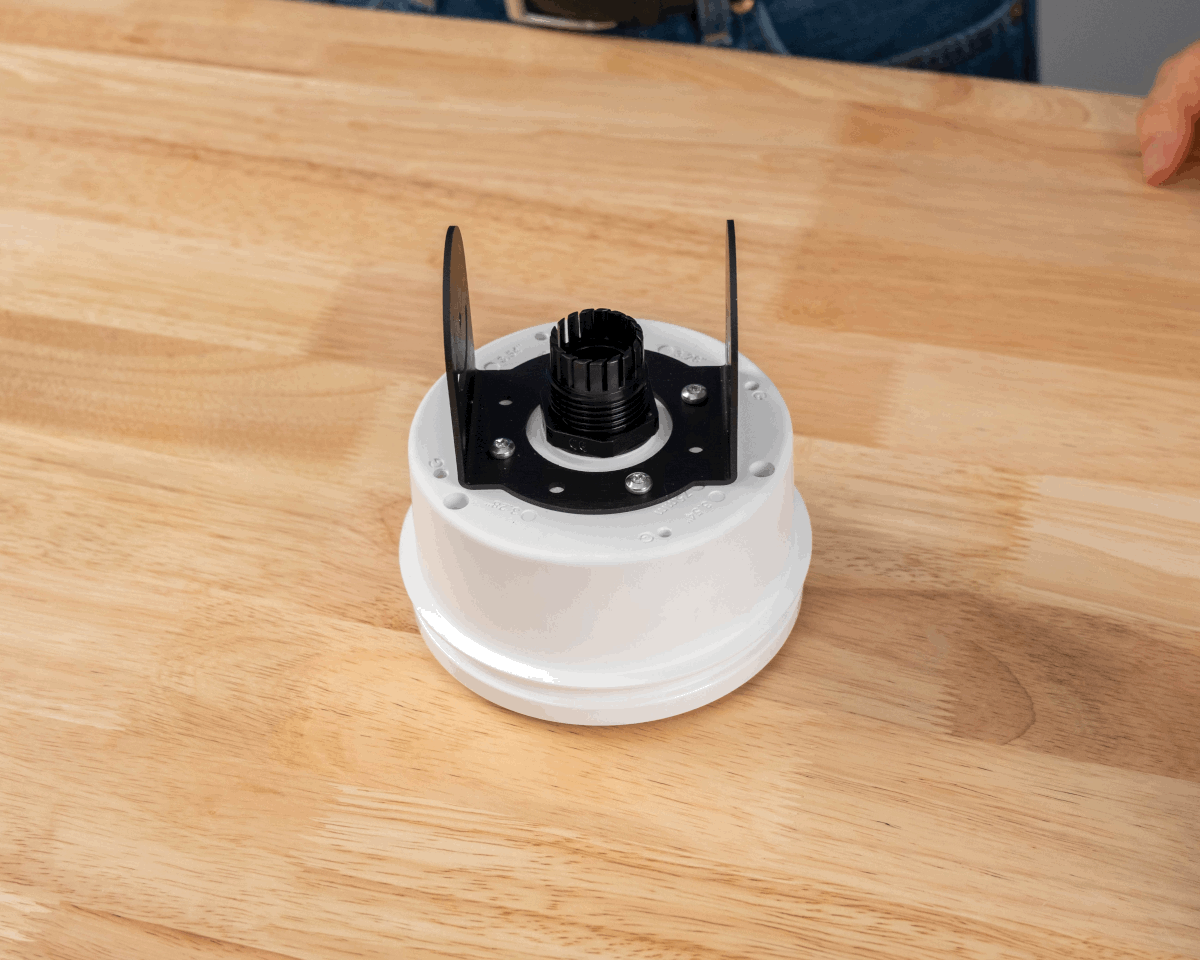

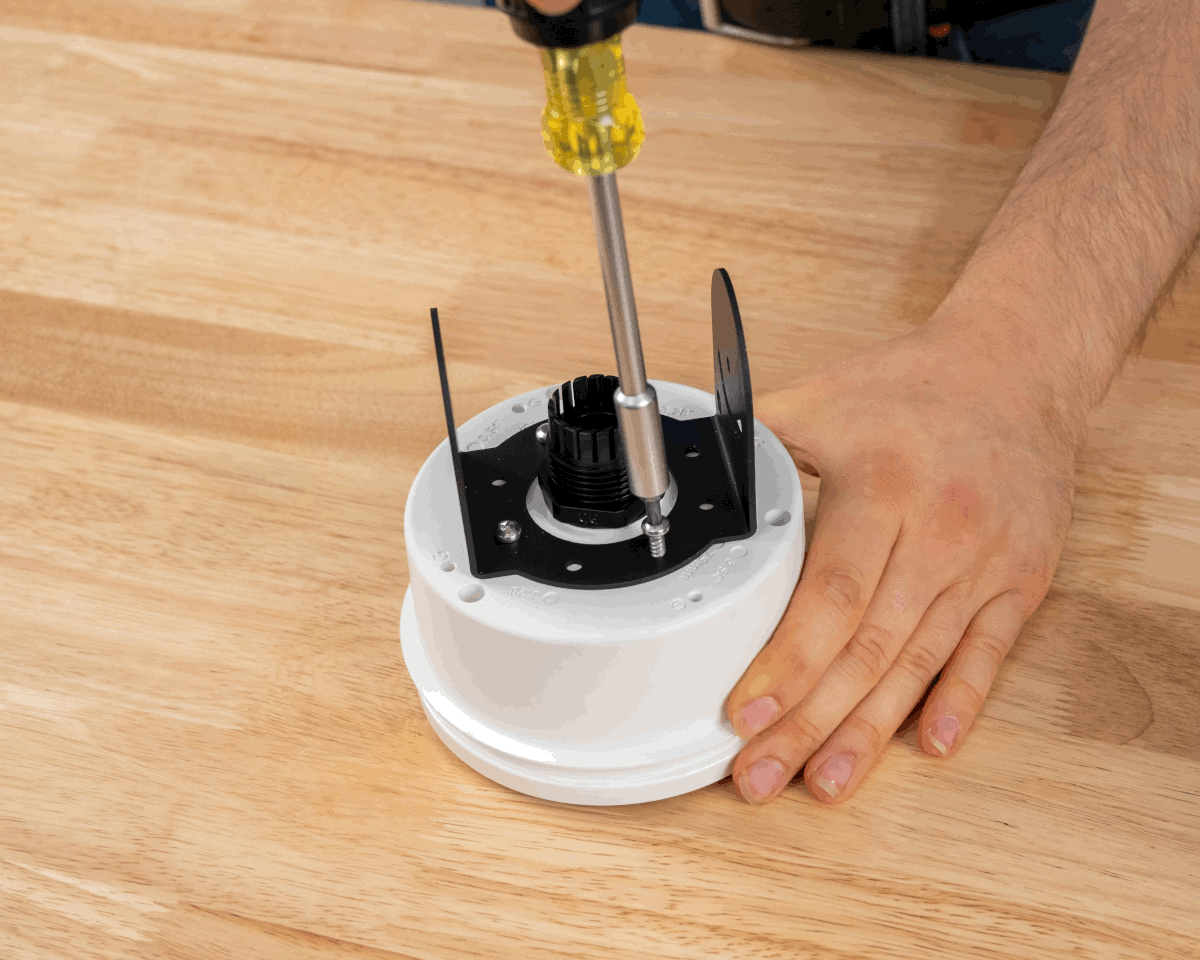

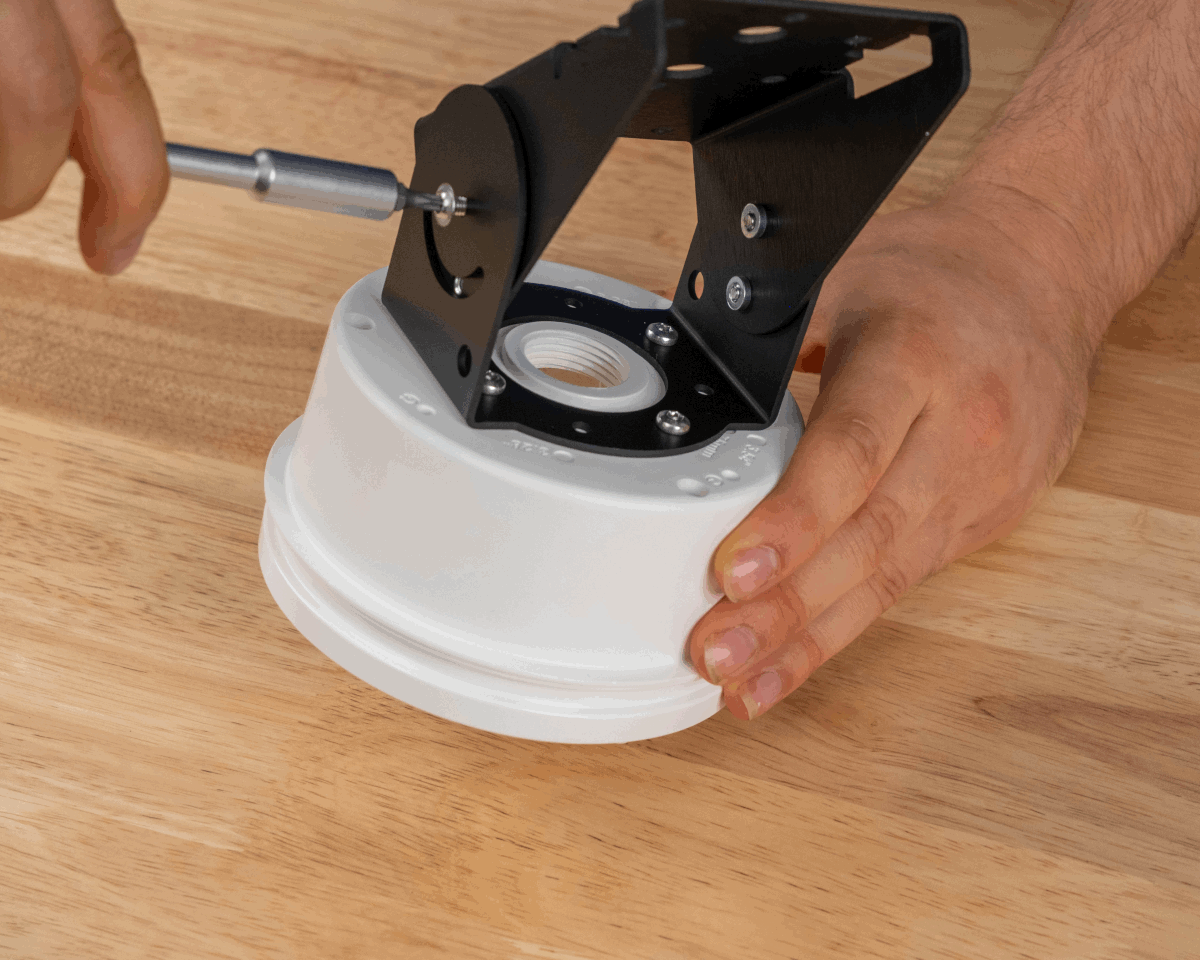

  5. Align AB301 Part B with the F hole pattern on the back of the AH302.
  6. Using the #8 1/2-inch self-tapping screws, install AB301 Part B to AH302. Use four screws in total. Ciholas provides one spare.

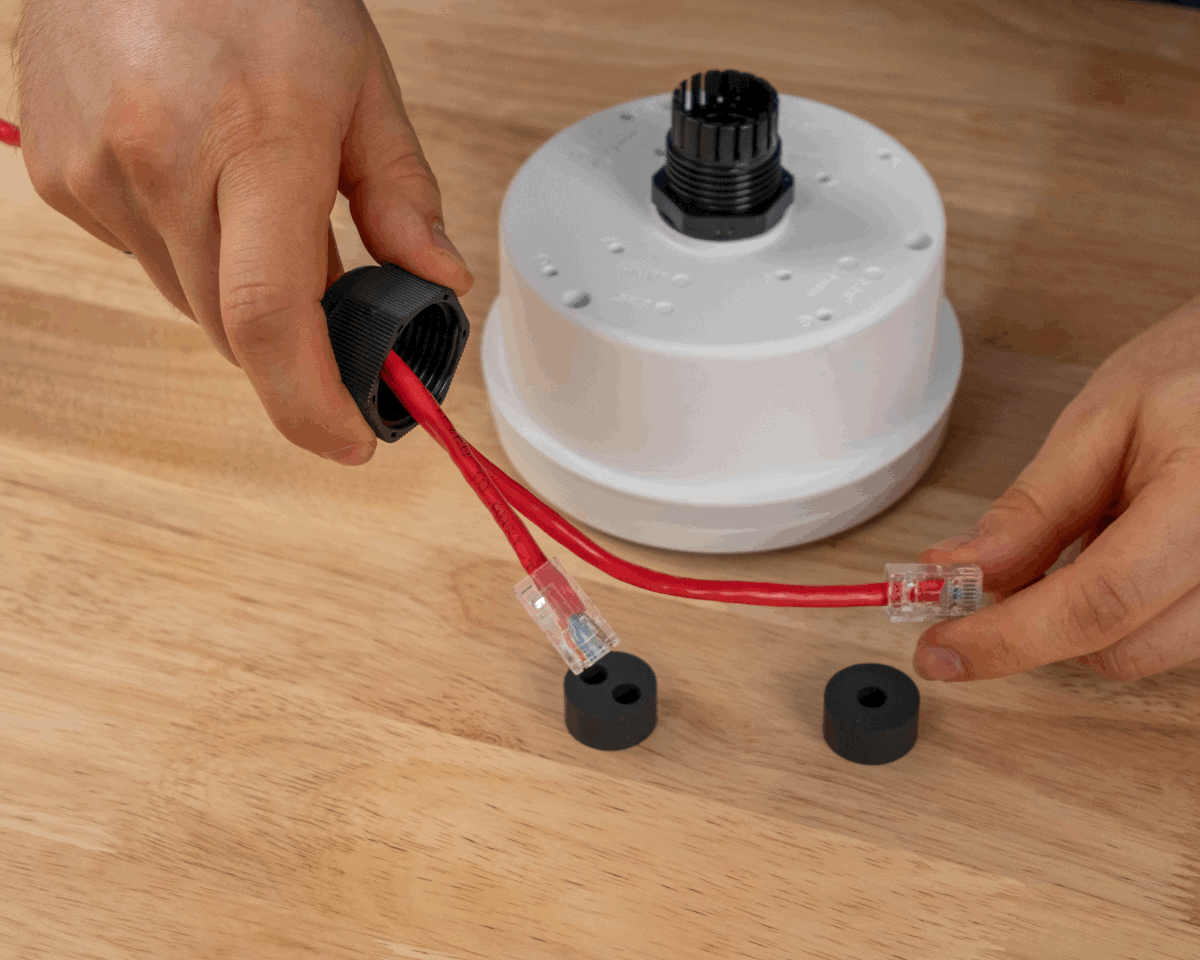

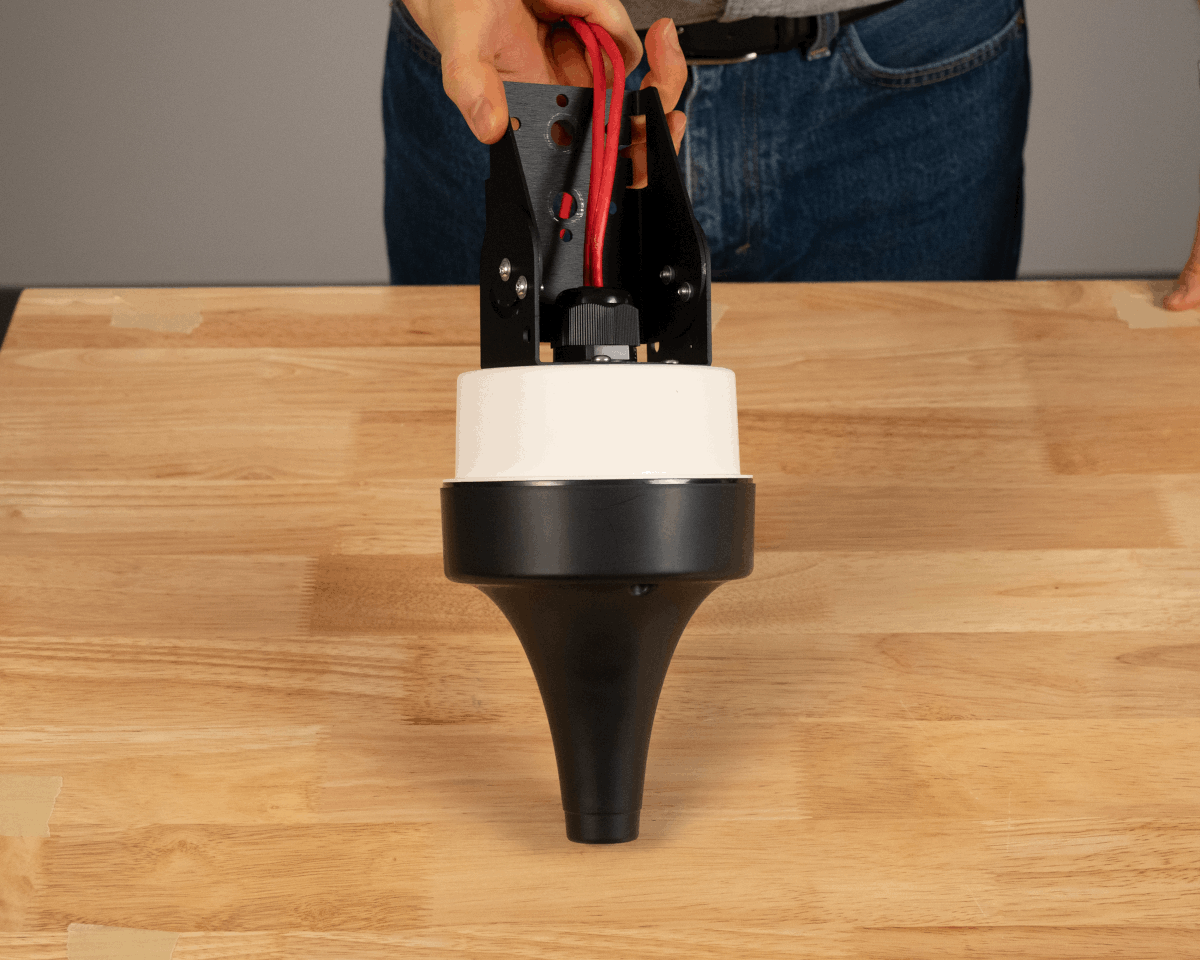

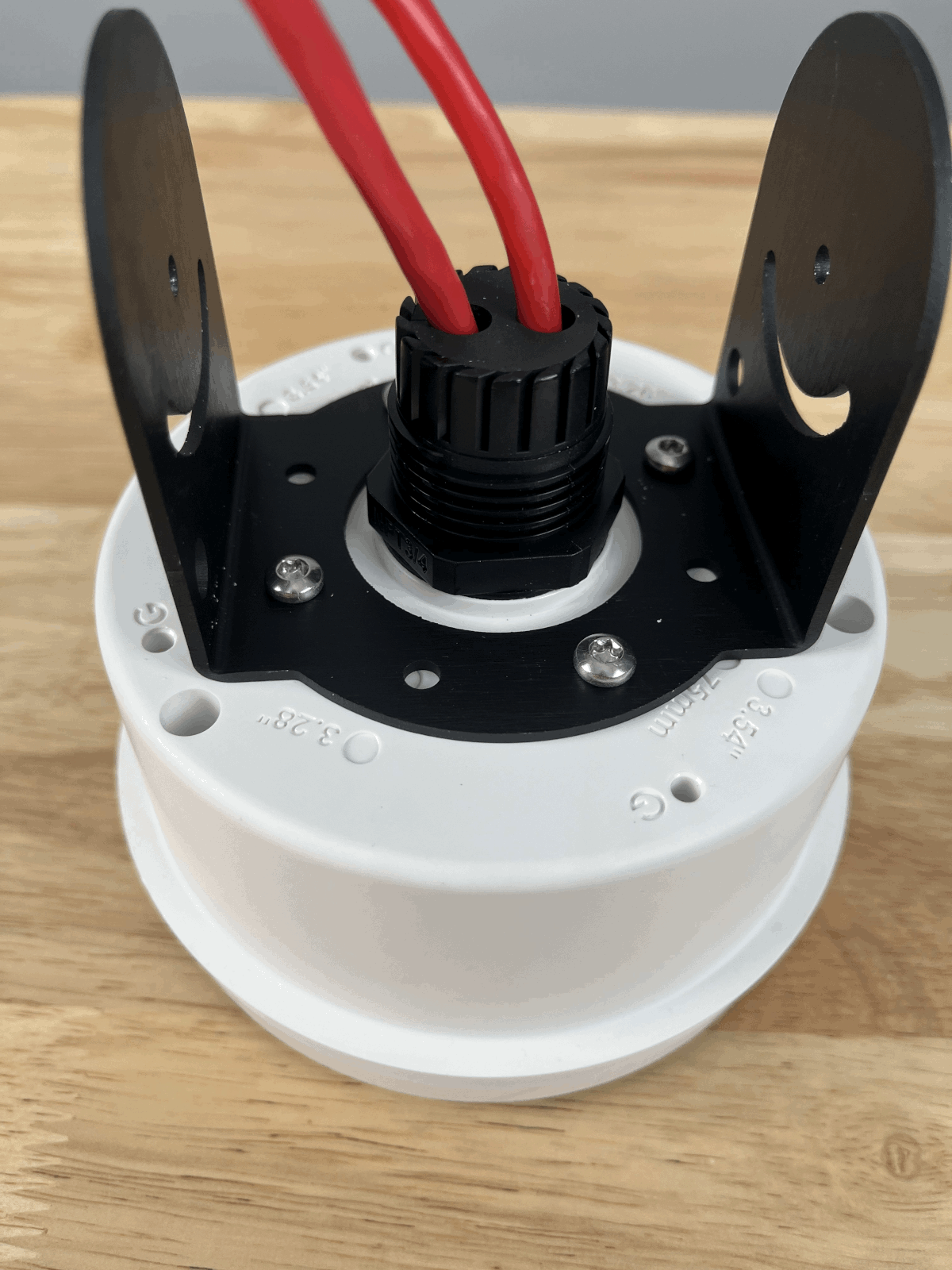

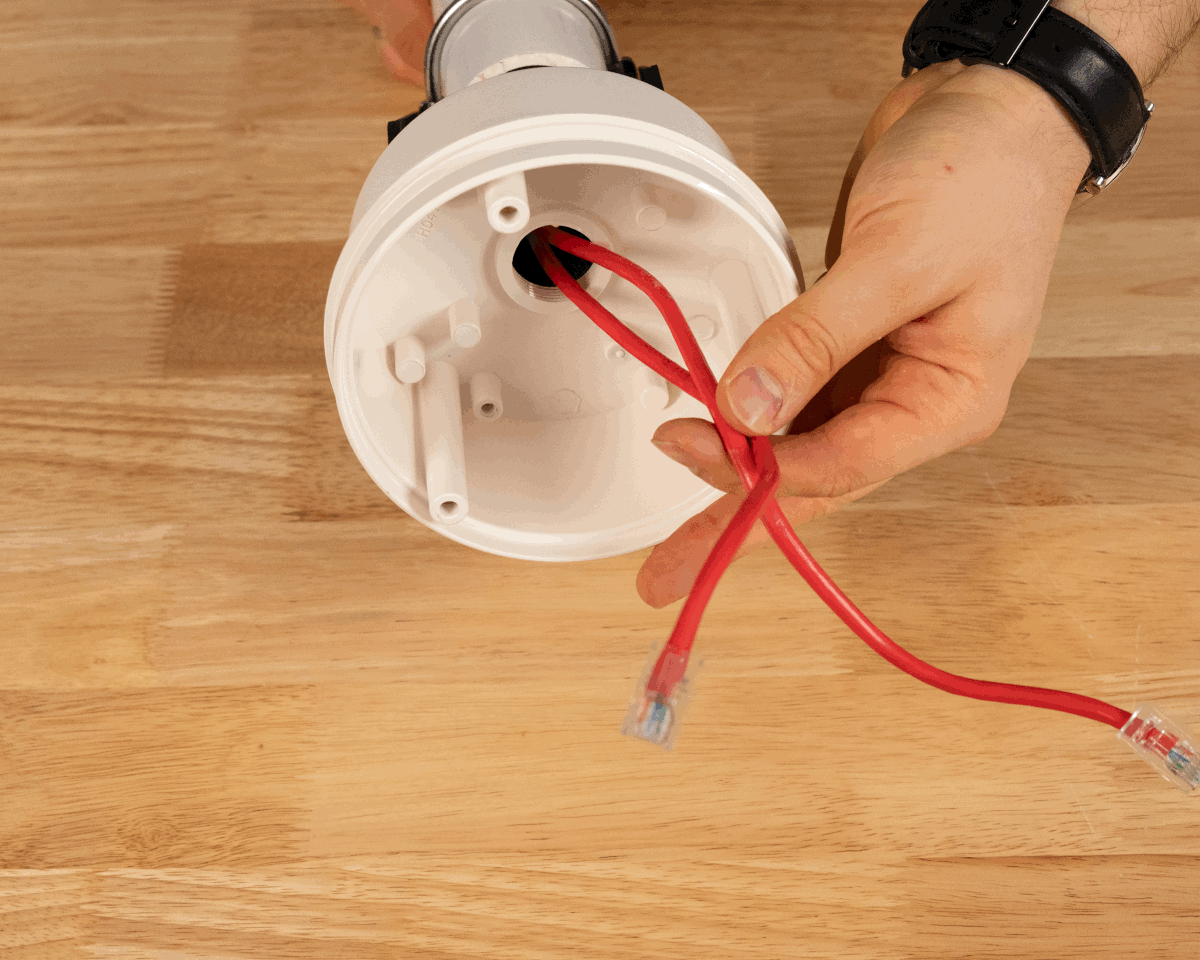

  7. Insert 1 (or 2) Ethernet cable(s) through the cap nut of the cable gland.


  8. Select either the Single cable insert or the dual cable insert for the cable gland. Insert the Ethernet cable(s) through the slit(s) in the seal. The ring of silicon of the seal should face away from the cap nut.

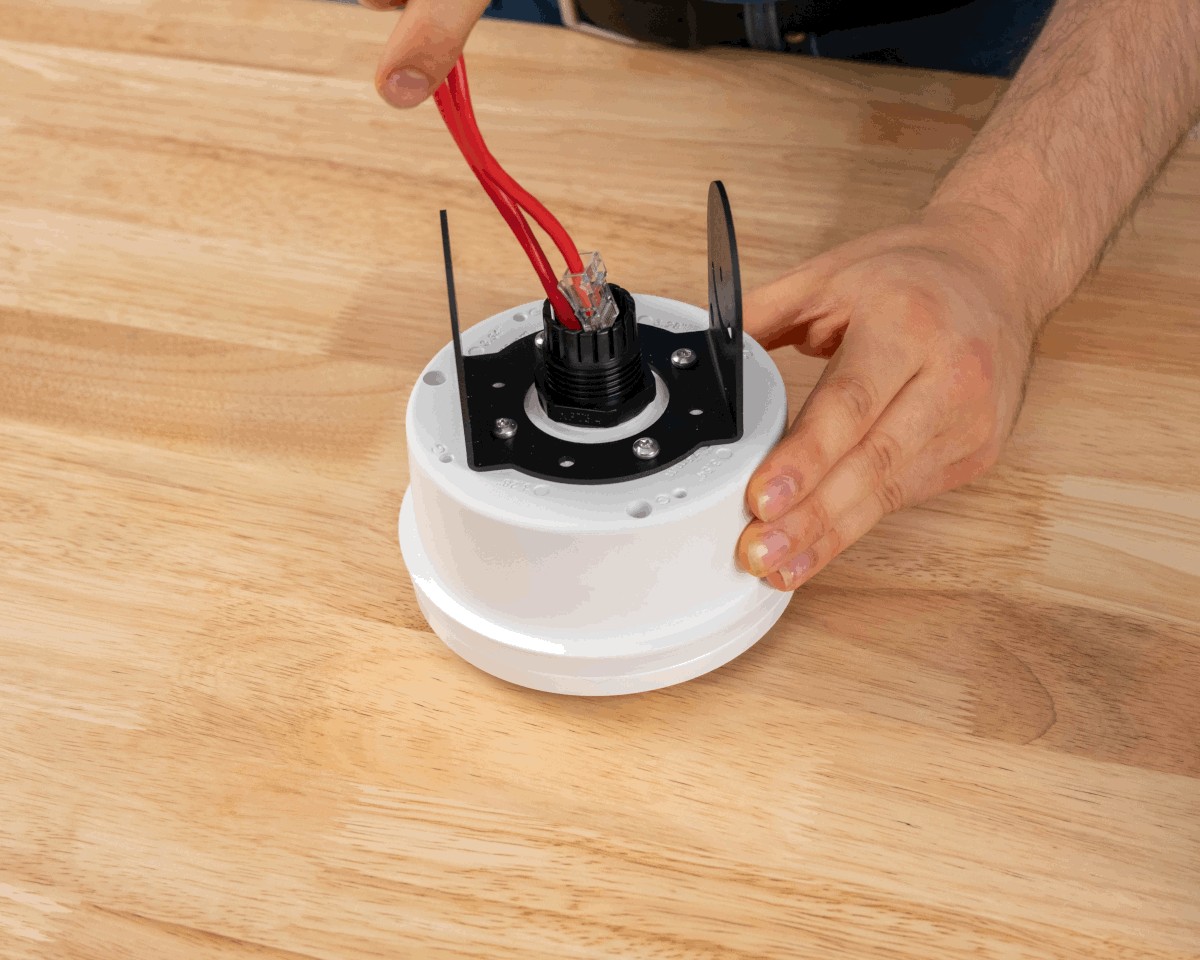

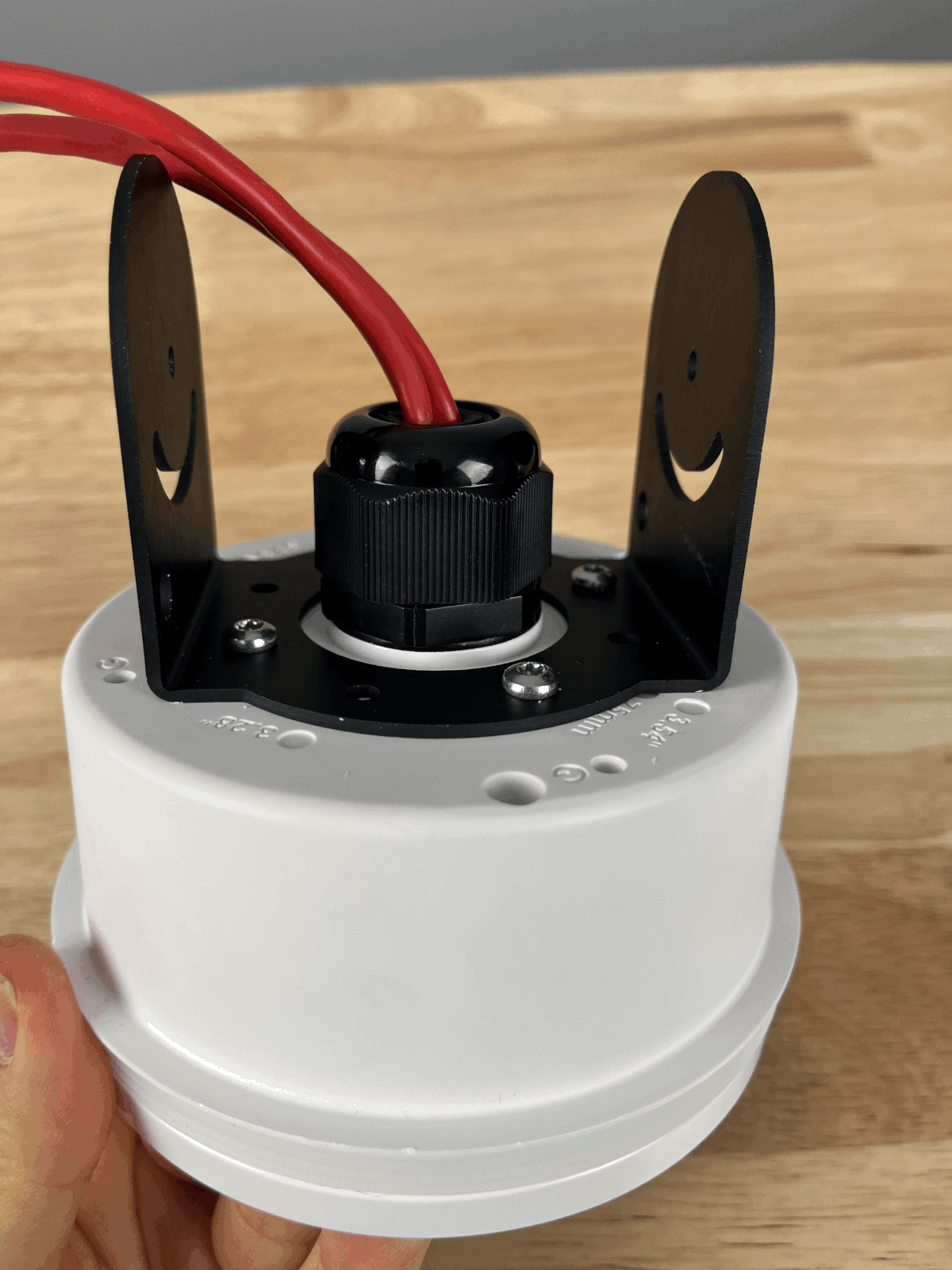

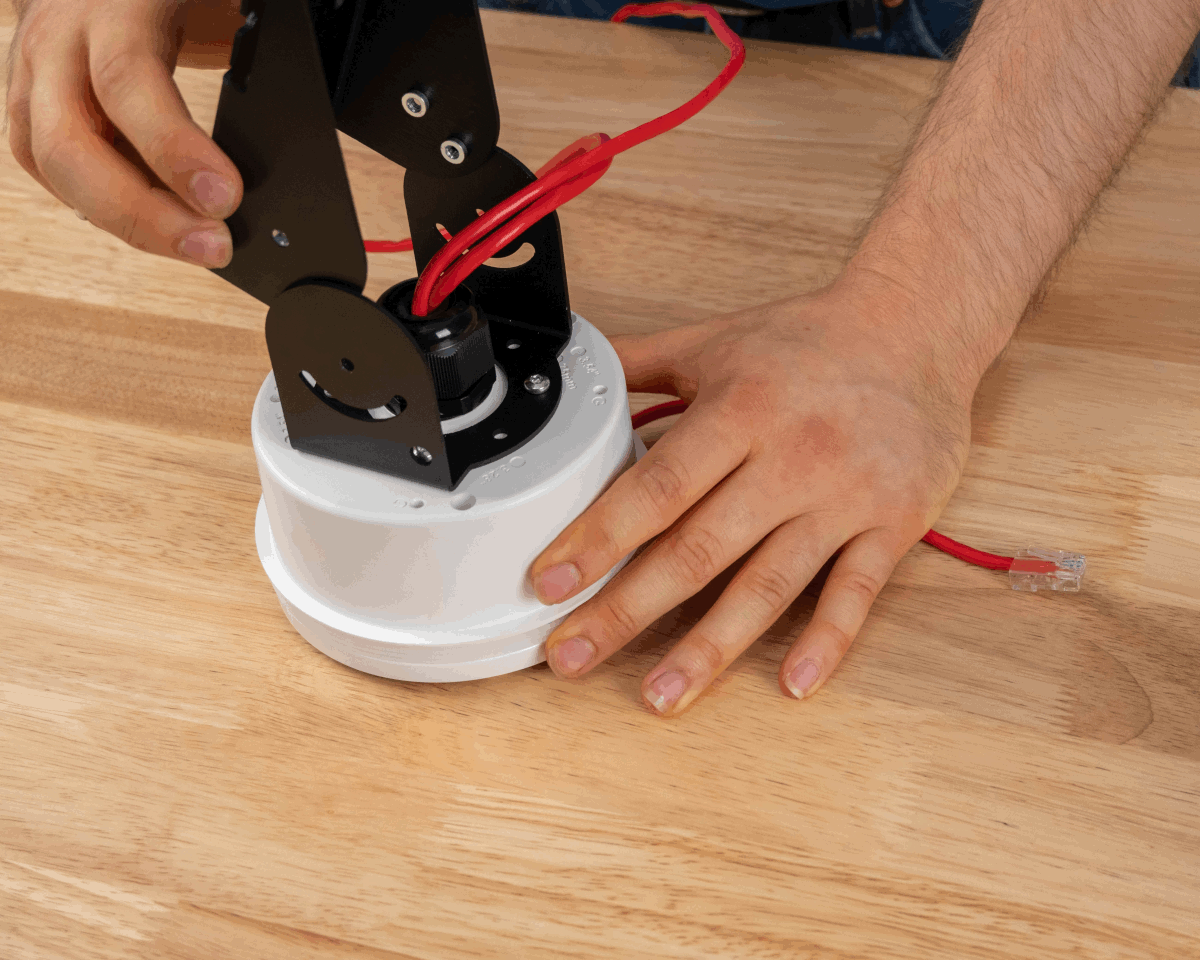

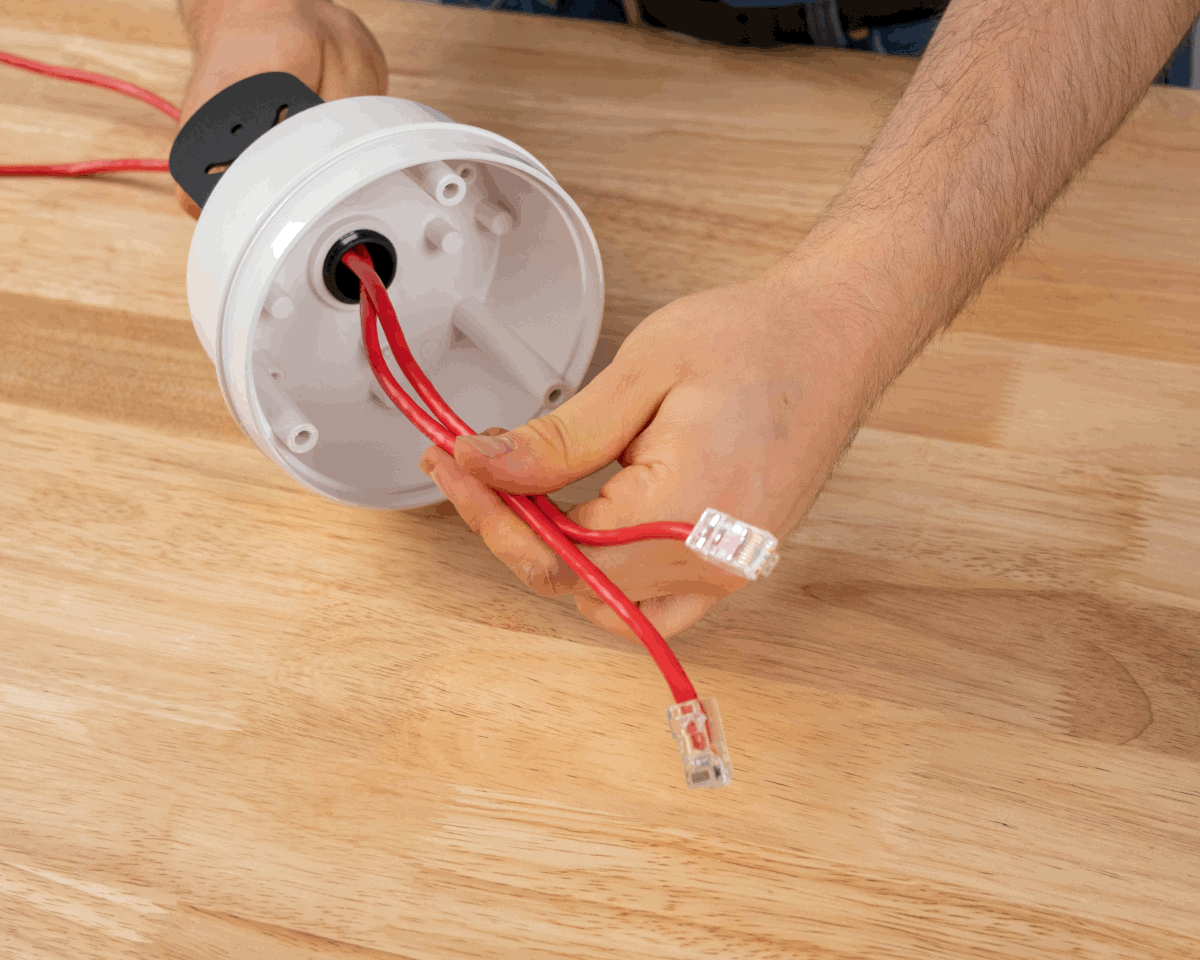

  9. Insert the cables through the gland and AH302 from the exterior. Provide enough cable for a service loop to allow the anchor to be removed and disconnected once the cables are sealed with the gland.


  10. Fully seat the cable insert into the gland. The top of the seal should be flush with the top of the gland. Screw the cap nut onto the cable gland and tighten.

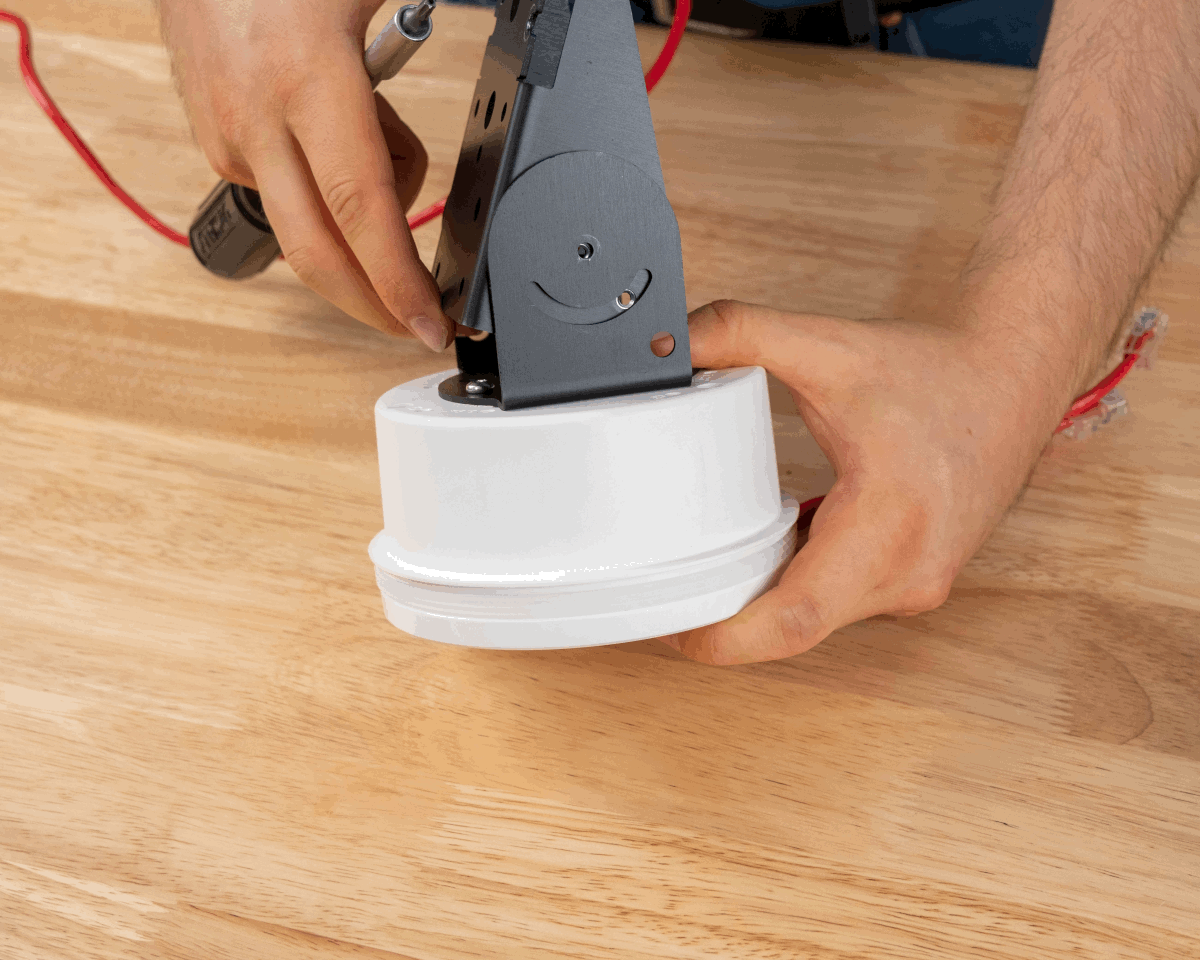

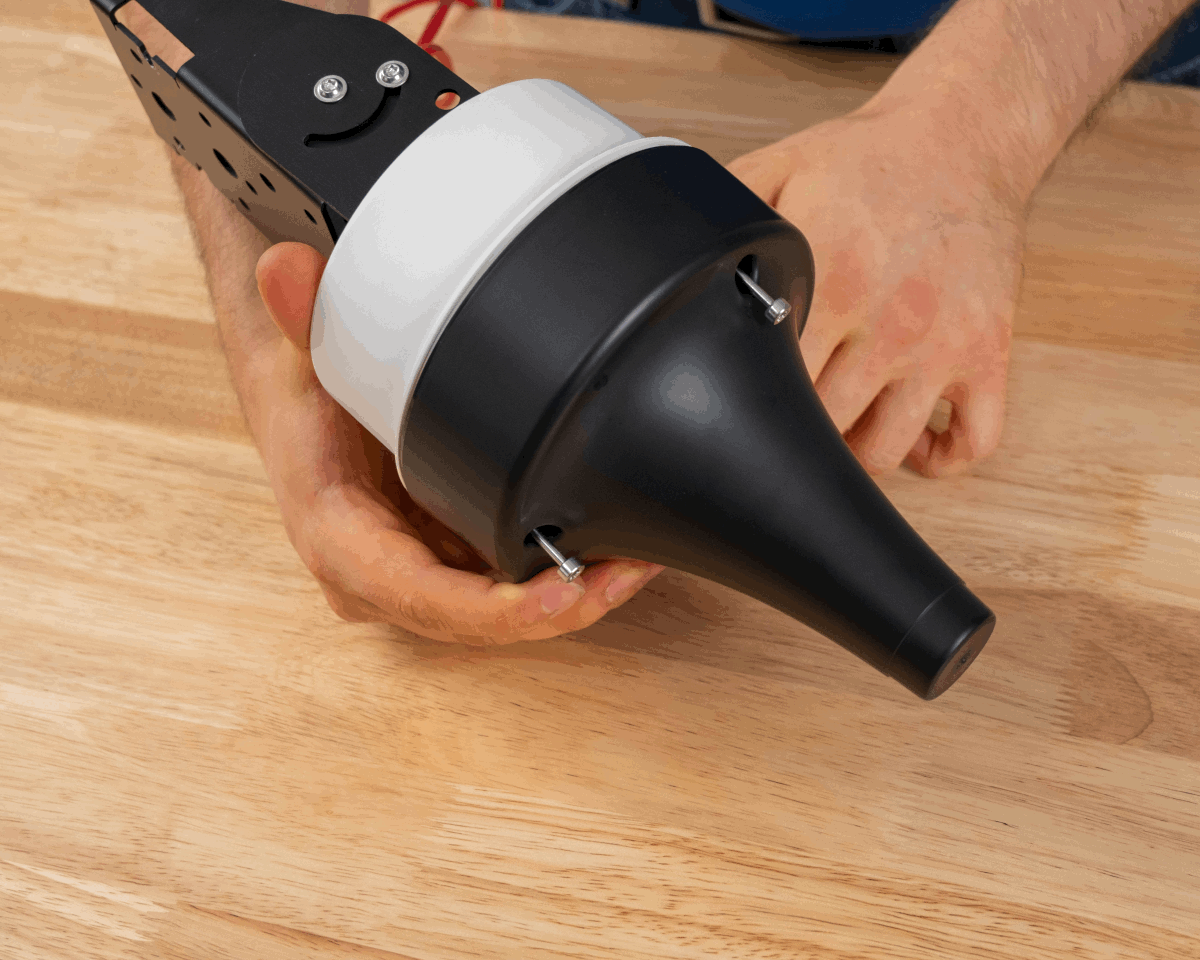

  11. Align AB301 Part A with Part B.


  12. Using the M4 8mm flanged head screws, install AB301 Part A to AB301 Part B. Adjust the required angle for the bracket as needed.

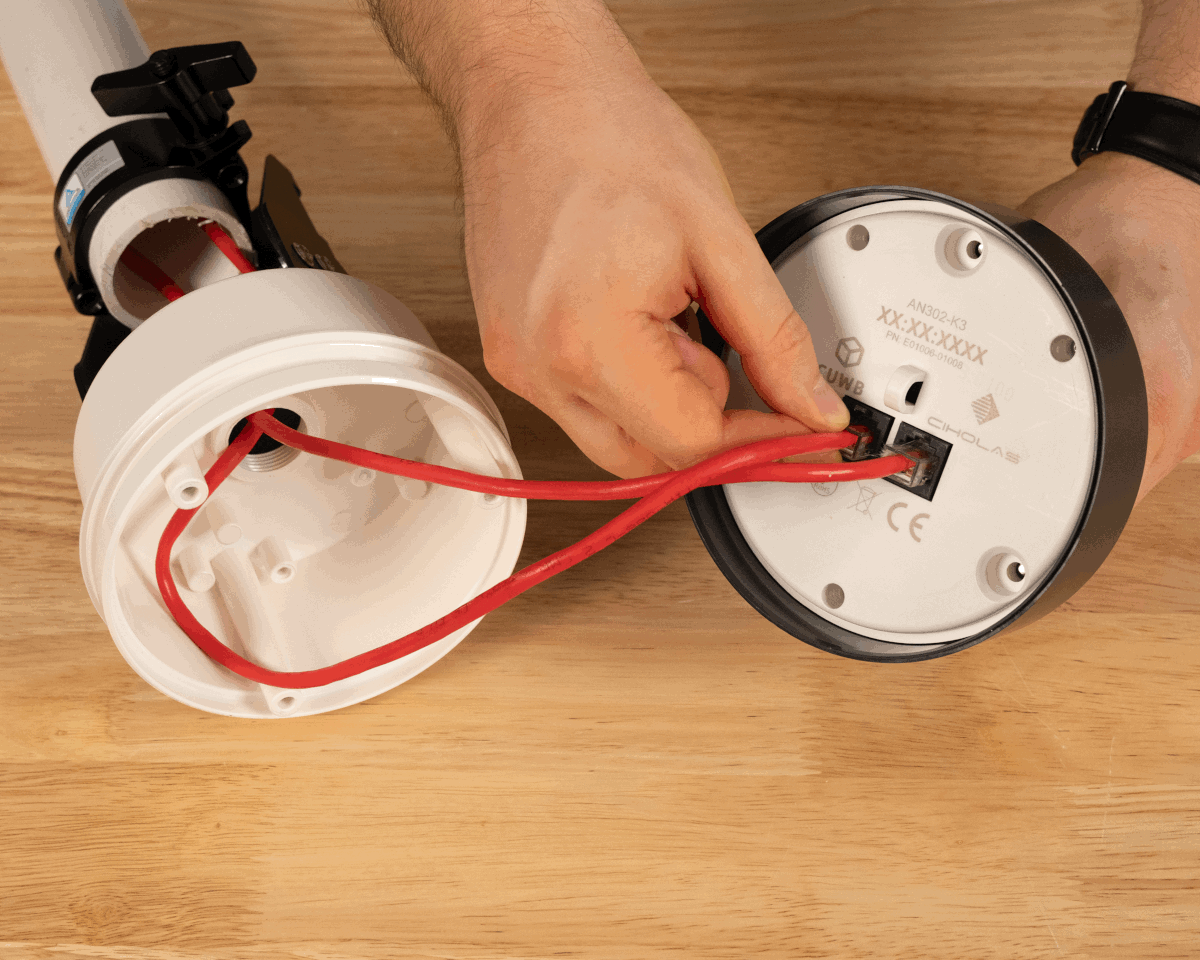

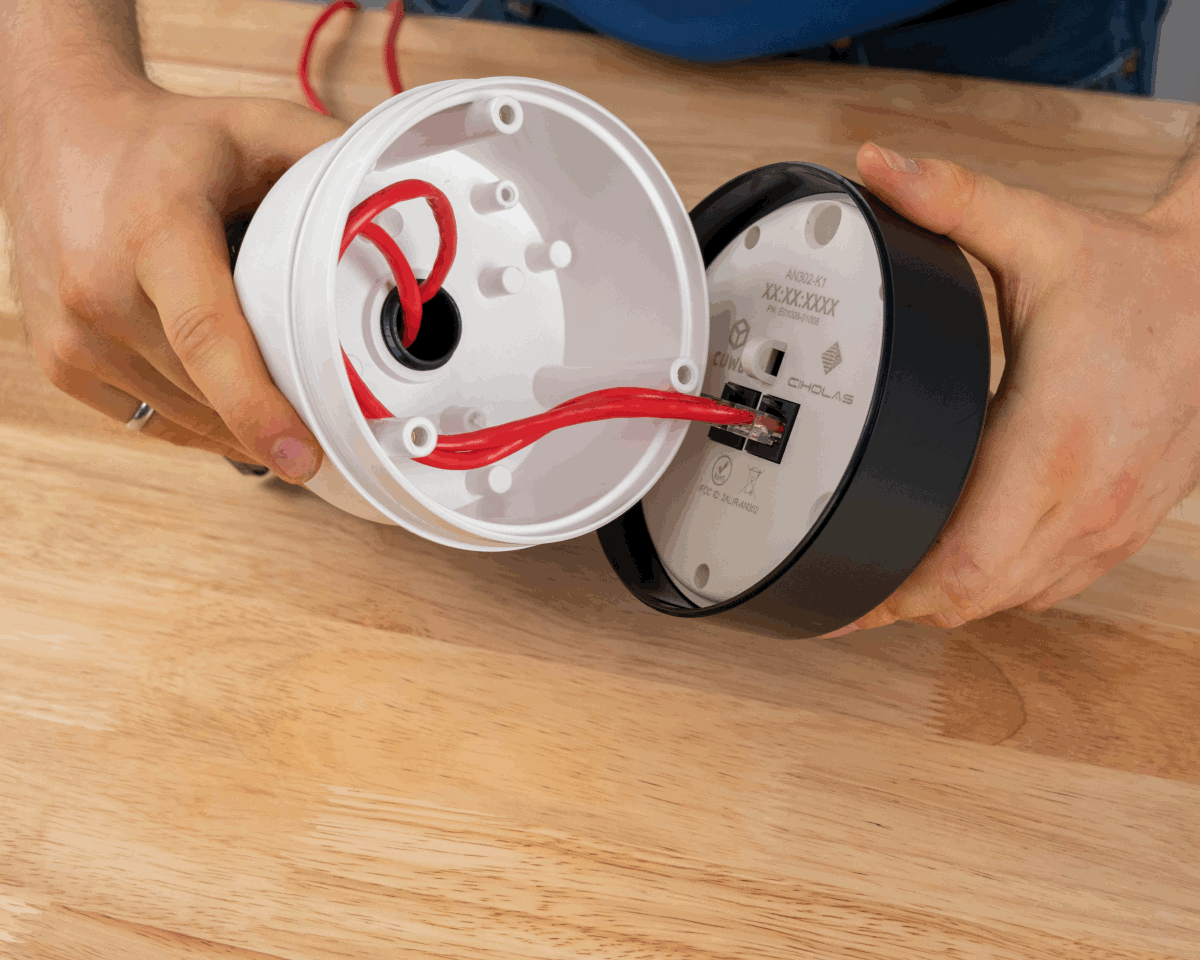

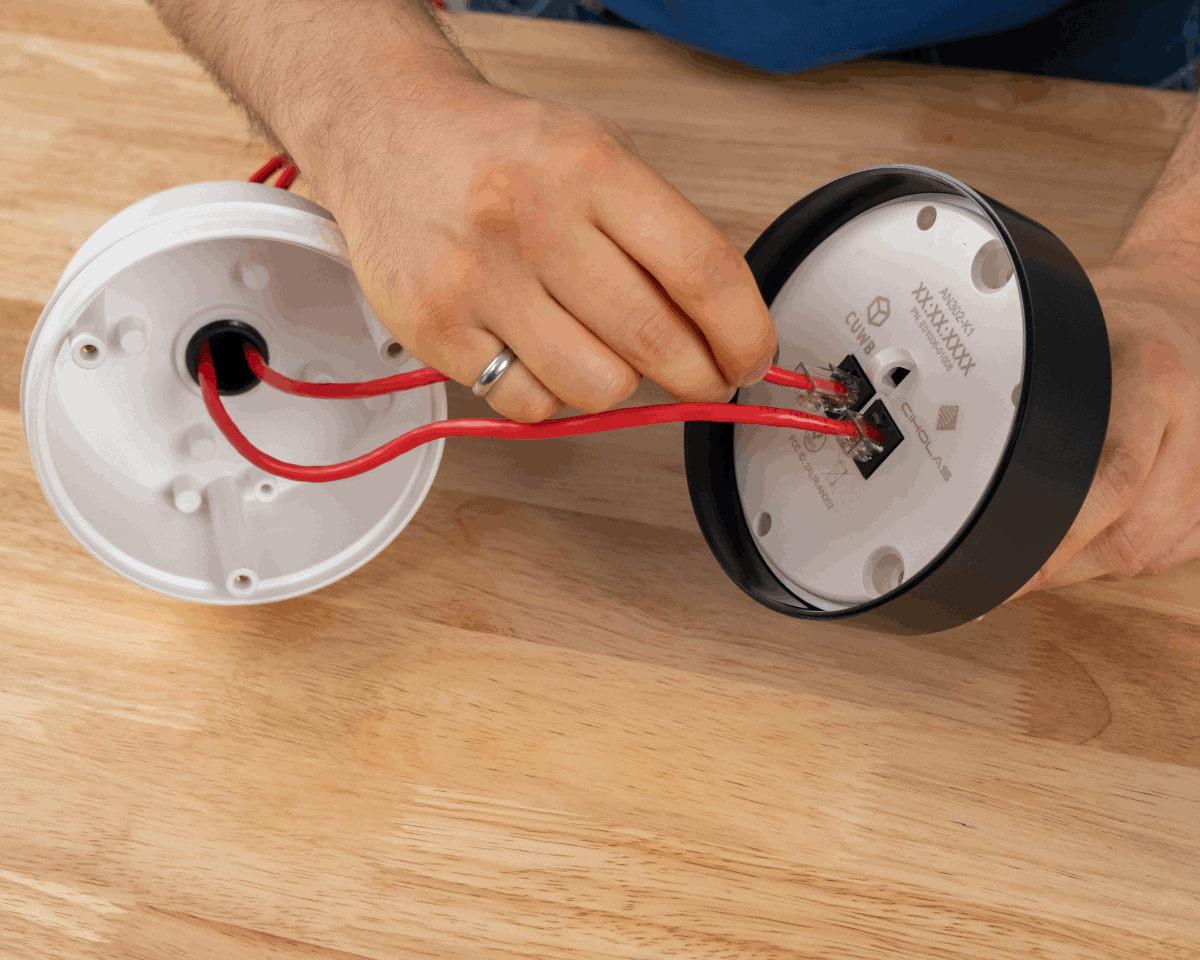

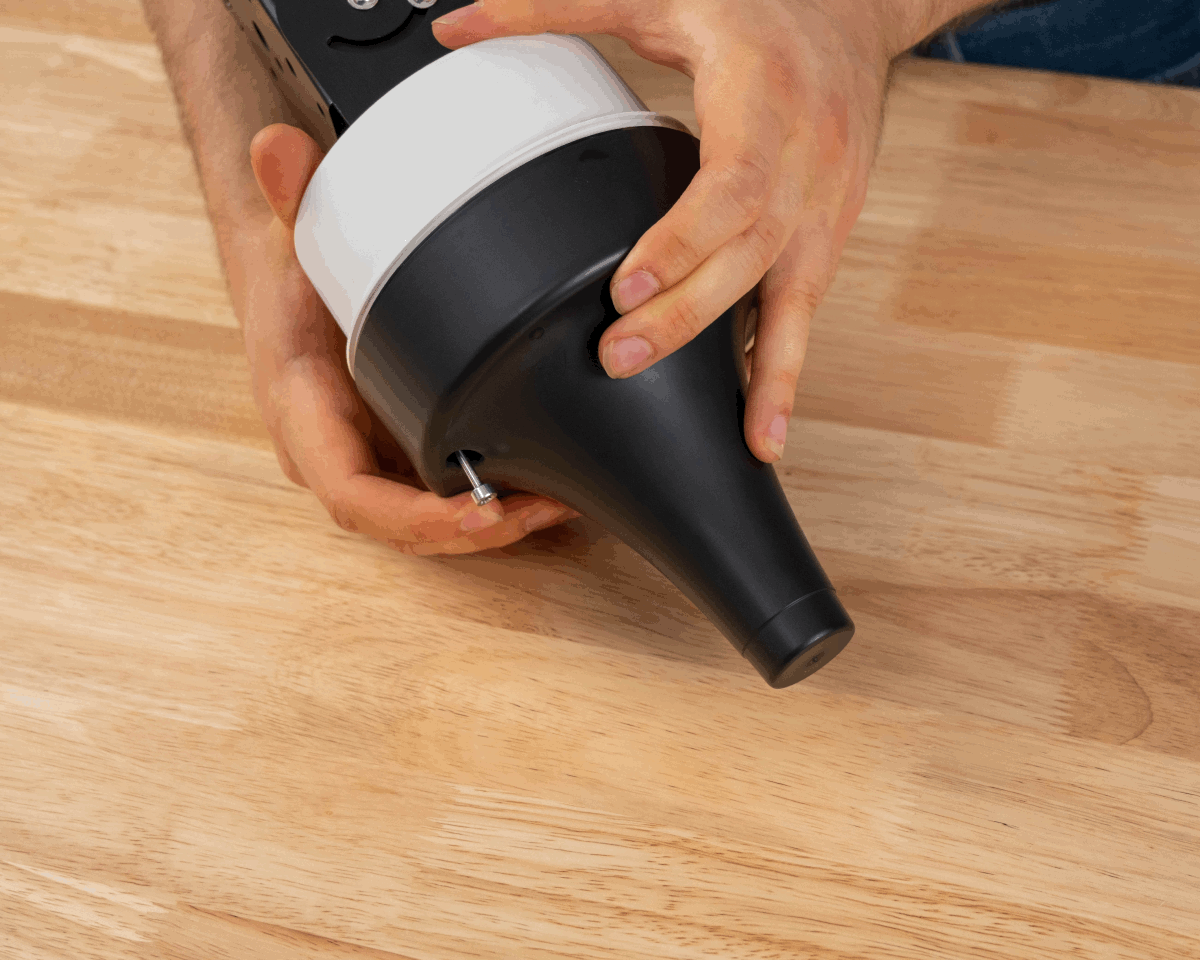

  13. Plug the Ethernet cables into the back of the AN302 and gently insert the service loop into the mounting box.

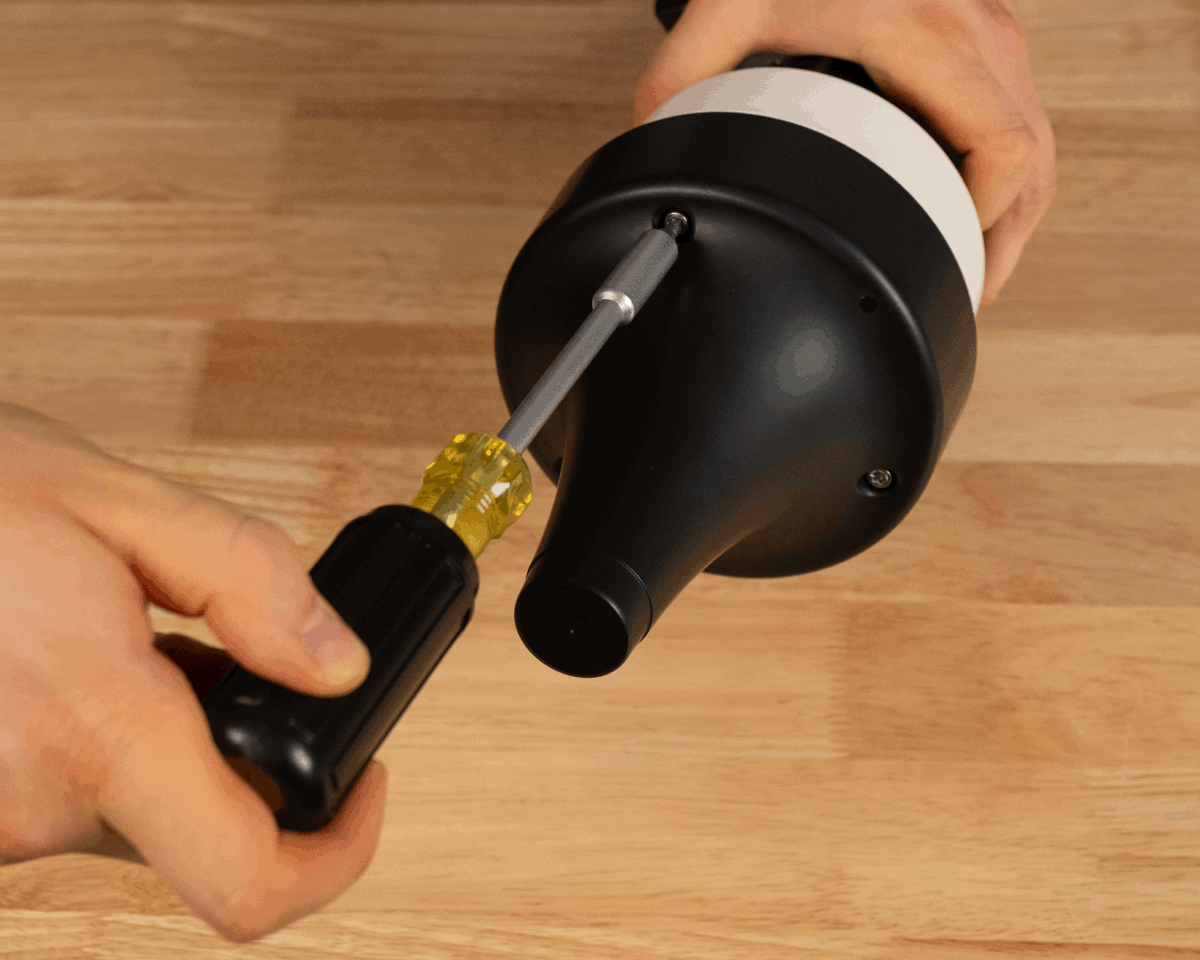

  14. Align the AN302 backplate with the threaded bosses in the AH302. Twist to adjust as needed. Press AN302 and AH302 together.

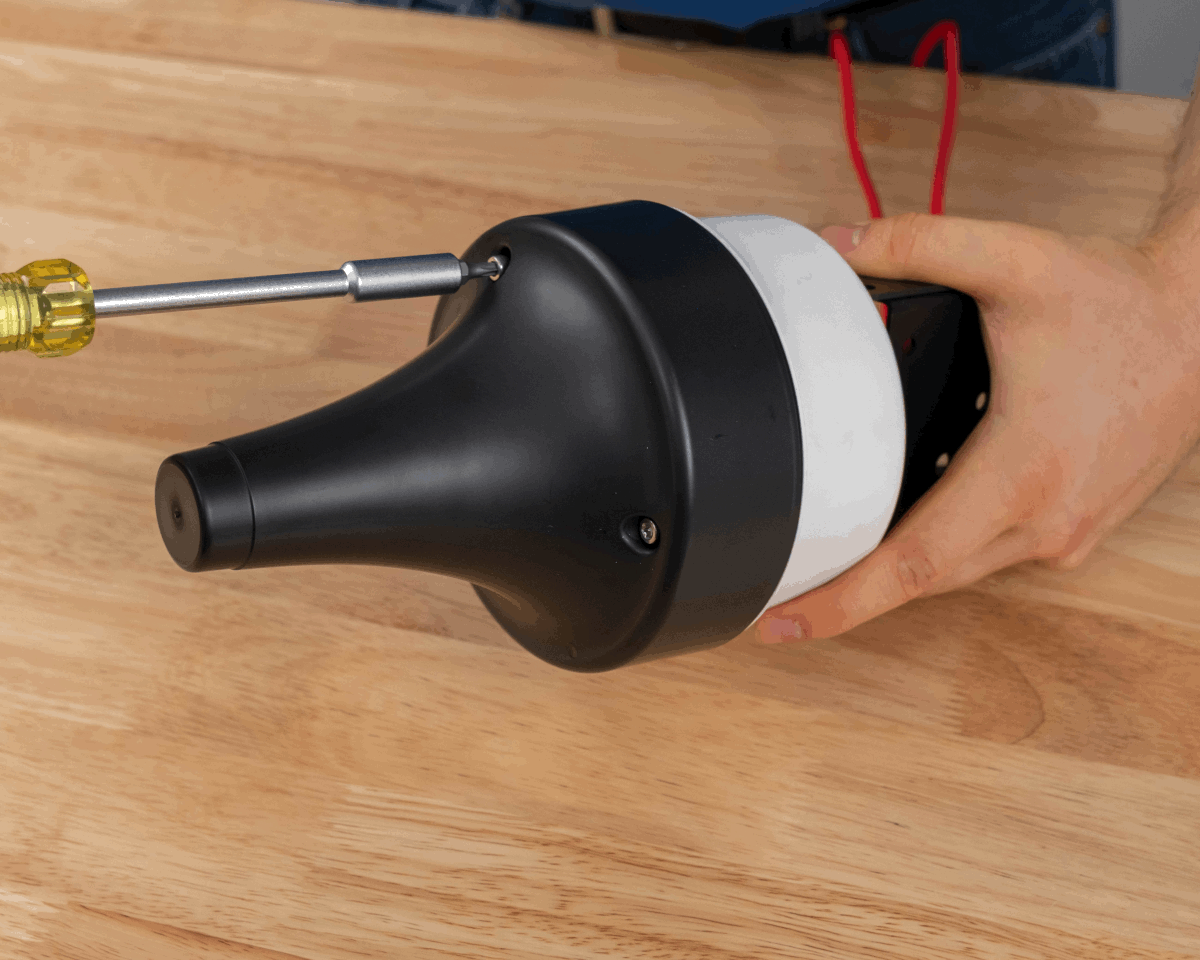

  15. Install AN302 to AH302 using the captive screws tightened with 6 in-lb of torque to create a seal.



Accessories

The following accessories can be purchased from Ciholas for the adjustable bracket.

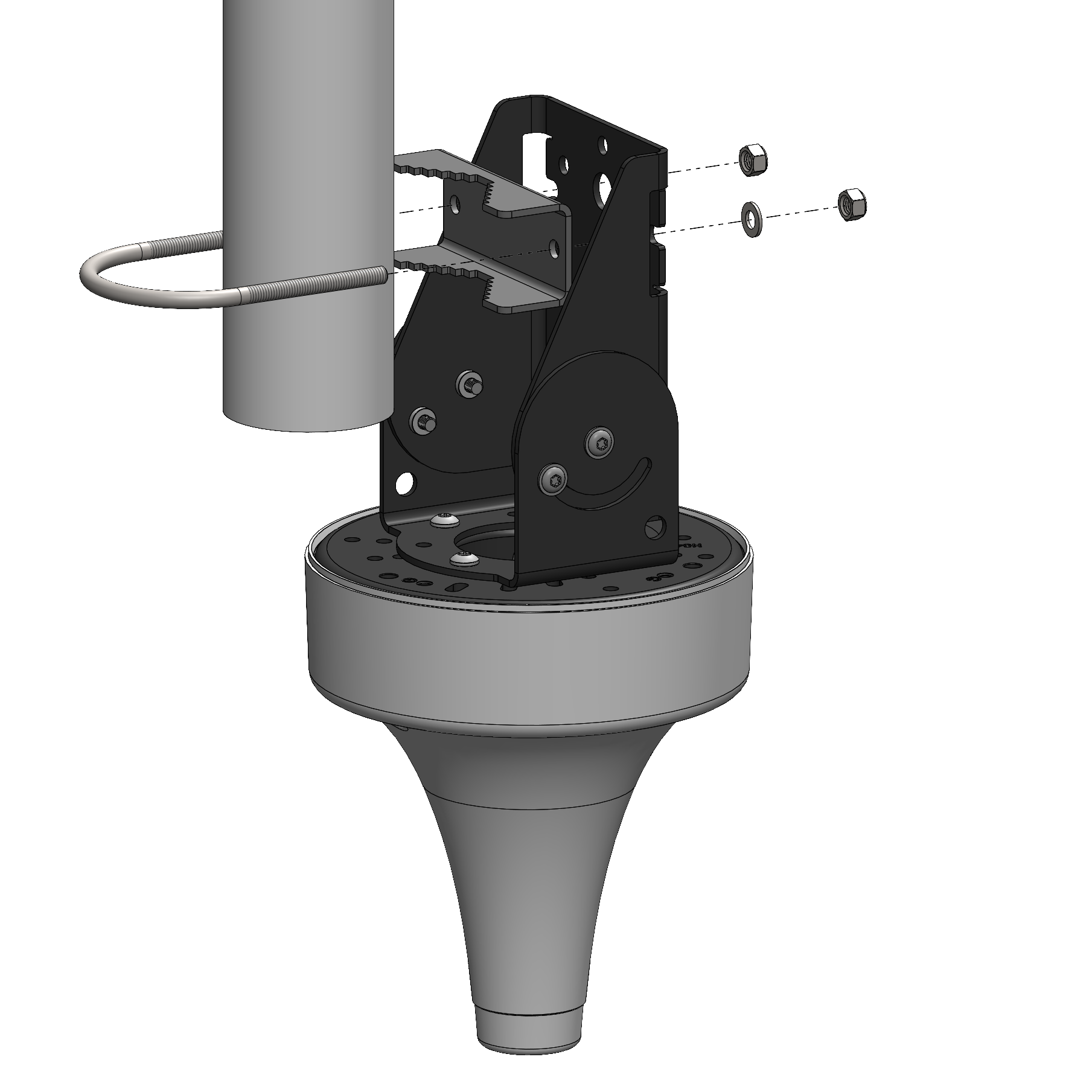

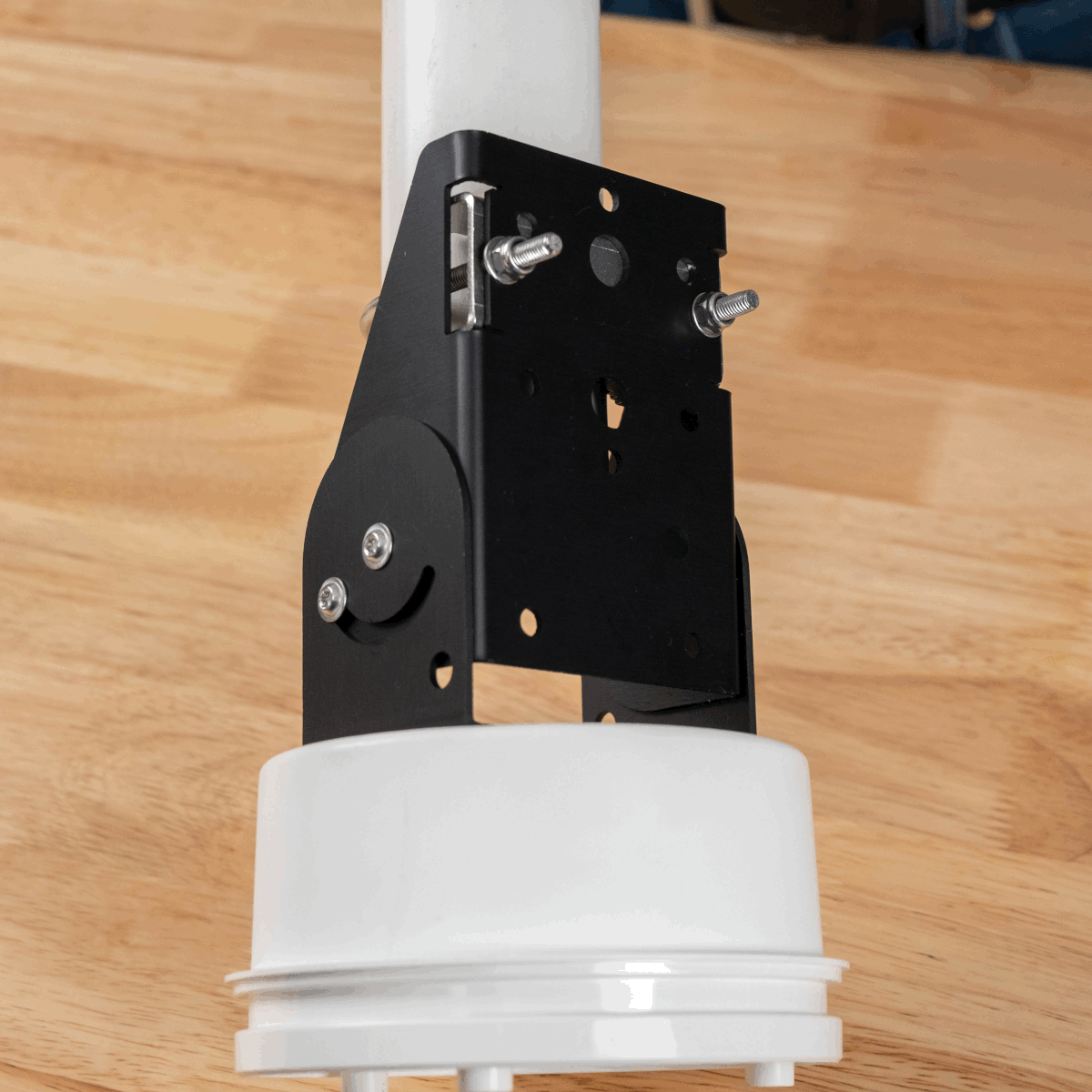

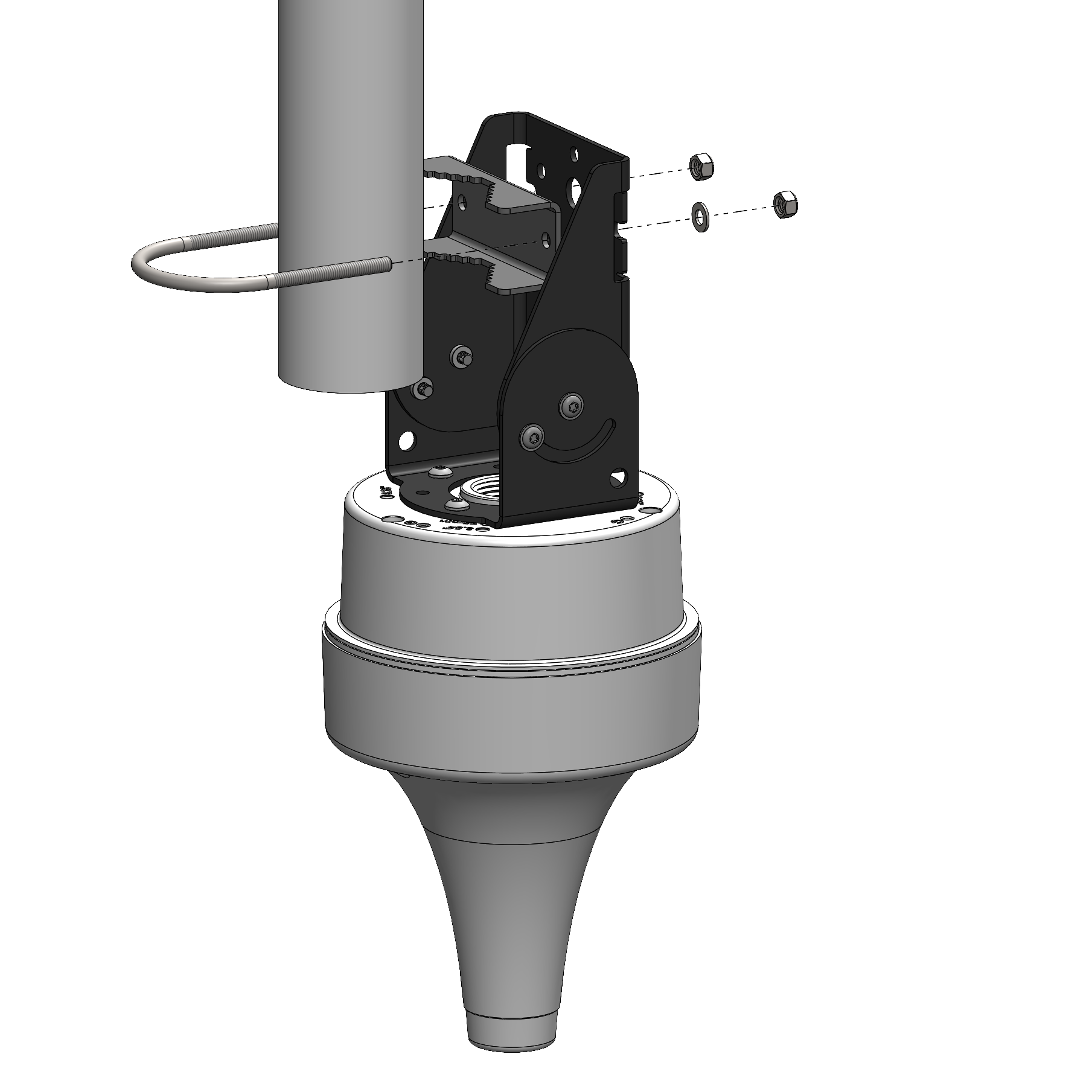

AB302 Pipe Clamp

Contents

  • (1) 51mm ID M5 U-Bolt
  • (1) Sheet metal bracket
  • (2) M5 Washers
  • (2) M5 Nylon Insert Lock Nuts







Mechanical

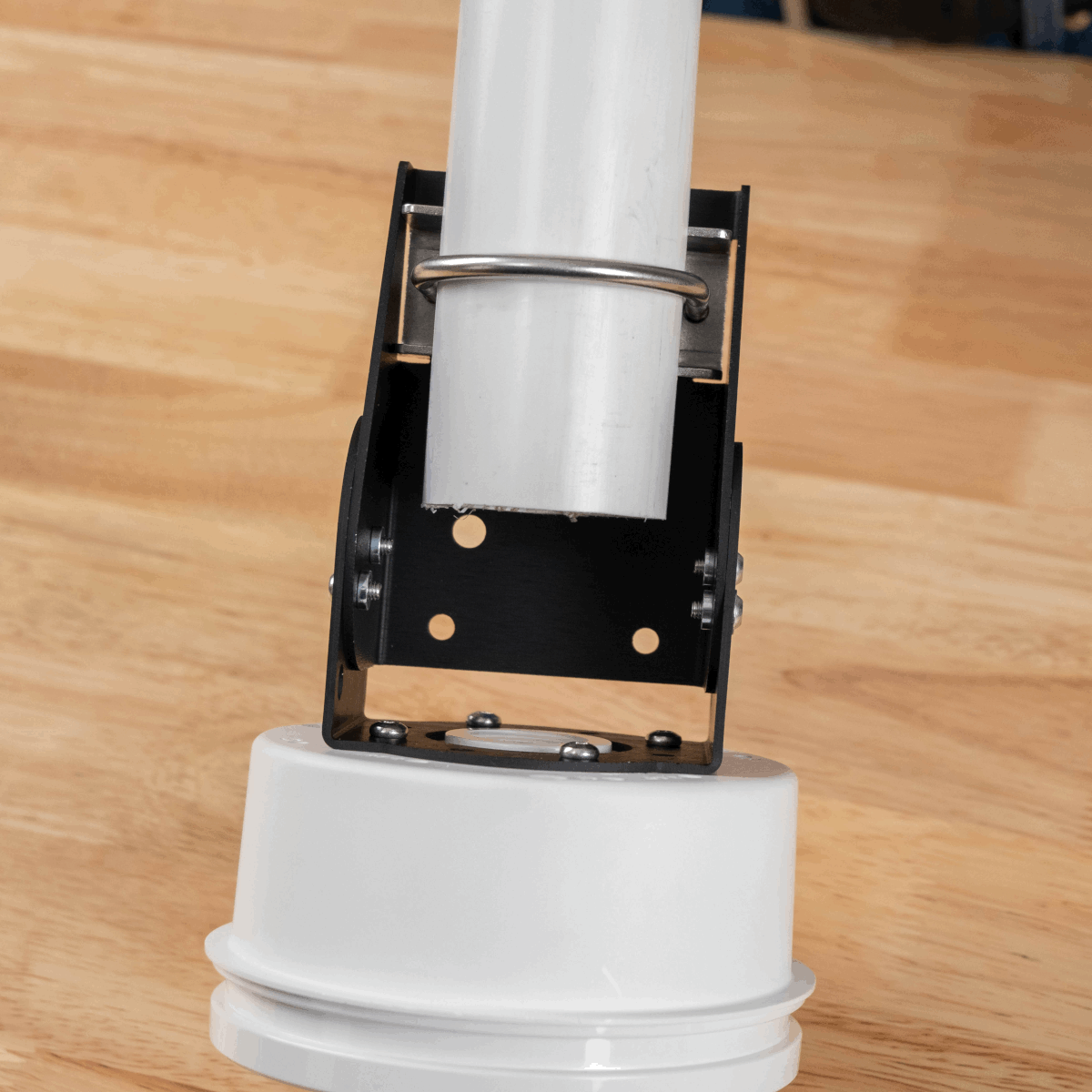

AB302 with AH301 Plate AB302 with AH302 Box

Assembly

Exterior of AB301 Interior of AB301

Mounting Instructions

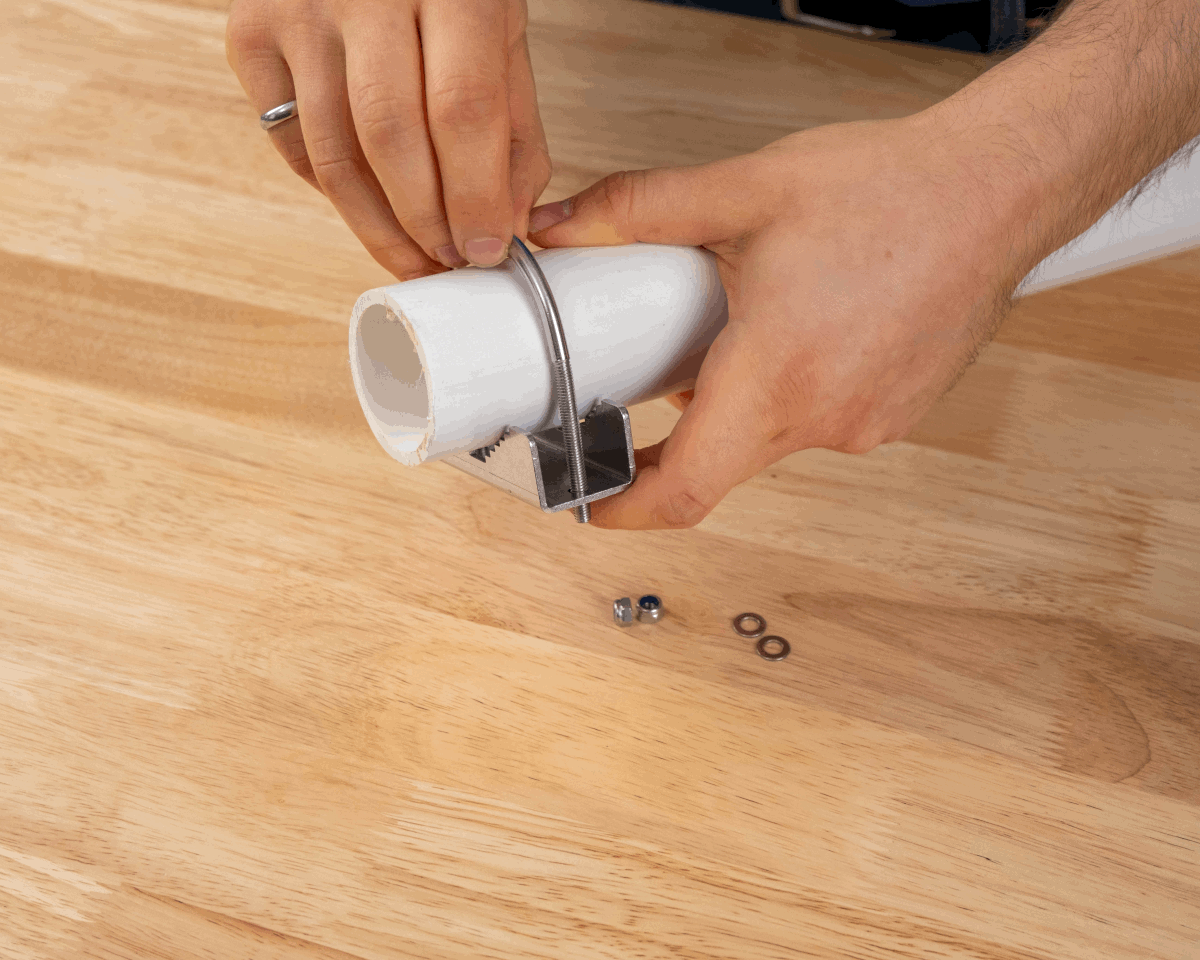

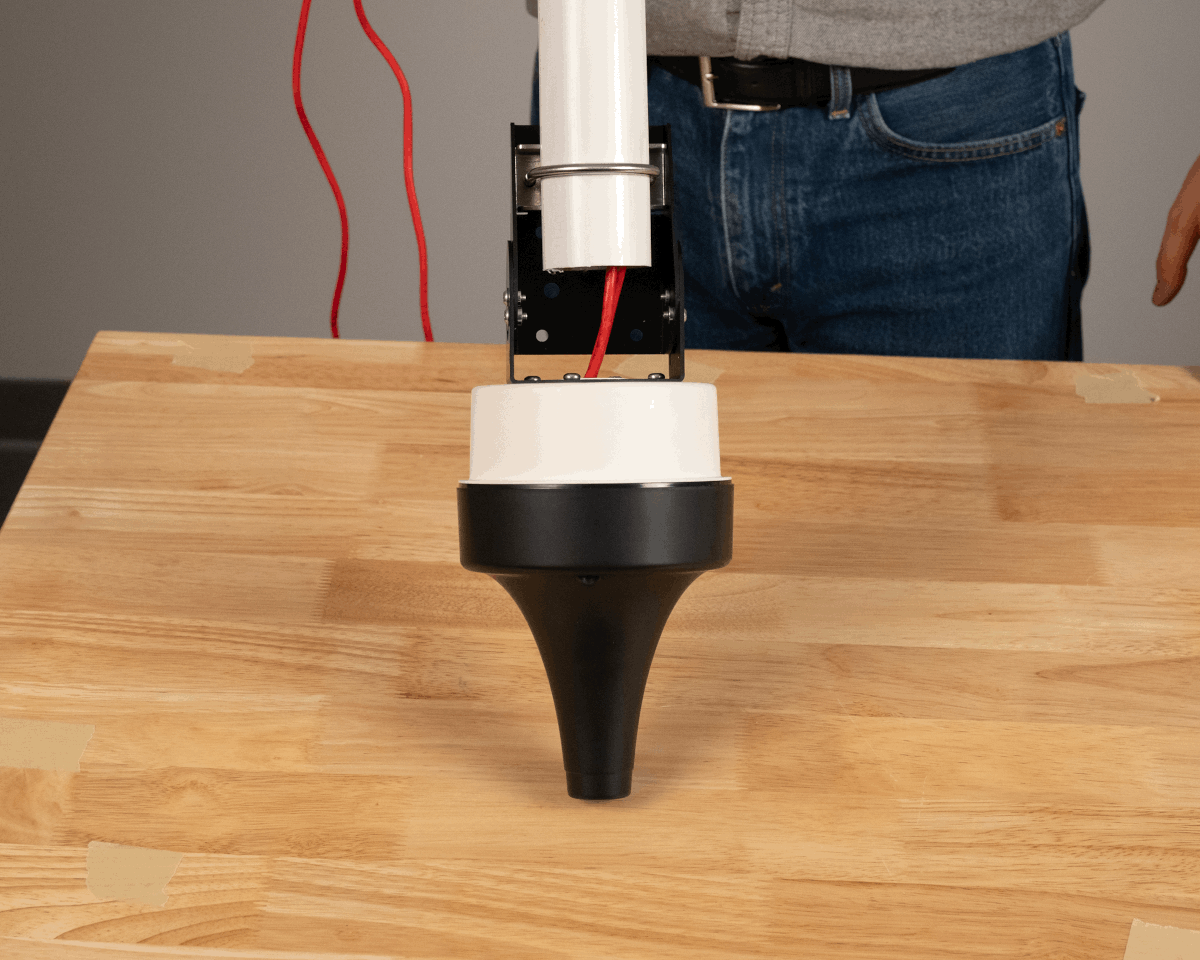

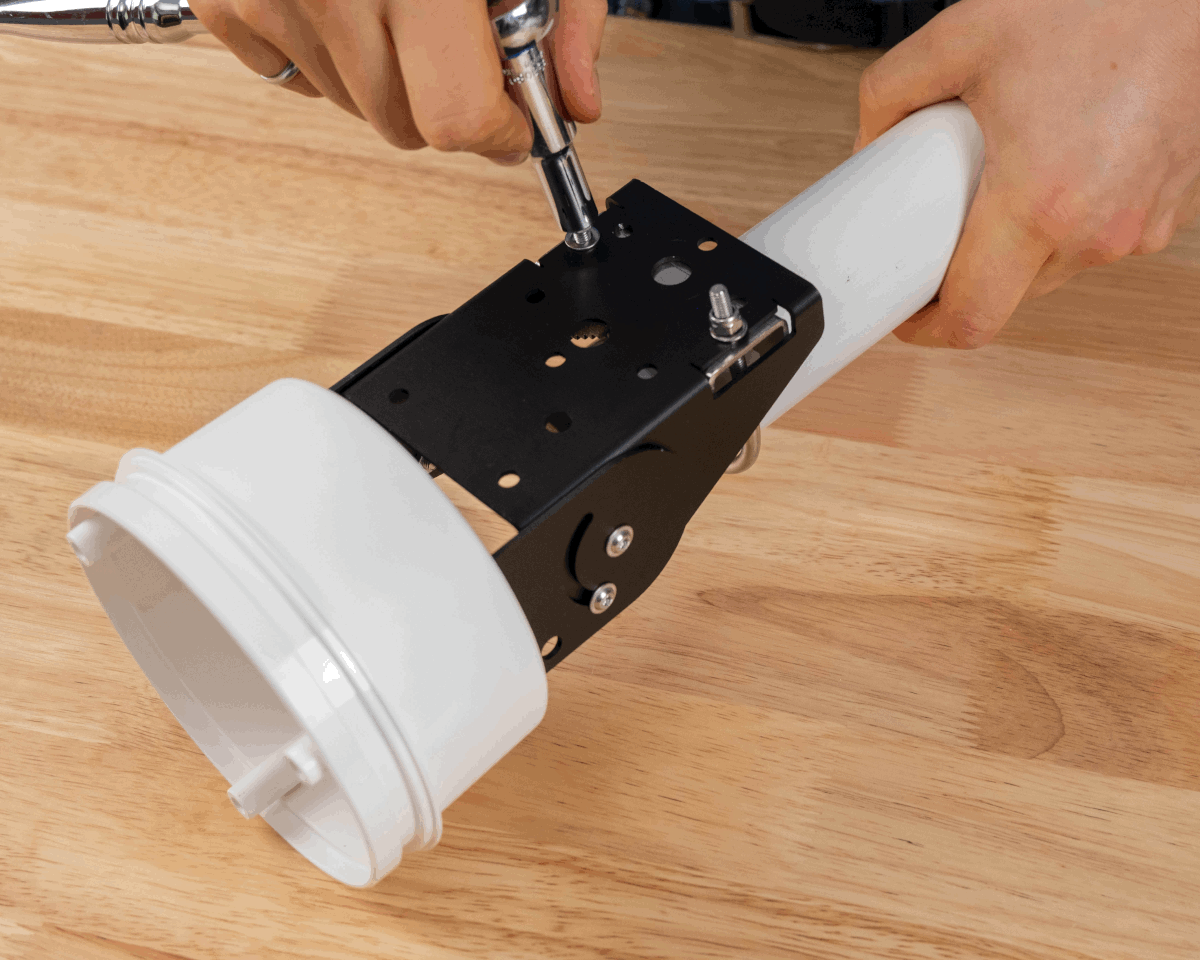

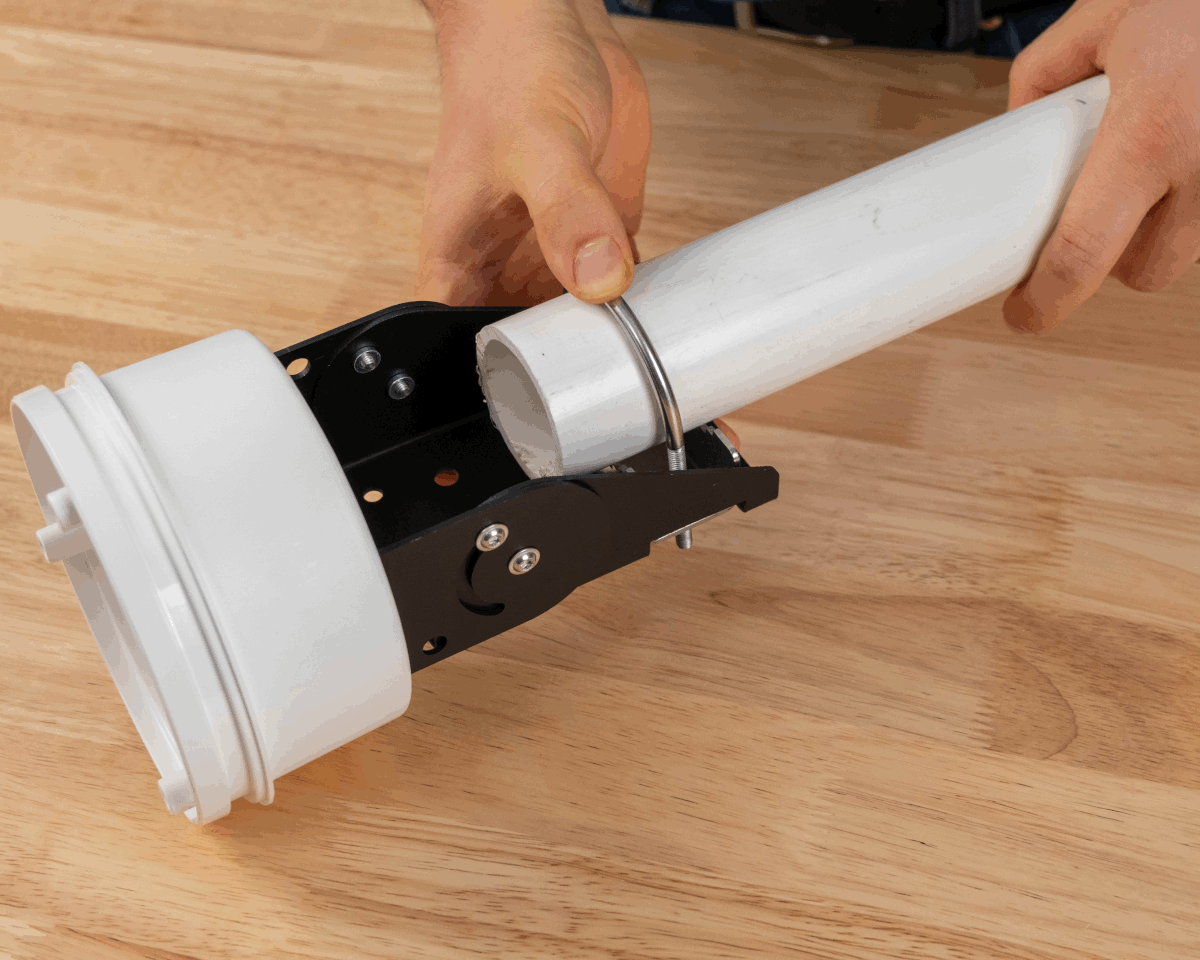

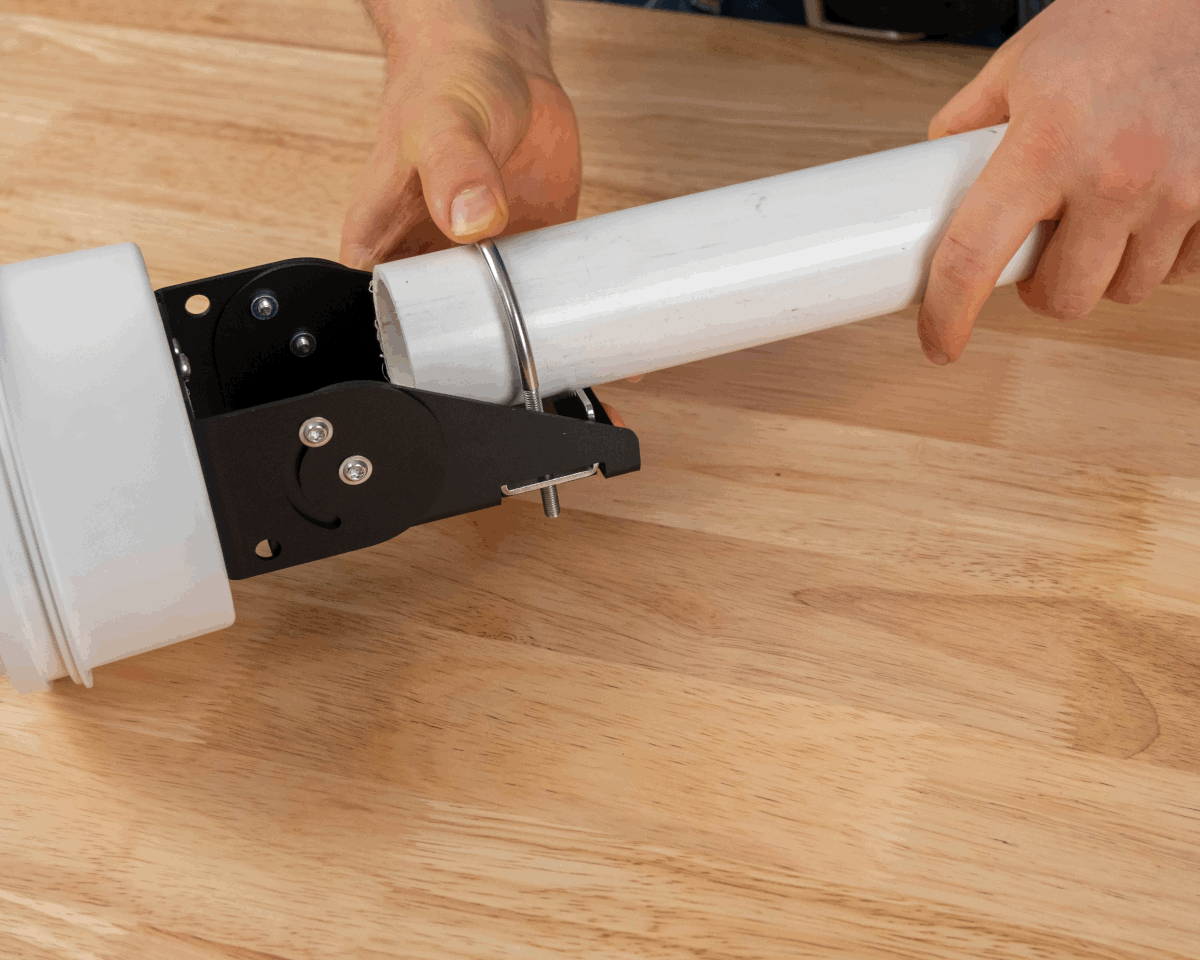

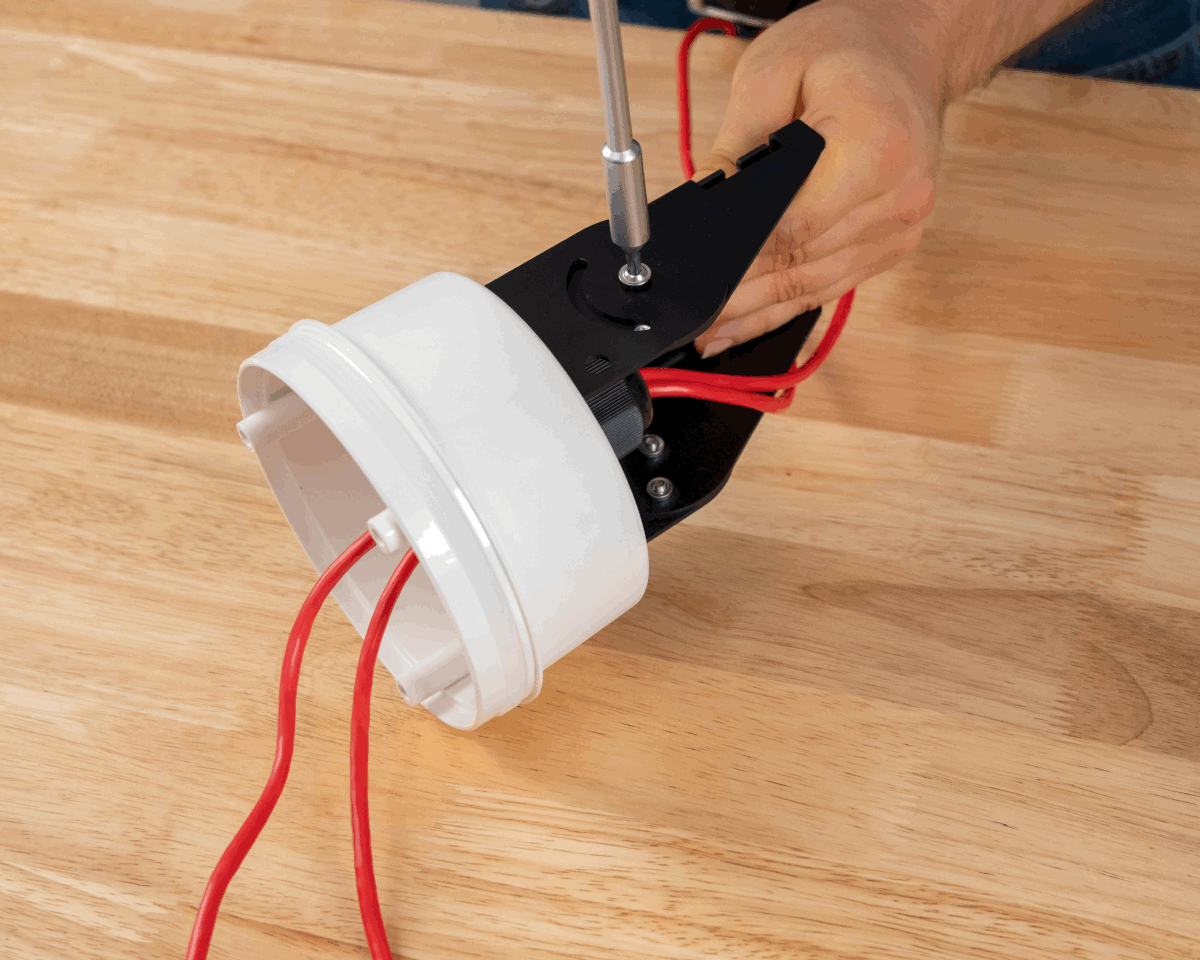

  1. Verify bracket and U-bolt fits around mounting pipe.


  2. Align bracket on interior of AB301 assembly.

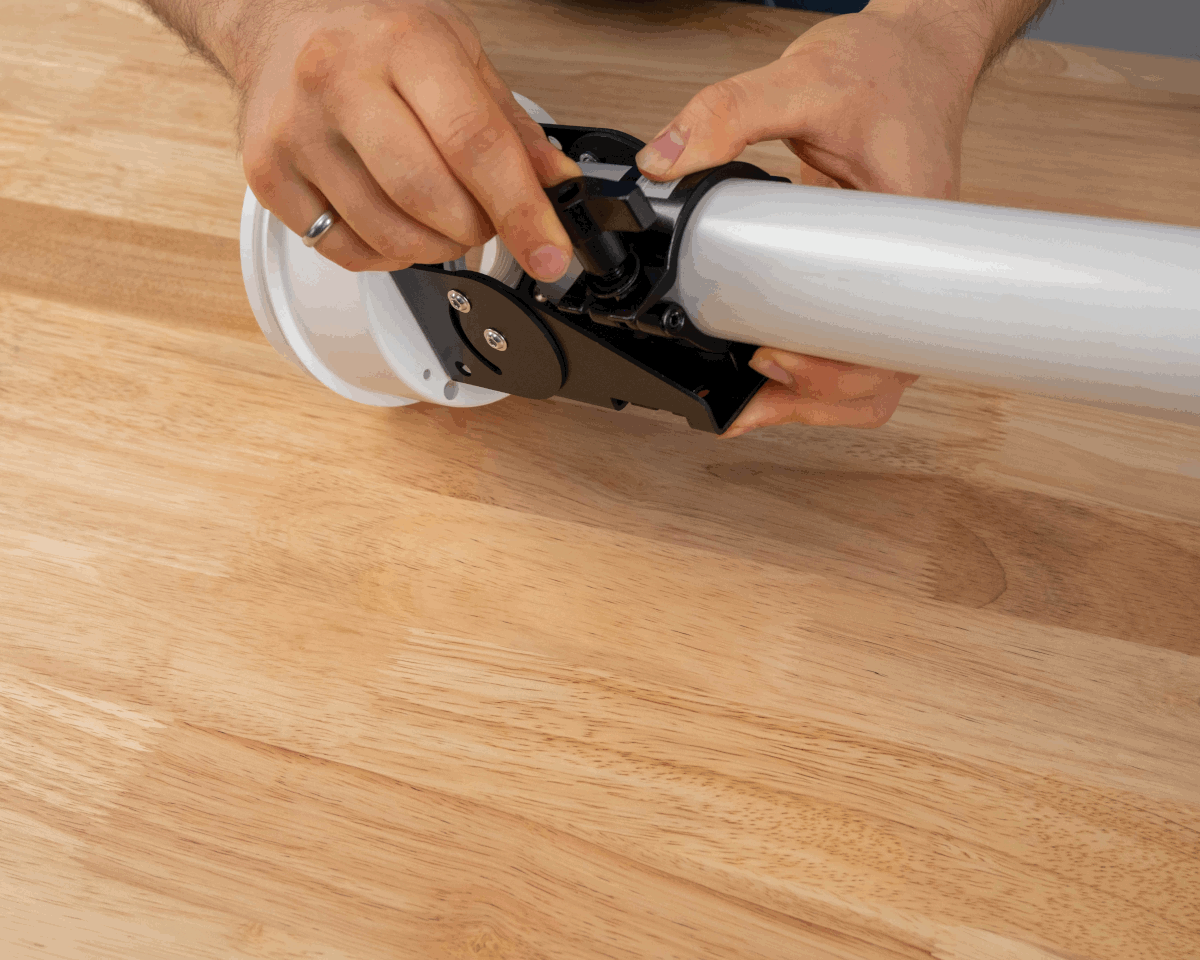

  3. Place pipe into bracket and slip U-bolt through bracket and AB301 assembly.

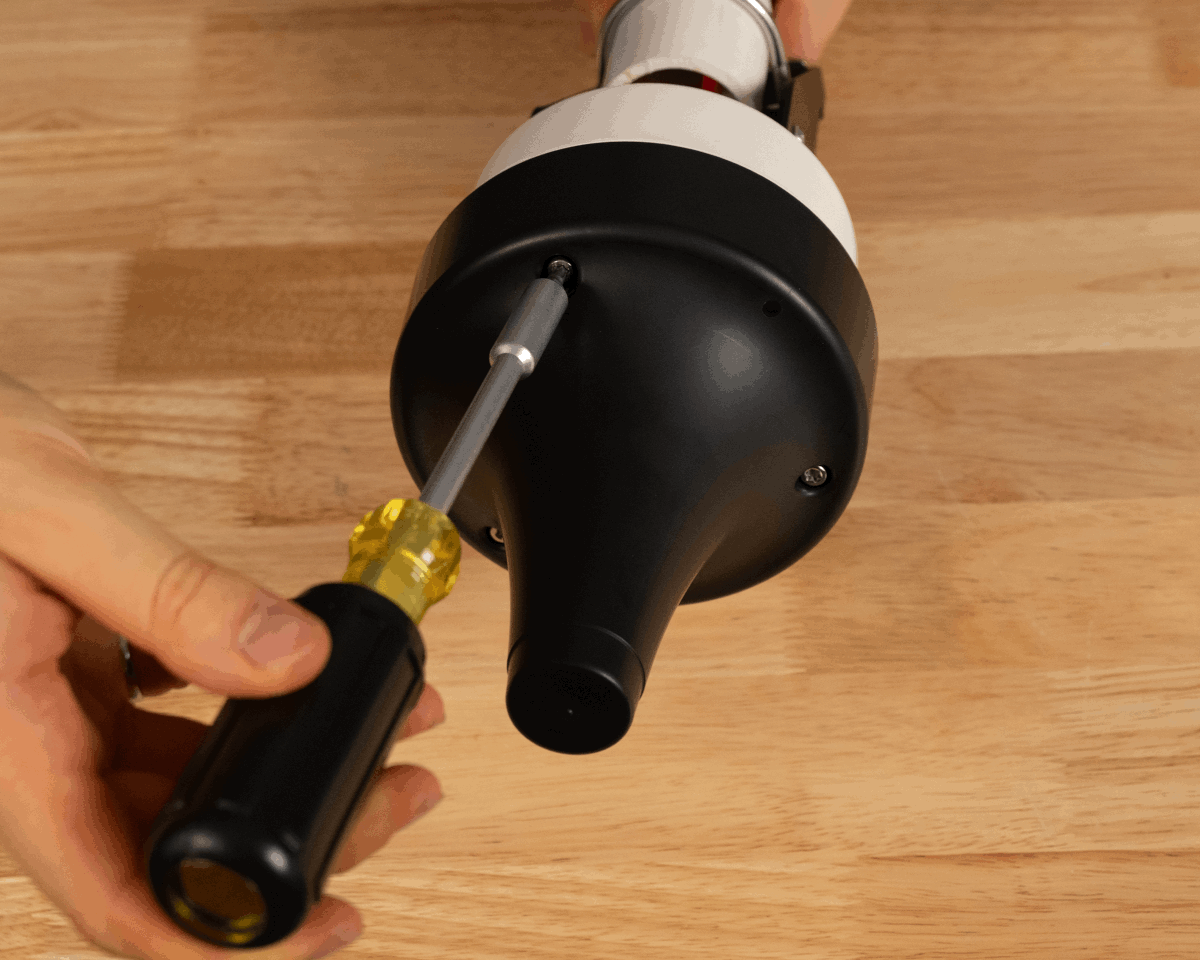

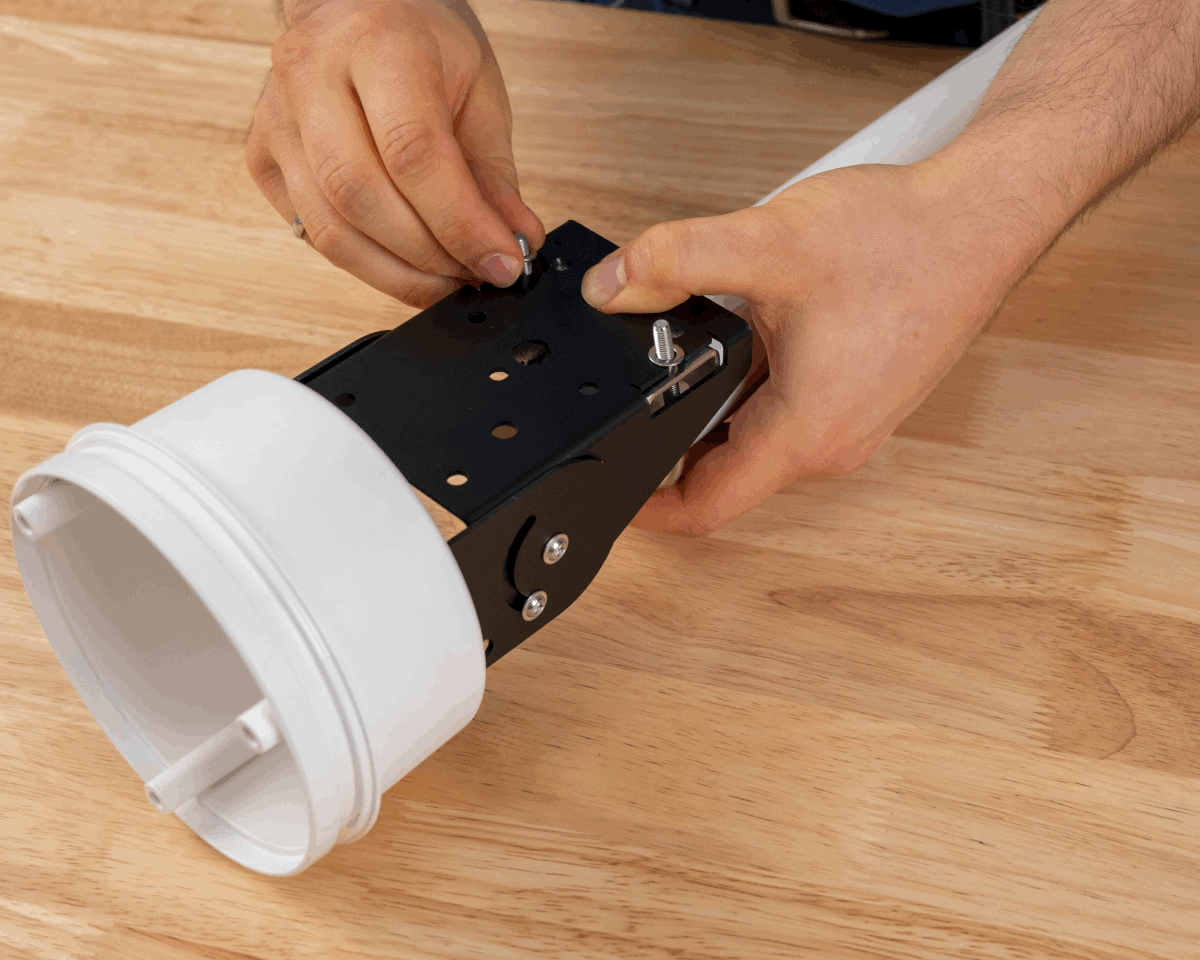

  4. On backside of assembly, place washers then the lock nuts on U-bolt threads. Tighten the lock nuts.


  5. Route cables through the mount.

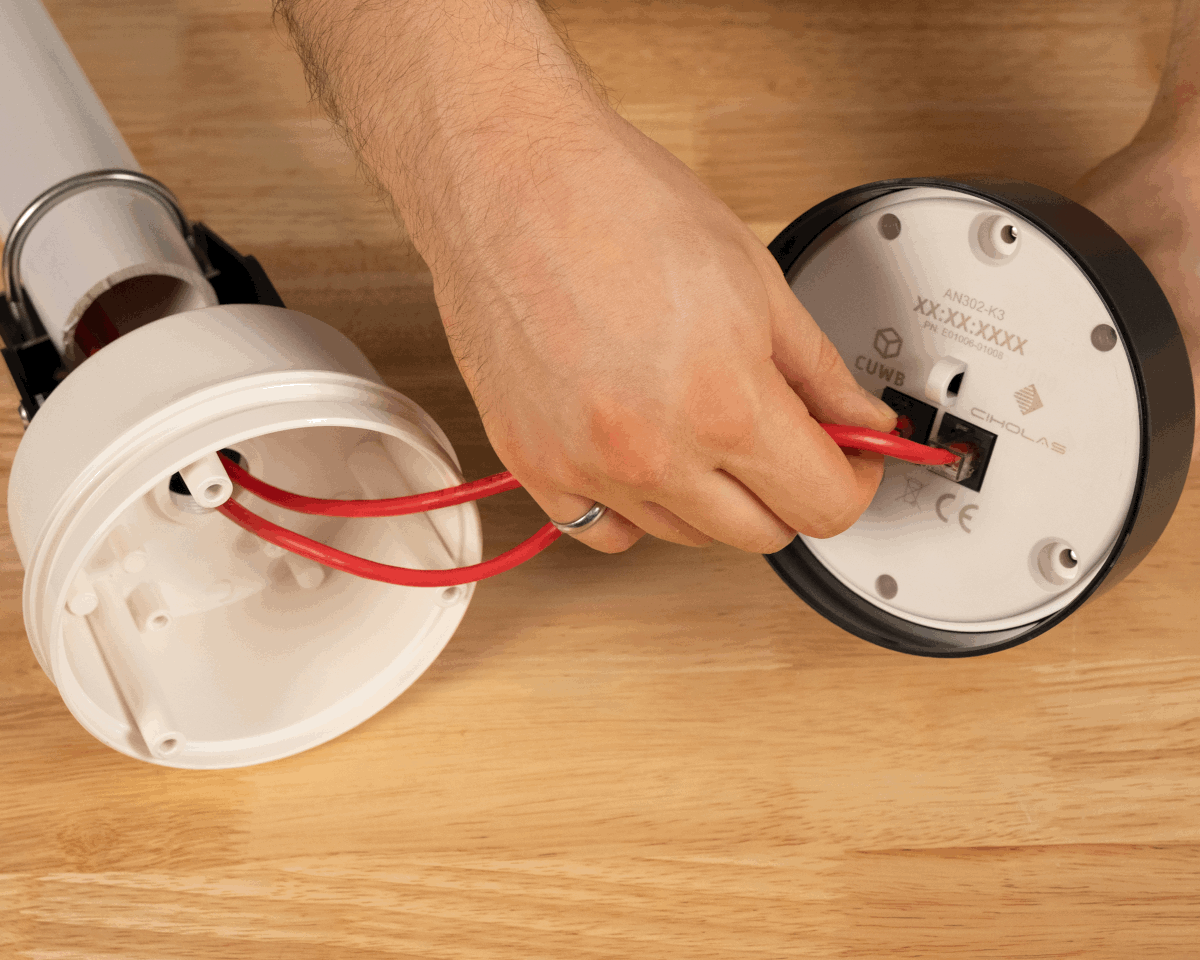

  6. With a cable long enough for servicing, plug cables into AN302.

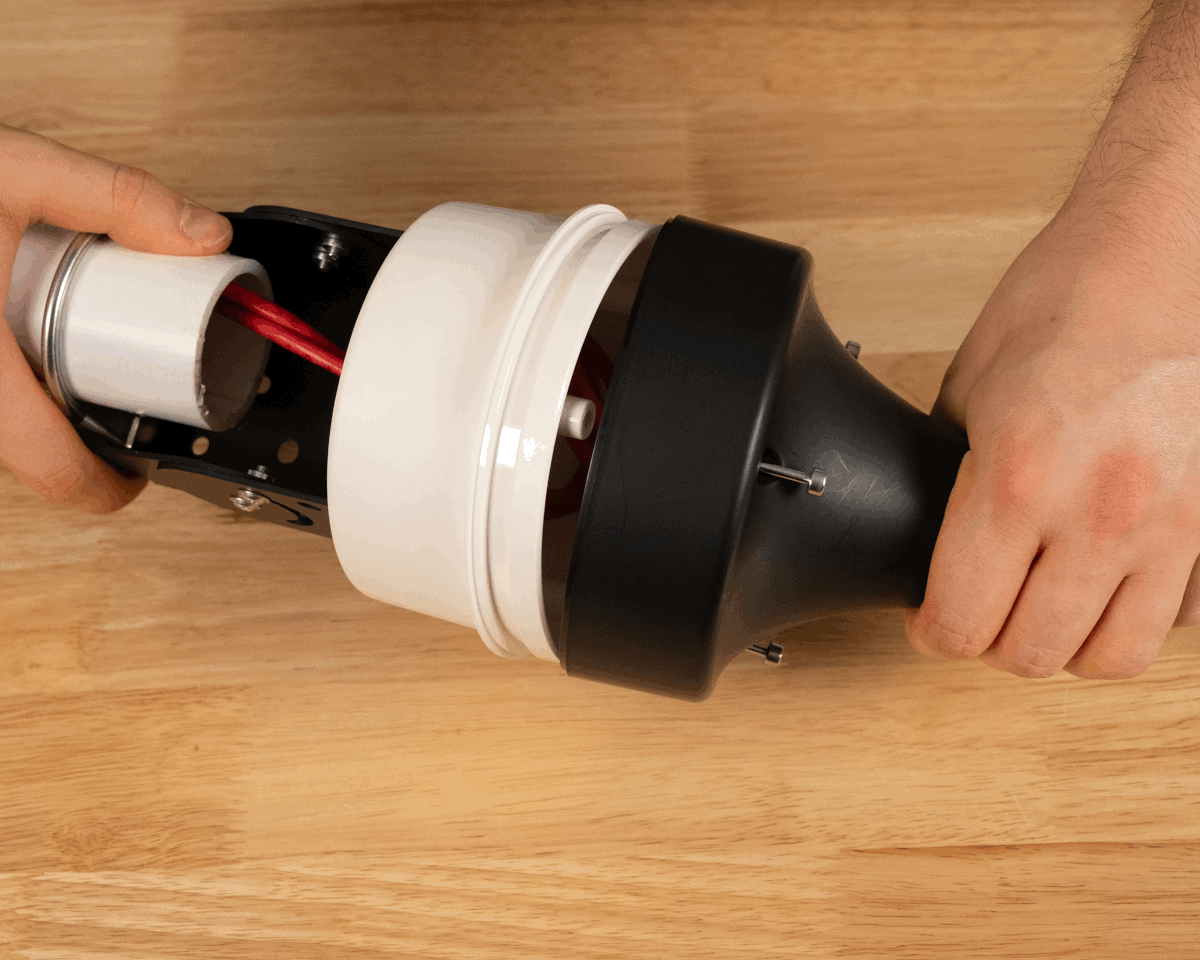

  7. Install AN302 to AH302 using the captive screws.

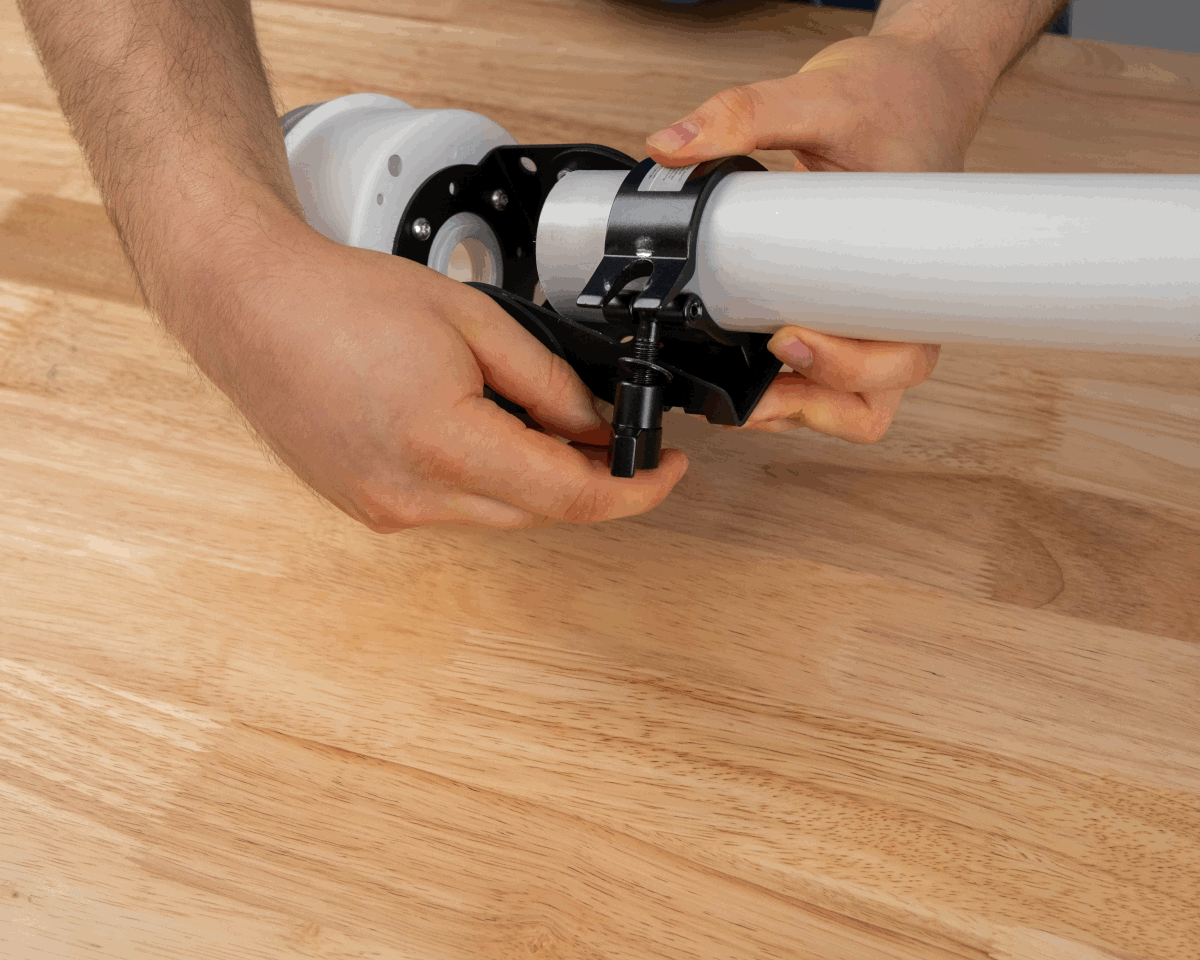

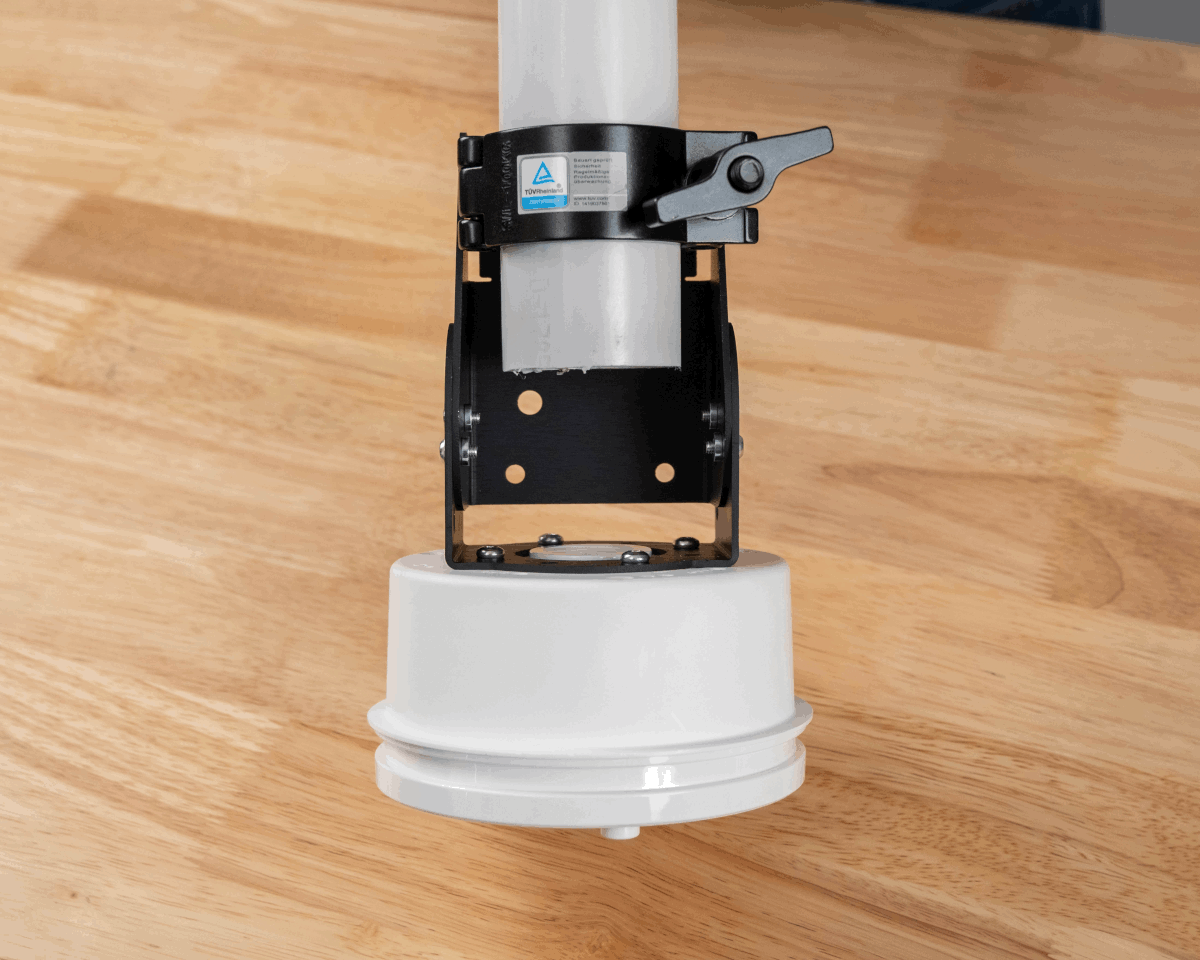

AB303 Fixed Theatrical Clamp

Contents

  • (1) Fixed Theatrical Clamp
  • (1) M10 30mm Long Hex Head Bolt
  • (1) M10 Flat Washer
  • (1) M10 Split Ring Washer
  • (1) M10 Nut
  • (1) M10 Wing Nut
  • (1) M8 Washer
  • (1) M8 Wing Nut

Assembly

Mounting Instructions

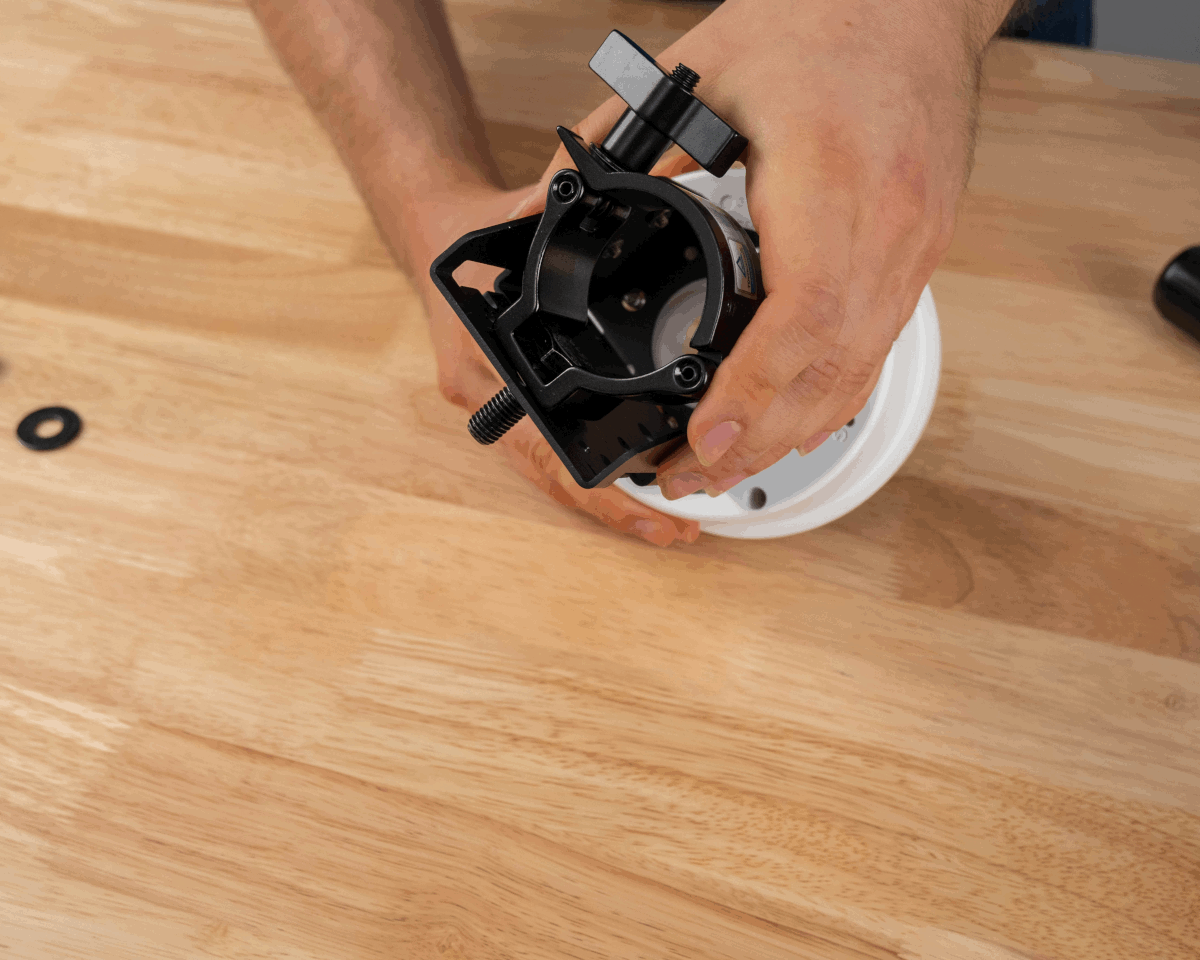

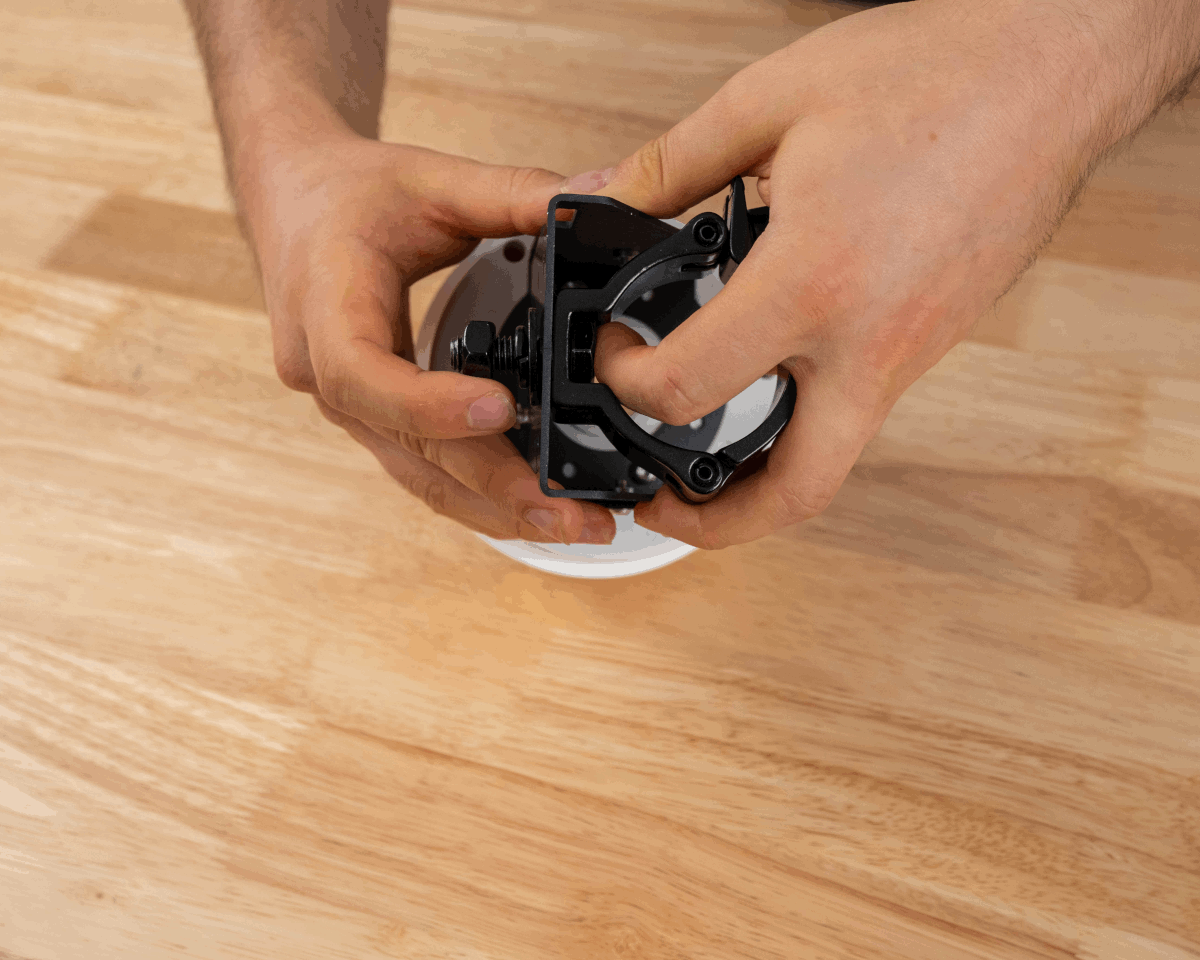

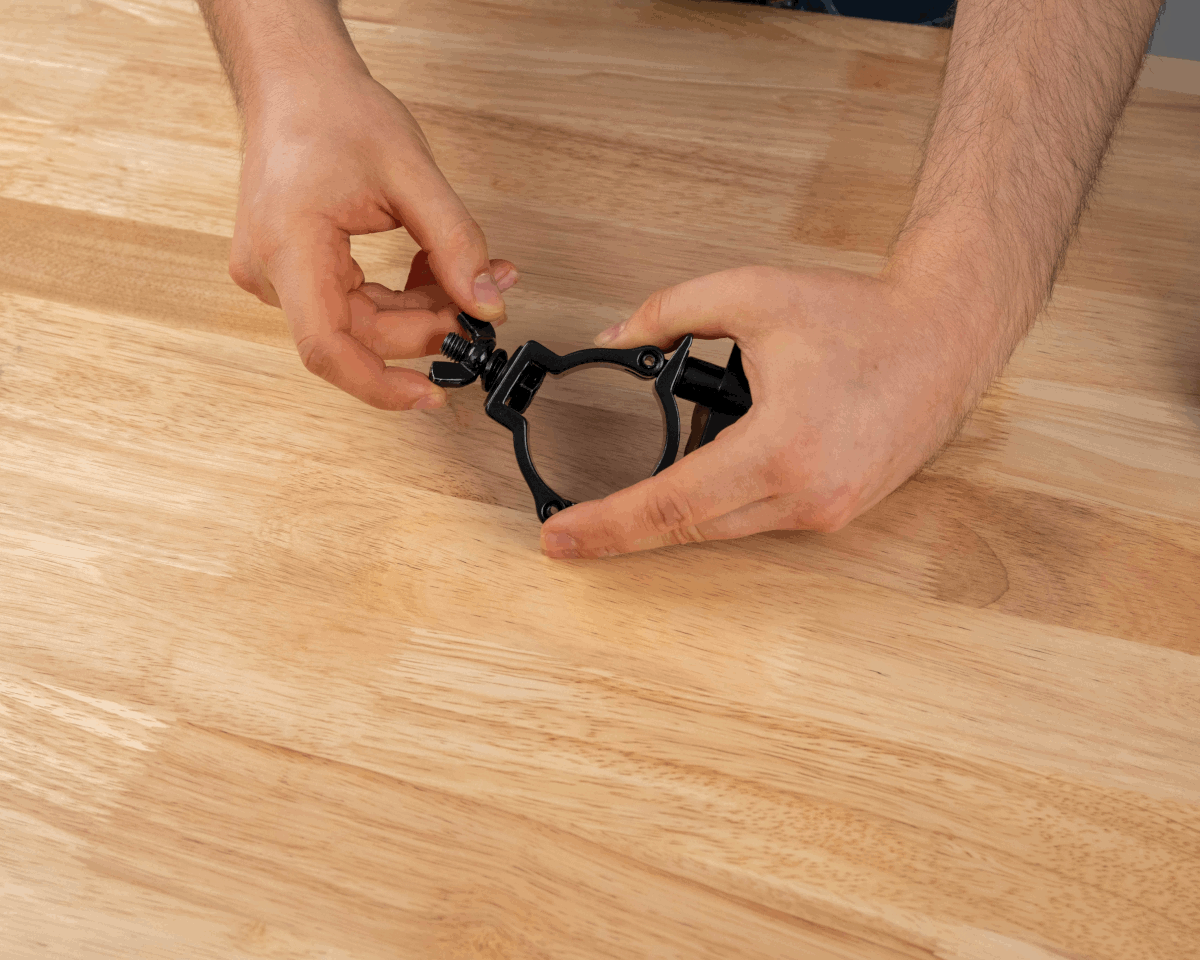

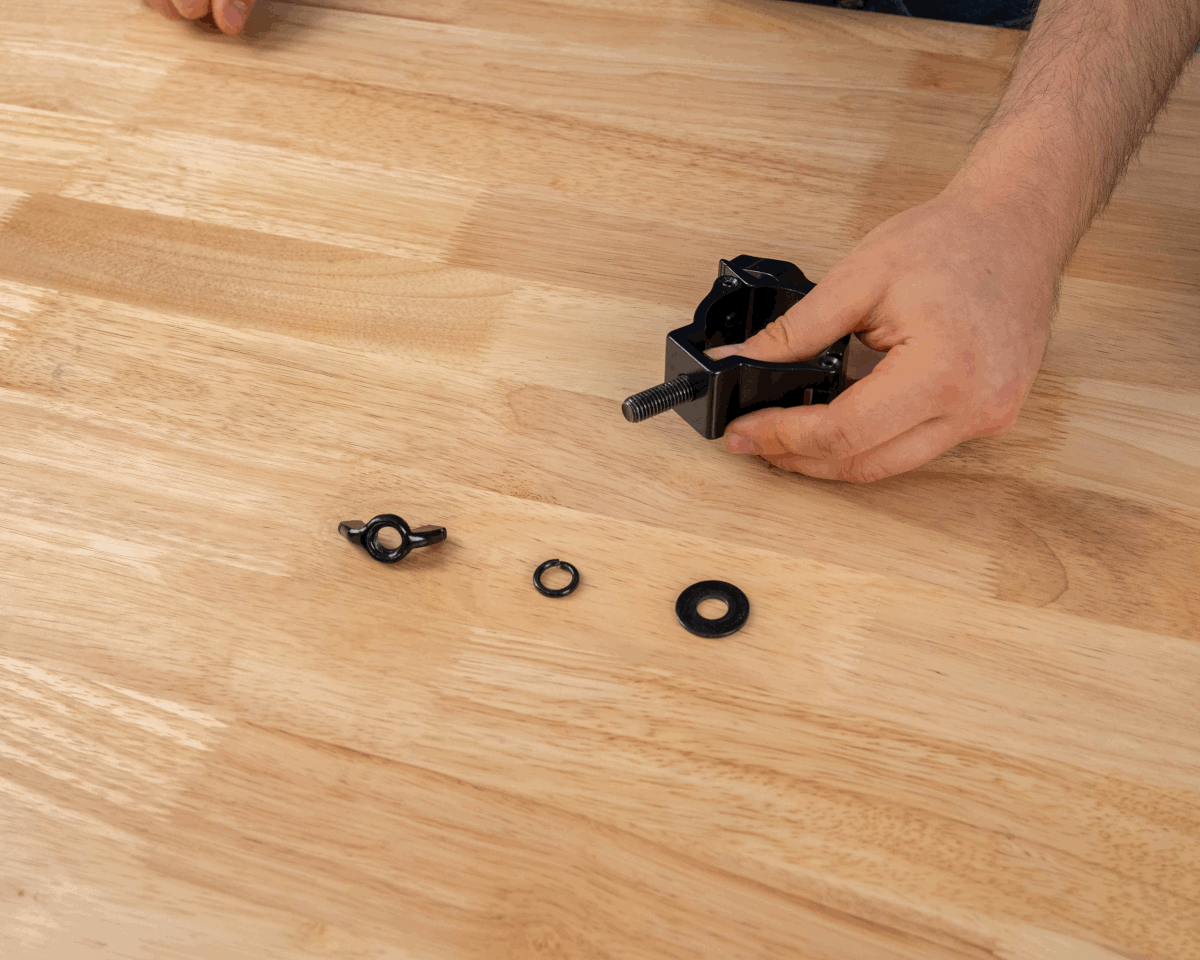

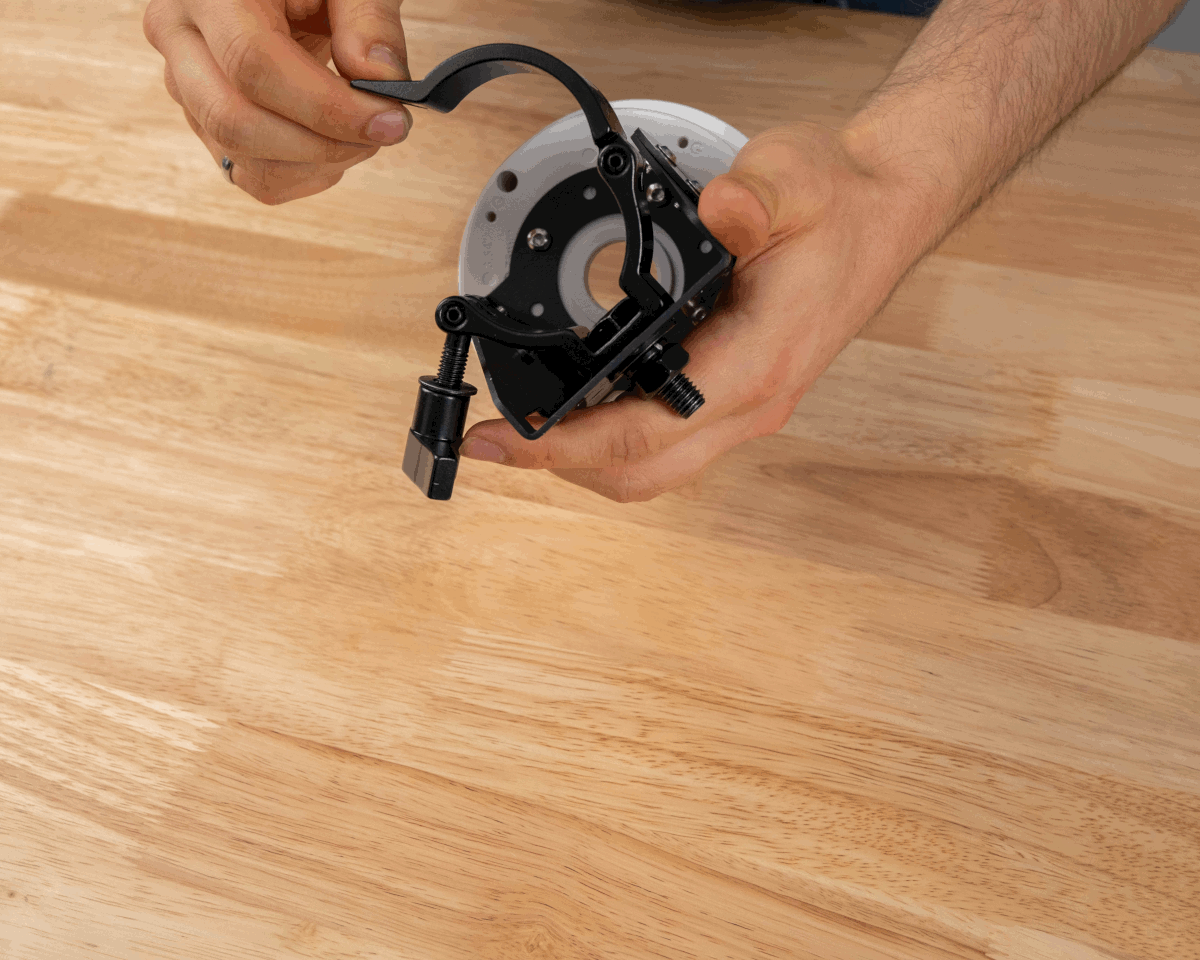

  1. Remove Wing Nut, washer and split ring washer from the clamp base post.

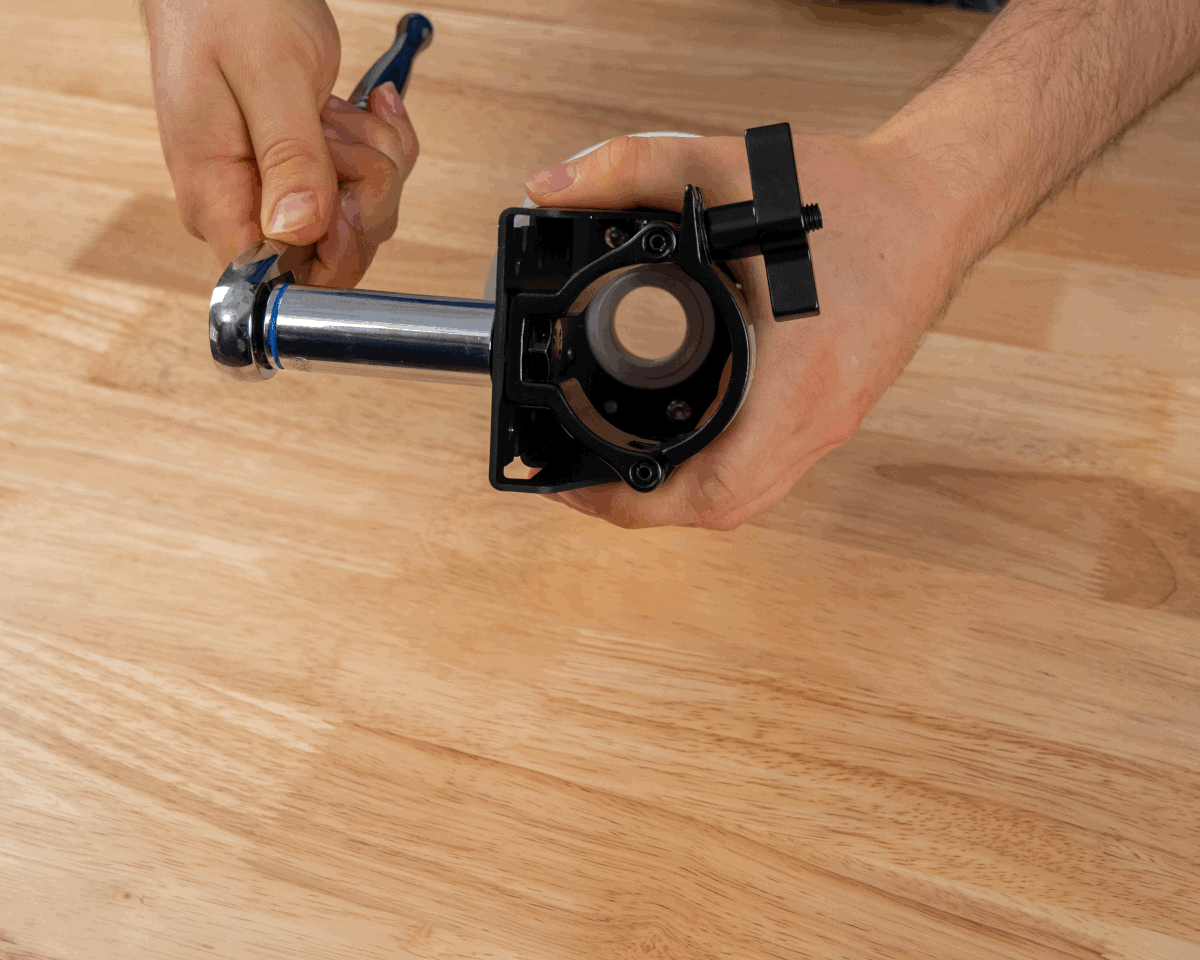

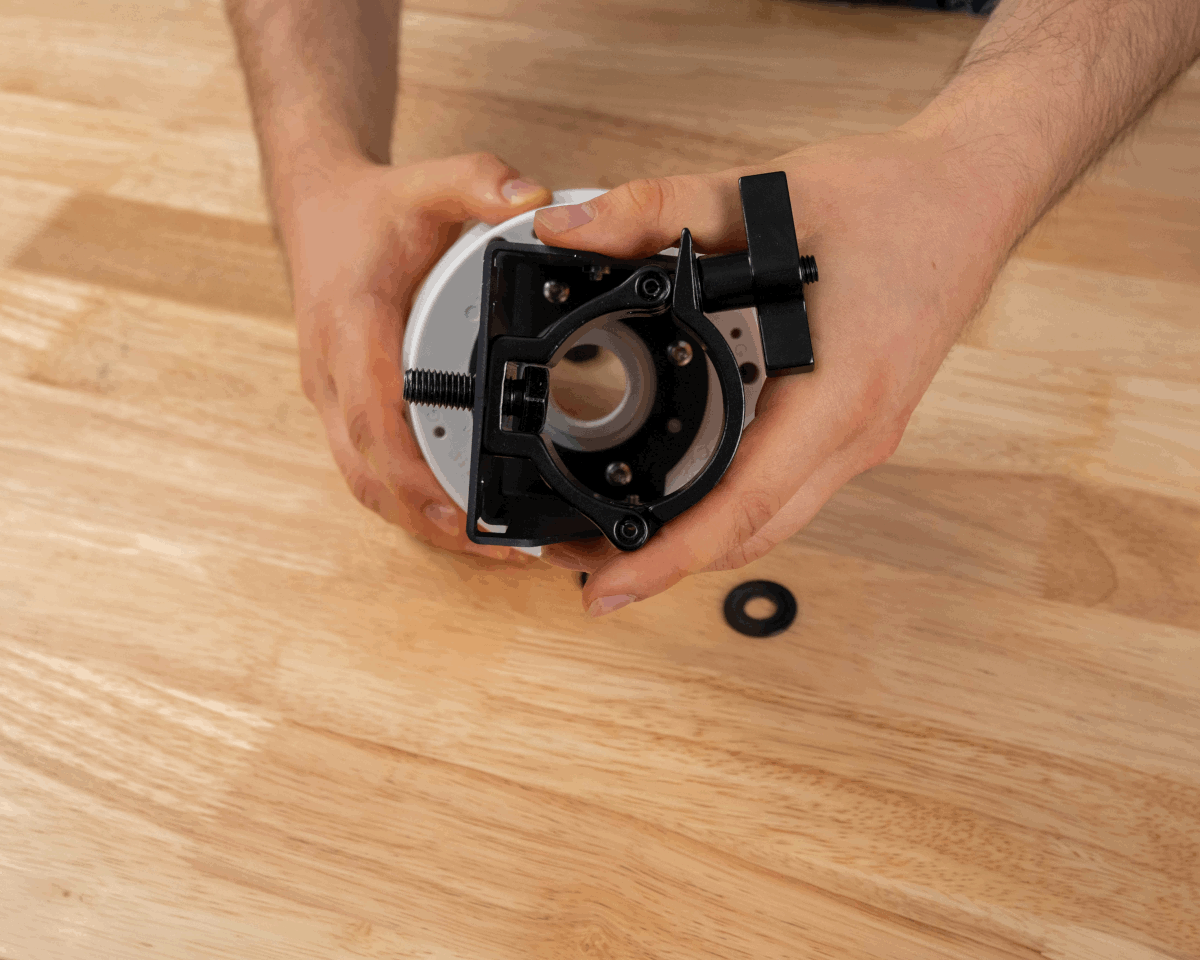

  2. Thread clamp base post through AB301 assembly.

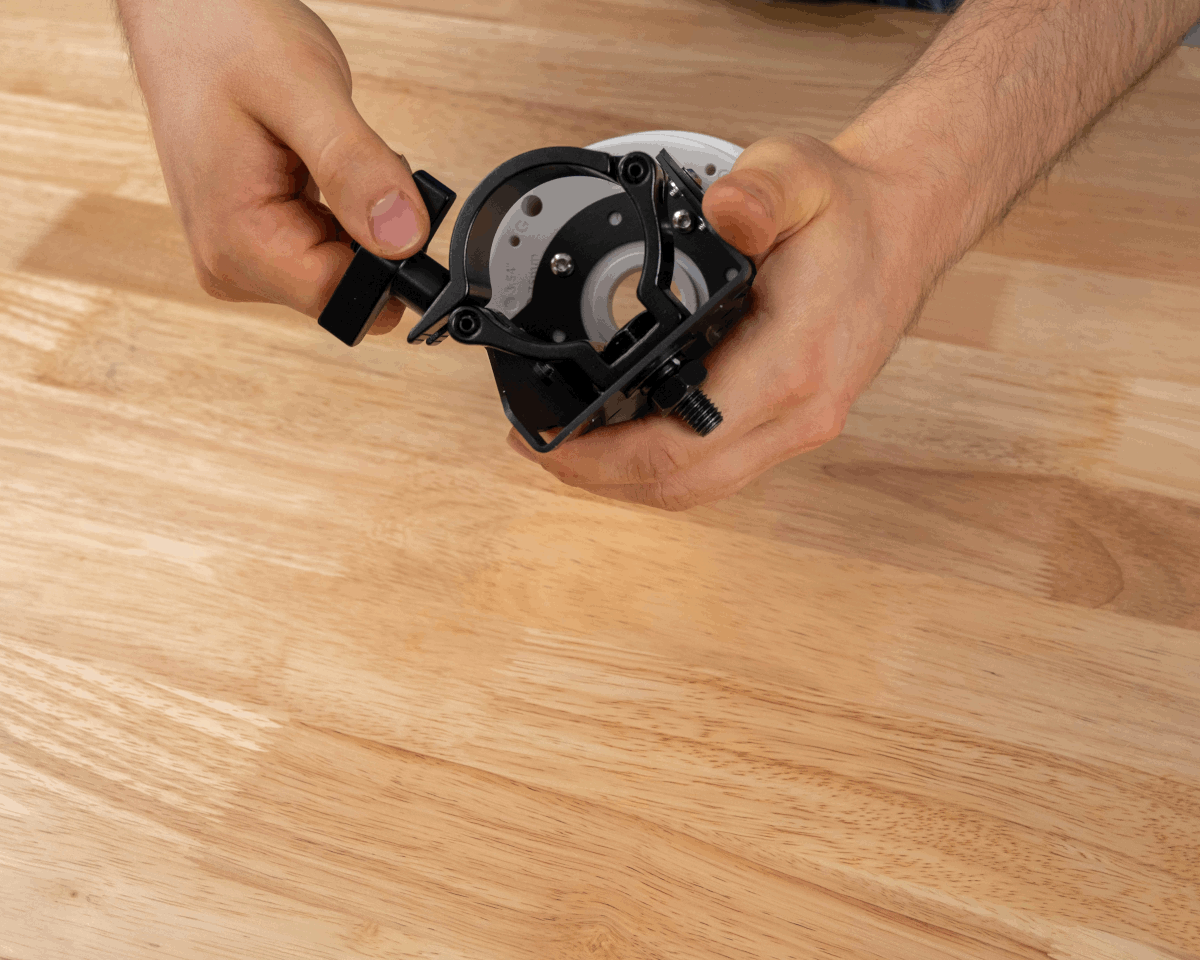

  3. Replace flat washer, split ring washer and nut onto the clamp base post. Tighten nut securely.

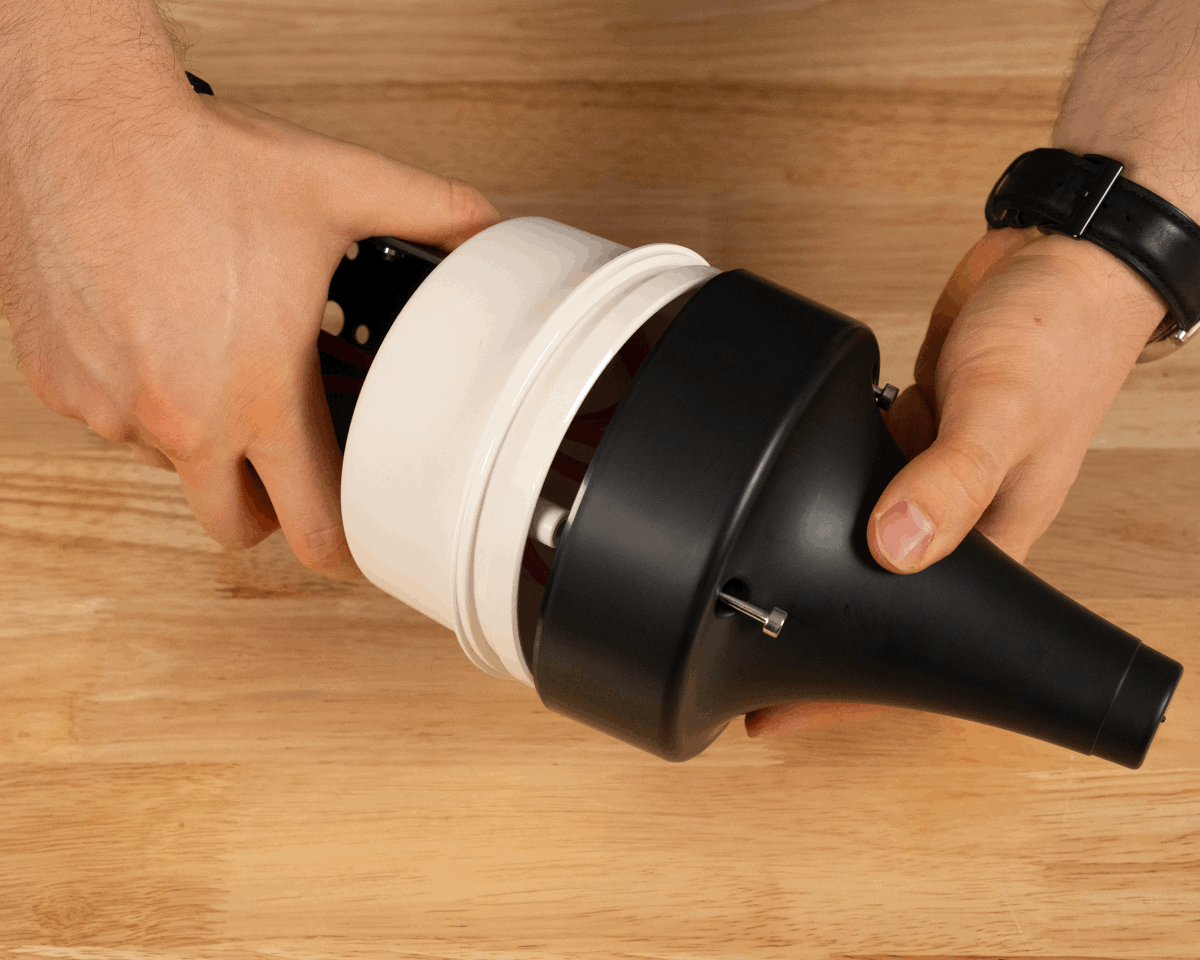

  4. Loosen clamp wing nut and open clamp.


  5. Insert pipe into clamp. Close clamp and tighten clamp wing nut securely.


  6. Route cables through the mount.
  7. With a cable long enough for servicing, plug cables into AN302.
  8. Install AN302 to AH302 using the captive screws.

AB301 Datasheet Datasheet Change Log

Version Date Change Description
5.0.0 2025-09-15 Initial Preliminary Release
