AH301 Datasheet

Description

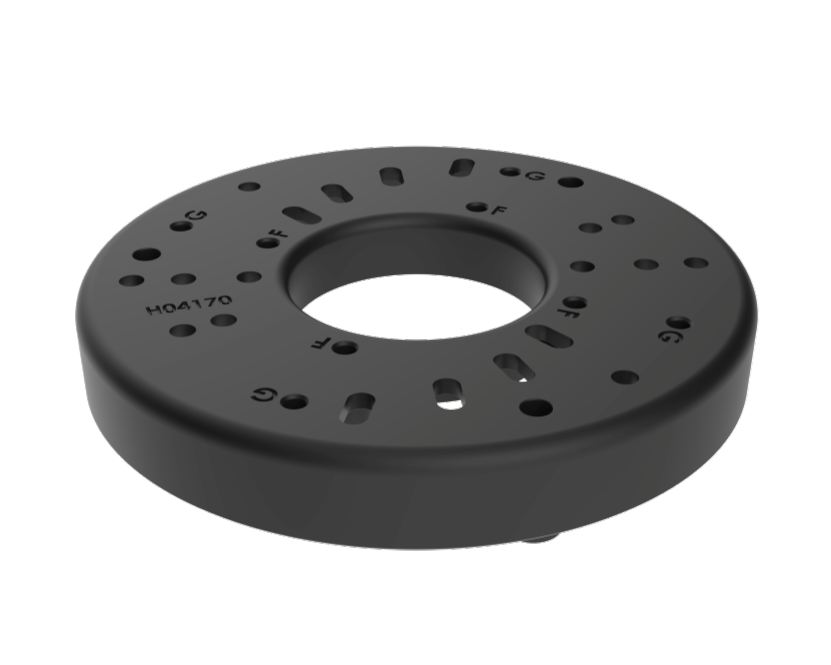

AH301 Mounting Plate

The Ciholas AH301 is a mounting plate that works with AN302 to mount the anchor to a ceiling or other flat surface.









Ordering

Model Part Number Description
AH301 AH301-K AN302 Flat Mounting Plate

Available from the Ciholas Webshop

Contents

  • 1 flat mounting plate

Screws are not provided. Screws for the AN302 to attach to the mounting plate are the captive screws on the AN302.

Mechanical

Parameter Description Min. Typ. Max Units
Unit Mass ABS Plastic w/ UL94V-0 rating   60.1   g

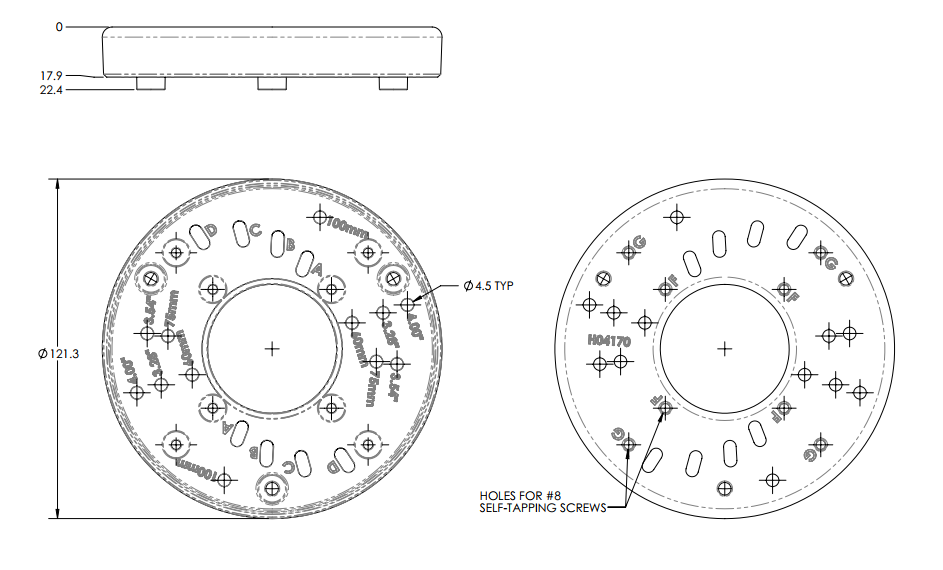

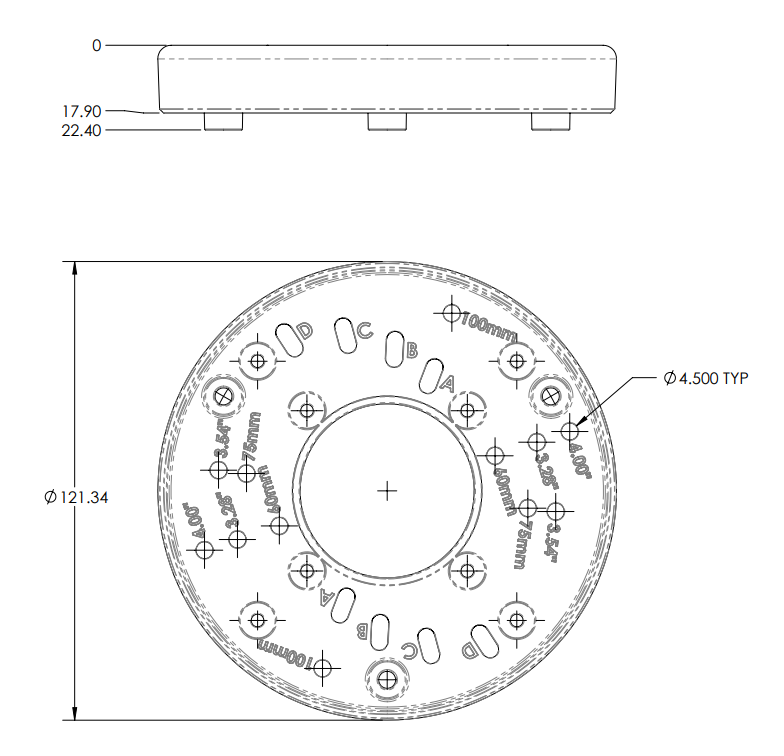

AH301 Mechanical Drawing

All dimensions are in millimeters unless otherwise stated.

Usage and Application

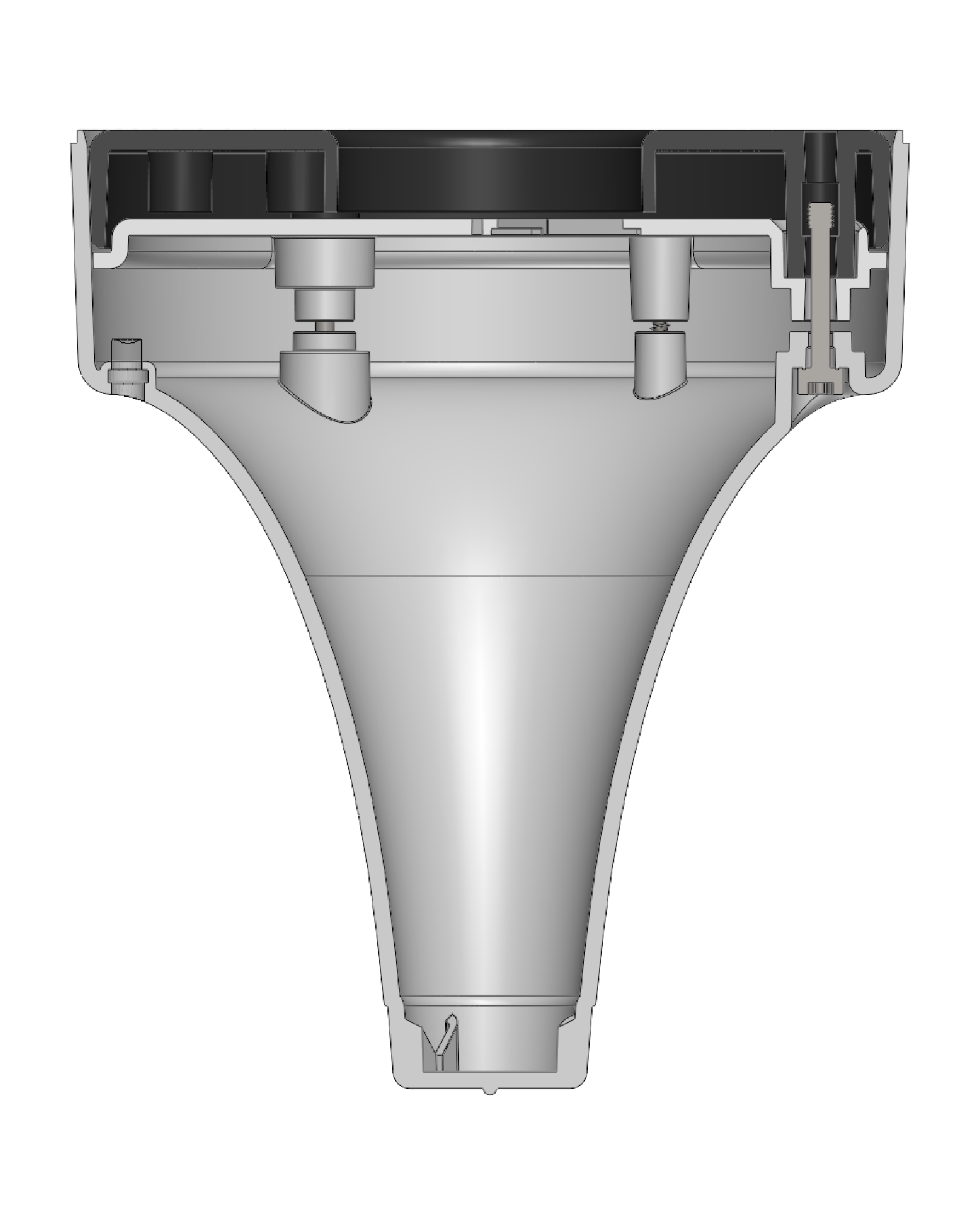

The mounting plate is intended for deployments where AN302 units are mounted to a flat surface.

There is no requirement that the anchors be mounted in the same orientation, but consider rotation of the anchor if mounting a large quantity in a visible space.

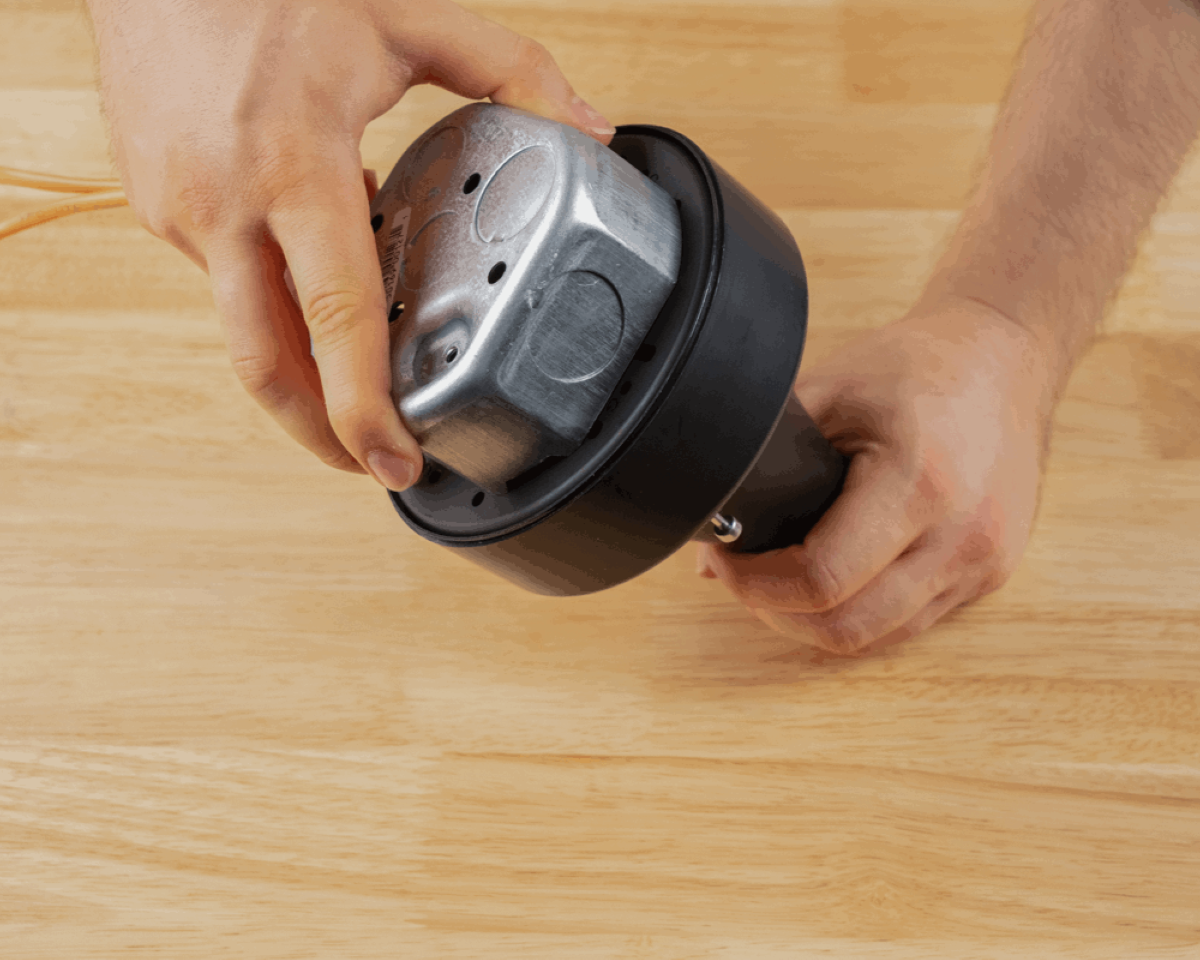

Mounting Instructions

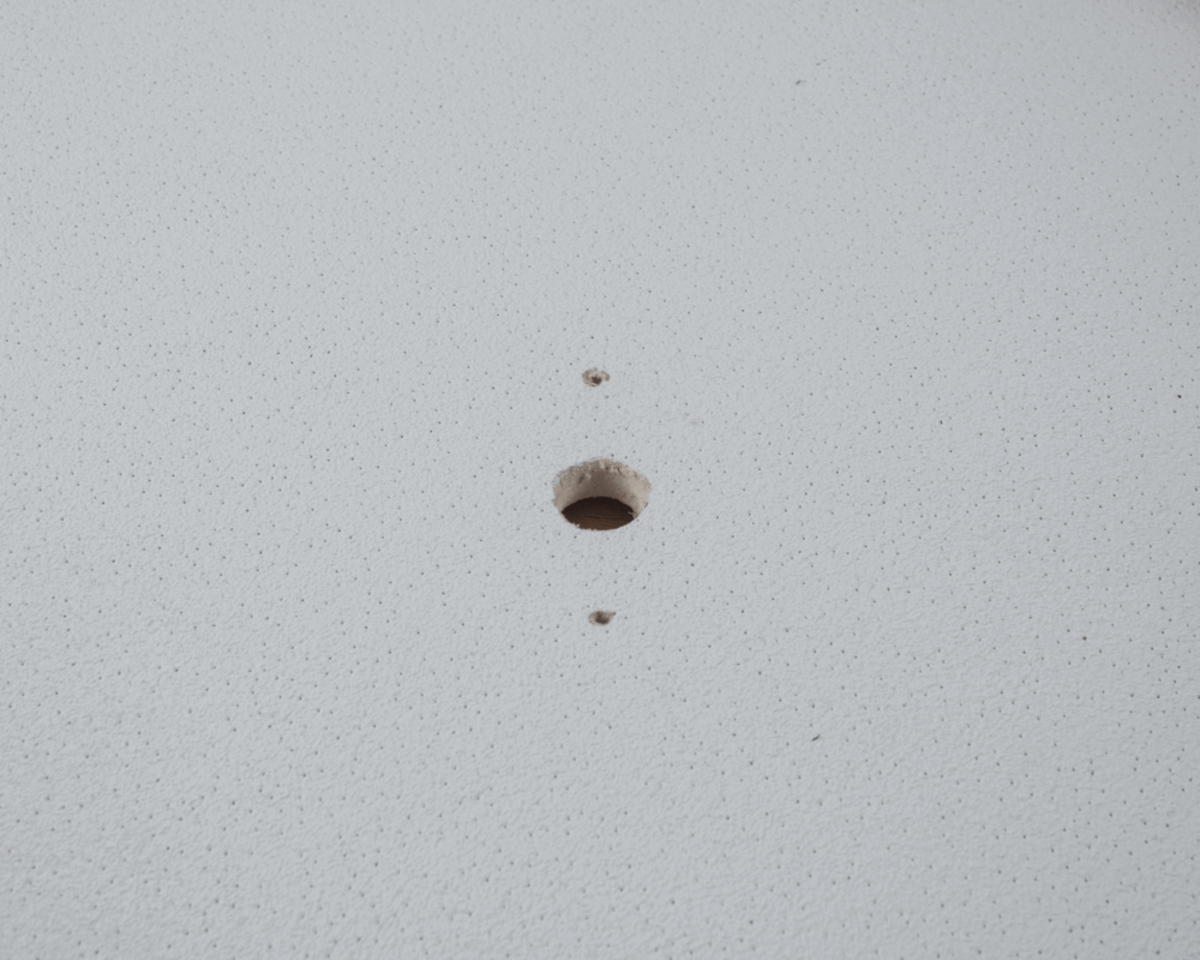

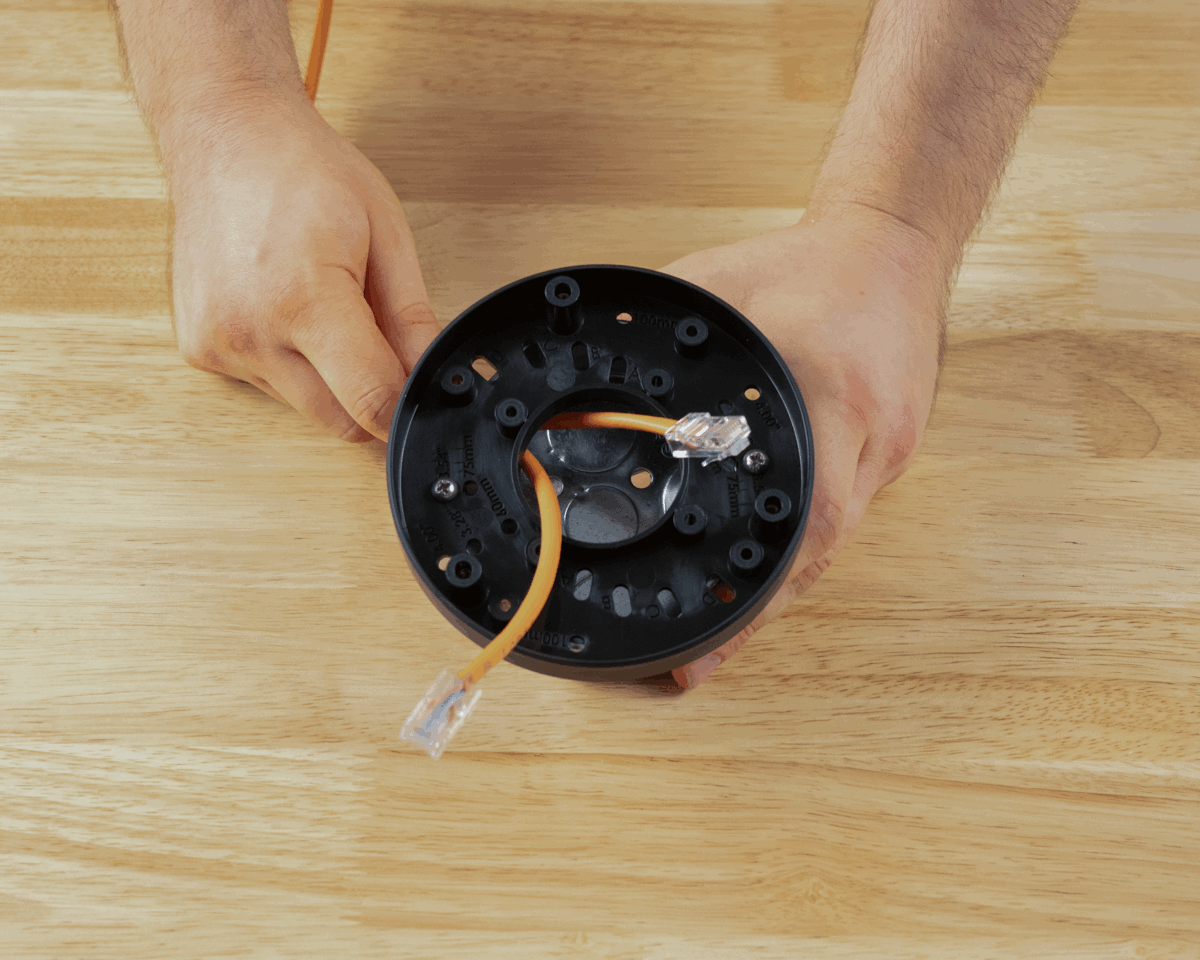

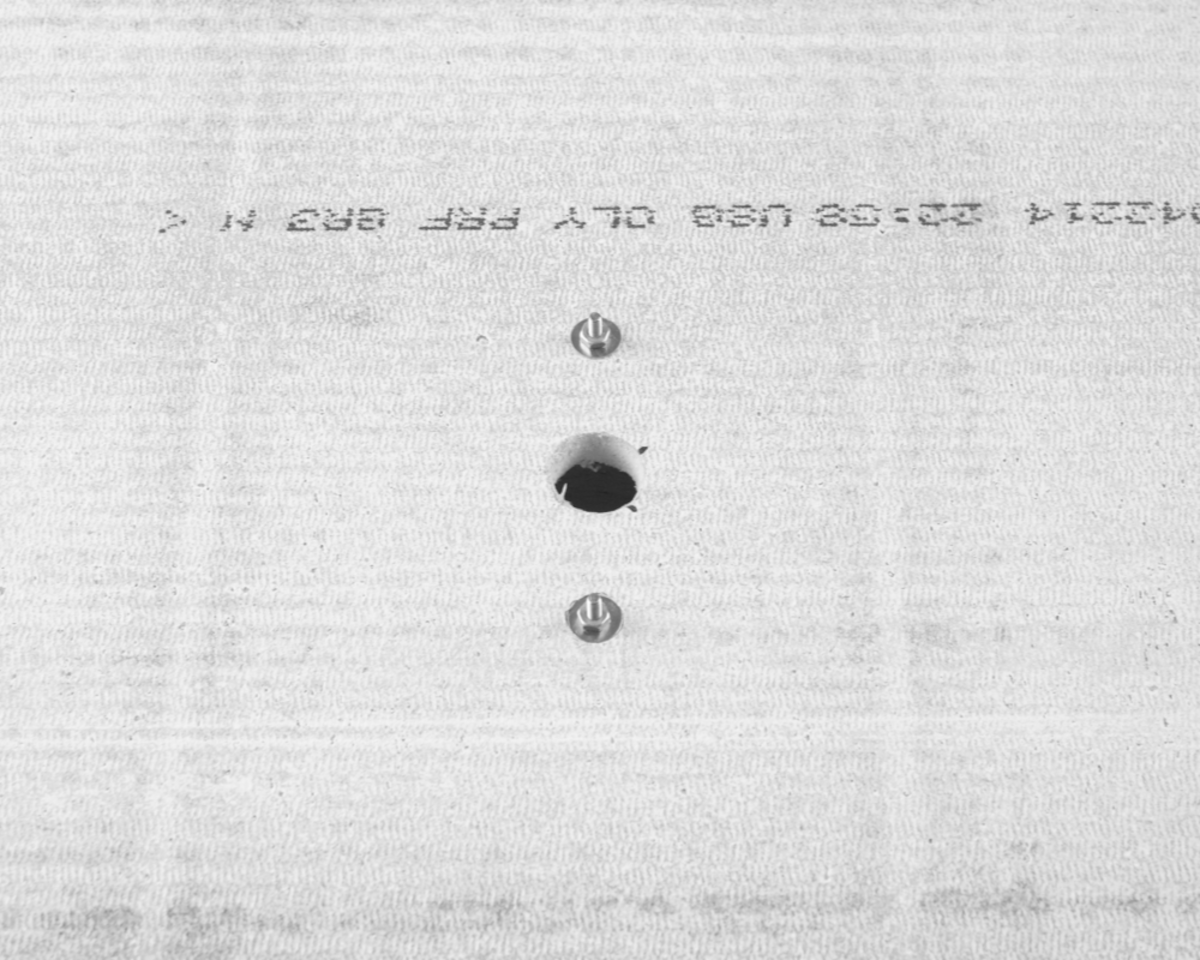

  1. Select the appropriate hole or slot pattern for the mounting application.

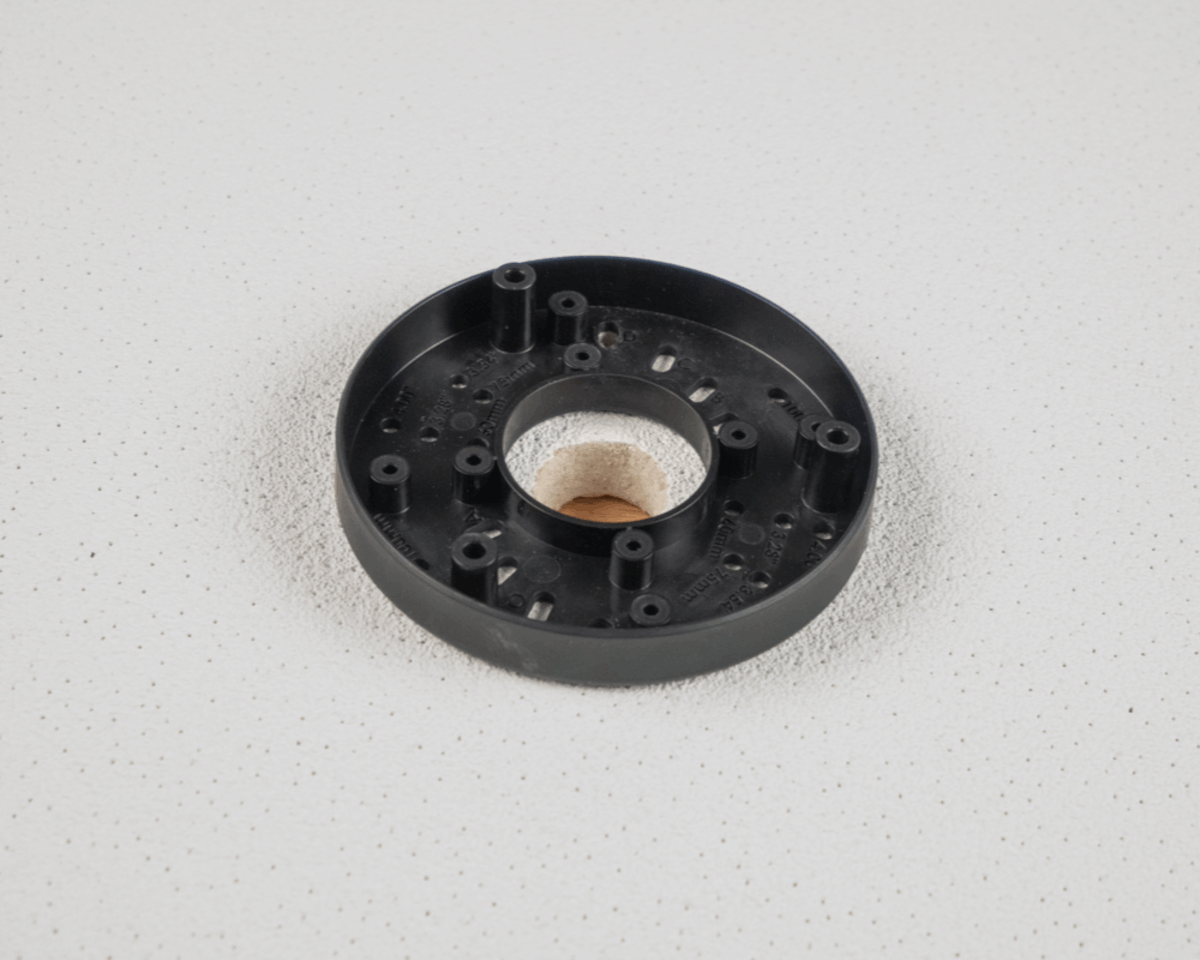

  2. Place the flat surface of the plate against the mounting surface.

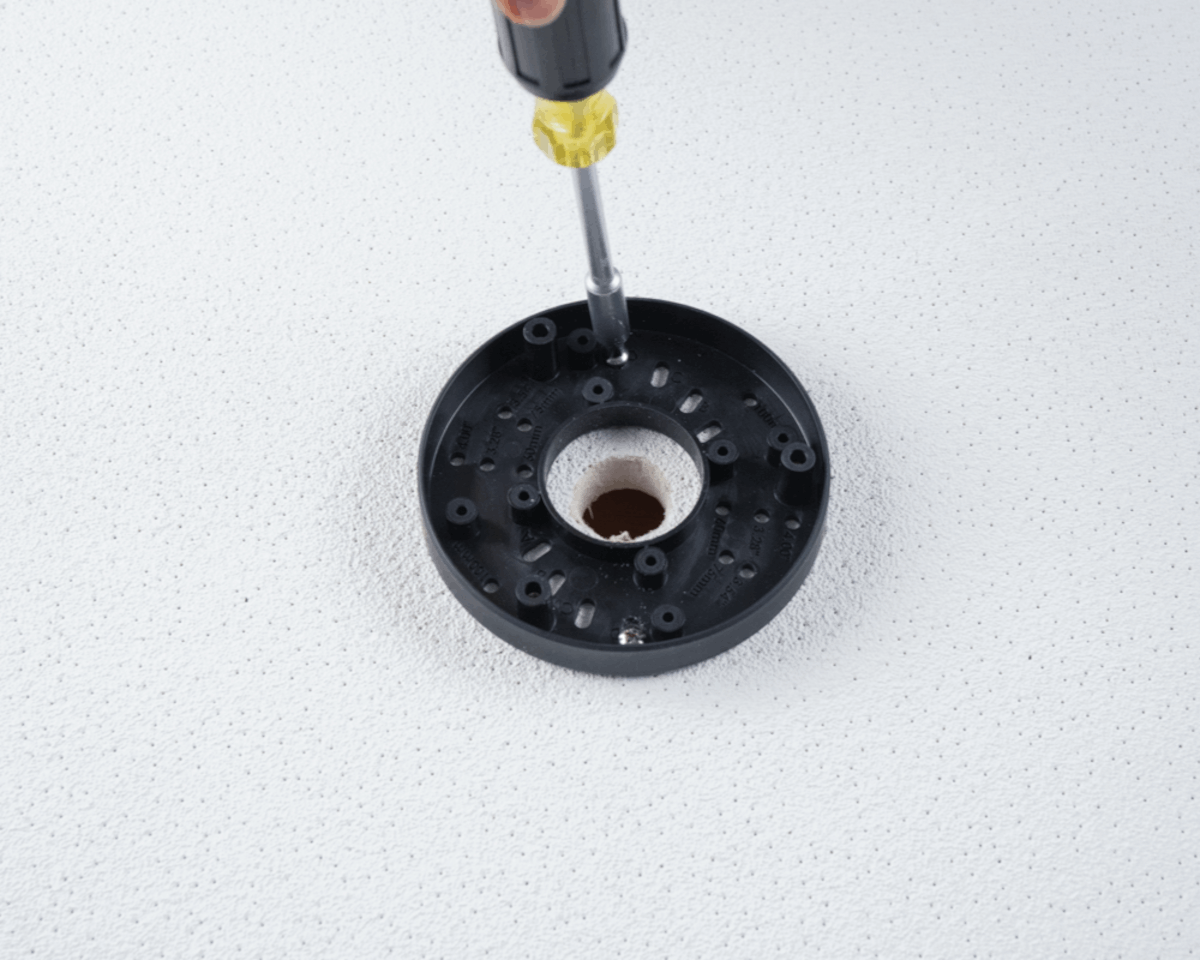

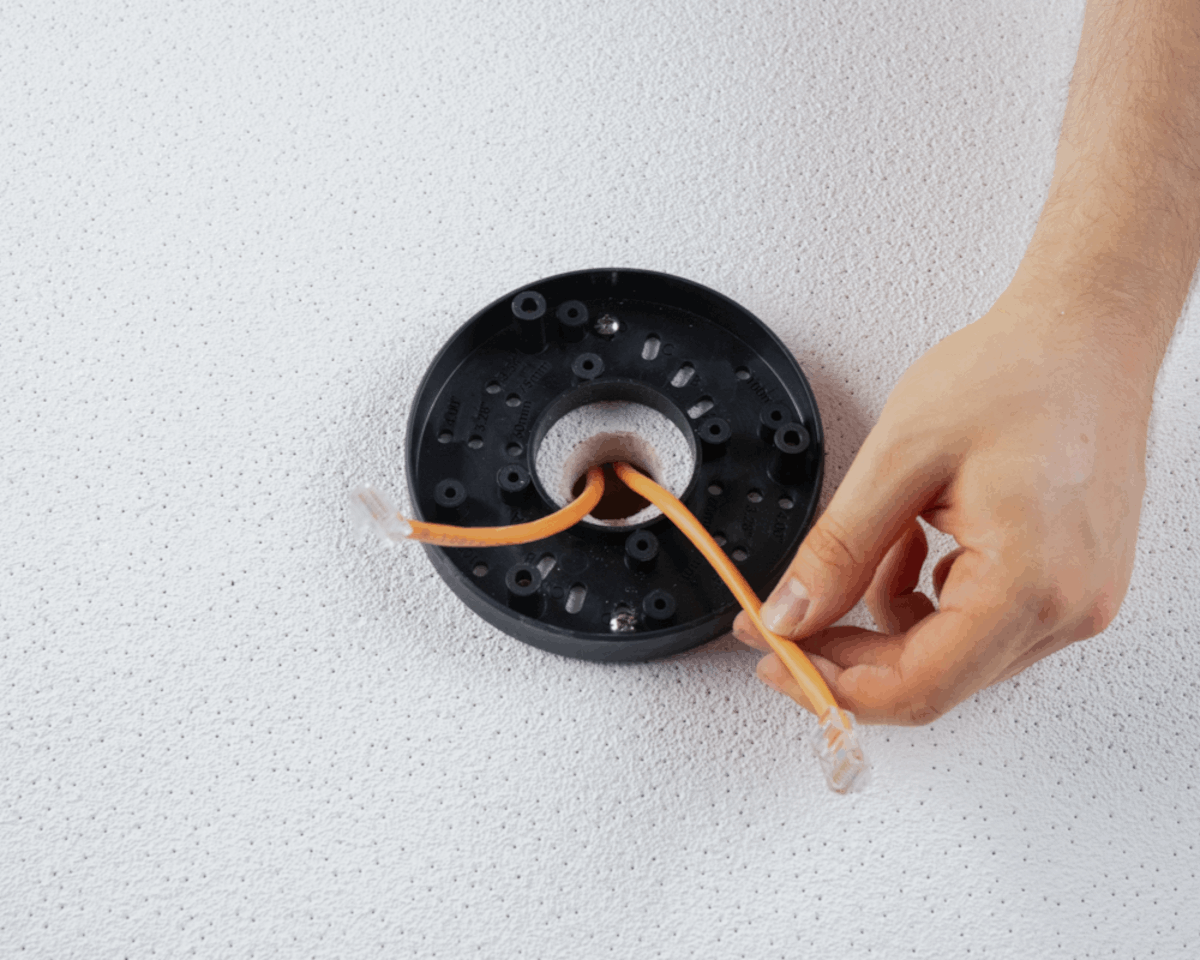

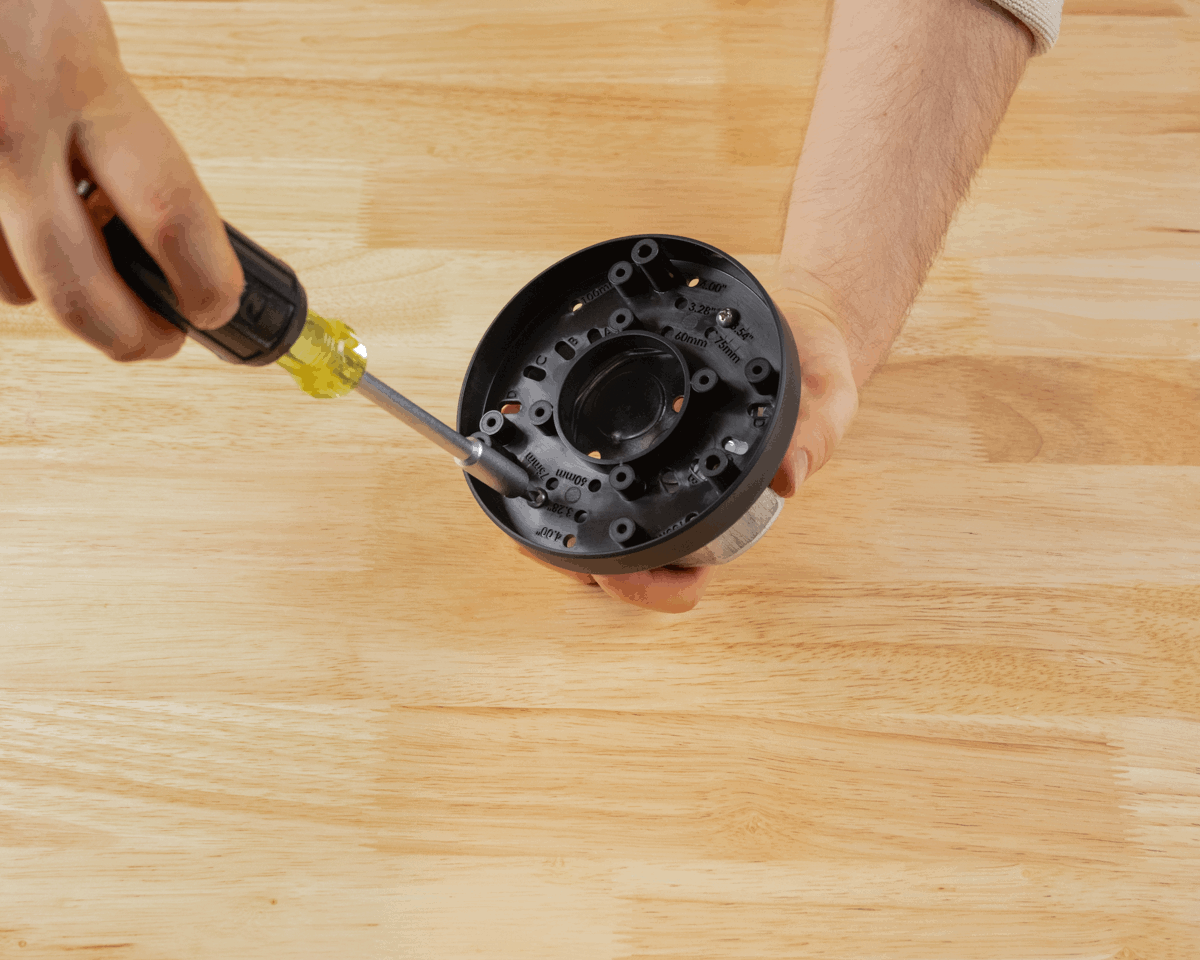

  3. Attach the plate with appropriate screws to the mounting surface.

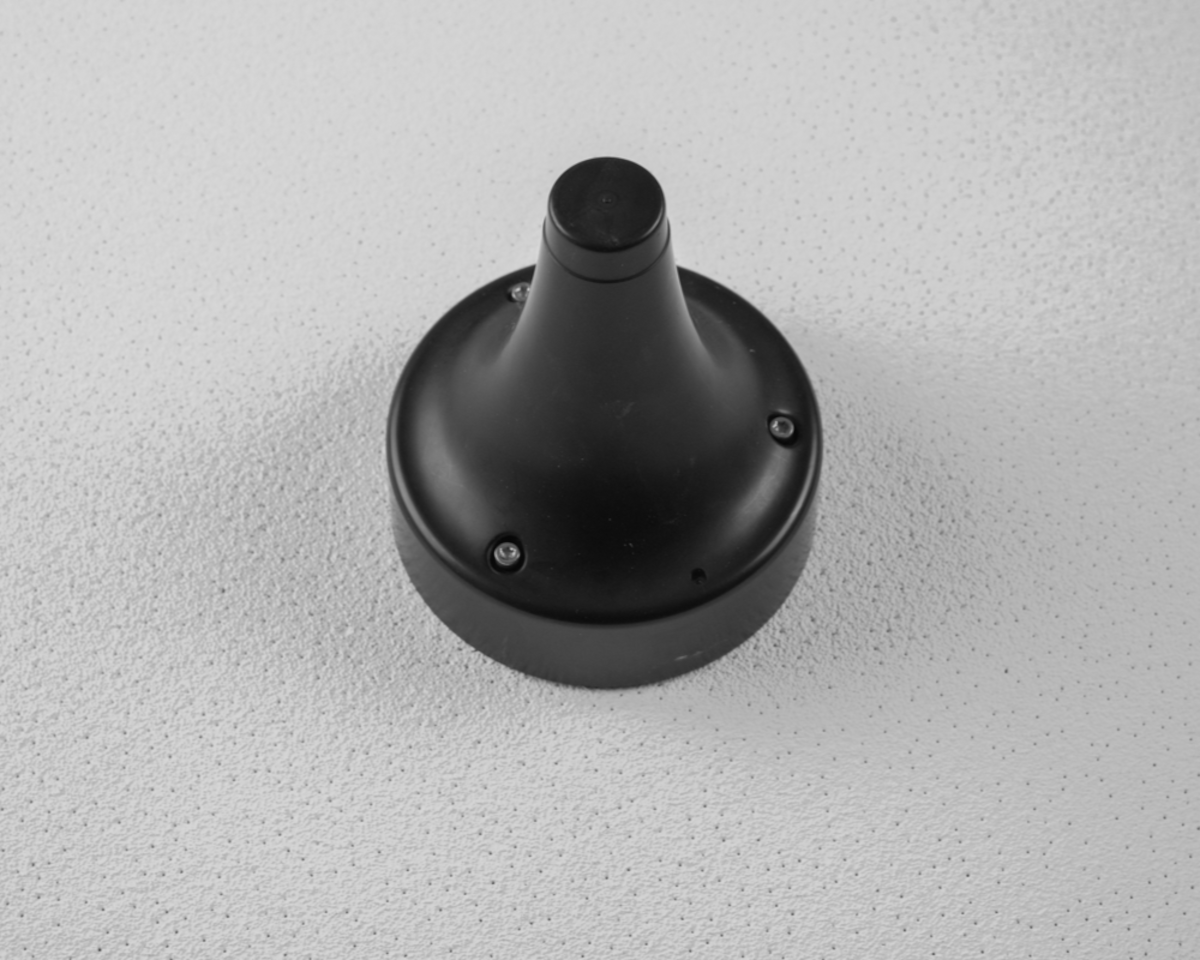

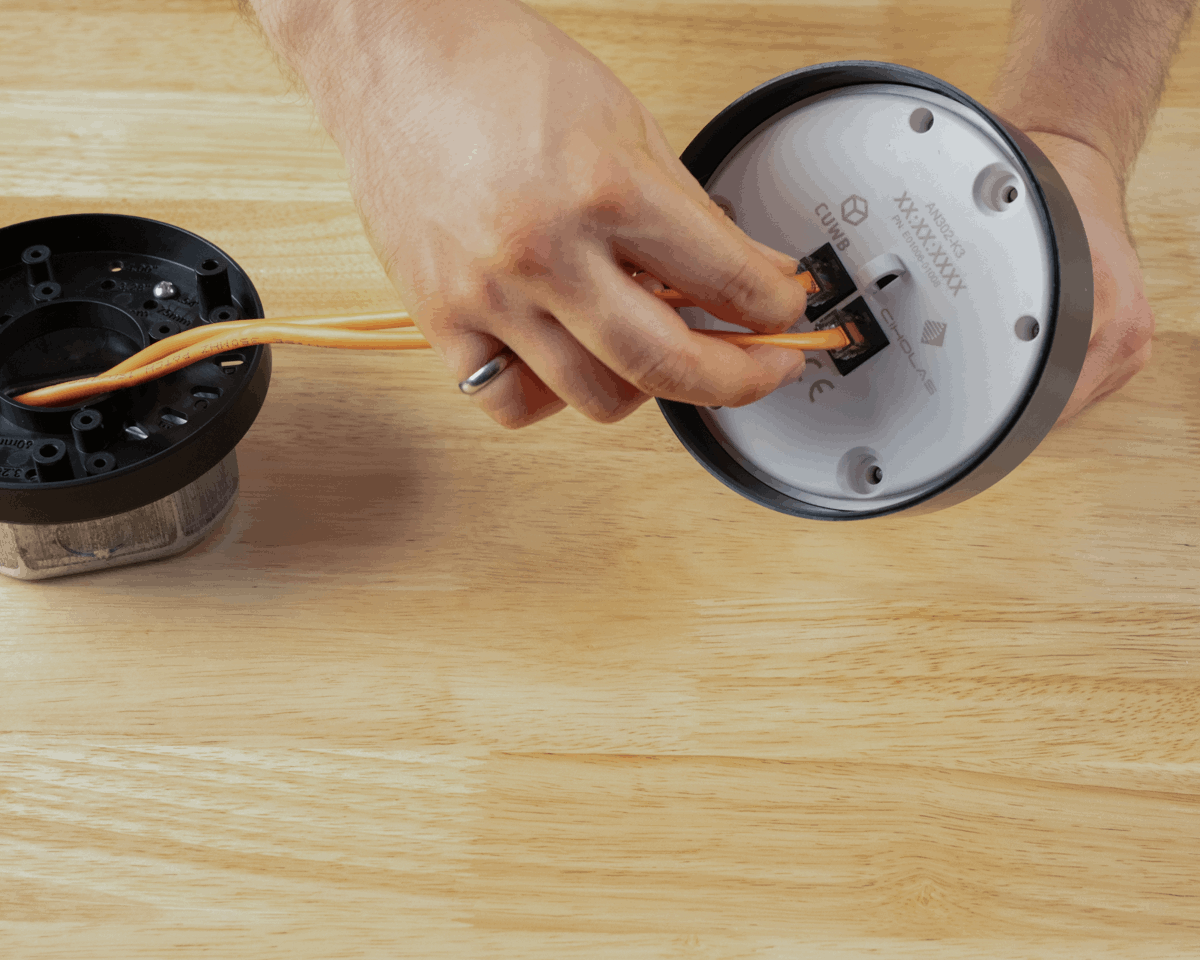

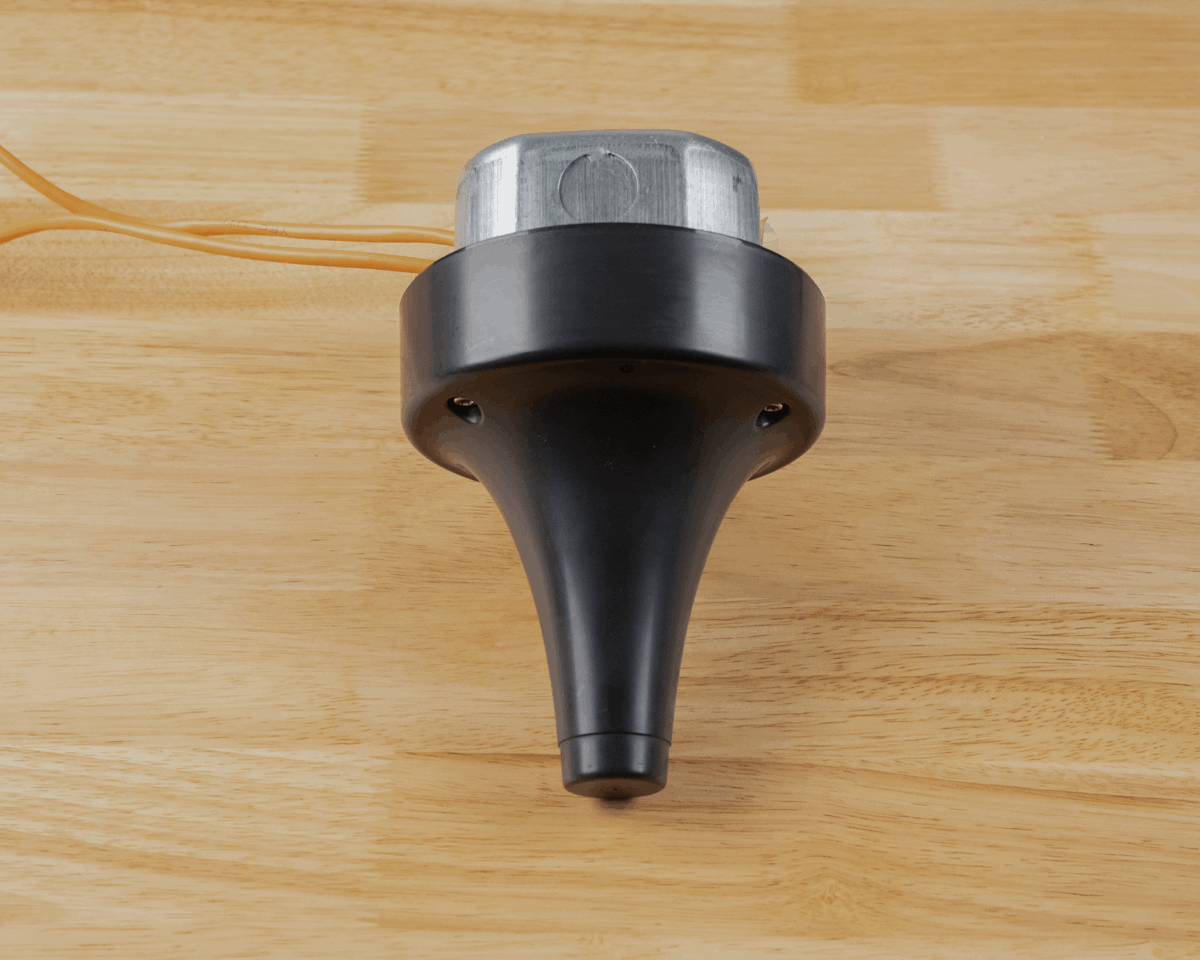

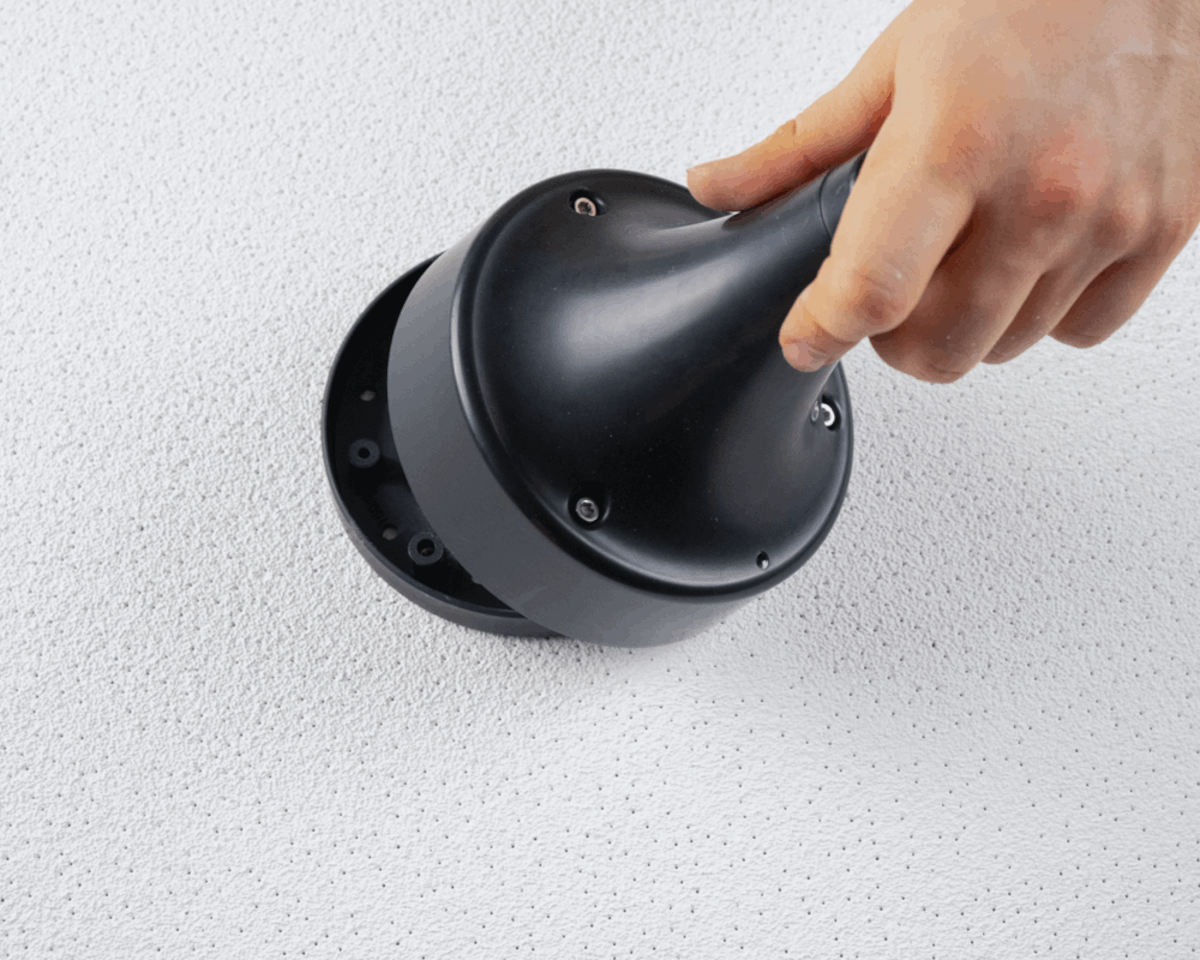

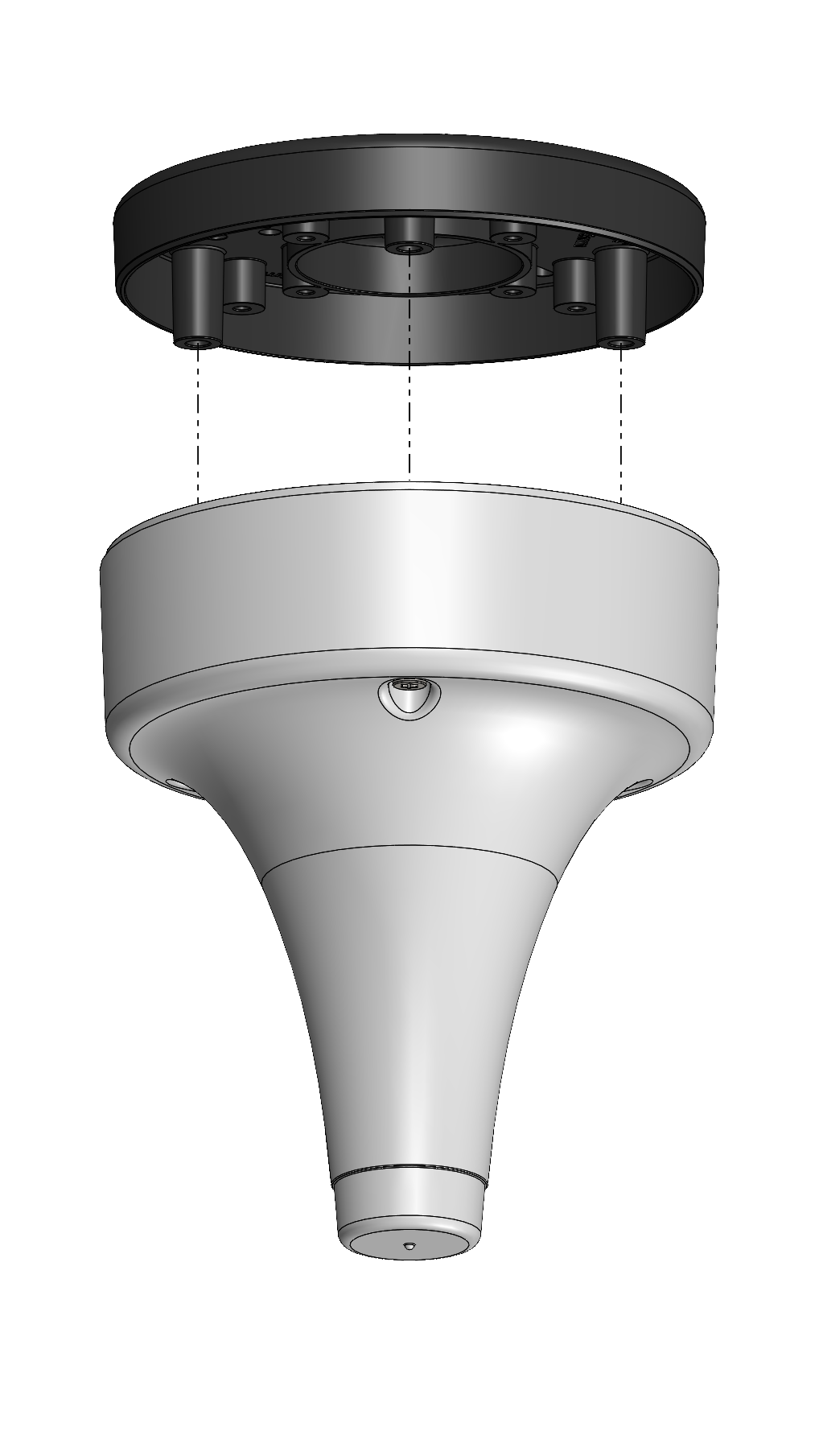

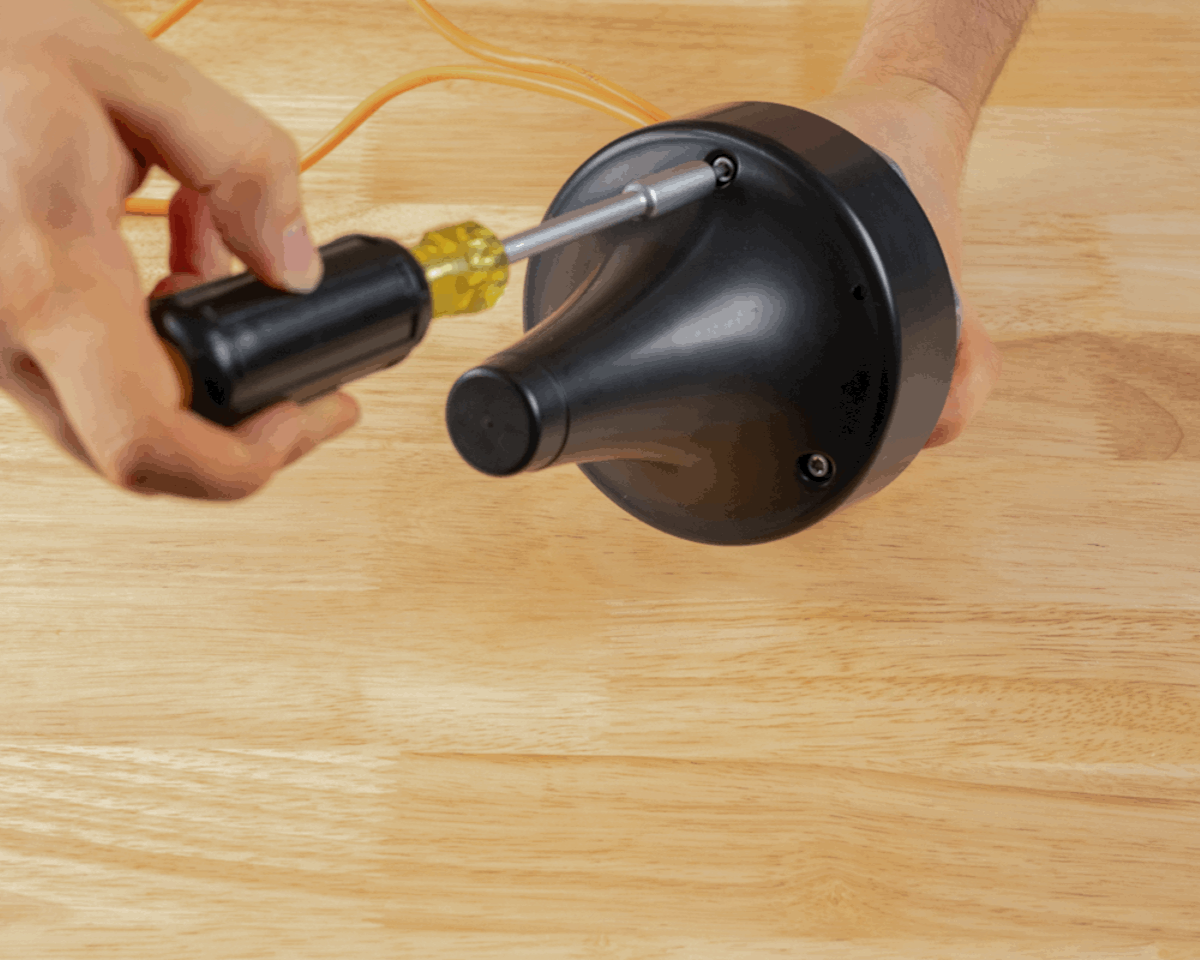

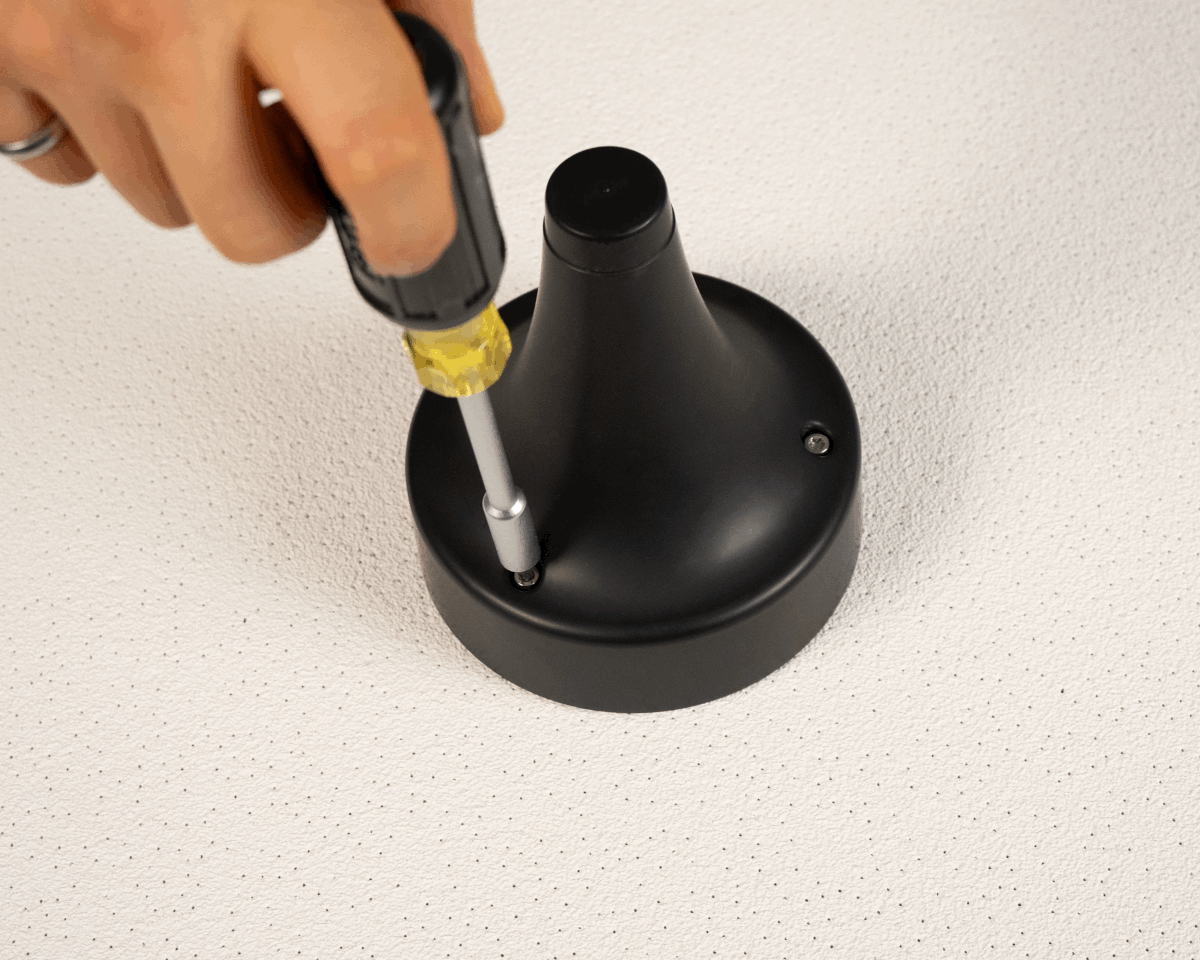

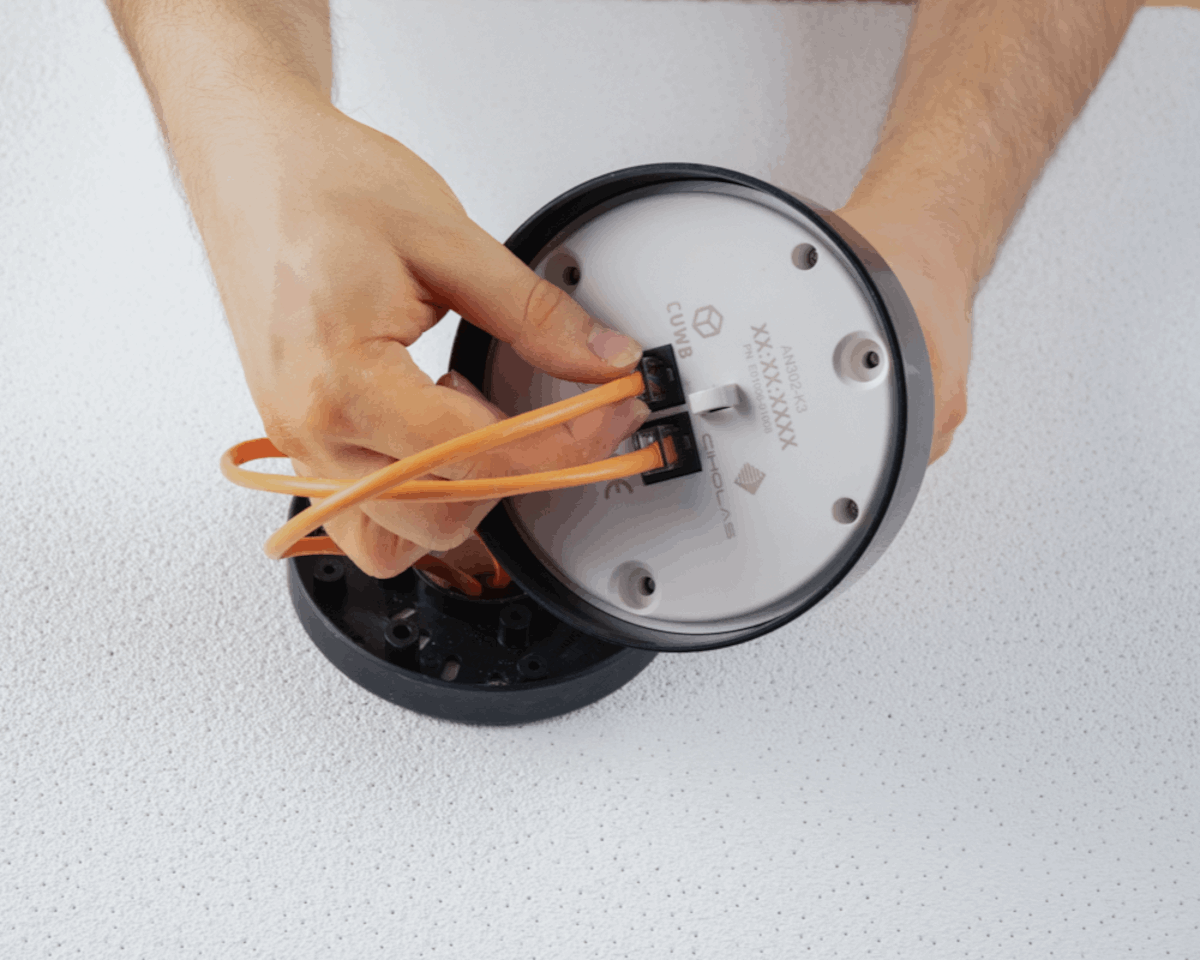

  4. Attach the anchor to the mounting plate with the captive screws.



Mounting Patterns

The following hole and slot patterns are available for use:

Mounting Feature Identifier: Center to Center Distance: Recommended Use With:
A 60-70 mm
B 70-80 mm
C 80-90 mm
D 90-100 mm

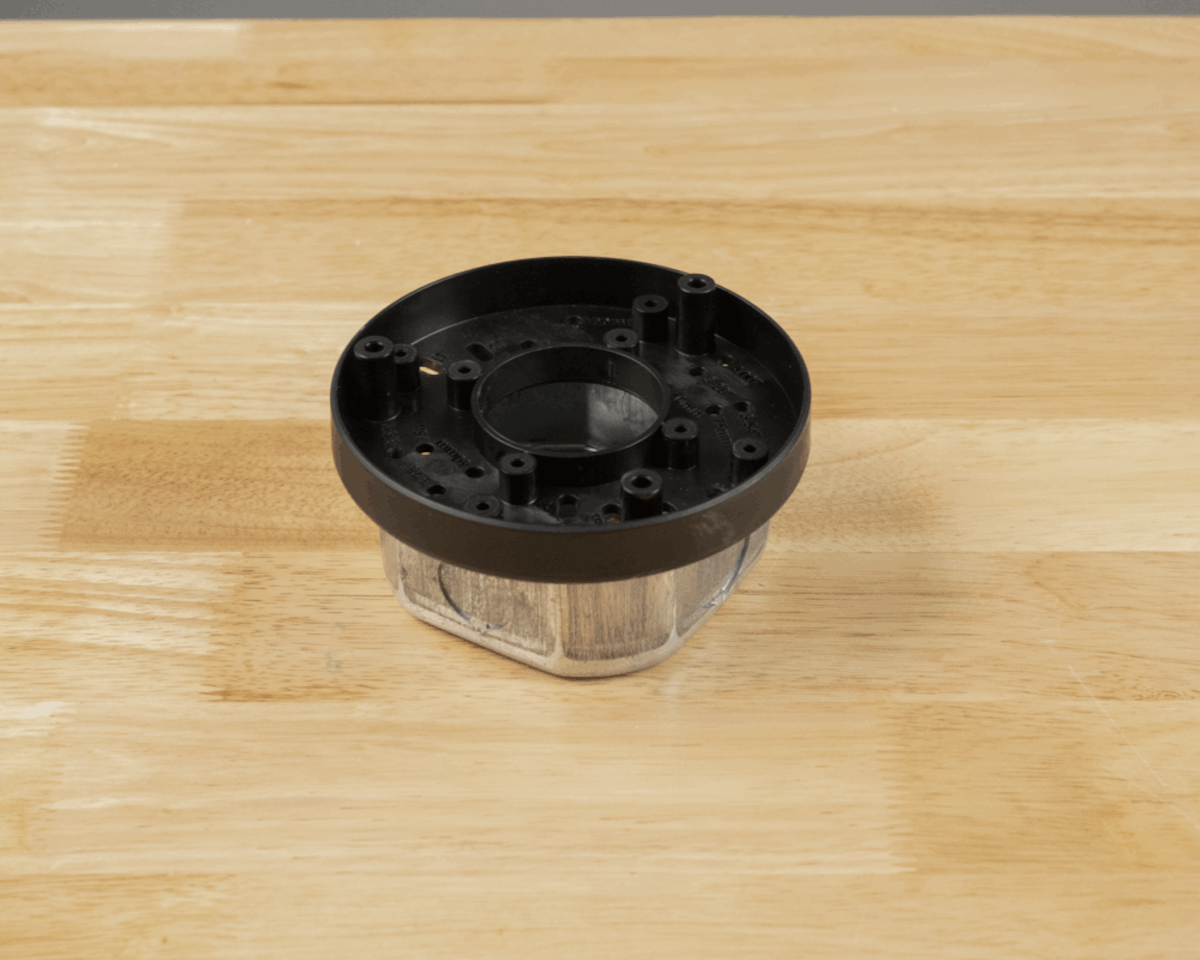

60mm 60 mm International Single Gang Electrical Box
75mm 75 mm
3.28” 3.28 in US Single Gang Electrical Box
3.54” 3.54 in 4” Octagonal or Round Electrical Box
100mm 100 mm
4” 4 in



The mounting plate supports the following hole pattern for M4 or #8 self-tapping screws:

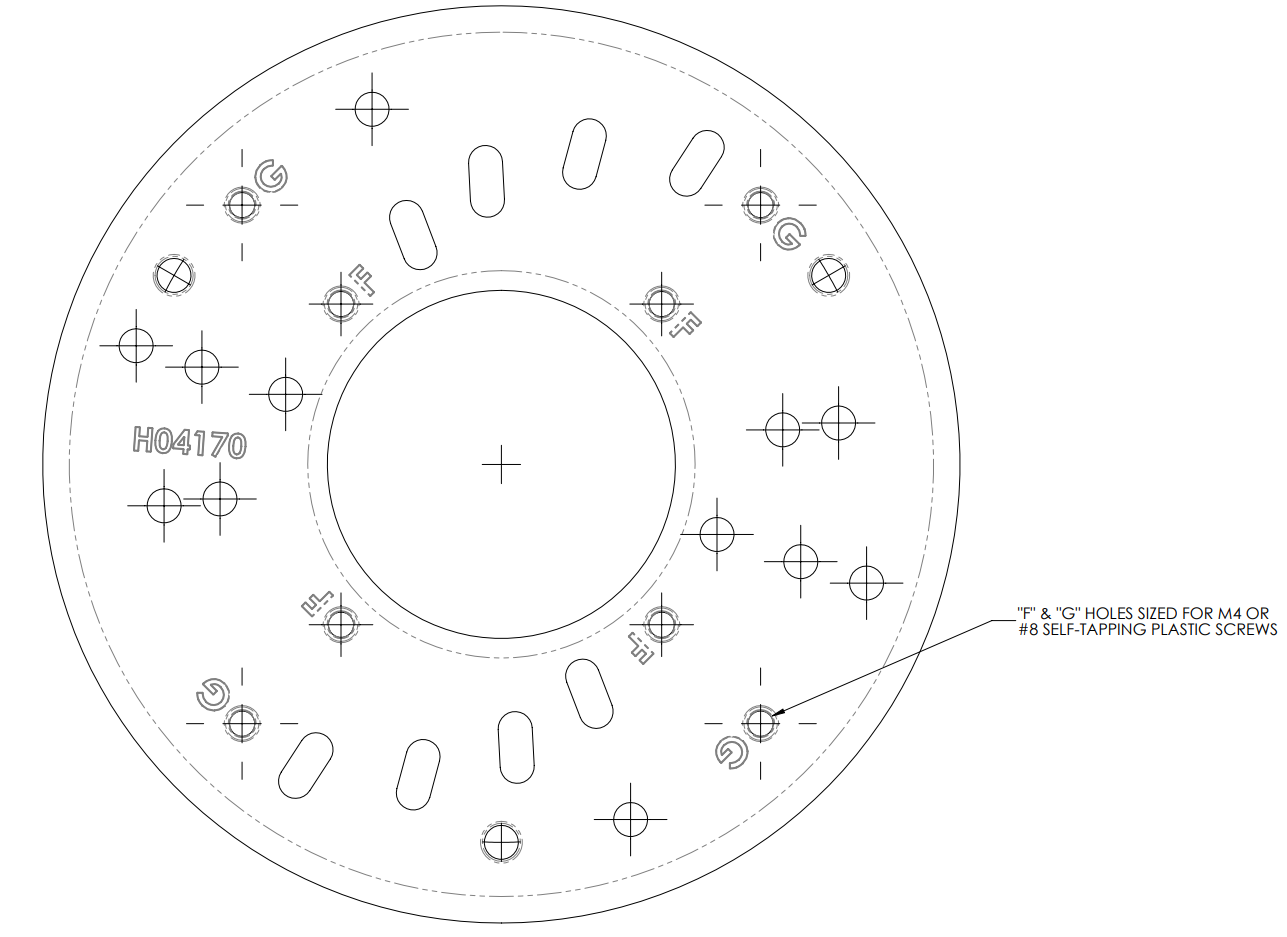

AH301 Self-Tapping Screws Drawing

Mounting Feature Identifier: Center to Center Distance: Recommended Use with:
F 60 mm AB301 Articulating Bracket
G 97 mm

AH301 Datasheet Datasheet Change Log

Version Date Change Description
5.0.0 2025-09-15 Initial Preliminary Release
