AH302 Datasheet

Description

AH302 Mounting Box

The Ciholas AH302 is a mounting box that works with AN302 and can allow the following:

  • Sealing options
  • Spacing for Service Loop

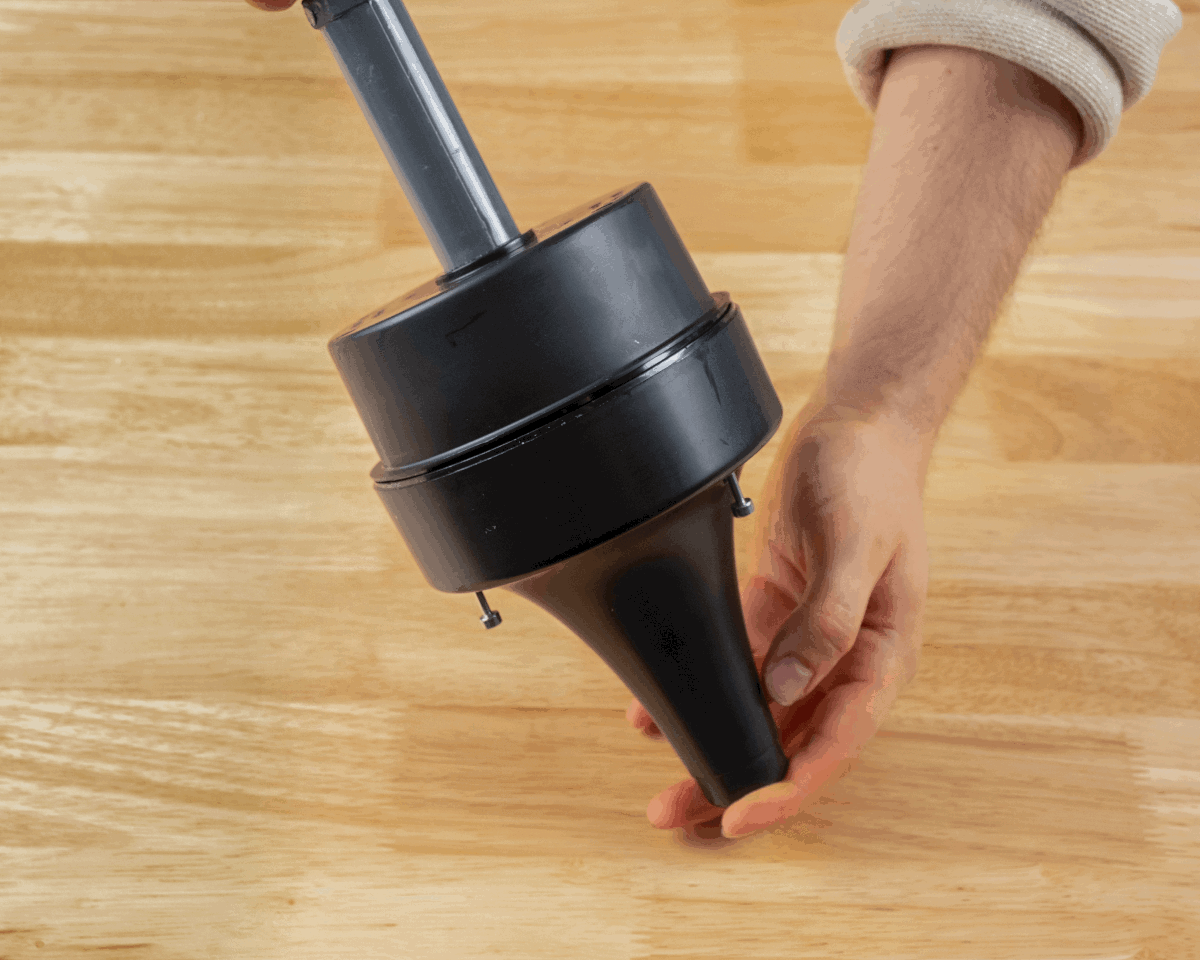

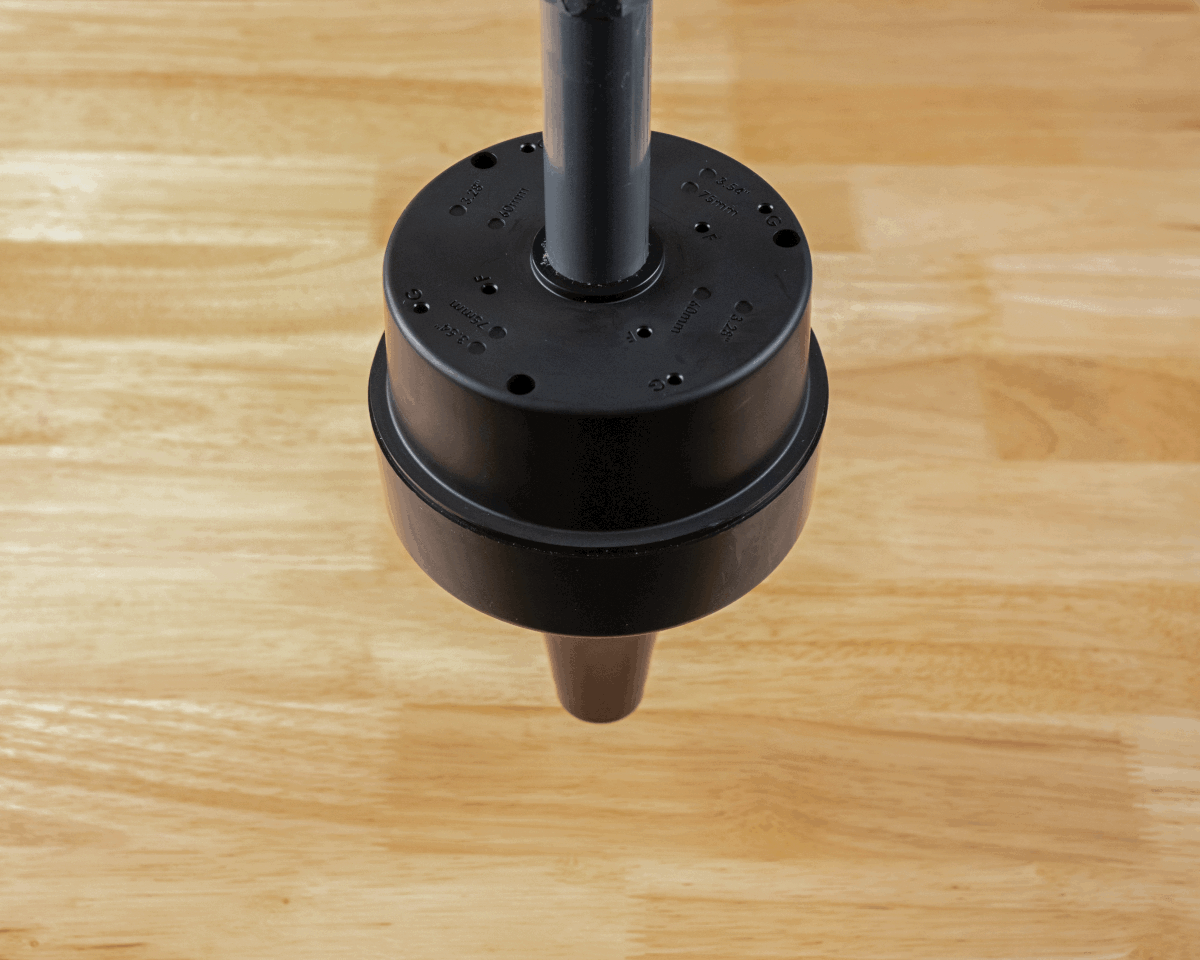

  • Pendant style installation

A sealing kit, AH303 is available for mounting where sealing is desired.









Ordering

Model Part Number Description
AH302 AH302-W AN302 Mounting Box
AH303 AH303-K AN302 Sealing Kit

Available from the Ciholas Webshop

Contents

  • 1 Mounting Box

Screws are not provided. Screws for the AN302 to attach to the mounting box are the captive screws on the AN302.

Mechanical

Parameter Description Min. Typ. Max Units
Unit Mass ABS Plastic w/ UL94V-0 rating   119.2   g

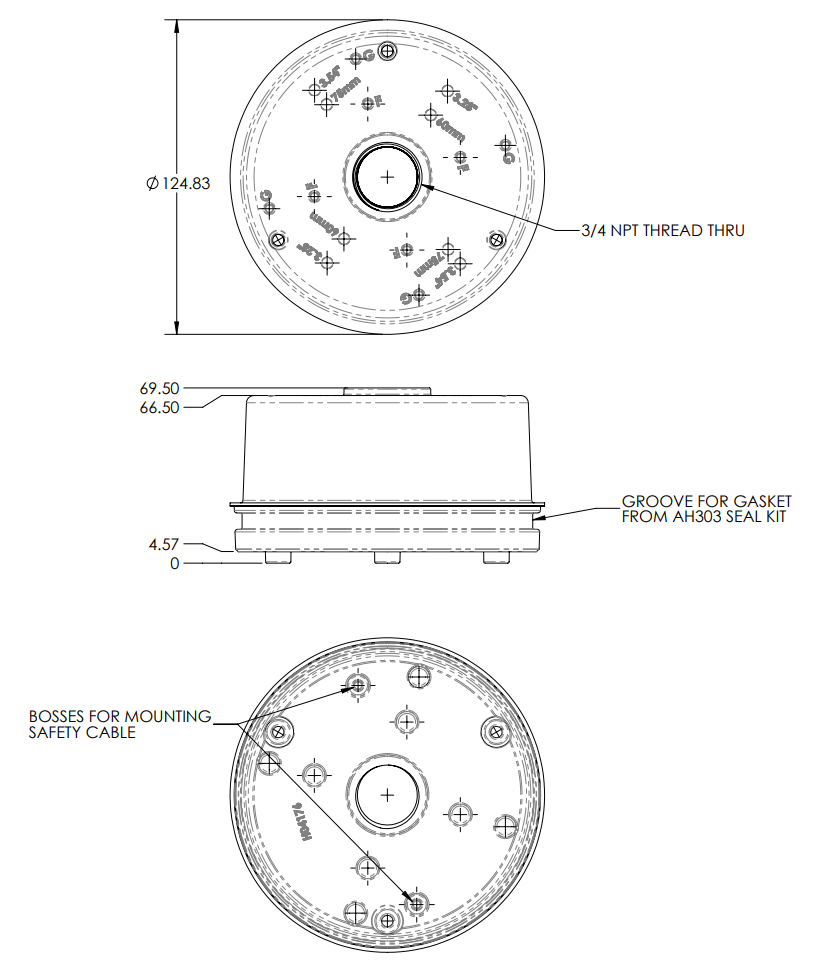

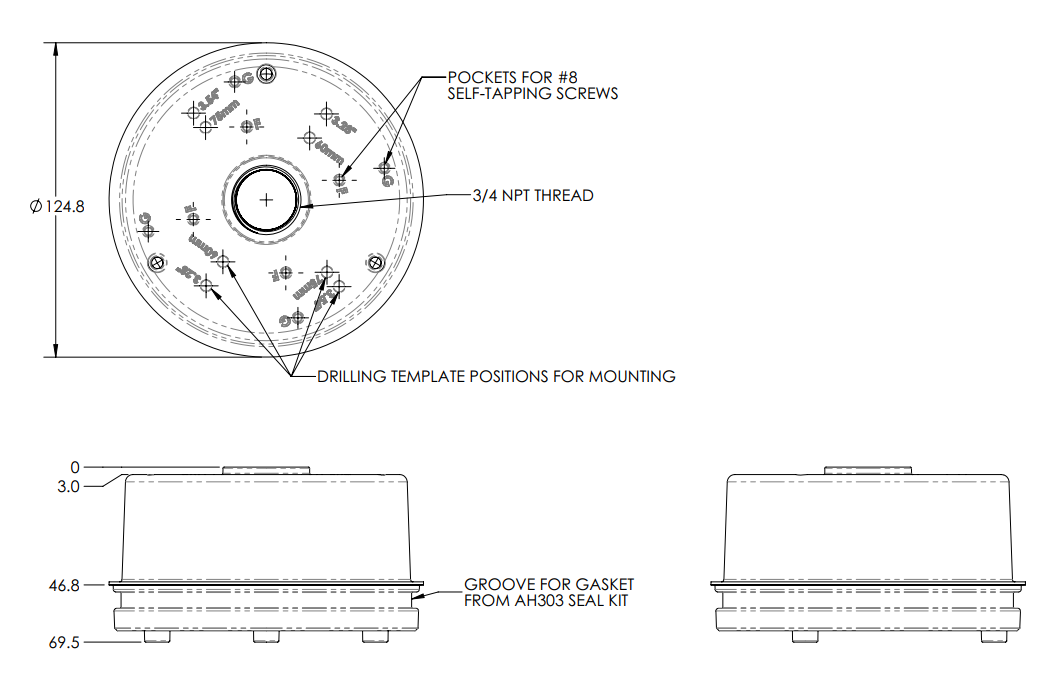

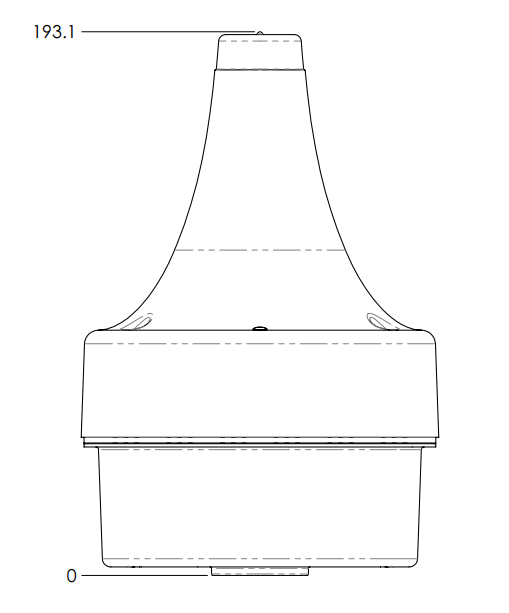

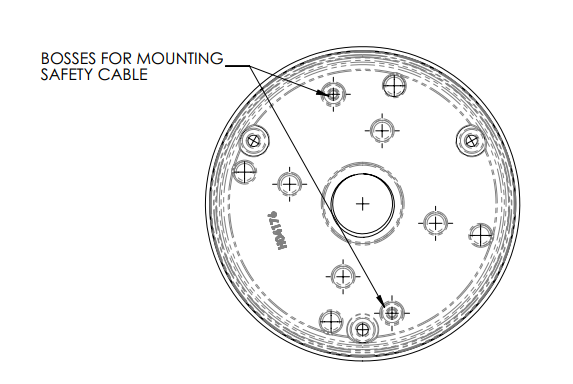

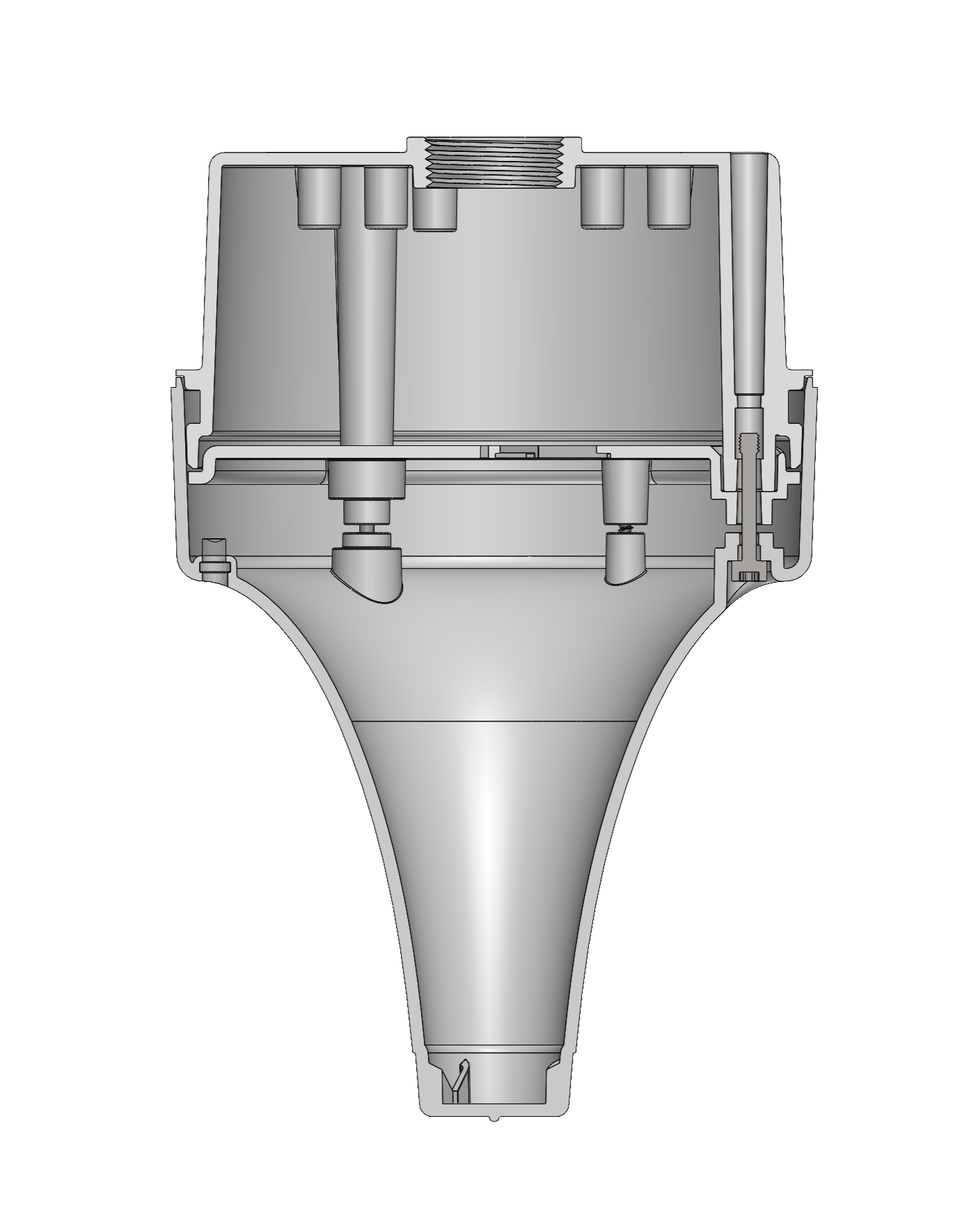

AH302 Mechanical Drawing

All dimensions are in millimeters unless otherwise stated.

Usage and Application

Intended for deployments where AN302 may be exposed to harsh conditions and need an enclosed box form factor.

Mounting Instructions

  1. Select the appropriate hole or slot pattern for the mounting application. Or select and install the appropriate conduit.
  2. Attach the box with appropriate screws or via conduit.

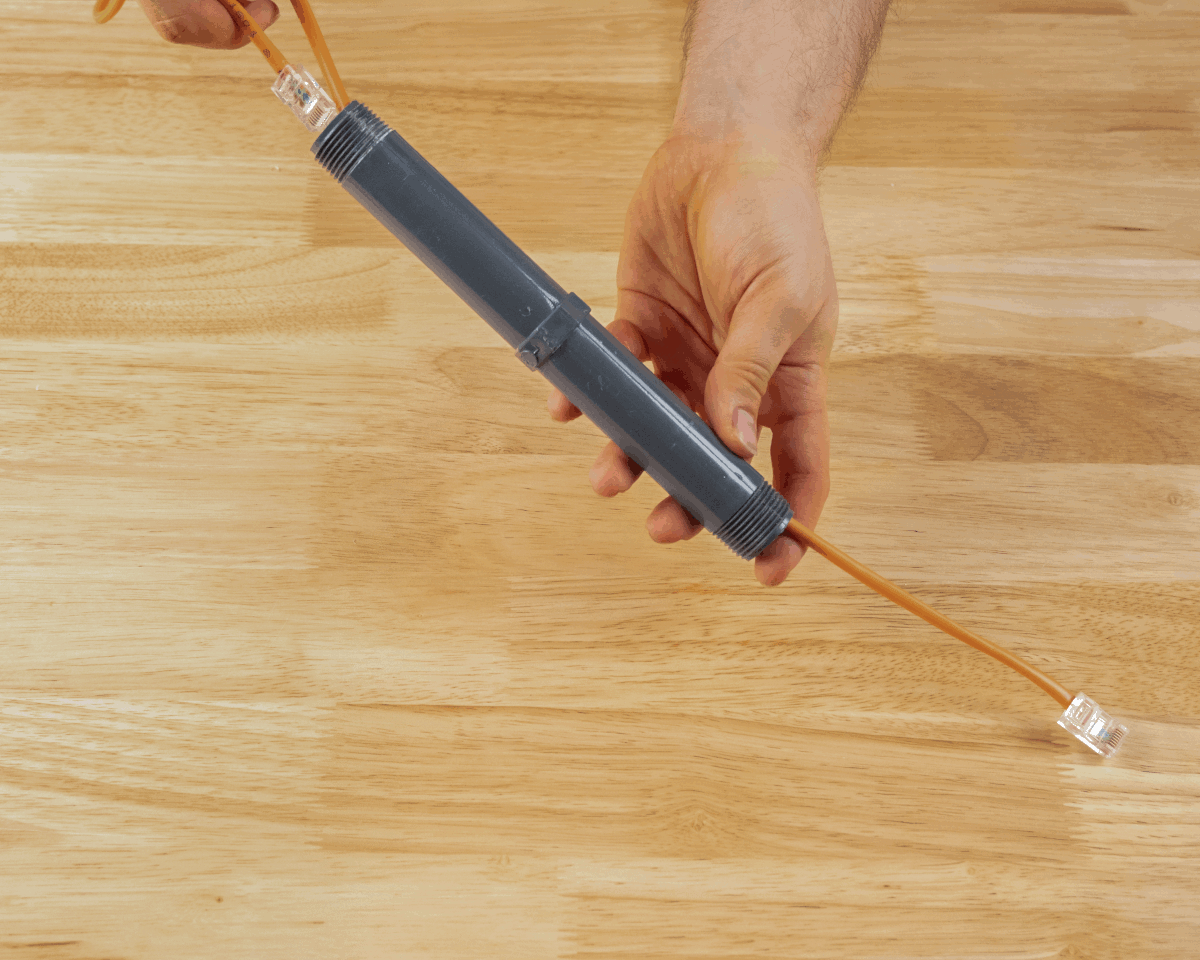

  3. Pull any cables through the back of the mounting box.

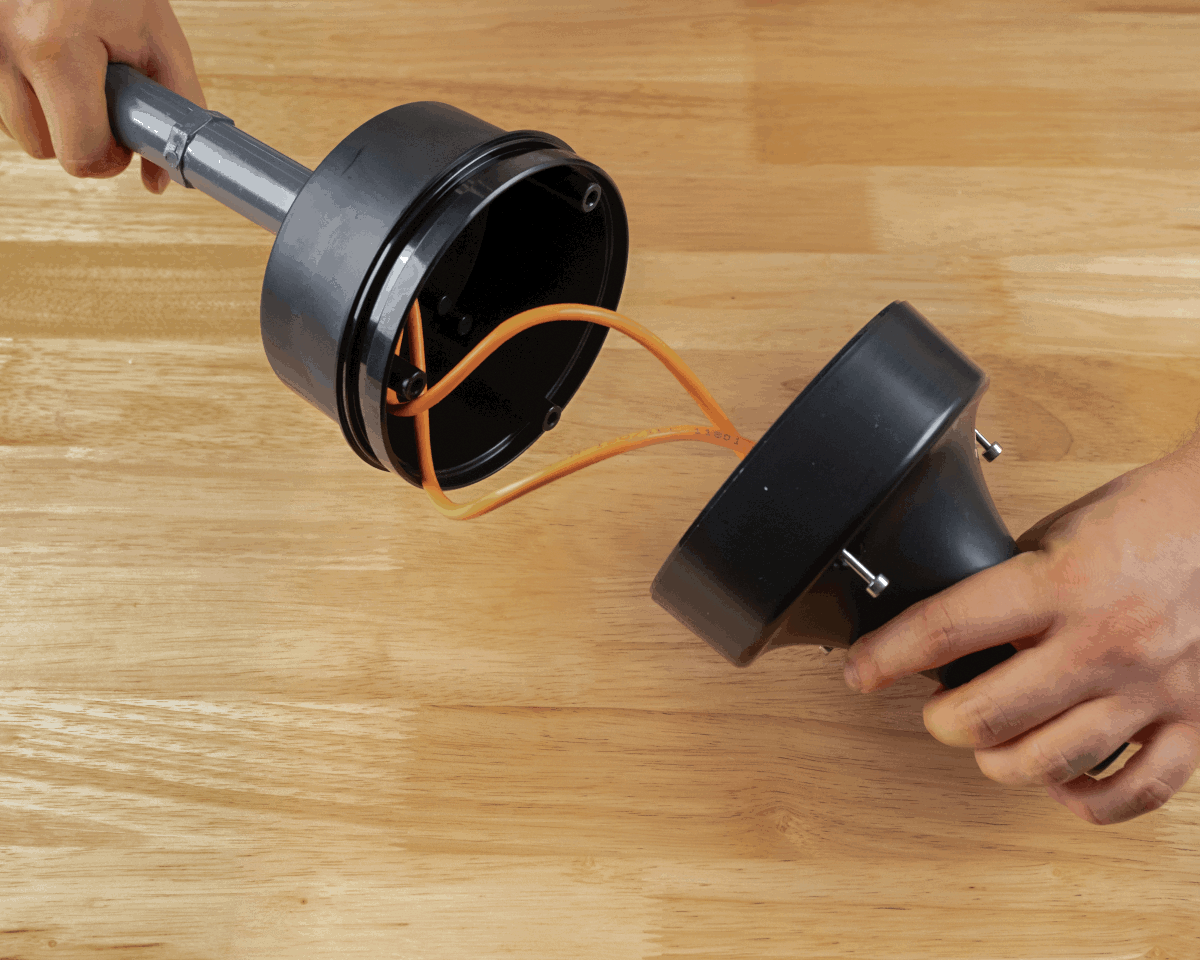

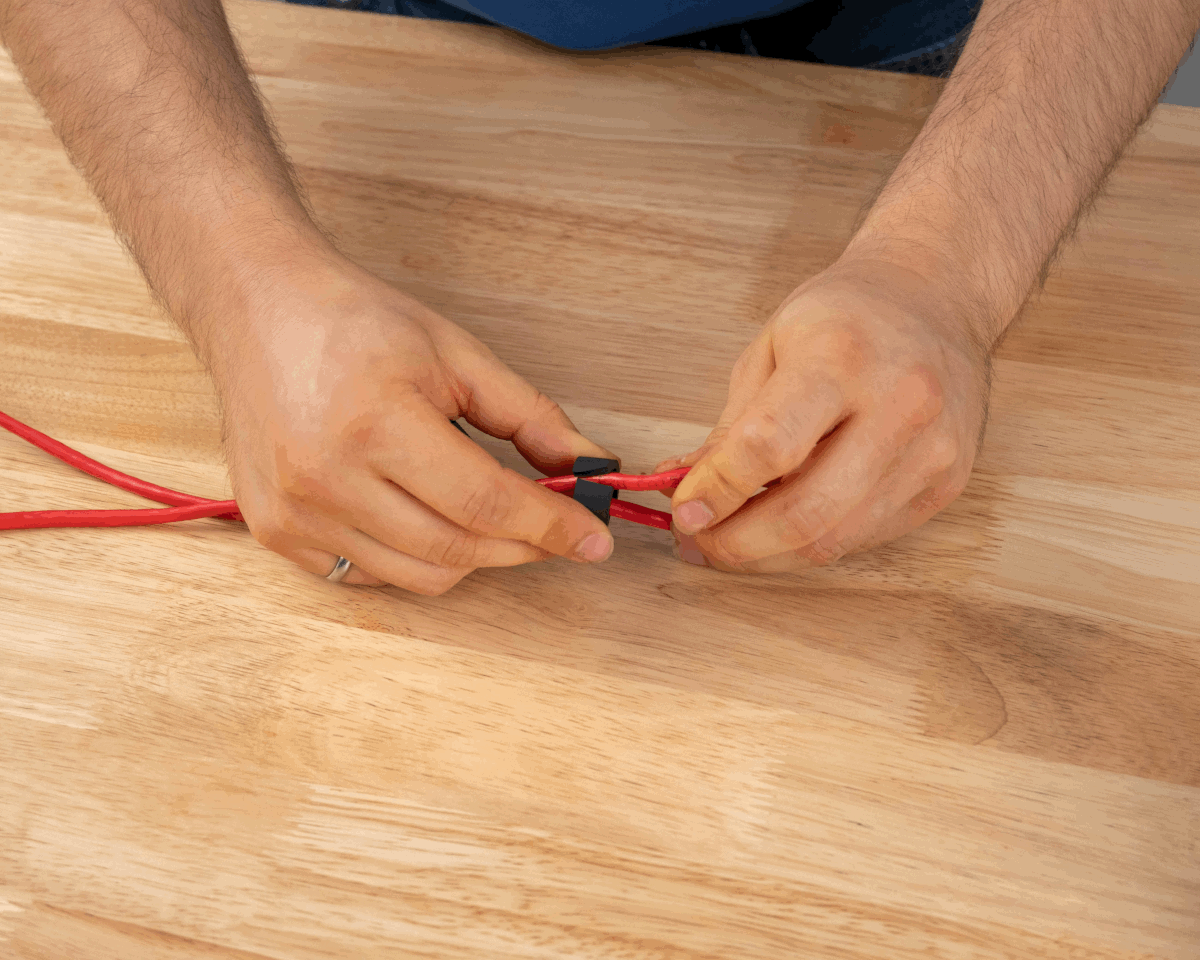

  4. Allow for a service loop to remove the anchor and disconnect Ethernet cables.

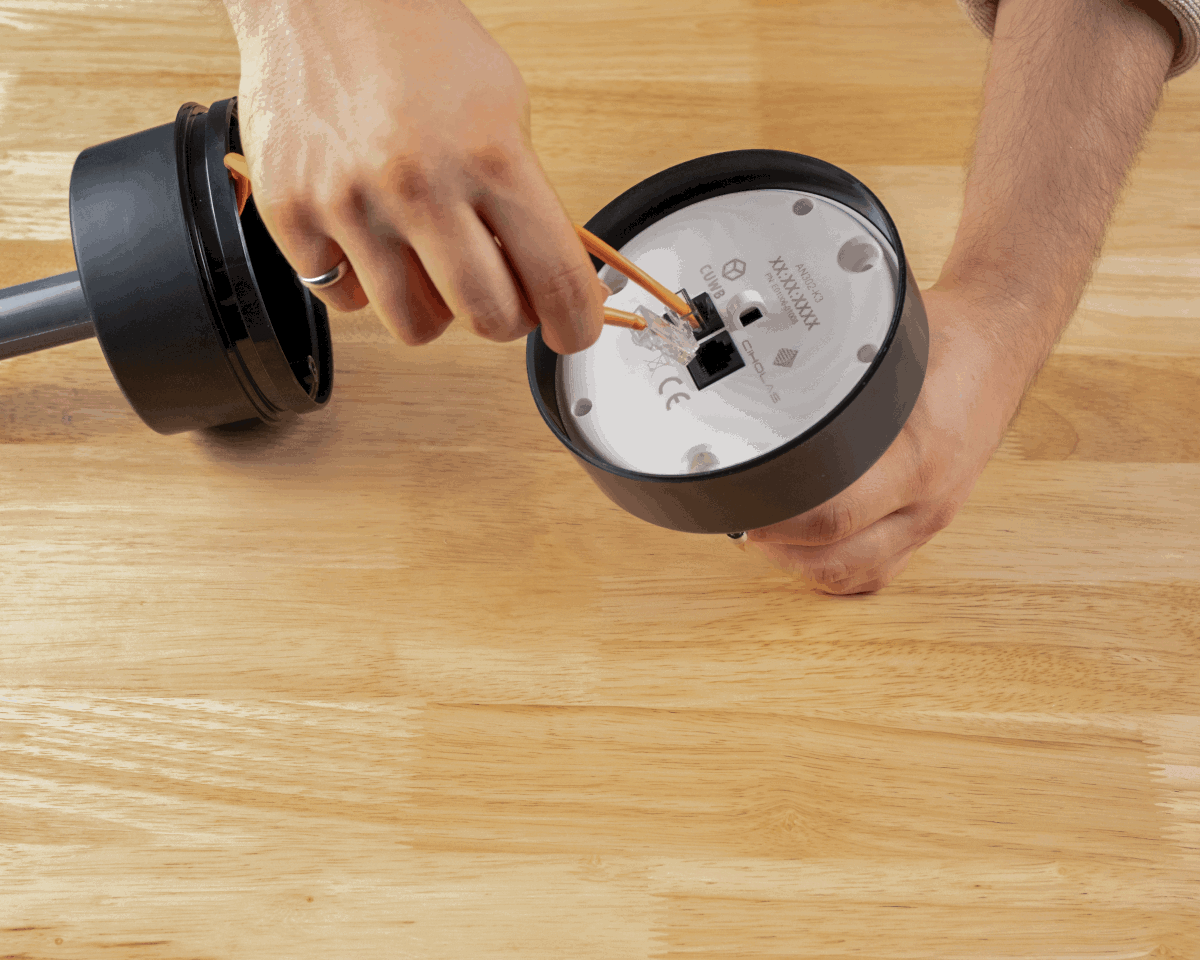

  5. Plug in cables to anchor.

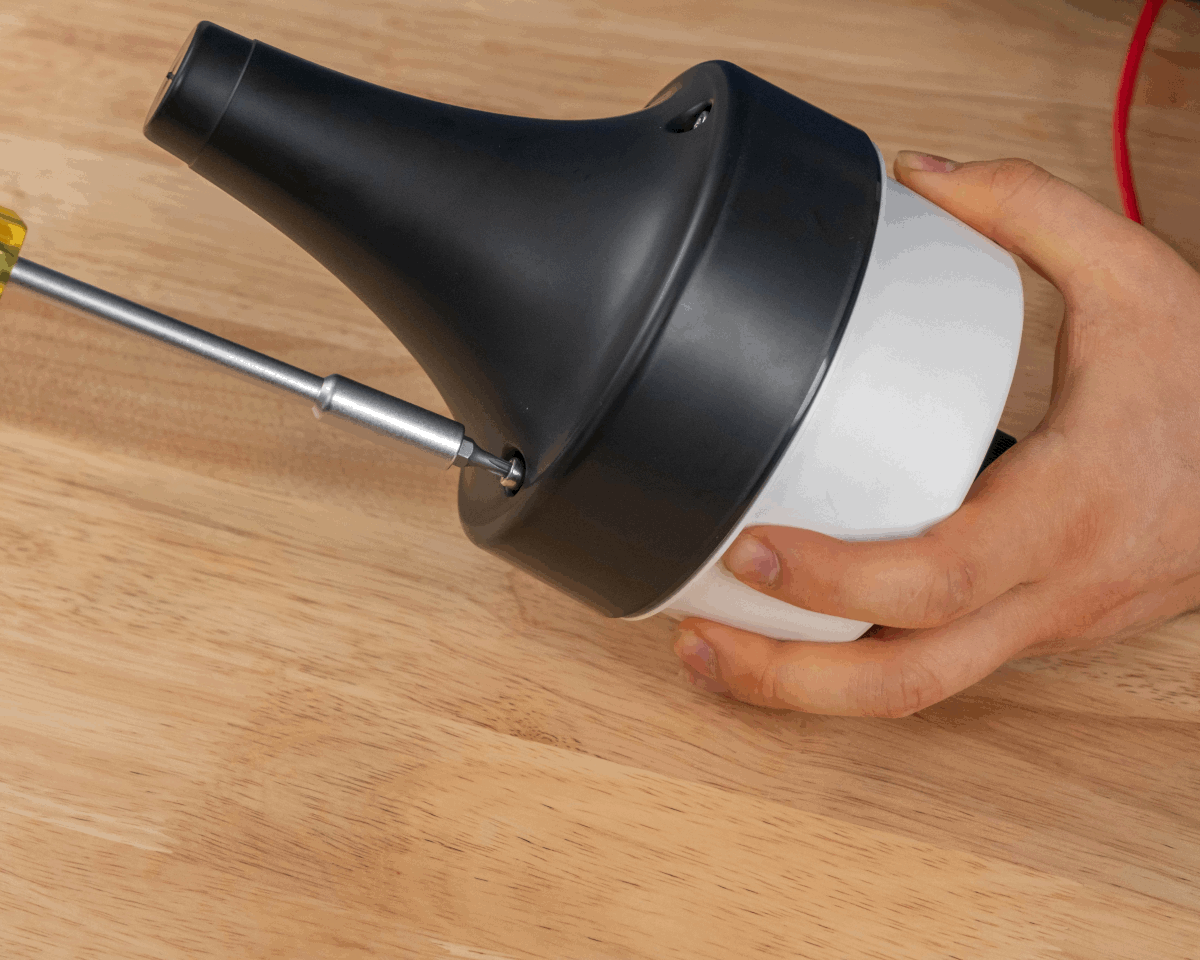

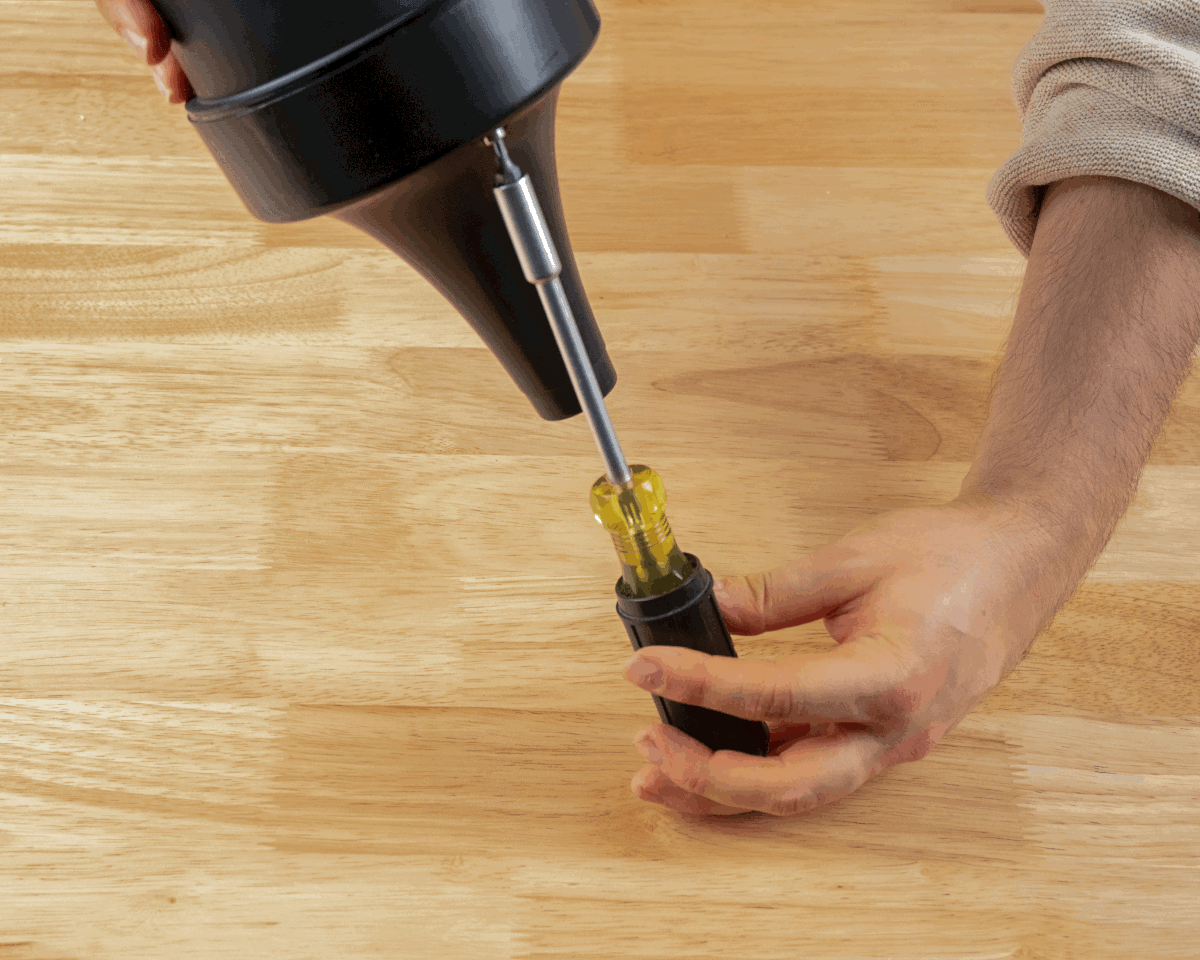

  6. Attach the anchor to the mounting box using the captive screws.

Mounting Patterns

The box has a hole that provides a cable escape for the AN302 Ethernet cables. No additional knockout zones are provided for cables.

The box has a 3/4-inch NPT threaded mount for use with:

  • 3/4-inch NPT Cable glands

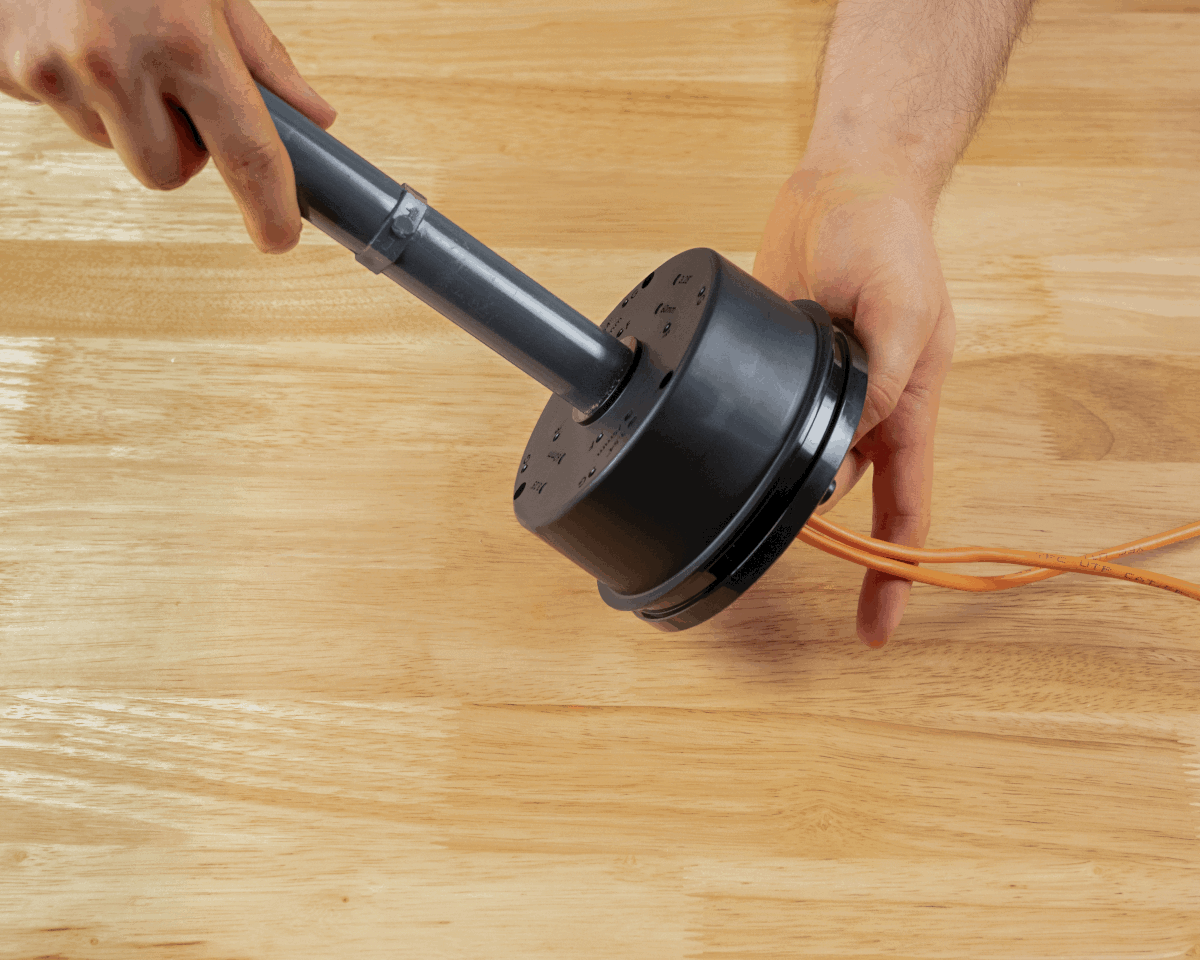

  • 3/4-inch Conduit
  • Any 3/4-inch NPT threaded pipe adapter

The mounting box supports the following hole patterns:

Mounting Feature Identifier: Center to Center Distance: Recommended Use With:
60mm 60 mm International Single Gang Electrical Box
75mm 75 mm
3.28” 3.28 in US Single Gang Electrical Box
3.54” 3.54 in 4” Octagonal or Round Electrical Box

The mounting box supports the following hole pattern for M4 or #8 self-tapping screws:

Mounting Feature Identifier: Center to Center Distance: Recommended Use with:
F 60 mm AB301 Articulating Bracket
G 97 mm

Accessories

AH303 Sealing Kit

Description

The Ciholas AH303 is an additional kit that works with AH302 to provide tight sealing for applications where water intrusion is a concern.

Contents

  • Rubber Gasket

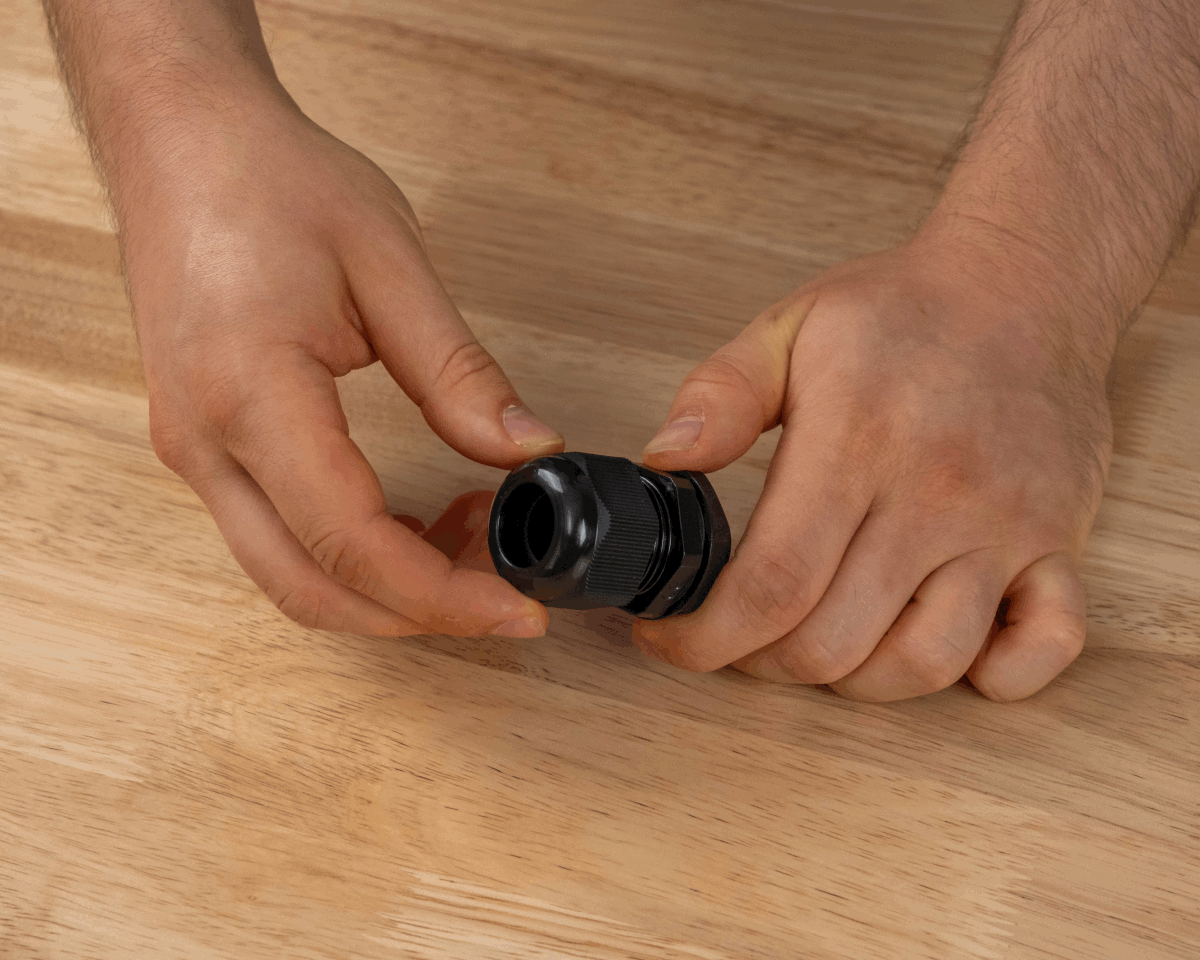

  • Cable gland
  • Single Cable rubber insert for gland
  • Dual Cable rubber insert for gland

Mechanical

Parameter Description Min. Typ. Max Units
Ingress Protection IPX7     1 meter

Usage and Application

Intended for use with AH302 to provide additional environmental protection.

Mounting Instructions

If using the AB301 adjustable bracket, follow instructions AB301 & AH302 with AH303.

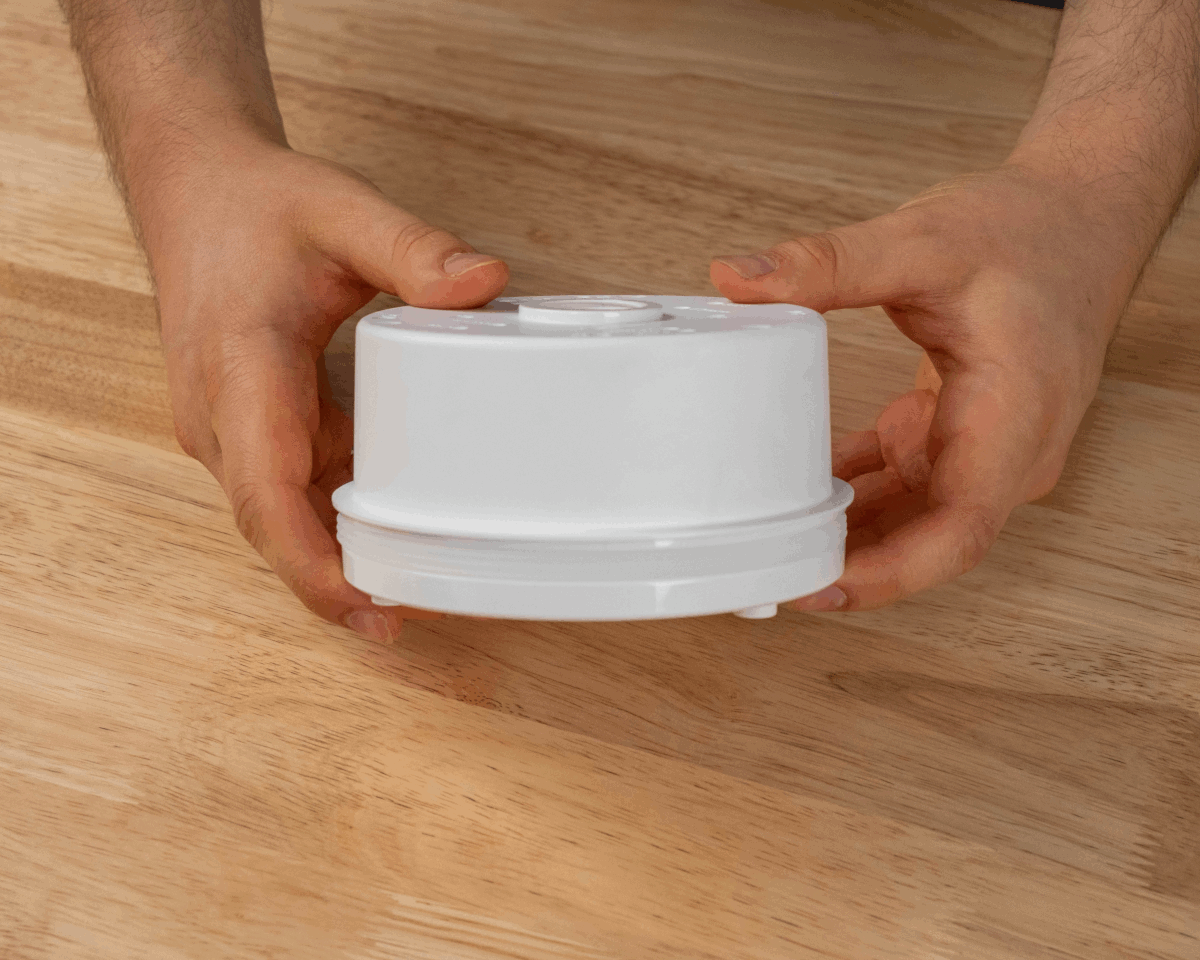

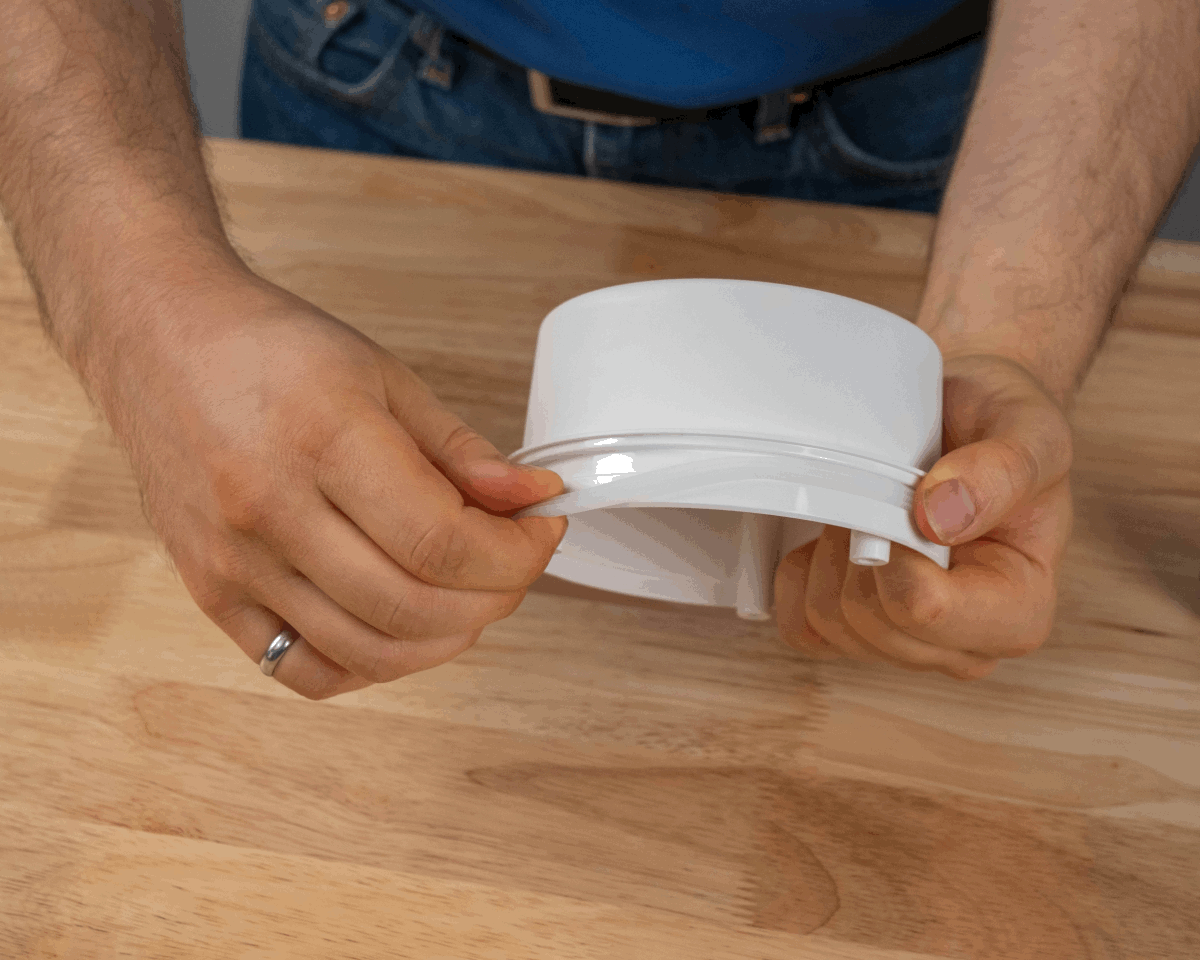

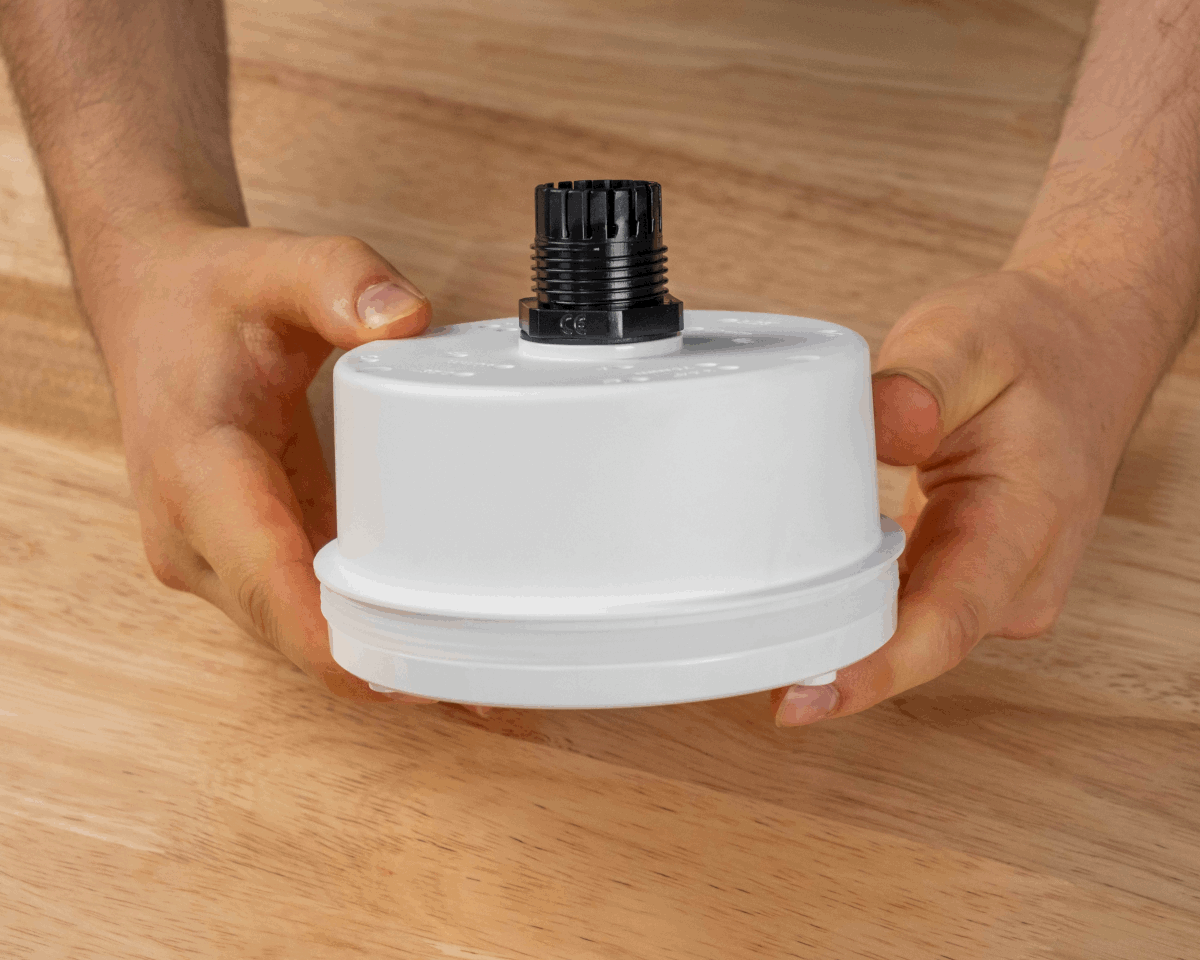

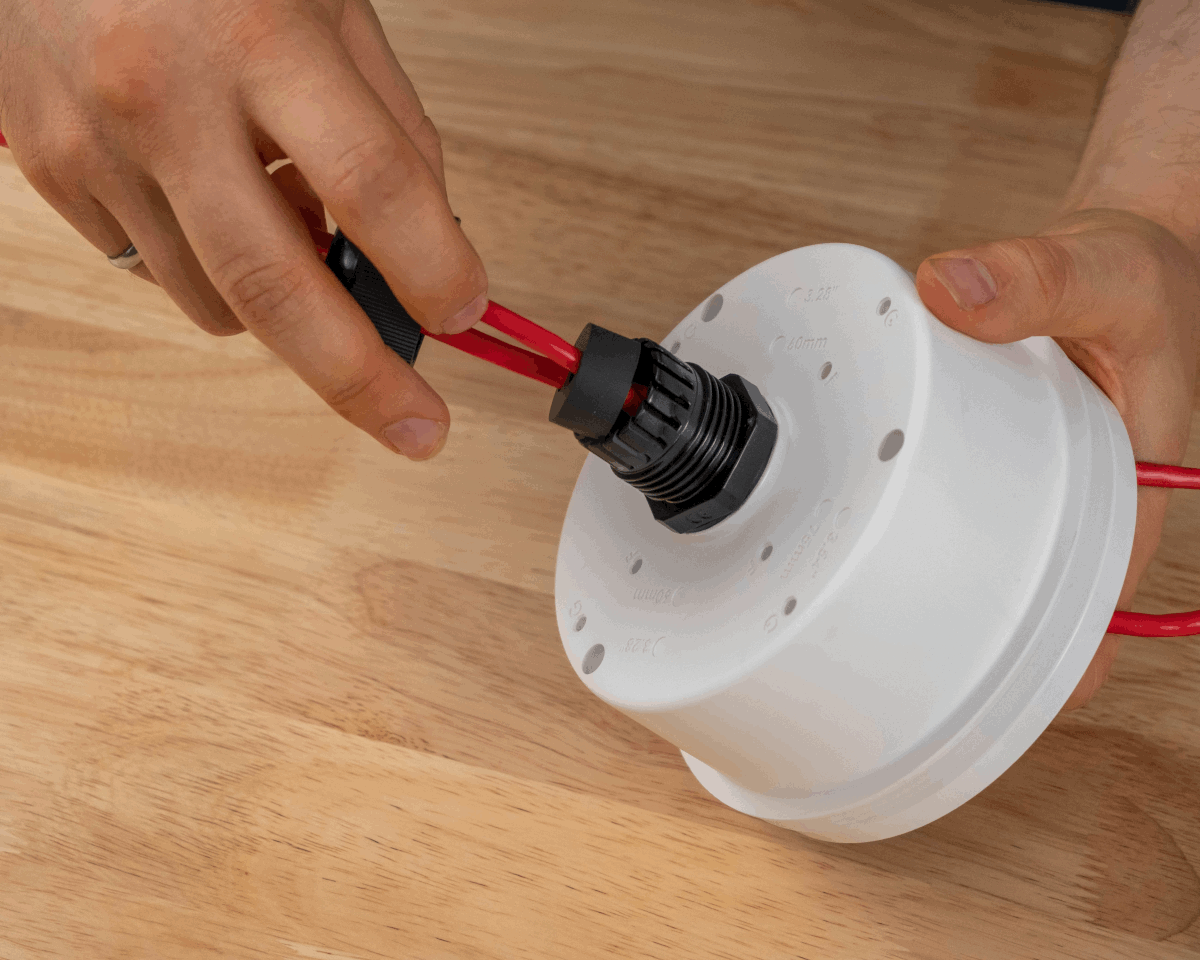

  1. Insert the sealing gasket into the groove of the AH302 Mounting Box with the large “teeth” facing outwards. Verify the seal is stretched evenly.

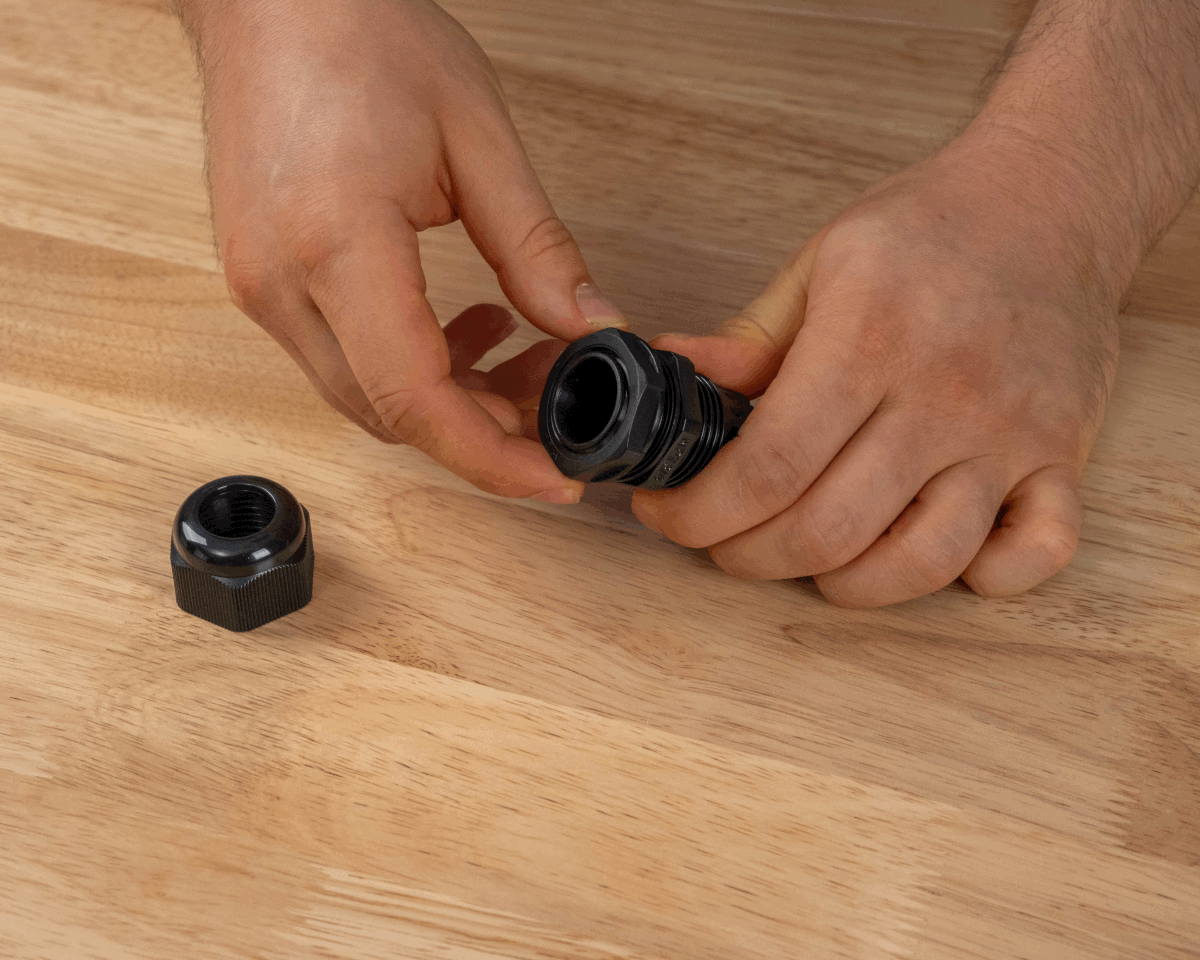

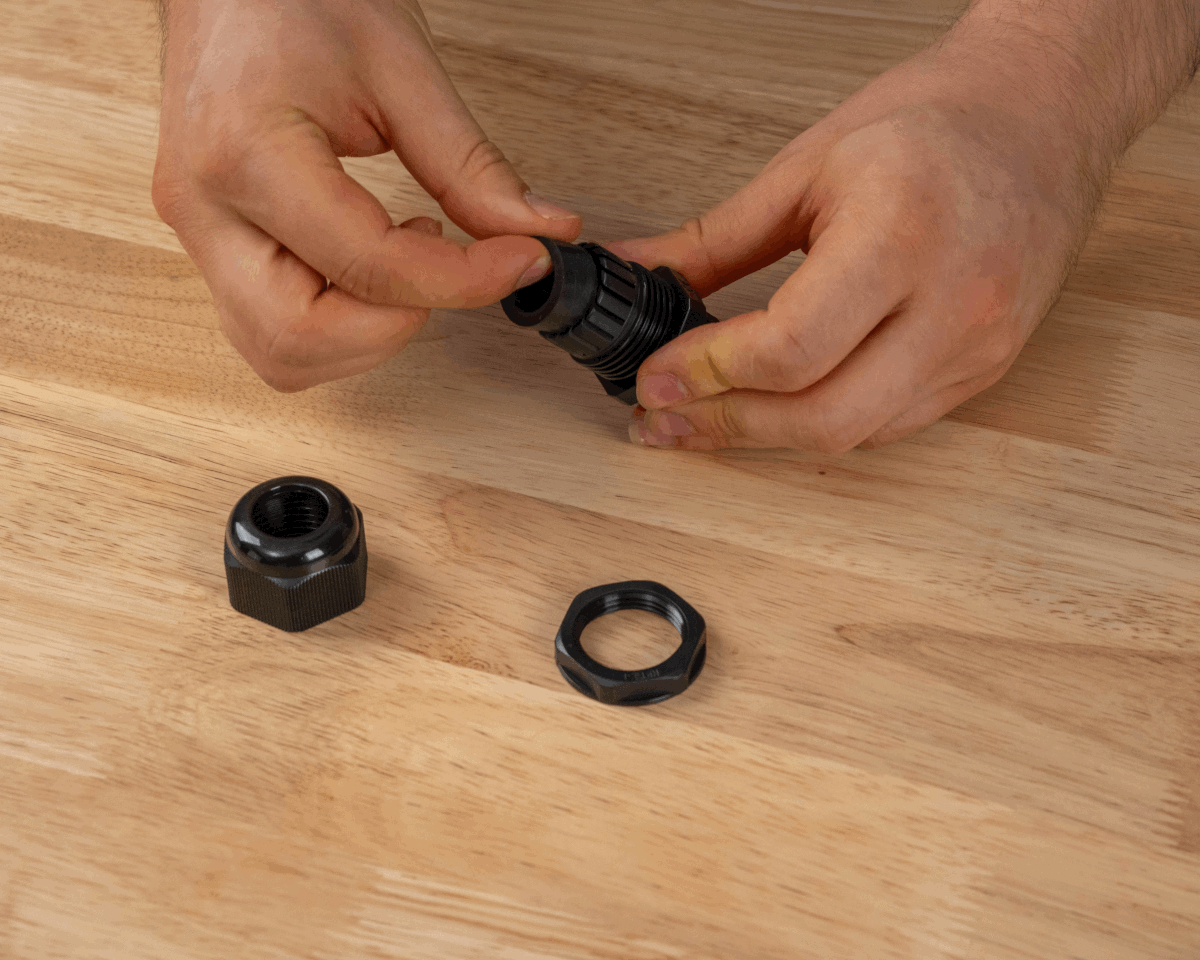

  2. Unscrew the cap and hex nut from the 3/4-inch NPT cable gland. The hex nut will not be used.


  3. Remove the pre-installed rubber cable seal from the cable gland.

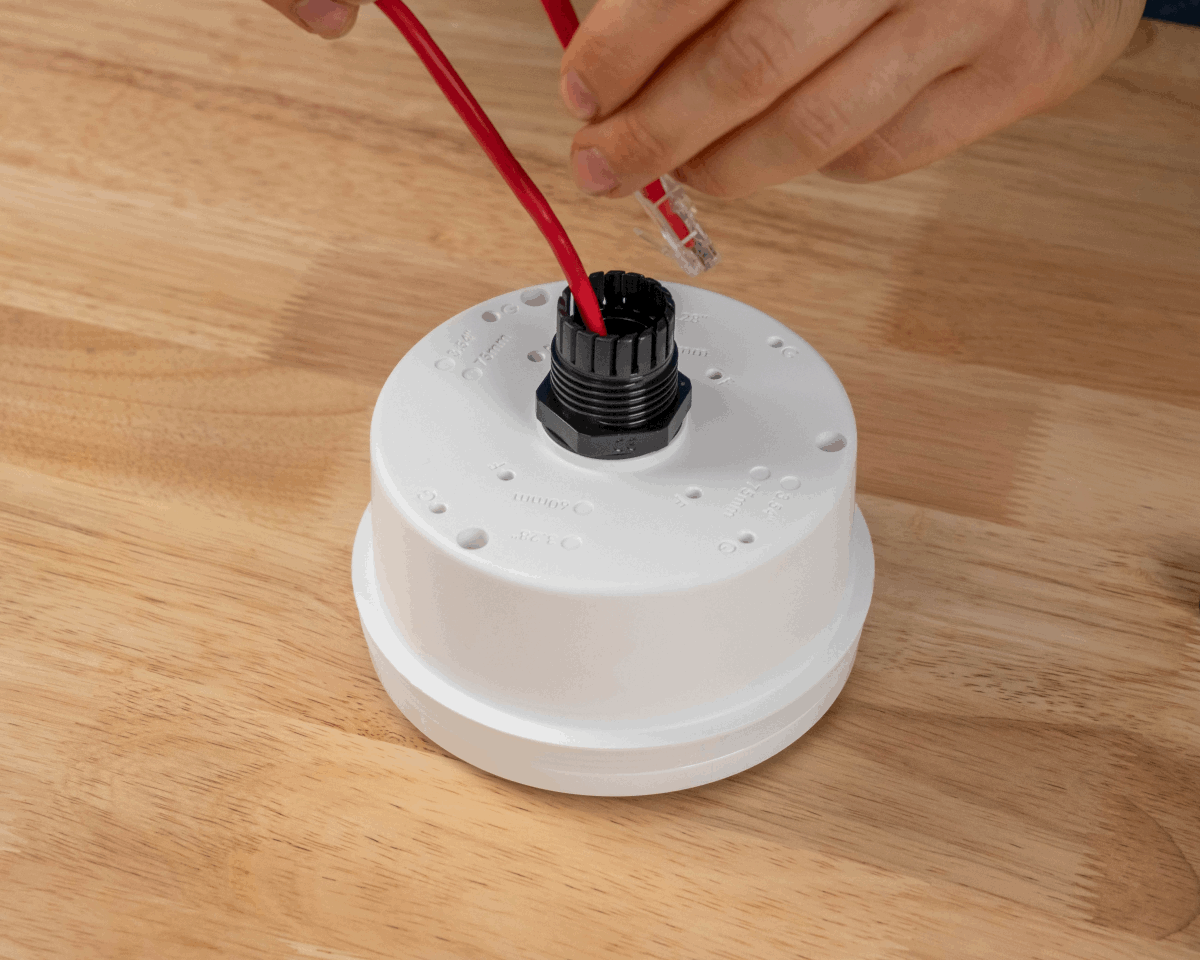

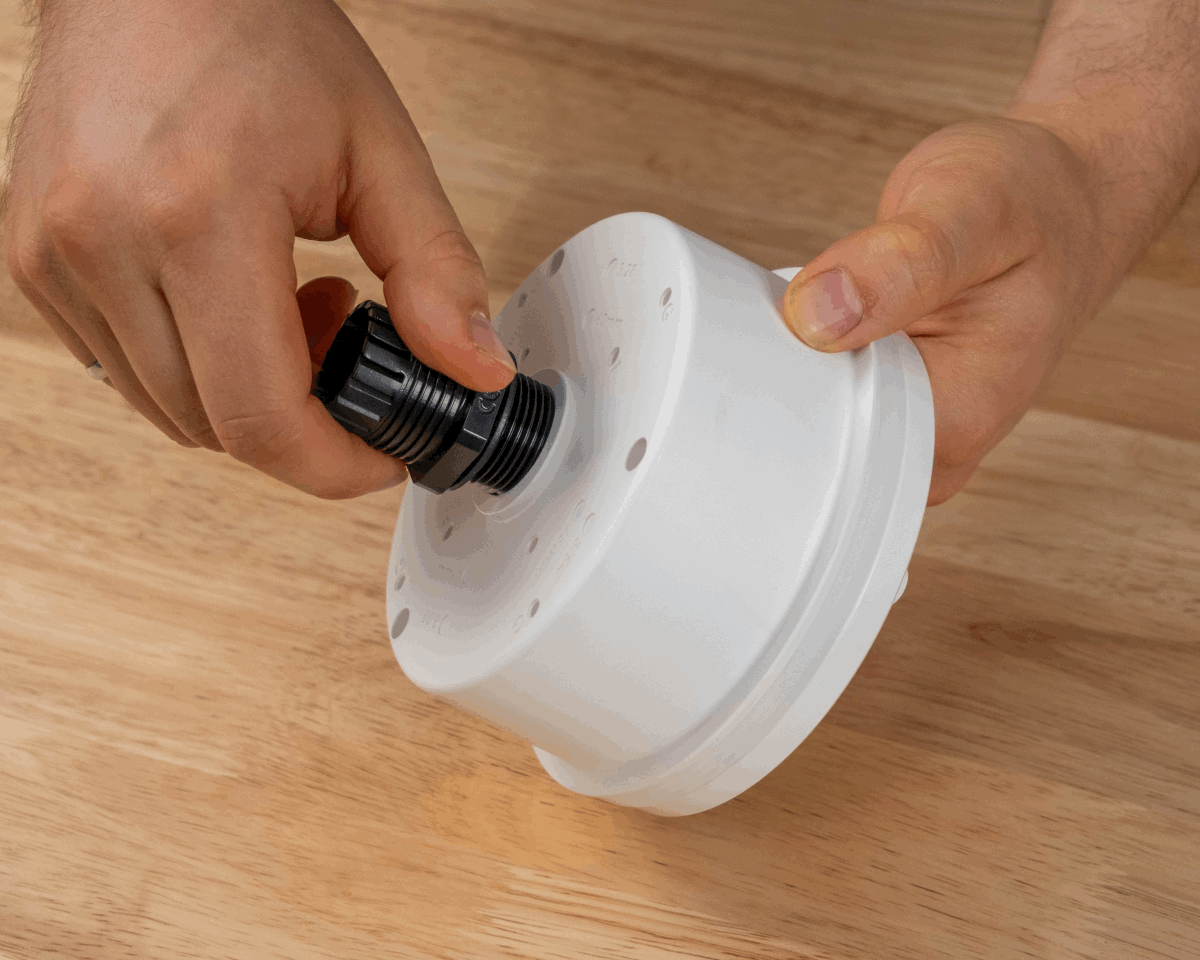

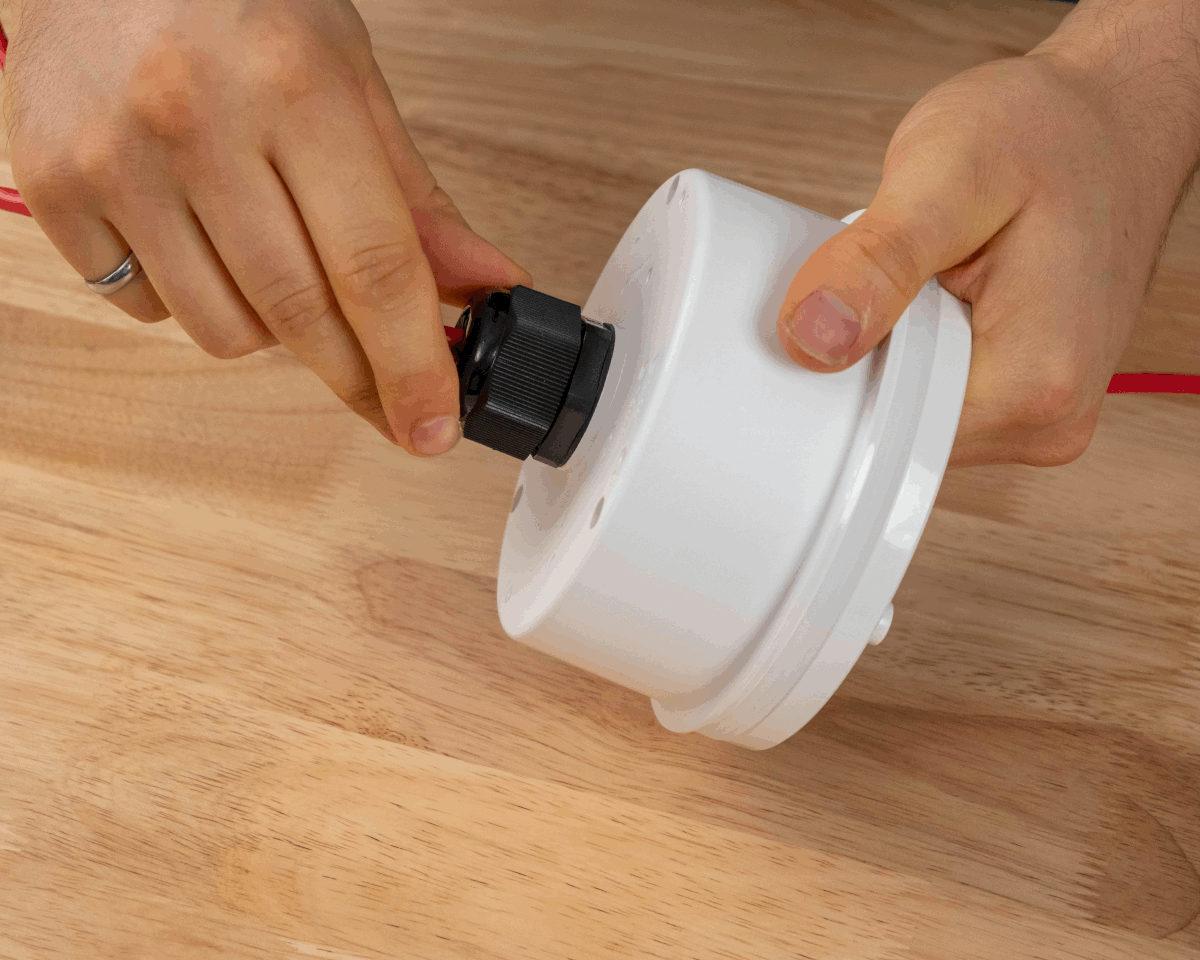

  4. Screw the end of the cable gland to the AH302 Mounting Box. Fully seat the flat rubber gasket onto the plastic and tighten to create a seal.

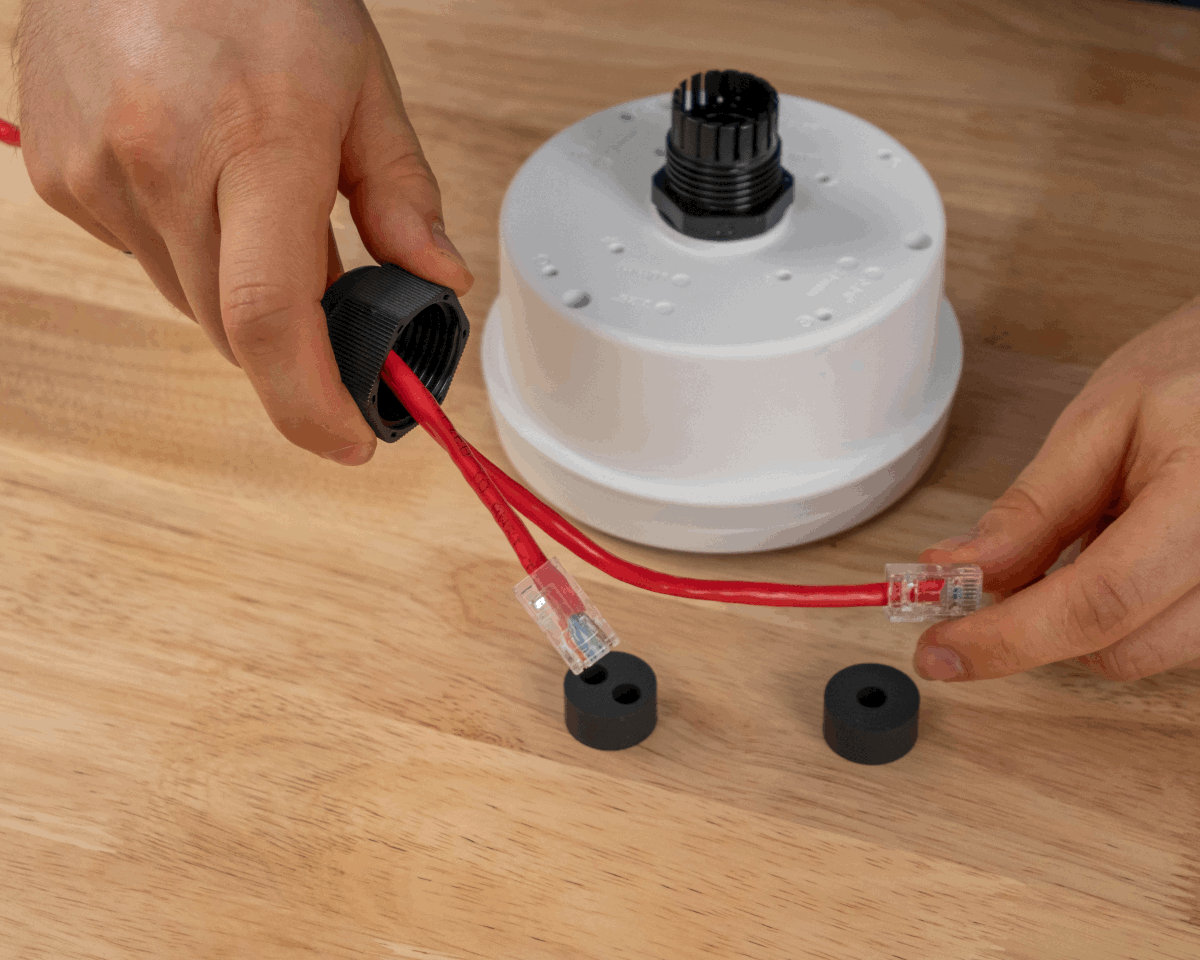

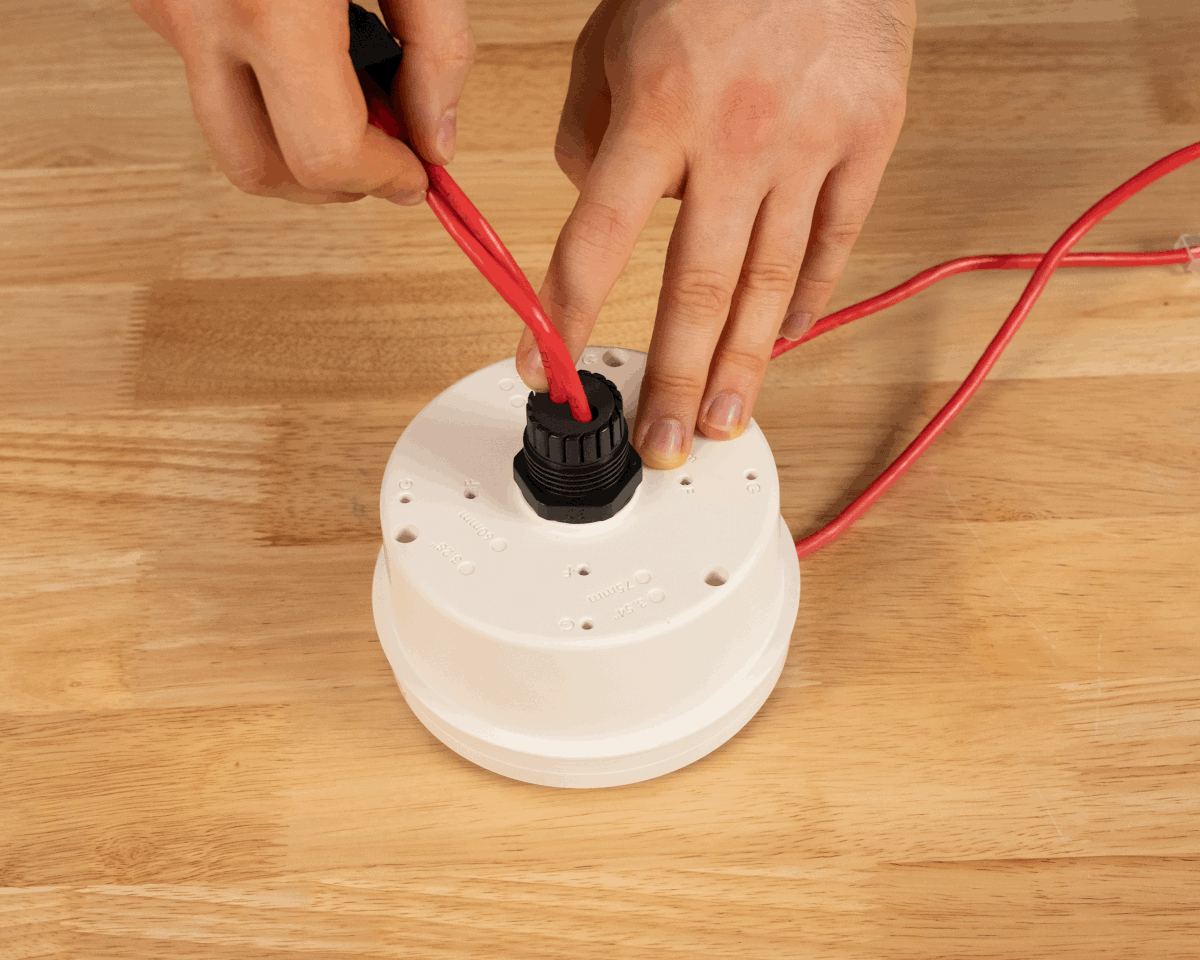

  5. Insert 1 (or 2) Ethernet cable(s) through the cap nut of the cable gland.


  6. Select either the Single cable insert or the dual cable insert for the cable gland. Insert the Ethernet cable(s) through the slit(s) in the seal. The ring of silicon of the seal should face away from the cap nut.

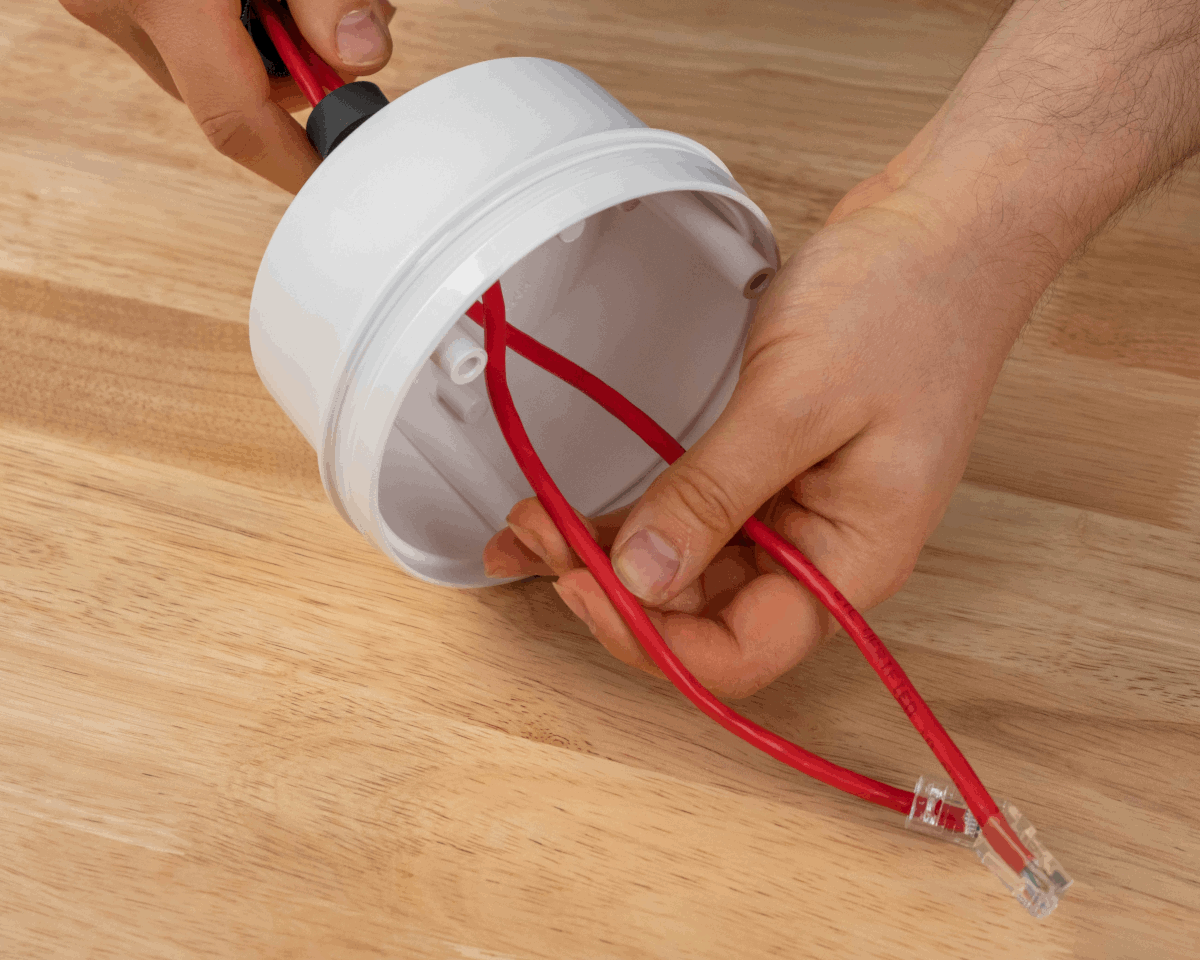

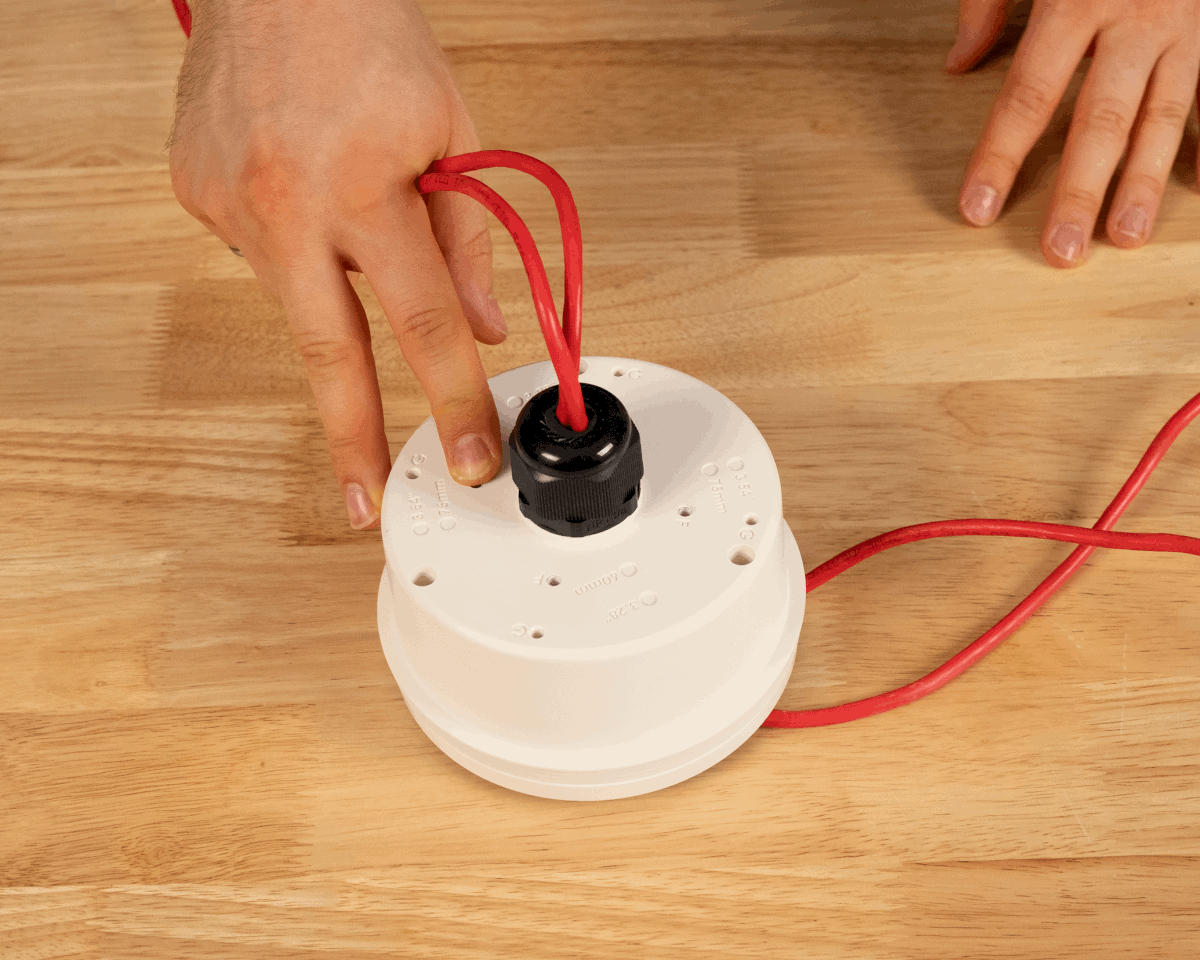

  7. Insert the cable(s) through the gland and the AH302 from the exterior. Provide enough cable for a service loop to allow the anchor to be removed and disconnected once cables are sealed with the gland.


  8. Fully seat the cable insert into the gland. The top of the seal should be flush with the top of the gland. Screw the cap nut onto the cable gland and tighten.

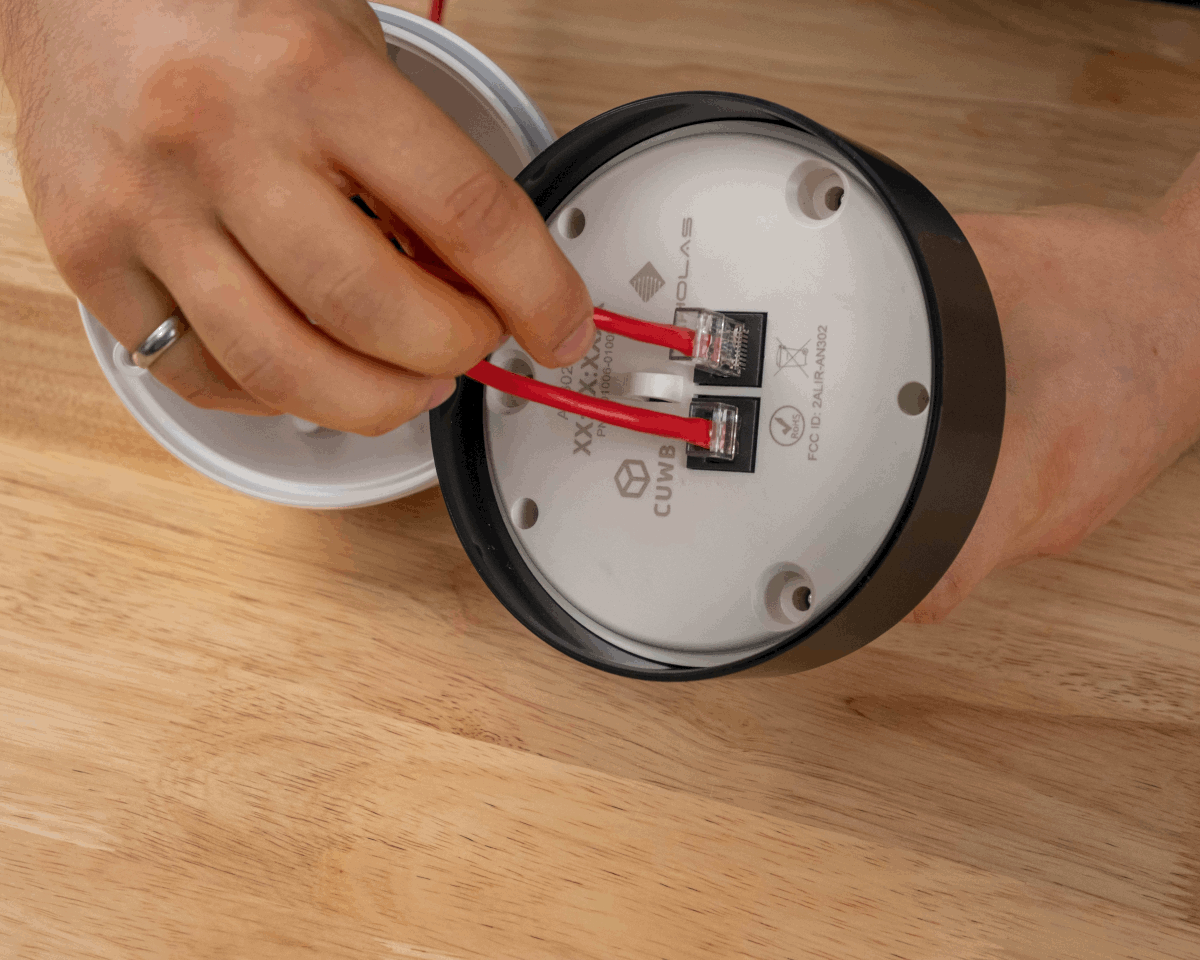

  9. Plug the Ethernet cable(s) into the back of the AN302 and gently tuck the service loop into the mounting box.

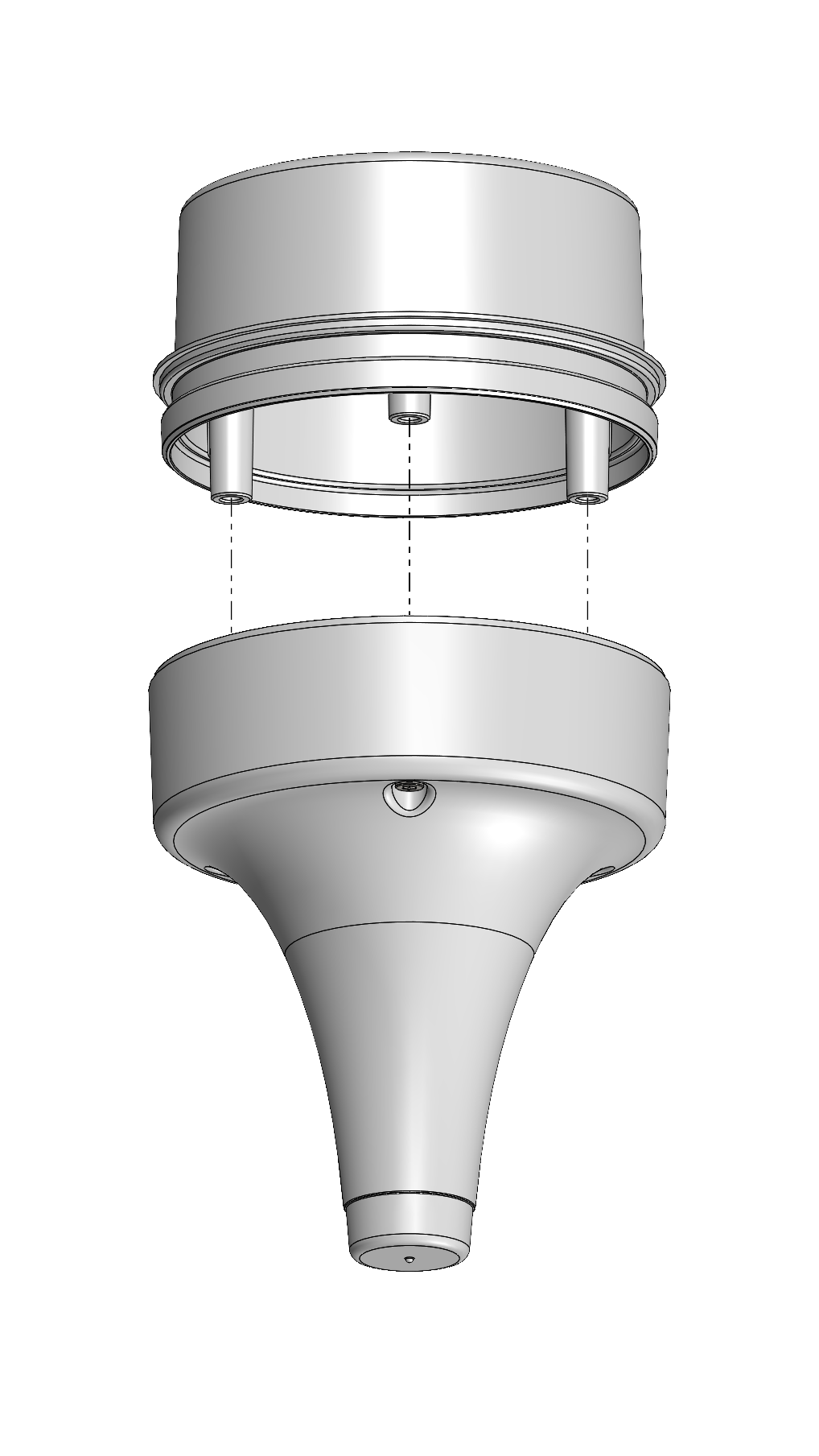

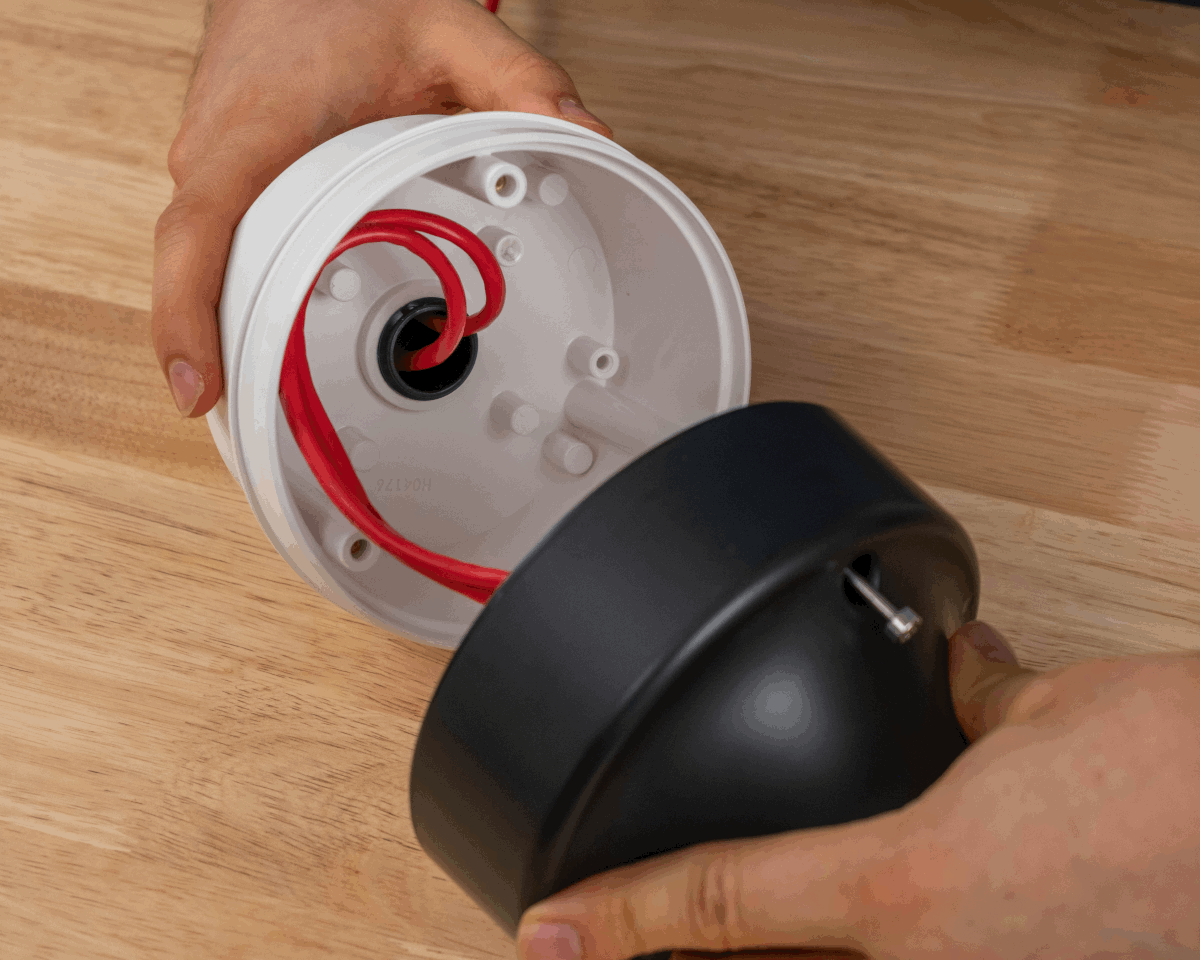

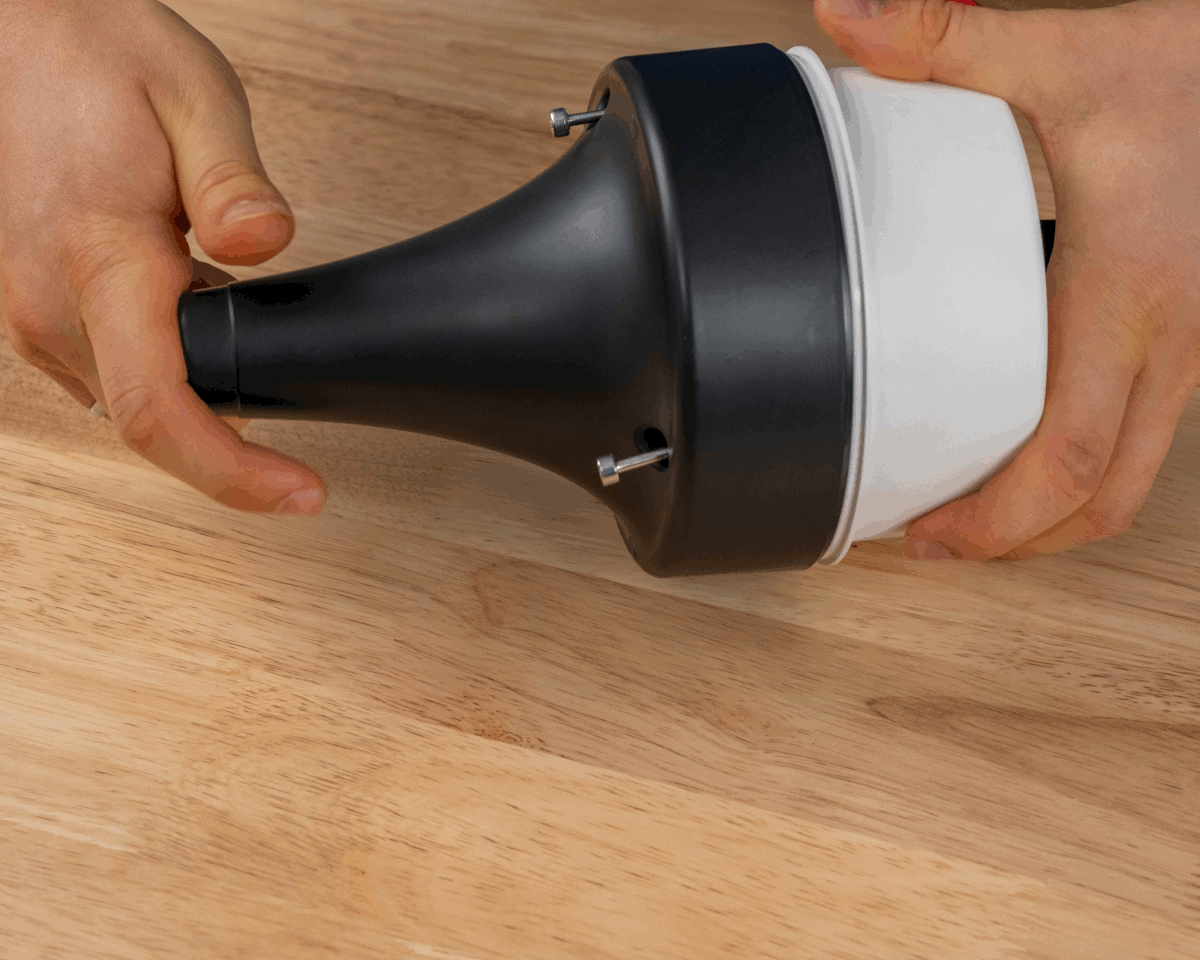

  10. Align the AN302 backplate with the threaded bosses in the AH302. Twist to adjust as needed. Press the AN302 and AH302 together.

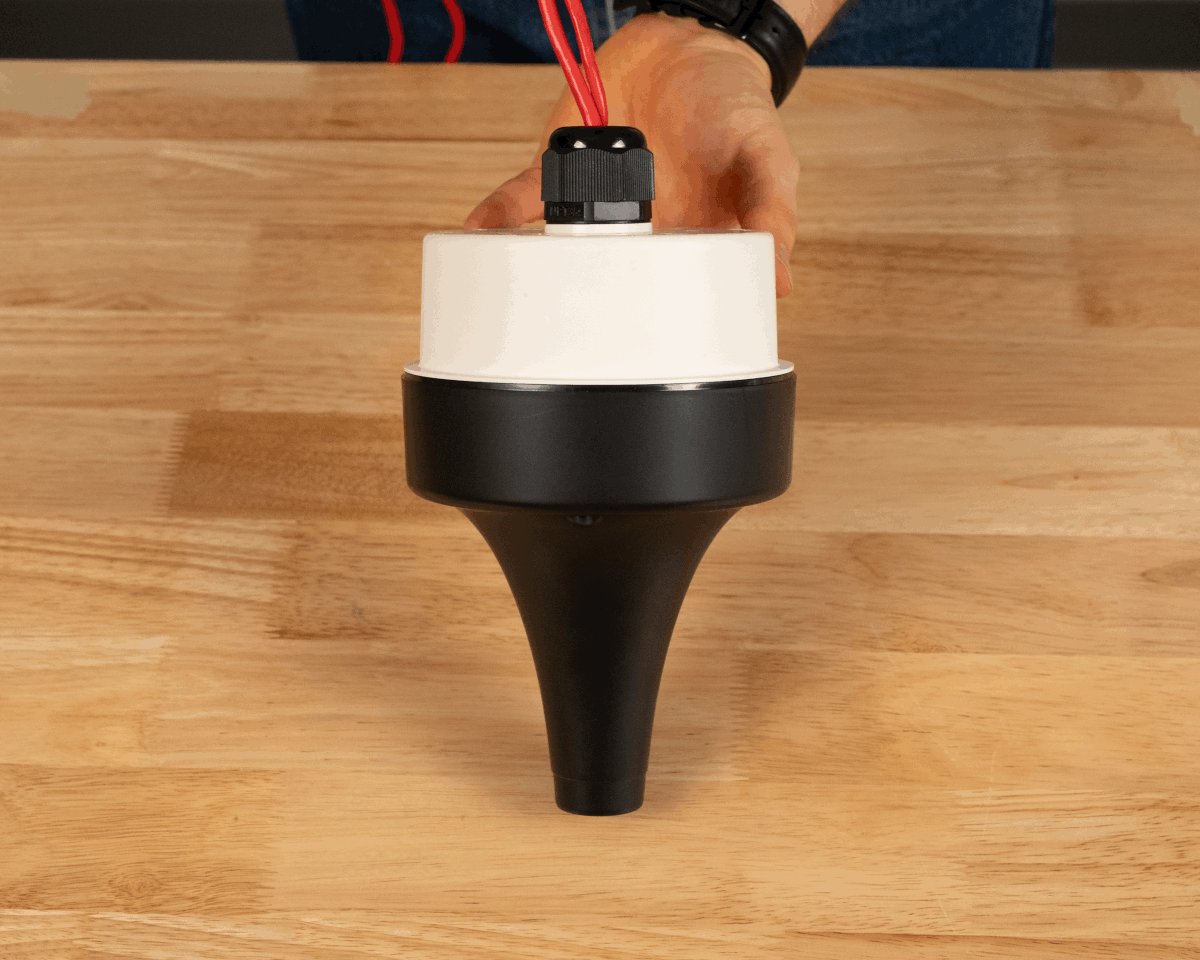

  11. Install the AN302 to AH302 using the captive screws tightened with 6 in-lb of torque to create a seal.

AH302 Datasheet Datasheet Change Log

Version Date Change Description
5.0.0 2025-09-15 Initial Preliminary Release
