DWETH101

Download DWETH101 Datasheet as PDF


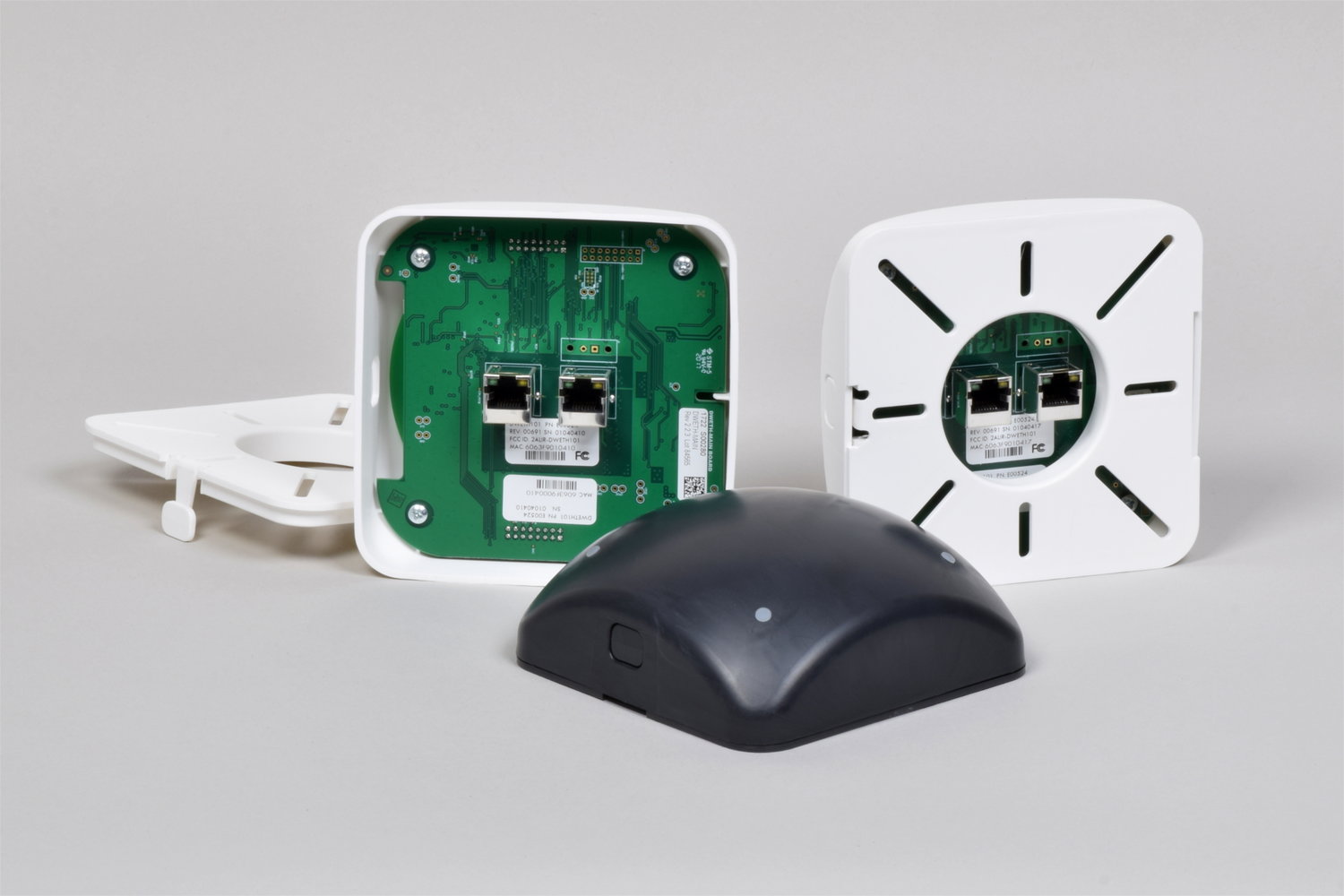

Description

A DWETH is an Ultra-Wideband (UWB) transceiver intended for use with the Ciholas UWB (CUWB) Real Time Location Systems (RTLS). In a typical CUWB RTLS the DWETH operates as a static, or anchored, device providing reference locations for the system. DWETH101 uses Ethernet to provide reliable, high-bandwidth data connectivity, and has a comprehensive set of on board sensors. DWETH101 anchors contain a built-in Ethernet switch and support Chainable Powered Ethernet (CPE), allowing for a chain of devices to be powered via a single source.

DWETH101 devices are FCC certified in the United States, and have CE marking in the European Union.

Features

  • 32-bit ARM Cortex-M7 RISC processor with FPU
    • 300MHz Maximum Speed
    • 2048kB Flash
    • 16kB Cache
    • 384kB SRAM
  • Decawave DW1000 Ultra-Wideband transceiver
    • IEEE802.15.4-2011 Compliant
    • 6 RF bands from 3.5GHz to 6.5GHz
    • Data rates 110kbps-6.8Mbps
    • Up to 1023-byte packet length
  • Integrated Omni-directional UWB antenna
  • Motion Processing Unit (MPU)
    • 16-bit 3-Axis Gyroscope 250-2000°/S
    • 16-bit 3-axis Accelerometer ±2g up to ±16g
    • 14-bit 3-axis Magnetometer ±4800T
    • Digital Motion Processing including low-power quaternion
  • MEMS High Resolution Barometric Altimeter
    • 24-bit 0.01hPa RMS
    • 260-1260hPa absolute pressure range
    • 16-bit temperature ±2°C absolute accuracy
  • Temperature and Humidity
    • ±4% (max) Relative Humidity from 0 to 80%
    • ±0.4% (max) Temperature from -10 to 125°C
  • Tri-Color LED Indicator
  • Integrated 10/100 Managed Switch
  • Compatible with Ciholas Chainable Powered Ethernet (CPE)
  • FCC Certified in the United States under 47 CFR 15.250
  • CE marking in the European Union under EN 302 065-1

Note: Not all hardware features are supported by CUWB System software. See CUWB.io documentation for specific feature support.

Ordering

Model Part Number Color Description
DWETH101 E00617-00697 White Two Port Chainable Power
DWETH101 E00617-00692 Black Two Port Chainable Power

Available from the Ciholas Webshop

Electrical

Ratings

Parameter Description Min. Typ. Max Units
Vinin DWETH101 5 48 60 V
P Nominal Operating Power   2 4 W
To Operational Temperature -20   60 °C

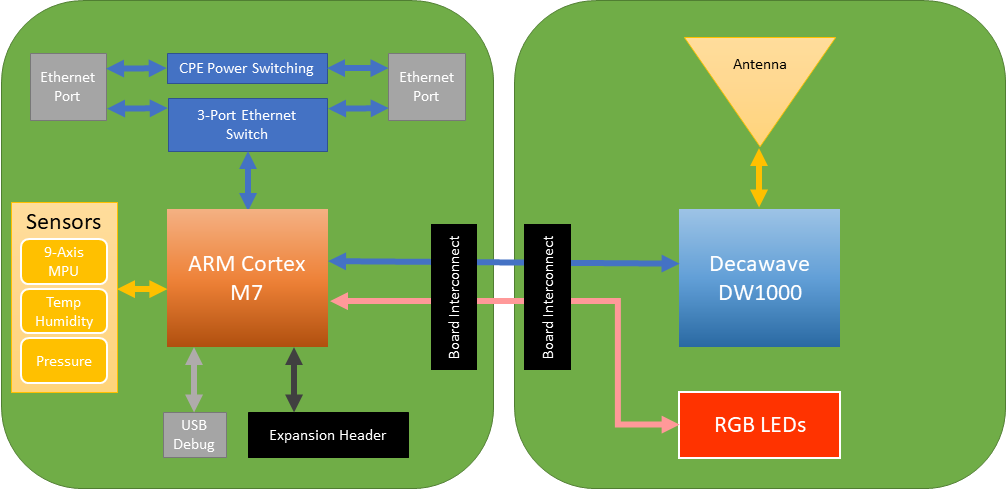

Block Diagram

Mechanical

Parameter Description Min. Typ. Max Units
Mass Typical Unit Mass 240 245 250 g
Ingress Protection
IP10, not protected against contact and ingress of objects, no protection against liquids

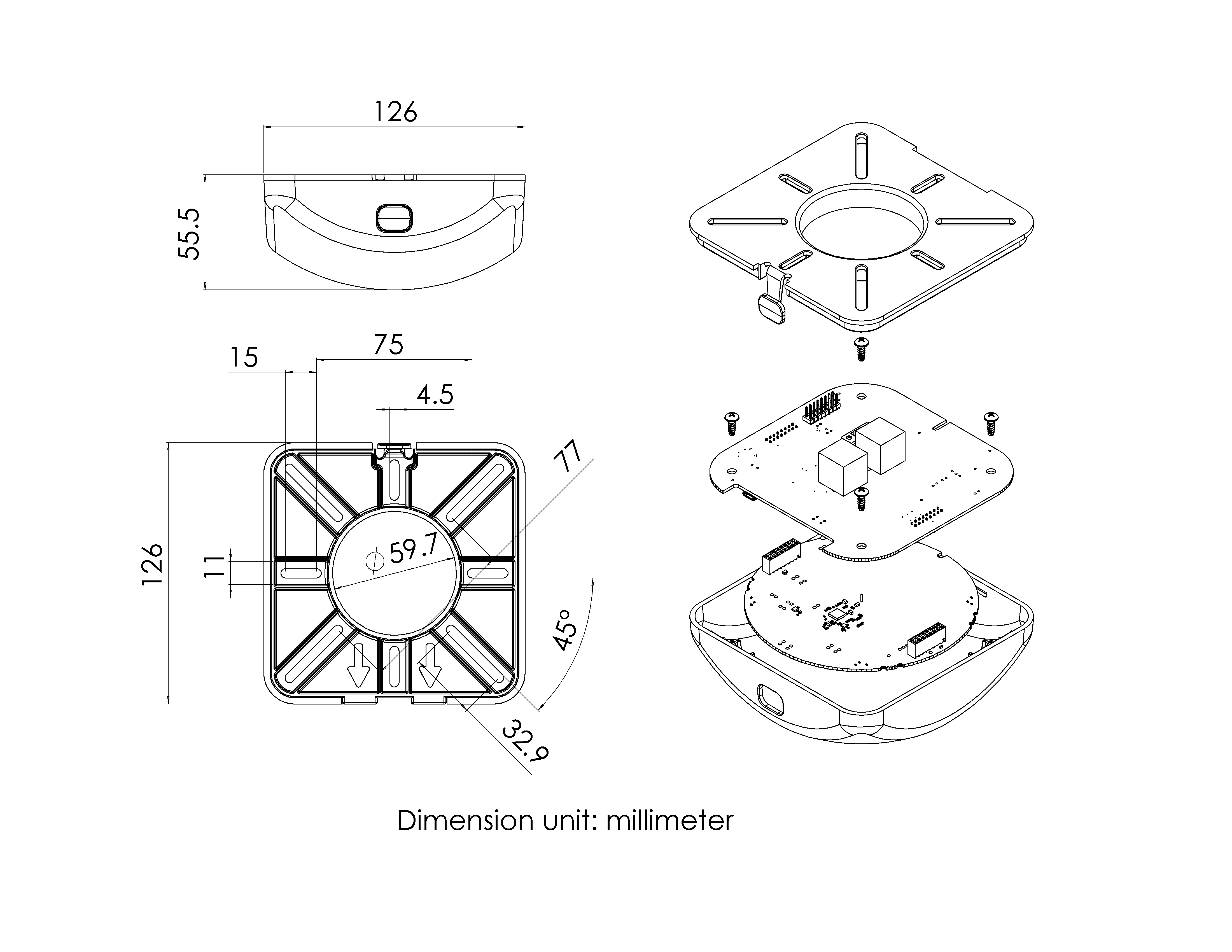

DWETH CPE Mechanical Drawing

Operation

Power and Communication

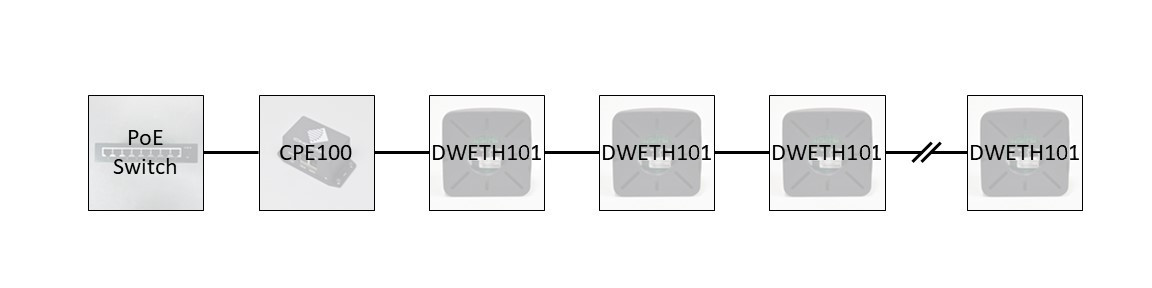

DWETH101 is powered via CPE. To power and communicate with the device it should be plugged into a CPE compatible power source. The following diagram shows connection using a PoE compatible switch with CPE100 powering a chain:

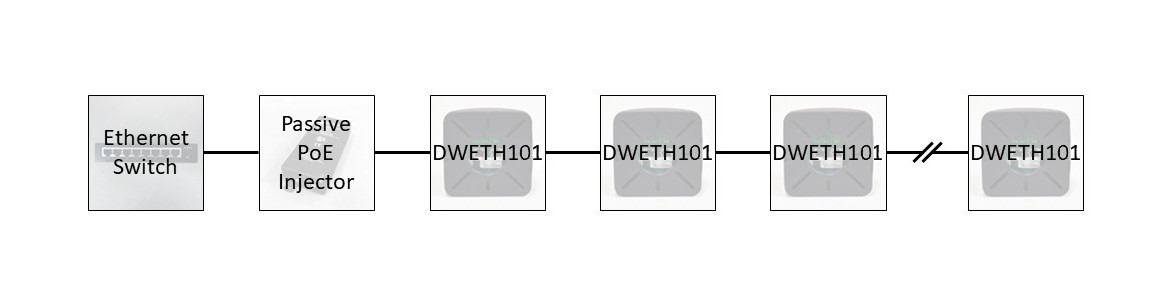

The DWETH101 may also be powered using a passive injector with a standard (non-PoE compliant) switch:

On connection the DWETH101 will source power from the upstream CPE device and become a CPE provider on the other Ethernet port.

Once plugged in the DWETH will attempt to gather network parameters using the DHCP protocol. If successful it will announce its presence to the CUWB network server on the subnet provided by DHCP. If the DWETH111 fails to connect to the DHCP server it will fall back on auto-IP parameters and announce its presence using those parameters.

Configuration

Details regarding DWETH setup and configuration for the CUWB RTLS can be found on the CUWB Documentation Site.

Sensor Data Reporting

DWETH101 has a variety of sensors and can be configured to transmit data from those sensors. Sensor data received by the CUWB server is broadcast via the Ciholas Data Protocol (CDP) providing access to users.

Sensor scaling and data rates can be configured for the following types of data:

Sensor Type Measurement Standard
3-Axis Accelerometer standard gravity (g)
3-Axis Gyroscope °/Second
3-Axis Magnetometer µTesla
Absolute Pressure hPascal
Temperature °C
Quaternions Unit Coefficients

LED Indication

The DWETH111 has tri-color (RGB) LEDs for conveying device state to users. In normal1 operation the device state can be determined using the table below:

Network Status Color ON Time Period
ON Network Green 10mS 1.0S
OFF Network Green 10mS 10.0S
Power On Reset2 Blue 500mS N/A
  1. This table denotes normal LED operation. The CUWB network can be configured to show different patterns on the LEDs
  2. Power On Reset (POR) occurs only on system reset. This will happen when charging a dead battery, on reboot after firmware update, and when the device resets due to system watchdog.

The RGB LED also conveys error states to the user. An error is indicated by a 500mS red flash followed by a color sequence. The following color sequences are used to decode error states:

Color Sequence Code Description
Red — White-White-White 7 DW1000 communication error

Error Handling

[CODE 7] - DW1000 communication error

This indicates that the DWETH firmware is unable to communicate with the UWB transceiver. To clear this error reset the device by removing and reapplying power. If the problem persists please contact Ciholas for support.

Regulatory Compliance

  • FCC Certified in the United States under 47 CFR 15.250
  • CE marking in the European Union under EN 302 065-1

Federal Communications Commission

FCC Notice (For US Customers):

FCC ID: 2ALIR-DWETH101

Model: DWETH101

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference
  2. This device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/television technician to help.

Changes and modifications not expressly approved by Ciholas, Inc. can void your authority to operate this equipment under Federal Communications Commissions rules.

European Conformity

Hereby, Ciholas declares that this device is in compliance with the essential requirements and other provisions of Directive 2014/53/EU and Directive 2014/30/EU.

The full text of the EU declaration of conformity is available at the following internet address:

Product Warnings


  • Before working or installing electrical equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents

  • Usage of this product outside the parameters outlined in the user manual can result in bodily injury and damage to this and other equipment. To prevent this, please follow all instructions in the user manual.
  • Installation of this equipment must comply with all local and national electrical codes.
  • Do not operate any wireless network devices near unshielded blasting caps or in an explosive environment unless the devices have been modified to be especially qualified for such use.

Ciholas Standard Software License and Warranty

Unless expressly stated otherwise, all Ciholas Standard Software constitutes original code and is subject to Ciholas Software License (hereafter “the License”). Any use of Ciholas software must be in compliance with the License.

CIHOLAS SERVICES AND ALL INFORMATION, CONTENT, MATERIALS, PRODUCTS (INCLUDING SOFTWARE AND HARDWARE) AND OTHER SERVICES MADE AVAILABLE THROUGH CIHOLAS ARE PROVIDED ON AN “AS IS” AND “AS AVAILABLE” BASIS, UNLESS OTHERWISE SPECIFIED IN WRITING. CIHOLAS SERVICES INCLUDE, BUT ARE NOT LIMITED TO, THE FOLLOWING: CIHOLAS.COM, CIHOLAS SHOP, FORUM.CIHOLAS.COM, CUWB.IO, AND ALL CIHOLAS PRODUCTS, SOFTWARE AND HARDWARE. THE USE OF CIHOLAS SERVICES IS AT THE USER’S SOLE RISK.

EXCEPT AS EXPRESSLY PROVIDED IN THE CIHOLAS STANDARD WARRANTY POLICY STATEMENT, CIHOLAS HEREBY EXPRESSLY DISCLAIMS ALL REPRESENTATIONS, CONDITIONS, AND WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF TITLE, MERCHANTABILITY, NON-INFRINGEMENT, AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL CIHOLAS BE LIABLE TO USER OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY, OR OTHER INJURIES AND/OR DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE CIHOLAS SERVICES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF INFORMATION, BREACH OR ANY OTHER PECUNIARY LOSS), OR FROM ANY BREACH OF WARRANTY. NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED IN THIS DISCLAIMER OF WARRANTY, THE MAXIMUM AGGREGATE AMOUNT TO WHICH THE USER IS ENTITLED IS THE AMOUNT OF THE FEES PAID BY THE USER TO CIHOLAS.

CIHOLAS IS NOT LIABLE FOR ANY CONDUCT OF ANY USER OF CIHOLAS SERVICES NOR OF ANY APPLICATION OR USE OF CIHOLAS SERVICES IN AN ILLEGAL MANNER OR TO COMMIT AN ILLEGAL ACT OR IN A JURISDICTION IN WHICH IT IS ILLEGAL OR UNAUTHORIZED TO USE THESE SERVICES. IT IS THE RESPONSIBILITY OF THE USER OF CIHOLAS SERVICES TO ESTABLISH THE LEGALITY OF ITS USE IN THE USER’S JURISDICTION.

More Information

Please visit the following links for more information and documentation regarding Ciholas UWB systems and products:

DWETH101 Datasheet Change Log

Version Date Change Description
1.0 2018-05-10 Initial Public Release
1.1 2018-06-04 Added Product Warnings
Added Warranty Disclaimer
Added IP Rating
Added UE Conformity Notes
Modified Operation Temperature Range
1.2 2018-08-03 Added block diagram to electrical section
