CHG100

Download CHG100 Datasheet as PDF


Description

DWTAG Charger

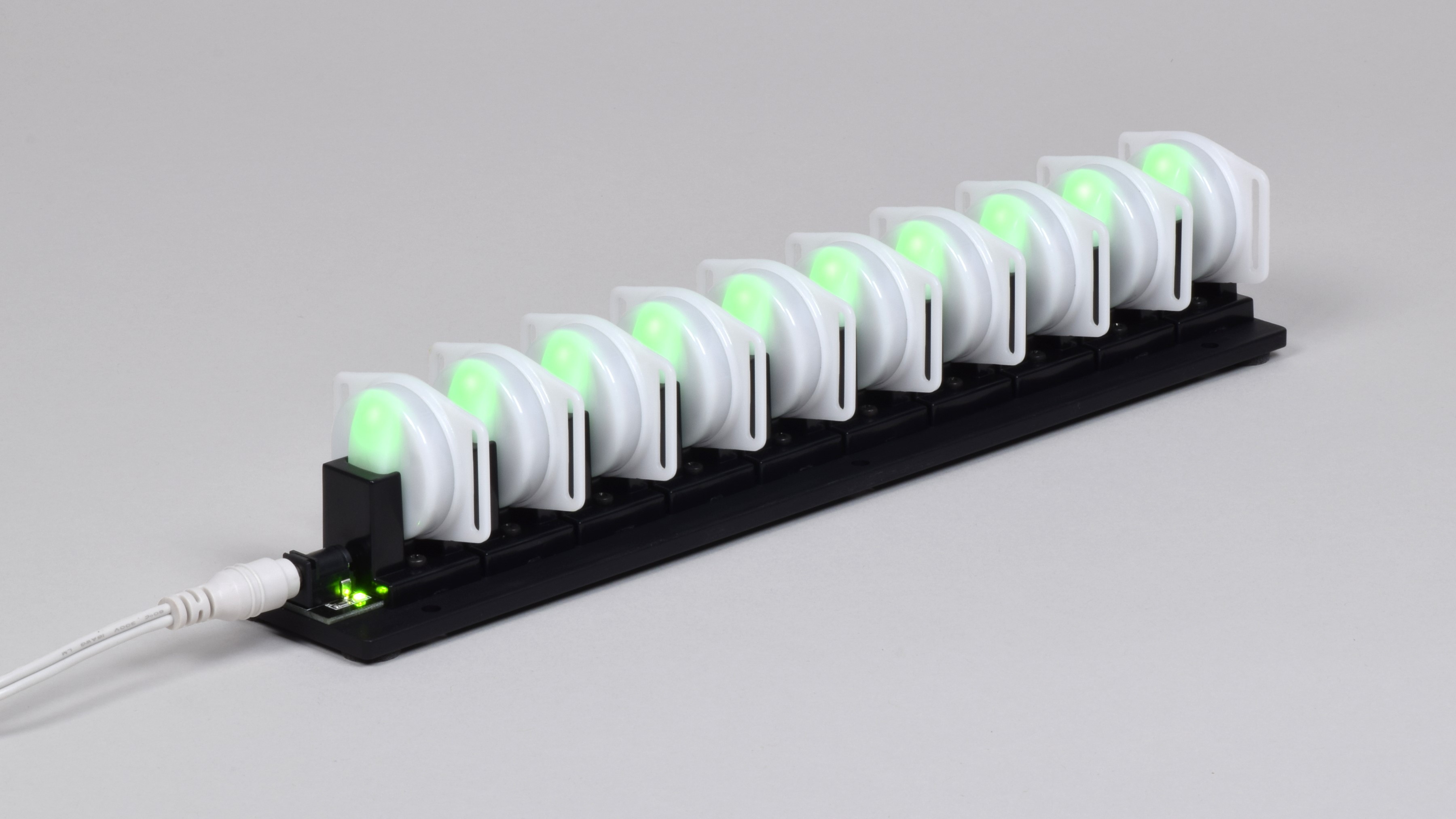

The DWTAG Charger is an efficient and space saving product that allows simultaneous charging of multiple Ciholas Ultra-Wideband (CUWB) DWTAGs. It supports charging of up to 10 units at a time.









Features

  • Charge up to 10 DWTAGs simultaneously
  • 20W 5VDC adapter that will accept U.S. pronged 100-240VAC, 50/60Hz, 0.6A Power
  • Individually fused charging ports
  • Charge depleted DWTAG in two hours
  • Green LED on the CHARGER signifies the presence of input power
  • Powder coated metal frame for easy mounting
  • Rubber feet provide surface protection

Ordering

Model Part Number Description
CHG100 E00620-00620 DWTAG CHARGER 10-Slot Open Frame

Available from the Ciholas Webshop

Electrical

Parameter Description Min. Typ. Max Units
Vin Input Voltage 4.5 5.0 5.5 V
P Power   20   W
To Operational Temperature 0   65 °C

Mechanical

Parameter Description Min. Typ. Max Units
Mass Typical Unit Mass   293   g
Ingress Protection
IP10, protected against any large surface of the body but not protected against deliberate contact, no protection against liquids

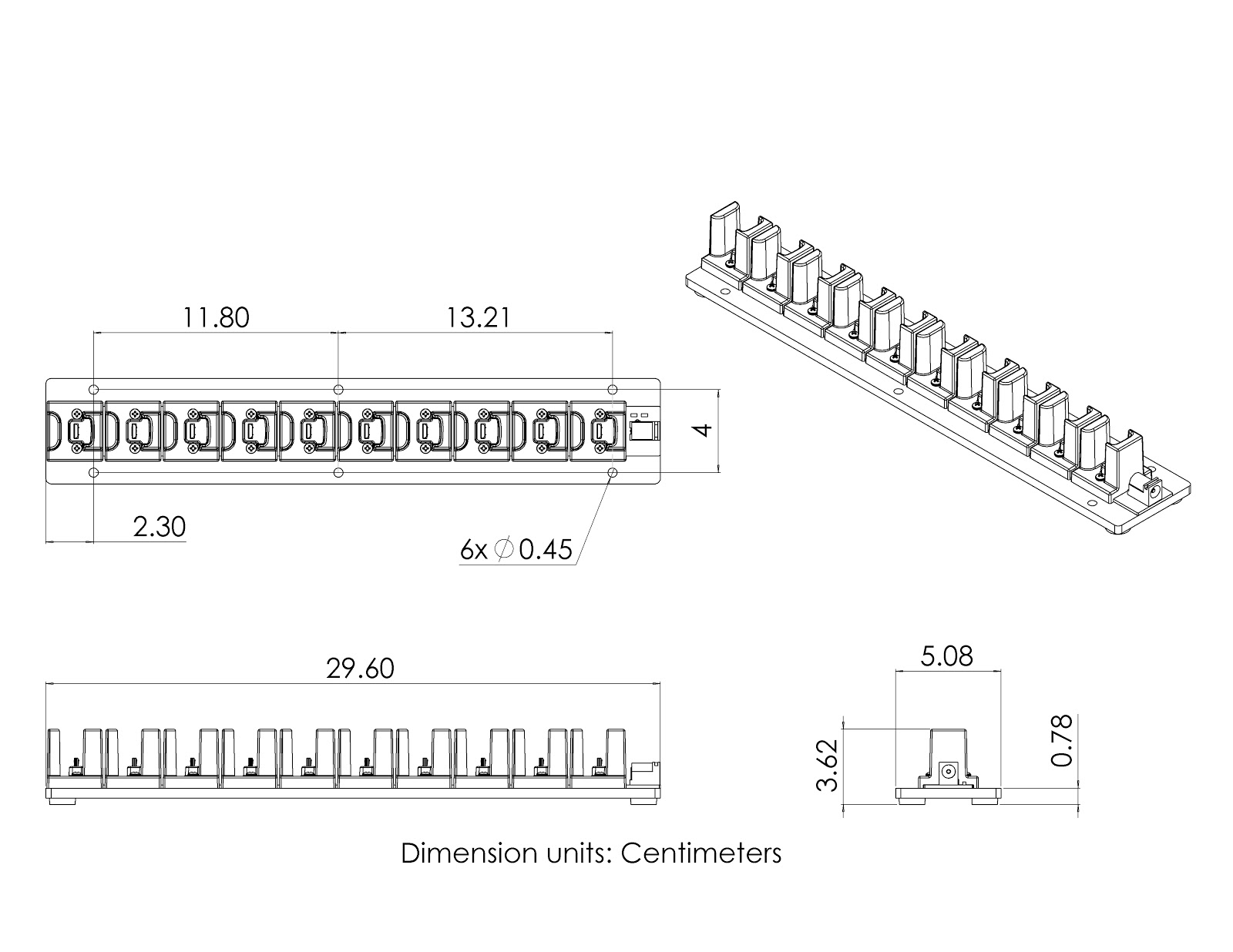

DWTAG Charger Mechanical Drawing

Operation


  • To ensure proper operation of the CHG100 and avoid overheating of devices ensure that charging is done in a temperature controlled and ventilated area.
  • Before you work on or install any electrical equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

  • Usage of this product outside the parameters outlined in the user manual can result in bodily injury and damage to this and other equipment. To prevent this, please follow all instructions in the user manual.
  • Installation of this equipment must comply with all local and national electrical codes.

More Information

Please visit the following links for more information and documentation regarding Ciholas UWB systems and products:

CHG100 Datasheet Change Log

Version Date Change Description
1.0 2018-05-10 Initial Public Release
1.1 2018-06-04 Added Product Warnings
Added IP Rating
