CUWB Manager Manual

Overview

The Ciholas Ultra-Wideband (CUWB) Manager is the primary software tool for managing, configuring, and operating CUWBNets. It provides a web-based User Interface (UI) that can be accessed from the user’s Local Area Network (LAN), allowing administrators to manage multiple CUWB Configurations and run CUWBNets simultaneously.

The CUWB Manager operates a single-page web application that stores all CUWB configurations and controls the execution of each CUWBNet. Through this interface, users can configure anchor settings, start or stop CUWBNet operation, and monitor system status in real time.

The CUWB Manager provides an Application Program Interface (API) that exposes the same functions available in the web interface. Developers can use the API to build custom tools or automate tasks such as adding or removing tags and adjusting beacon rates. Full API documentation is available in the CUWB Manager API.

This CUWB Manager Manual applies only to v5.0 of the CUWB Manager. The v5.0 CUWB Manager Version and Manual is compatible with Series 300 devices and is not compatible with older databases or legacy Ciholas hardware. Documentation for legacy systems is available in our legacy area.

CUWB RTLS Operation Background

This section outlines the roles and responsibilities of Tags and Anchors within the CUWB Real-Time Location System (RTLS). For a higher-level overview of the CUWB RTLS architecture, refer to the System Architecture section.

Anchors

Anchors serve as static reference points used by the location algorithm to determine the position of Tags. Anchors listen for Tag beacons, record the reception time, and if available, collect sensor data. All received data is transmitted to the CUWB Manager for use in the location algorithm and for display within the web interface.

In addition to serving as reference points, Anchors participate in Global Network Time (GNT) calculations. All devices in the CUWB Configuration must understand GNT in order to transmit and receive during their scheduled times. Multiple anchors participating in GNT allow the time to be distributed across large Anchor Arrays.

Anchors can be configured for one of three roles:

Role Description
Seeder Transmits UWB packets to participate in Global Time Synchronization.
Initial Seeder Functions as a Seeder and also starts the configuration.
Quiet Anchor Does not transmit. Global Time is modeled from UWB beacons received from other Anchors.

Each CUWB Configuration must have at least one Initial Seeder. This device initiates transmissions within the Anchor Array and provides the initial time model for the system. Ideally, the Initial Seeder is centrally located with strong RF connectivity to a large number of nearby Anchors. The choice of Initial Seeder can influence how quickly the Anchor Array achieves full GNT synchronization.

If multiple devices are configured as Initial Seeder, one will be selected at random to initialize the CUWBNet. If the selected device is unavailable (e.g., network disconnected or powered off), another Initial Seeder will be selected automatically.

Once the CUWBNet starts, Anchors near the Initial Seeder begin receiving UWB packets and attempt to ‘lock’ onto GNT. When a Seeder achieves full lock, it contributes to the GNT model, allowing synchronization to expand across the Array.

Quiet Anchors listen for transmissions from Seeders and Initial Seeders and attempt to ‘lock’ onto GNT. Once a Quiet Anchor has locked onto GNT, the Anchor can participate in position calculations but does not contribute to GNT modeling, and cannot be used to expand CUWBNets beyond the existing synchronization.

Tags

Tags are mobile devices tracked by the CUWBNet. Each Tag transmits UWB beacons that are received by Anchors. The Anchors forward reception timestamps to the CUWB Manager, where the location algorithm determines each Tag’s position.

Tags can be configured to transmit beacons at slower rates to conserve battery life or at faster rates to track dynamic objects.

Installation

The CUWB Manager can be installed in Ubuntu either online, via a Personal Package Archive (PPA) or offline, using pre-downloaded Debian packages.

Host PC Requirements

  • OS: Ubuntu 22.04 Jammy or Ubuntu 24.04 Noble
  • CPU: 64-bit, 2.5GHz, dual-core or better
  • WAN: Must be able to reach ppa.cuwb.io via port 4431
  • Network: Two NICs or VLANs — one for the User Network and one for the isolated Anchor Network
  • RAM: 8 GB or more
  • HD: 32 GB or more2

1. Only required for online installation.
2. Additional space is required for CDP logging. See CDP Logging for additional requirements.

Requirements increase based upon CUWB System complexity. Larger installations may require additional processing power.

The Anchor Network NIC (or VLAN) must be configured for the link-local IP address range. See the Networking Guide for detailed instructions.

Online PPA Installation and Setup

Follow these steps to install the CUWB Manager:

  1. Follow best practices and review the install.sh script.
  2. bash <(wget -qO- https://cuwb.io/docs/v5.0/assets/install.sh)
  3. Paste into an Ubuntu 22.04/24.04 terminal and press Enter

After installation, the CUWB Manager is accessible on all network interfaces of the host machine at port 5000.

Offline Installation

The CUWB Manager can be installed on Host PCs that do not have PPA access. For instructions on how to create a transferable DEB package, see PPA Offline Download for Software Packages.

If using individual Debian packages, CUWB Migrate DEB must be installed prior to CUWB Manager DEB.

Only use CLI to install the CUWB Migrate and CUWB Manager Debian packages.

The latest Debian (DEB) packages can be downloaded from the Software Packages page for offline installations. Transfer the DEB(s) to a USB drive or other transfer method to the Host PC. After downloading the packages, navigate to the file locations, and type the commands below into a terminal window to install the packages:

sudo apt install ./<package_name>.deb

Repeat the above step for each Debian package to be installed on the Host PC.

Some additional software, like the CUWB Viewer or CDP Logger, may have additional Host PC requirements. Review the requirements prior to installation.

CUWB Manager Software Installation

Regardless if installed via the PPA or the offline Debian packages, the CUWB Manager software package launches an installation GUI. Use Tab and Enter keys to navigate the installation GUI, which walks through several screens, that display the license agreement, configure optional host port settings, and expand the default UDP buffer size.

PPA Only Aggregation Selection

The PPA has a special aggregation that enables users to select which software packages to be installed:

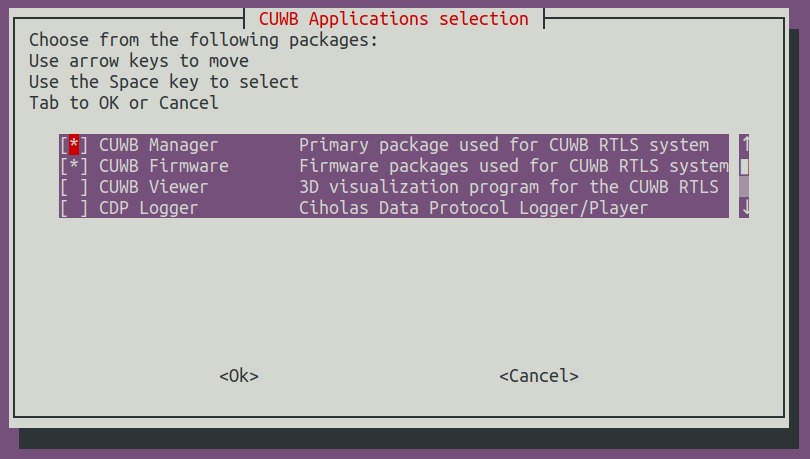

When prompted in ‘CUWB Applications Selection,’ ensure that CUWB Manager and CUWB Firmware are selected for installation.

(Optional) Changing CUWB Manager local host port

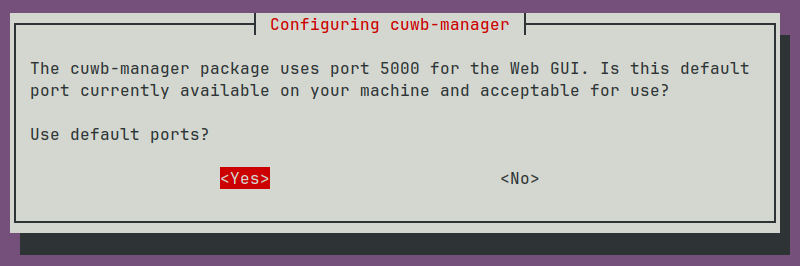

When the installation script is first run, there will be a prompt for changing the local host port. Selecting No will display another prompt window where the new port can be entered.

If a different port is selected during installation, replace all the documentation references to :5000 with the new port.

The local host port can only be modified when installing the CUWB Manager for the first time or by uninstalling the CUWB Manager package and reinstalling the package.

(Optional) Expanding UDP Buffers

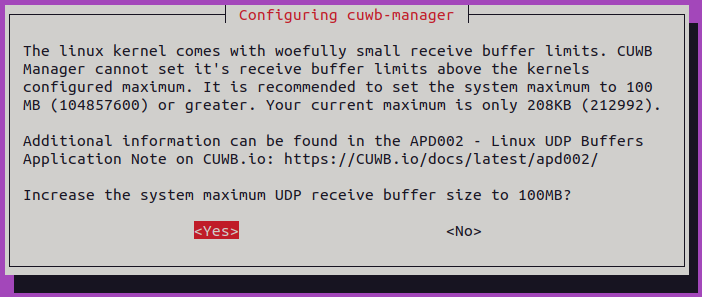

While this setting is optional, it is strongly recommended to increase the UDP buffer size for the linux kernel.

If the UDP buffer size is not increased during installation, it can be increased at any point. See APD002 for instructions.

Getting Started

This section guides the user through initial access to the CUWB Manager Web Interface and provides guidance on initial settings.

This Getting Started Guide uses the CUWB Manager in Basic View, which can be changed at any time. See Basic and Expert Settings View for additional information.

Preparation

Hardware Setup

Users new to the CUWB System should begin by setting up a small, manageable CUWB Configuration to become familiar with the tools and process. The Quick Start Guide provides step-by-step instructions for creating and running a small CUWBNet. For more detailed information, see the Installation Guide and Networking Guide.

To achieve the best performance, carefully select locations for Anchors. Each Anchor should have clear visibility to other Anchors and to the field of interest for tracking. For best practices, see the Component Placement Guide.

Survey data collected during hardware installation will be needed later for the CUWB Configuration setup.

Tags are shipped out in a ship mode which internally disconnects the battery. Some Tag variants support user replaceable batteries which need to be installed before Tag use. Ciholas recommends plugging Tags into chargers, or installing batteries, while the rest of the CUWB Manager is being configured.

If Tags are not plugged in while setup is occurring, they may need to be woken up prior to use. Shake devices prior to use to enable a faster CUWBNet join. Otherwise, Tags may take up to 640 seconds to join the CUWBNet.

Software Setup

If not already installed on the Host PC, follow the Installation instructions to install the CUWB Manager software.

Ensure that the Anchor Network NIC (or VLAN) is configured for link-local IP address range. See Networking Guide for instructions on configuring NIC(s).

If installing via separate Debian packages, make sure CUWB Migrate, CUWB Manager, and any CUWB Firmware for Anchors or Tags is installed.

Access the CUWB Manager Web Interface

On the Host PC where the CUWB Manager package was installed, open a web browser and navigate to:

http://localhost:5000

For systems without a desktop environment, a browser can be opened on another computer with access to the User Network using the IP address of the installation computer instead of localhost.

This will present the user with the main configuration page for CUWB Configurations. The CUWB Manager Web Interface is where users create one or more CUWB Configurations. Each CUWB Configuration defines the parameters used by an associated CUWBNet instance. The distinction helps organize settings for different networks and simplifies setup.

The configuration page is also available on port 5000 of each network interface. See Interface Example for viewing available Host PC interfaces.

Creating CUWB Configurations

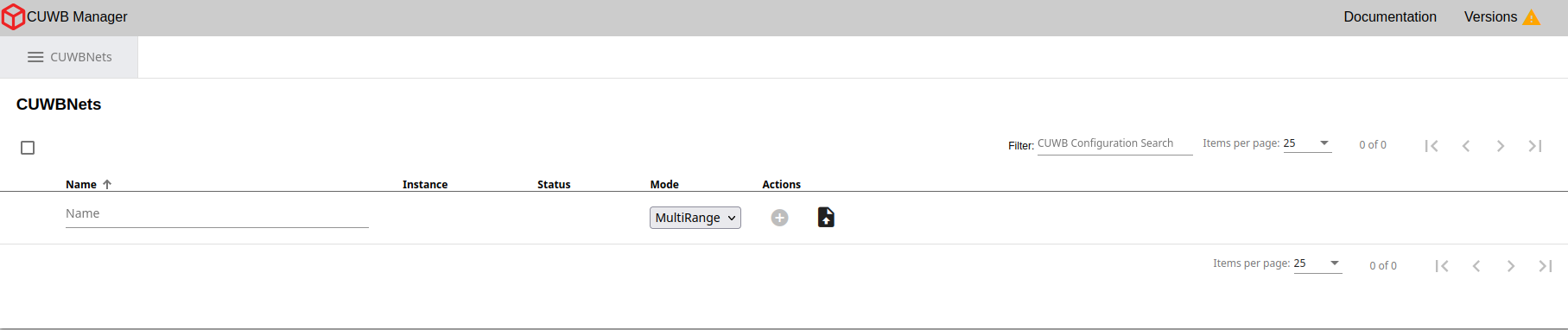

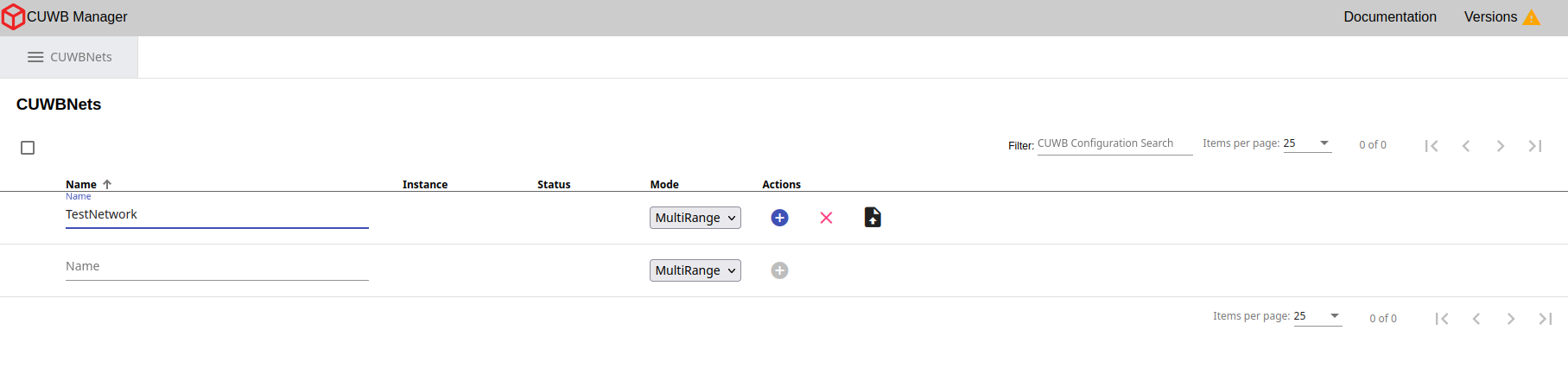

Once in the CUWB Manager, open the CUWBNets tab. This section is where all configurations are created and managed.

To create a CUWB Configuration:

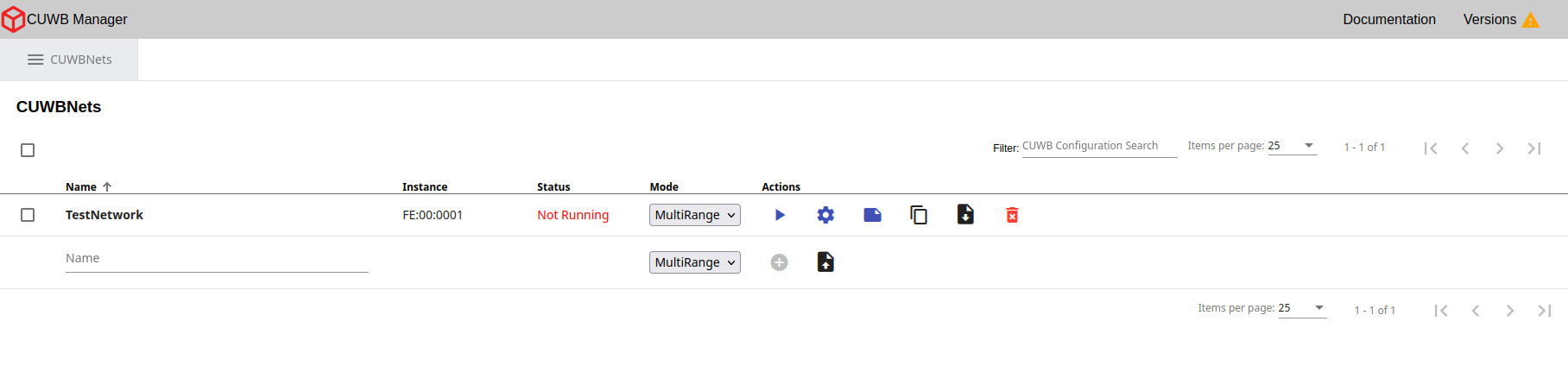

  1. Enter a name for the CUWB Configuration (e.g., TestNetwork)
  2. Click the “+” icon under the Actions column.

    The name of the CUWBNet cannot contain spaces or special characters, and is limited to a length of 100 characters.

  3. After creating the configuration, select the gear icon under Actions. This opens the Configuration -> Device tab.

Adding Anchors

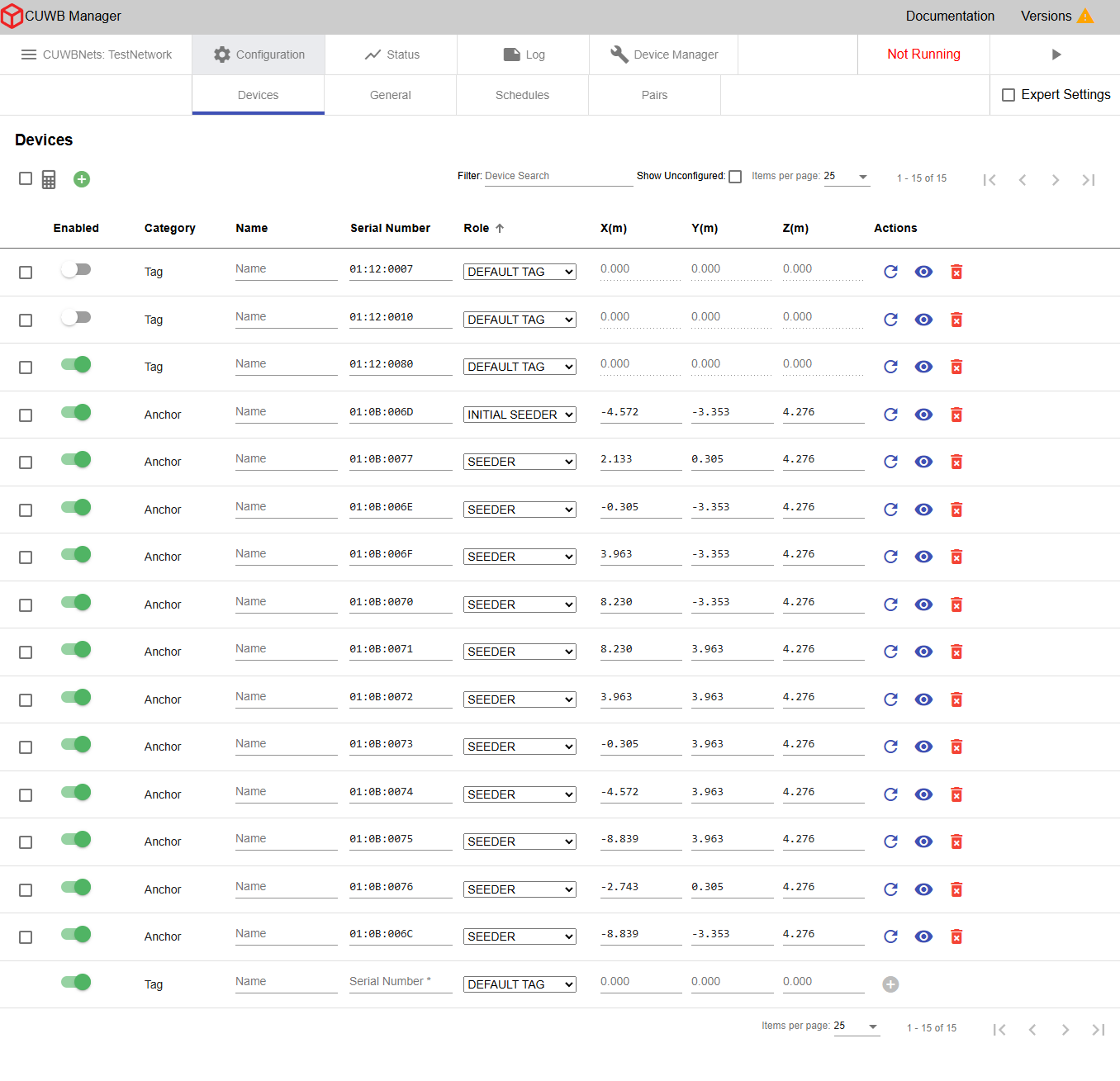

If Anchors are powered on and operational, the serial numbers will automatically populate in the Configuration -> Devices tab.

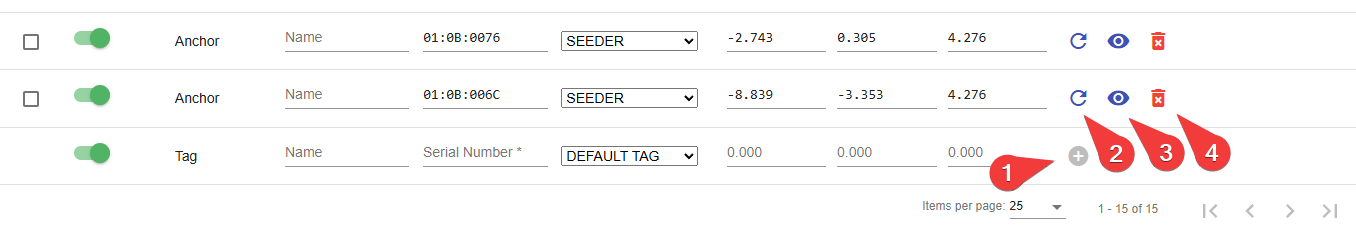

To add an Anchor:

  1. Click the Anchor icon under Actions.

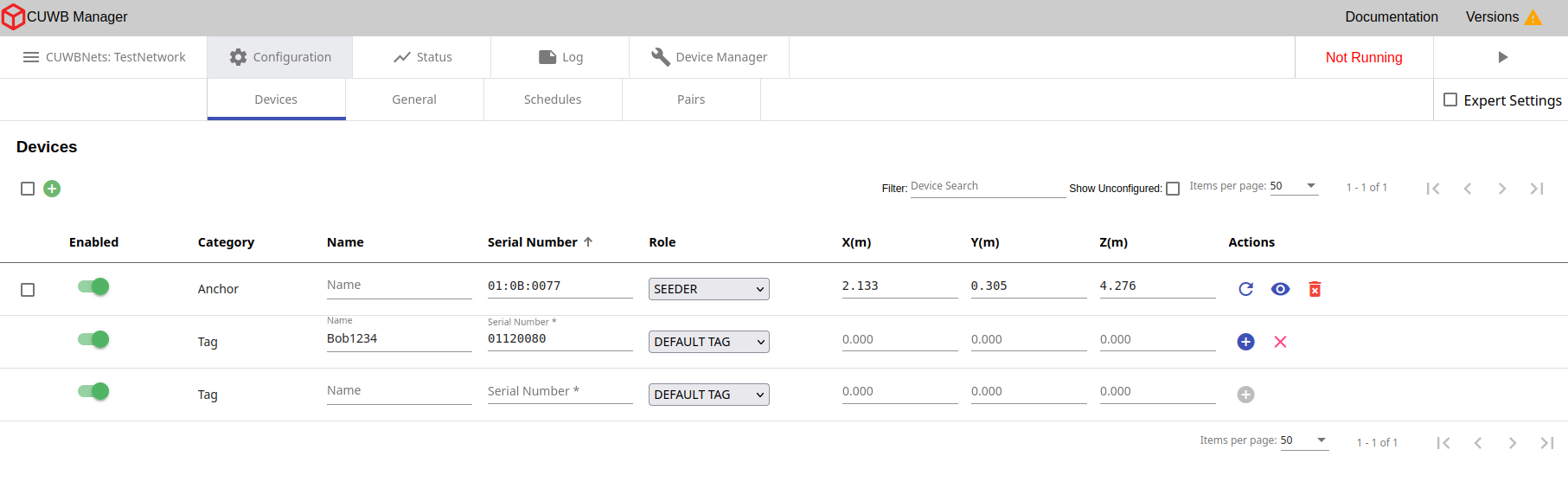

  2. Enter an optional name, select a role, and provide X, Y, and Z coordinates.

    Anchors can be set to Quiet Anchor, Seeder, or Initial Seeder as roles. Most configurations will use the Seeder role for the majority of Anchors. If using MultiTime, one of the Anchors should be designated as the Initial Seeder. See Anchor Roles for details on each role.

  3. Click the “+” icon to add the Anchor to the configuration.
  4. Repeat for each Anchor in the configuration.

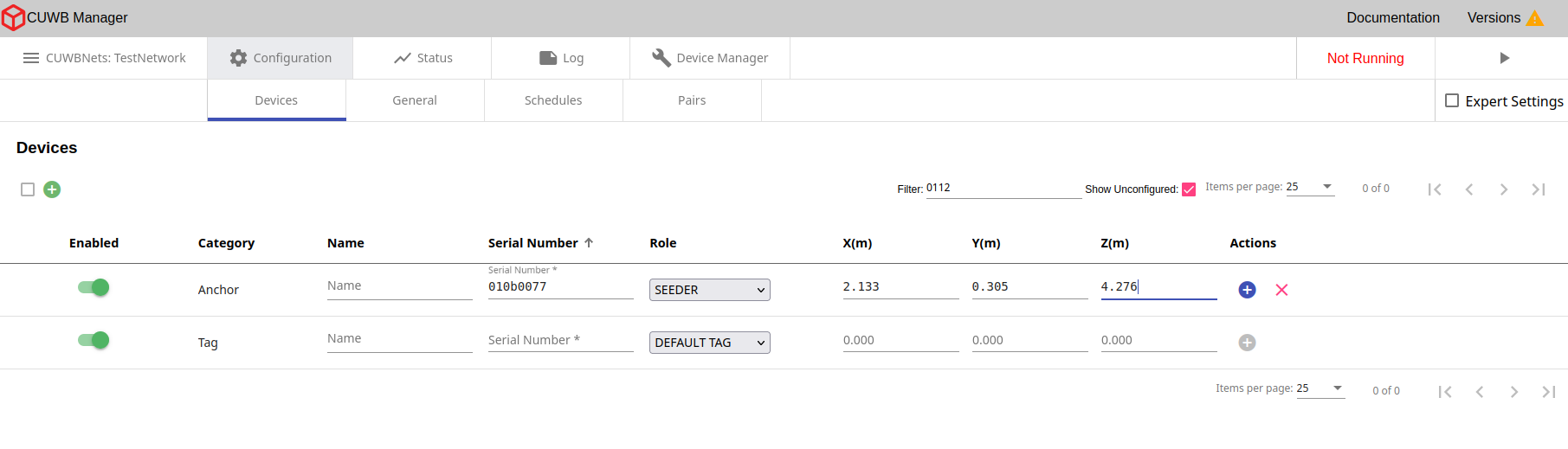

If the Anchors are powered off or did not auto-populate, they can be added manually by entering the same information (serial number, optional name, role, XYZ coordinates) in the fields at the bottom of the page.

X, Y, and Z coordinates must be entered in meters. This is the survey data for anchor locations from the hardware installation.

Adding Tags

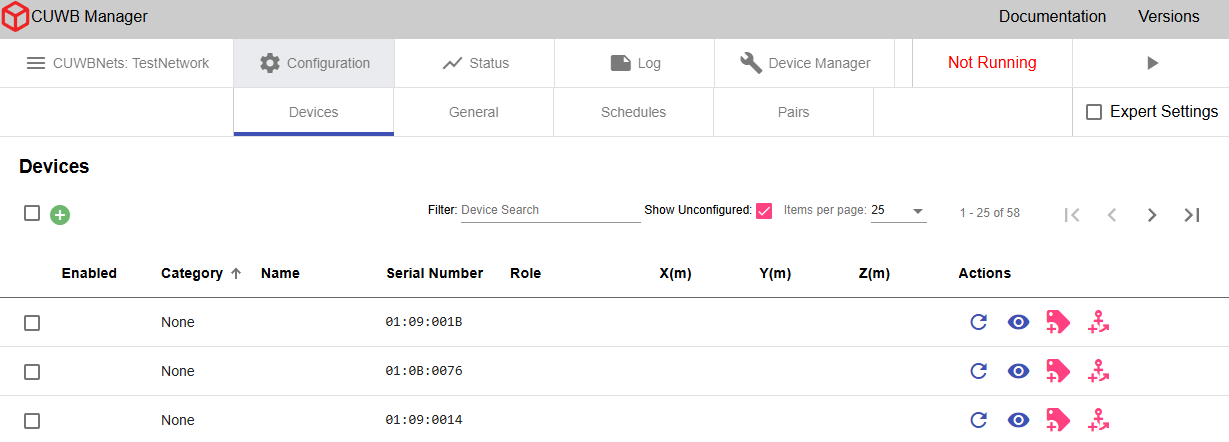

To add a Tag:

  1. Enter its Serial Number
  2. Select the Role from the dropdown menu (use DEFAULT TAG if unknown)
  3. Enter an optional name

The X, Y, and Z fields are available, but are not used by the system while the device is configured as a Tag.

Roles are beacon rate definitions that can be assigned to Tags. Tags support only one Role at a time, but Roles are configurable dynamically. Optional settings, like LED Brightness, can also be configured per Role. Additional information on Roles is available under Tag Roles.

Custom Roles can be added to the CUWB Configuration prior to adding Tags. Custom Tag Roles will appear in the Role assignment dropdown. See Adding a new Tag Role section.

In MultiRange, Anchors and Tags can be added to a CUWB Configuration at any point, even while the CUWBNet is active. In MultiTime, Tags can be added to a CUWB Configuration at any point, even while the CUWBNet is active. Anchors can be disabled while the CUWBNet is running. The CUWBNet must be stopped in order to add or re-enable Anchors.

Any edits to a device entry will need to be saved using the save icon for the entry row. The save icon will appear when an edit has been made.

Configuring Network Settings

The Network Interface Card (NIC) connected to the Anchor Array must be configured for link-local connections. See Networking Guide for instructions on configuring NIC(s) if they are not configured.

After Anchors and Tags are added to the configuration, navigate to the General tab to adjust the network settings. Under Ethernet settings, three data streams are populated by default:

  • The Configuration Stream is used for discovery, device, and system configuration, and cannot be modified.
  • The Anchor Stream is the data stream used to communicate between the CUWB Engine and the Anchor Array.
  • The User Stream is the data stream that is output from the CUWB Engine for users to consume (i.e., position data).

Each stream consists of three components:

  • IP - The destination address for the stream
  • Port - The destination UDP port for the stream

And one of the following:

  • Interface - The source/destination for the config data stream
  • Listening Interface - The source of the Anchor data stream
  • Sending Interface - The interface for emitting the user data stream

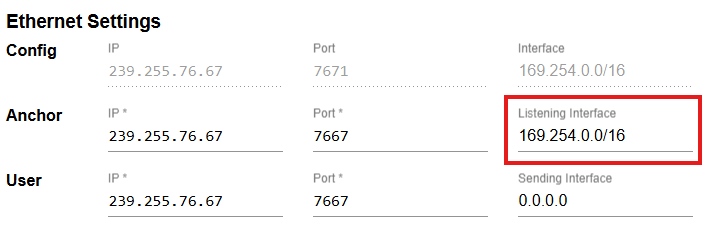

The Anchor Stream Interface, highlighted in the red box, matches theinet address of the link-local NIC.

Interface Example

To view all network interfaces for the Host PC, type ifconfig in a terminal. In addition to the lo (or Local Loopback) interface, other interfaces typically begin with enp (wired Ethernet) or wlp (Wi-Fi). The IP address appears on the second line after inet.

Example:

enp3s0  Link encap:Ethernet  HWaddr b8:60:01:c3:9e:20
inet addr:192.168.100.2  Bcast:192.168.100.255  Mask:255.255.255.0

This output would indicate any device on the same network segment could access the CUWB Manager by browsing to http://192.168.100.2:5000.

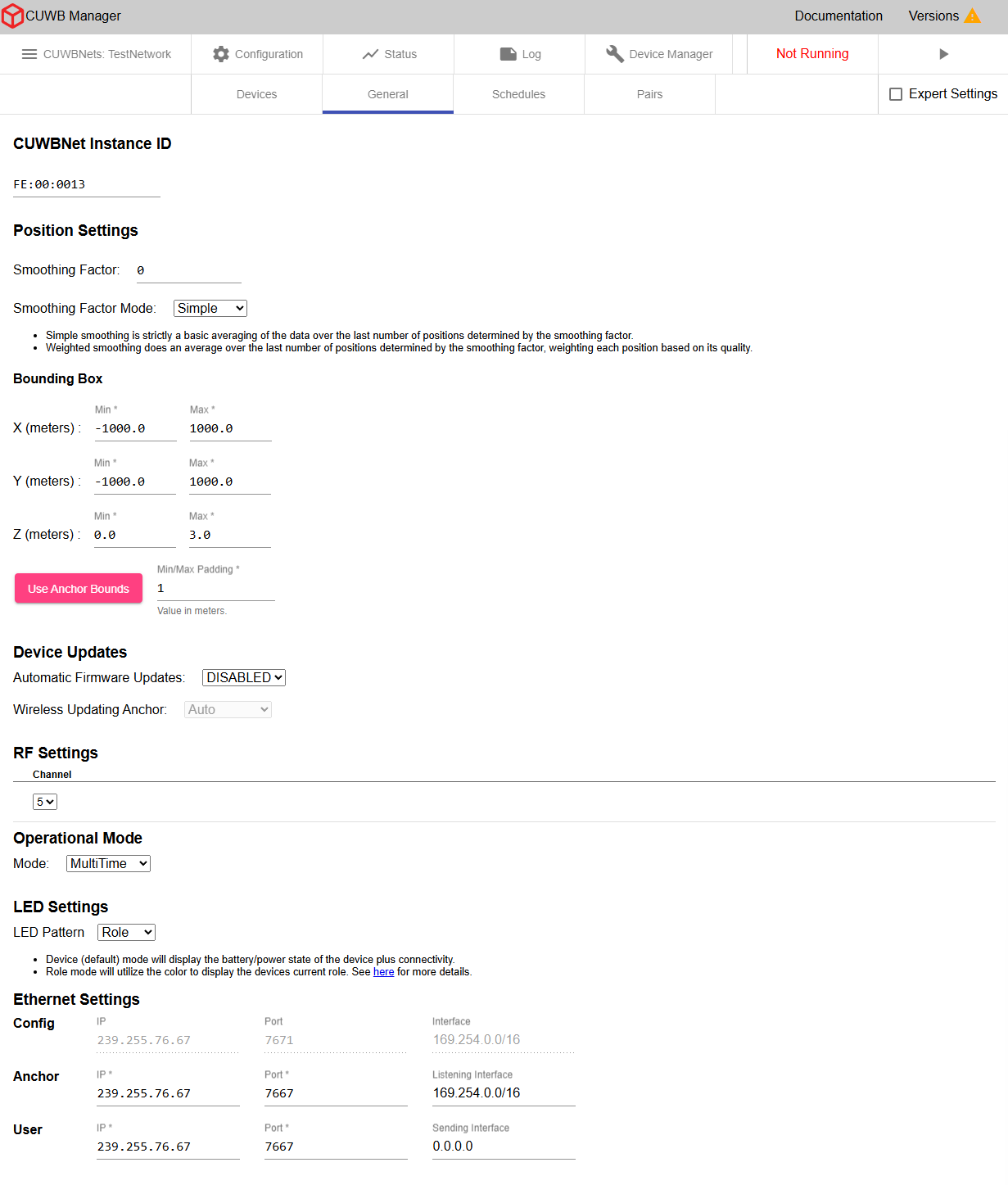

Common General Settings

Other commonly modified general settings are also available in this tab. See the CUWB Manager Web Interface for all available options. These settings may not need to be adjusted for each RTLS deployment.

Setting Description
Operational Mode The operational mode sets which algorithm determines the Tag’s position. The default operational mode is MultiRange.
Bounding Box The bounding box sets the maximum bounds of the tracking area. When more than one Anchor is present, click Use Anchor Bounds to automatically set the system’s bounding box just beyond the plane formed by the Anchors. Alternatively, enter minimum and maximum X, Y, and Z limits (in meters) to define the tracking area.

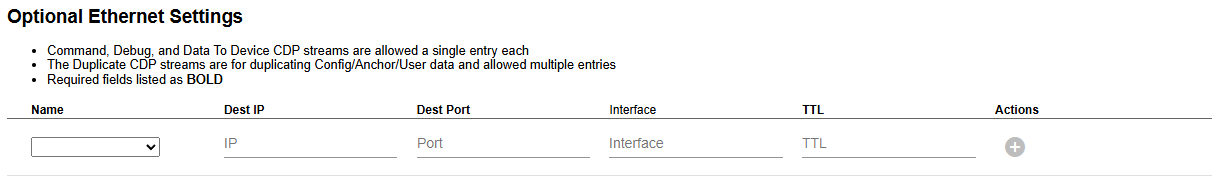

Ethernet Settings The Ethernet settings define and configure the IP addresses and ports used by the system.
RF Settings The RF settings determine which Radio Frequency the RTLS system uses. The default selection is Channel 5 PRF64 Preamble Code 11.
Device Updates This setting will enable or disable automatic firmware updates. Ciholas recommends disabling updates to prevent unintended updates.
Smoothing Factor The Smoothing Factor allows users to globally apply smoothing to the RTLS position output to reduce jitter. The CUWB Configuration uses a simple smoothing algorithm by default.

Common Schedule Settings

After general settings are adjusted, navigate to the Configuration -> Schedules tab. The CUWB Manager generates an air-time schedule for every Tag and Seeder listed in the CUWB Configuration. This gives devices a known time slot in which they can perform different RF actions according to the UWB operational mode. For a more detailed analysis of the underlying schedule for the operational modes, see Timing and Schedule.

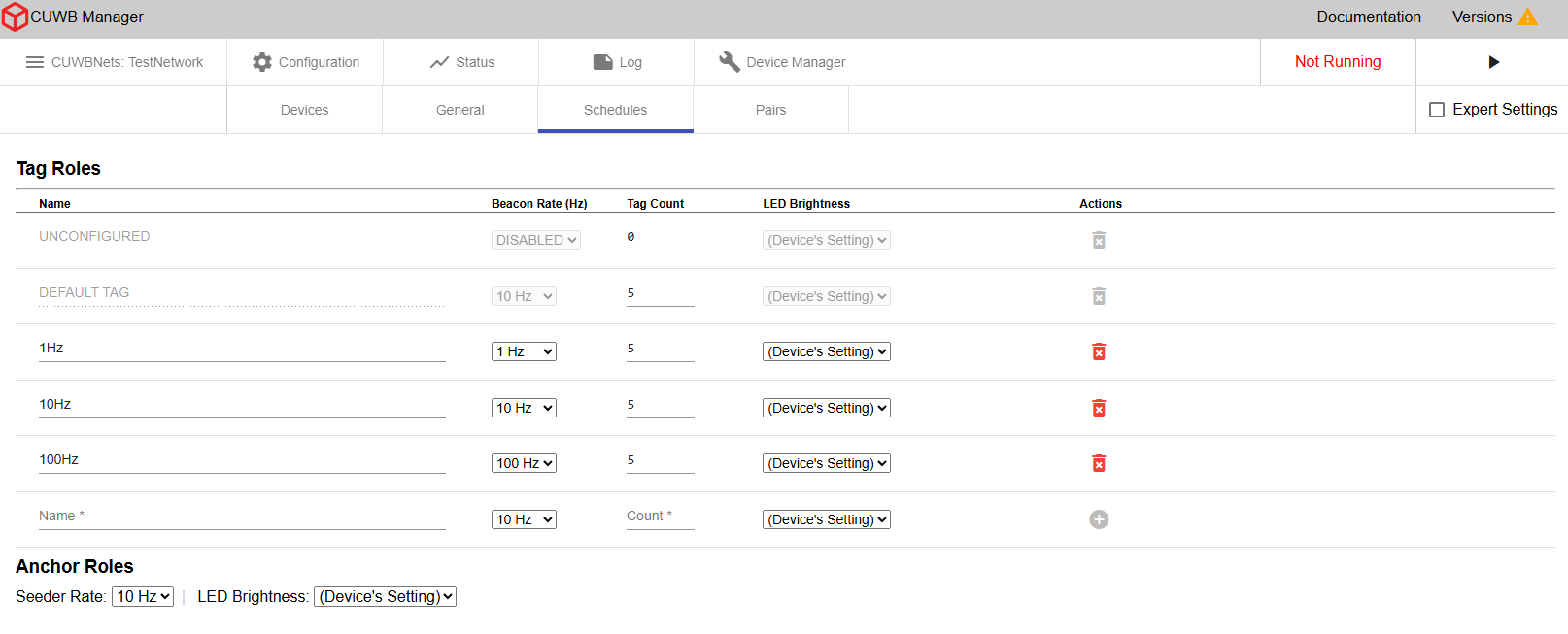

  • Tag Roles - Users can define and name custom Tag Roles, each defined by its beacon rate. The beacon rate sets how frequently the time slot is in the schedule.
  • Seeder Rate - The Seeder rate cannot be adjusted in MultiRange Mode. In MultiTime Mode, the Seeder rate can be adjusted via the dropdown menu. Ciholas generally recommends using a 10Hz rate for most applications.

Preconfigured Tag Roles

Two Tag Roles are preconfigured for every CUWB Configuration: Unconfigured and Default. These preconfigured Roles can only have their counts modified.

  • Unconfigured - Tag Role assigned to devices that are not configured to participate in the CUWBNet but may still appear nearby.
  • Default - Tag Role used by Tags unless another role is selected.

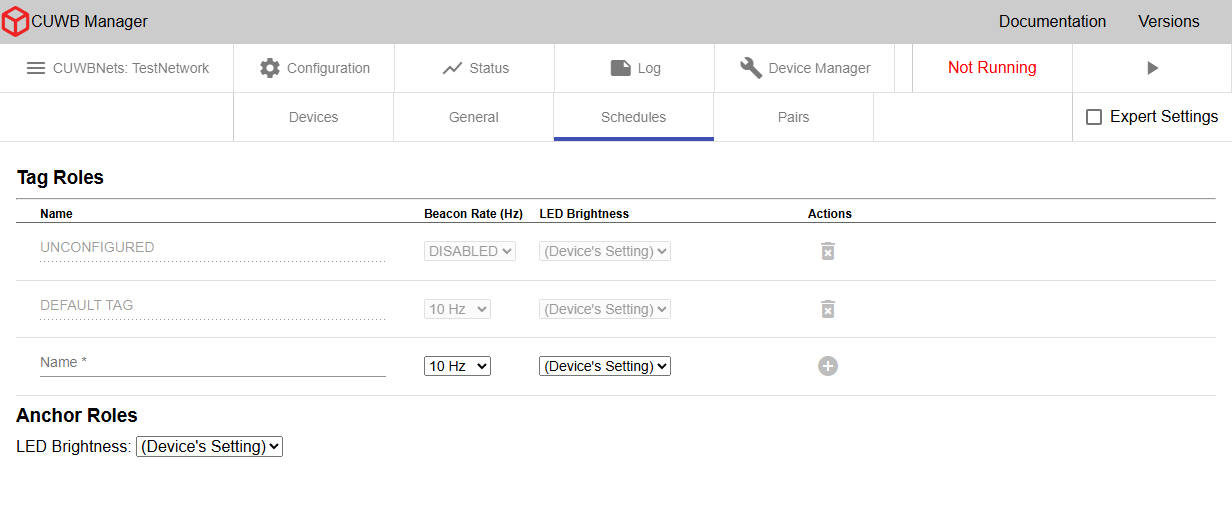

Adding a New Tag Role:

To add a new role:

  1. Enter a name for the role.
  2. Select the beacon rate from the dropdown menu.
  3. Enter the maximum number of Tags expected to use this role if using MultiTime.
  4. Optionally enable or disable LEDs.
  5. Click the “+” icon to add the Role.

When using a custom role for Tags, be sure to assign each Tag to that Role in Configuration -> Devices tab.

Adjusting LEDs for Anchors or Tags

Under LED Brightness, devices can be set to different LED modes: On, Off, and Device’s Settings. Device’s Settings will have devices follow their firmware programmed LED behaviors. These are outlined in each device datasheet.

Turning off LEDs may lead to confusion if a device is functioning. It is recommended to leave LEDs in either Device’s Settings or On during system setup.

Running the CUWBNet

After entering devices and customizing settings for the application, start the CUWB Configuration by clicking the Play button:

  • In the upper right-hand corner in most tab views
  • On the CUWBNets page

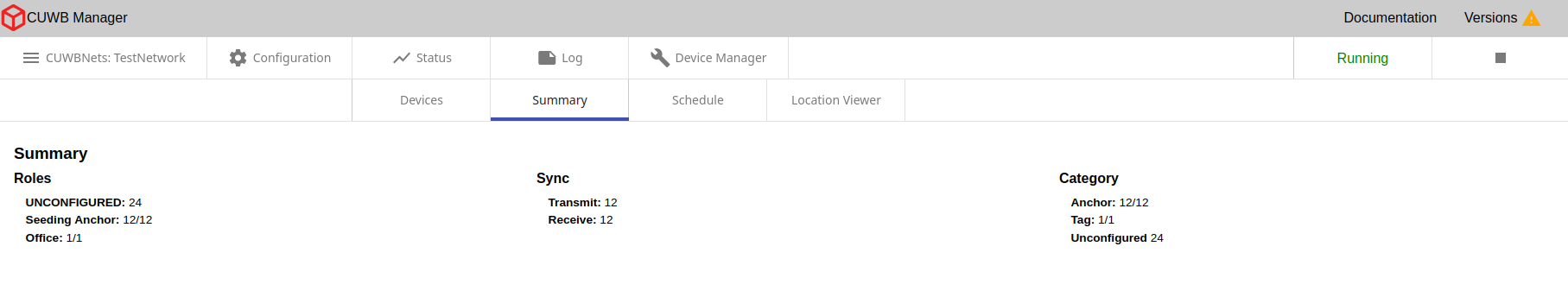

  • On the Status tab

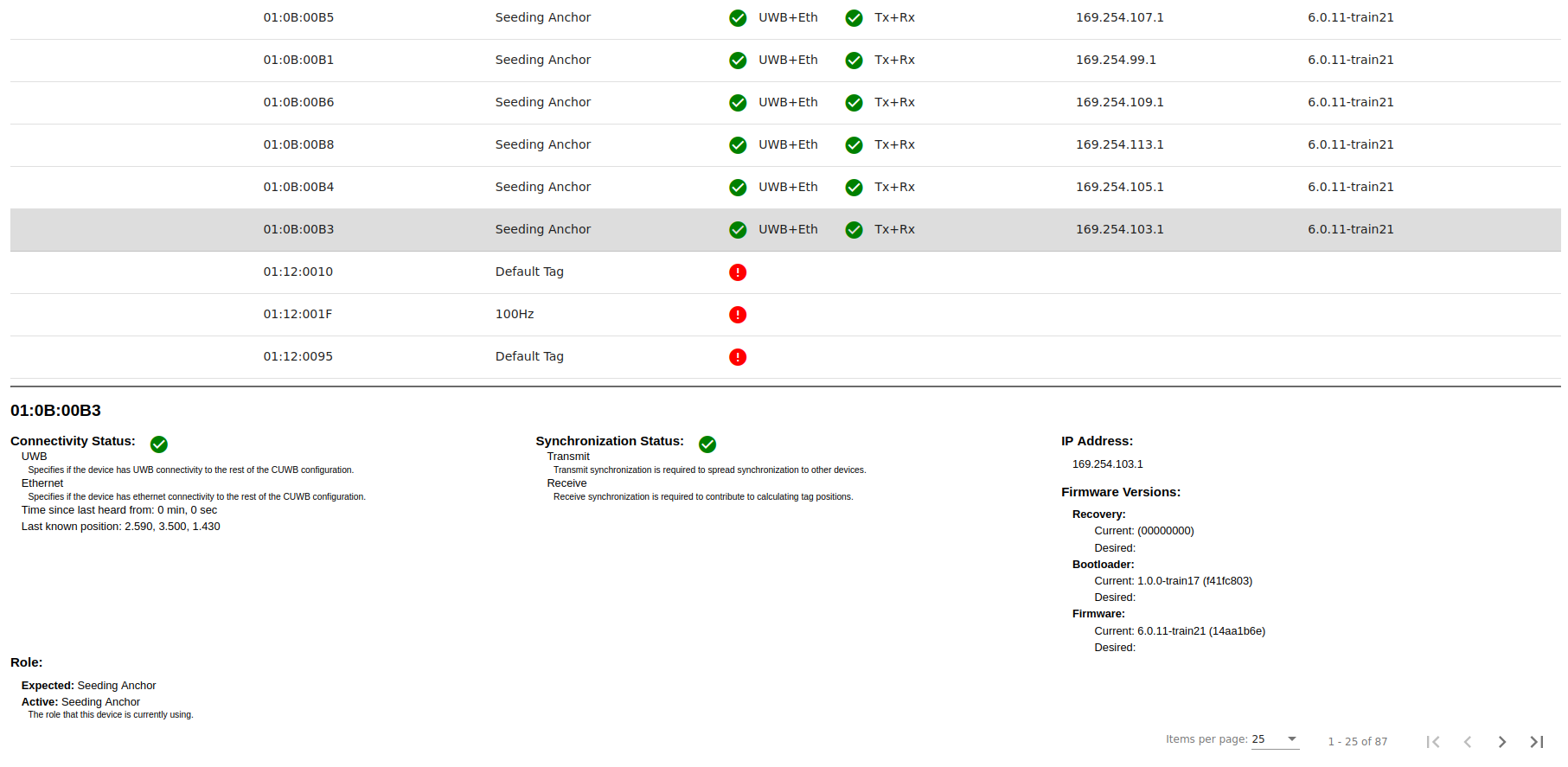

When the CUWBNet starts, Anchors will start their synchronization process (if using MultiTime) and start to build out the CUWBNet through UWB communications. If using MultiRange, devices will begin to range to each other. On the Status -> Devices tab, device connectivity and synchronization status is displayed.

The status uses red exclamation points for errors, yellow triangles for warnings, and green checks for good status. For additional details, see Status Indicators.

MultiRange will not display the synchronization status; and connectivity indication is limited to Ethernet only.

If Tags were not powered during setup, they may need to be awakened prior to use. Shaking a device before use speeds up the join process; otherwise, Tags may take up to 640 seconds to join the CUWBNet.

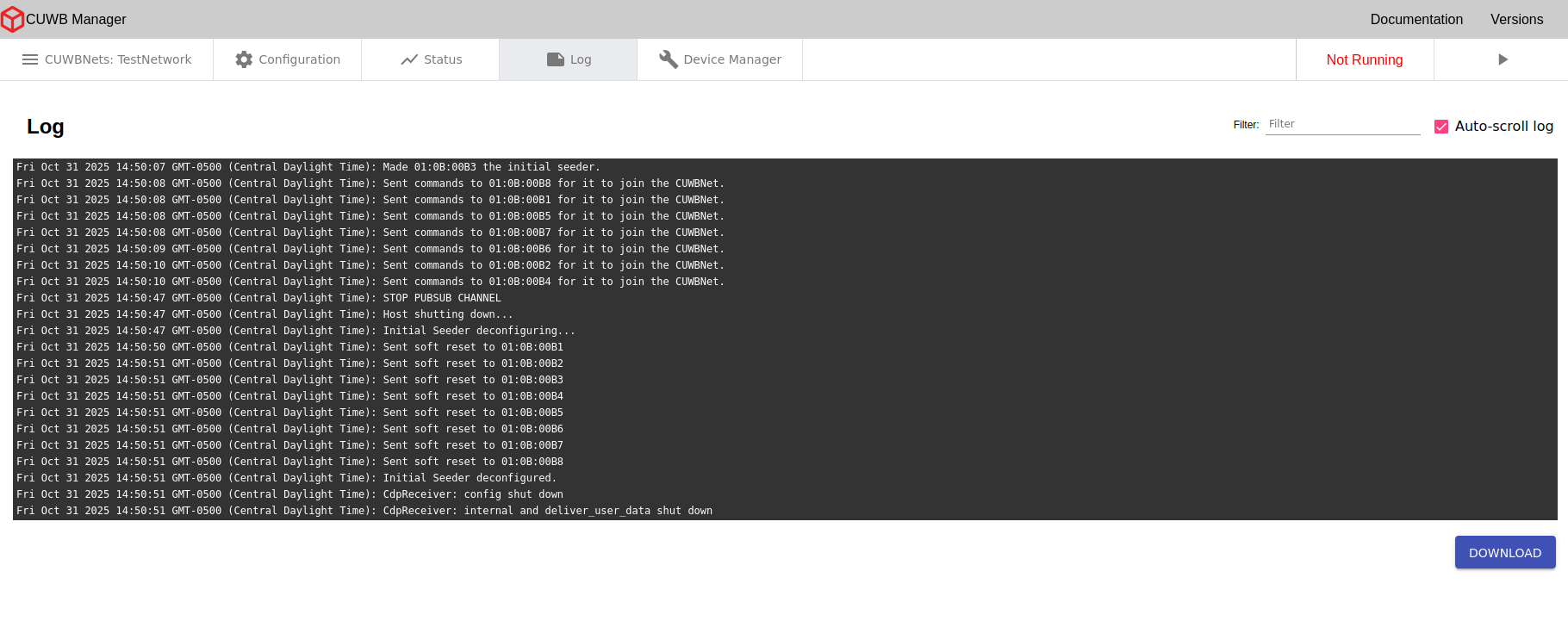

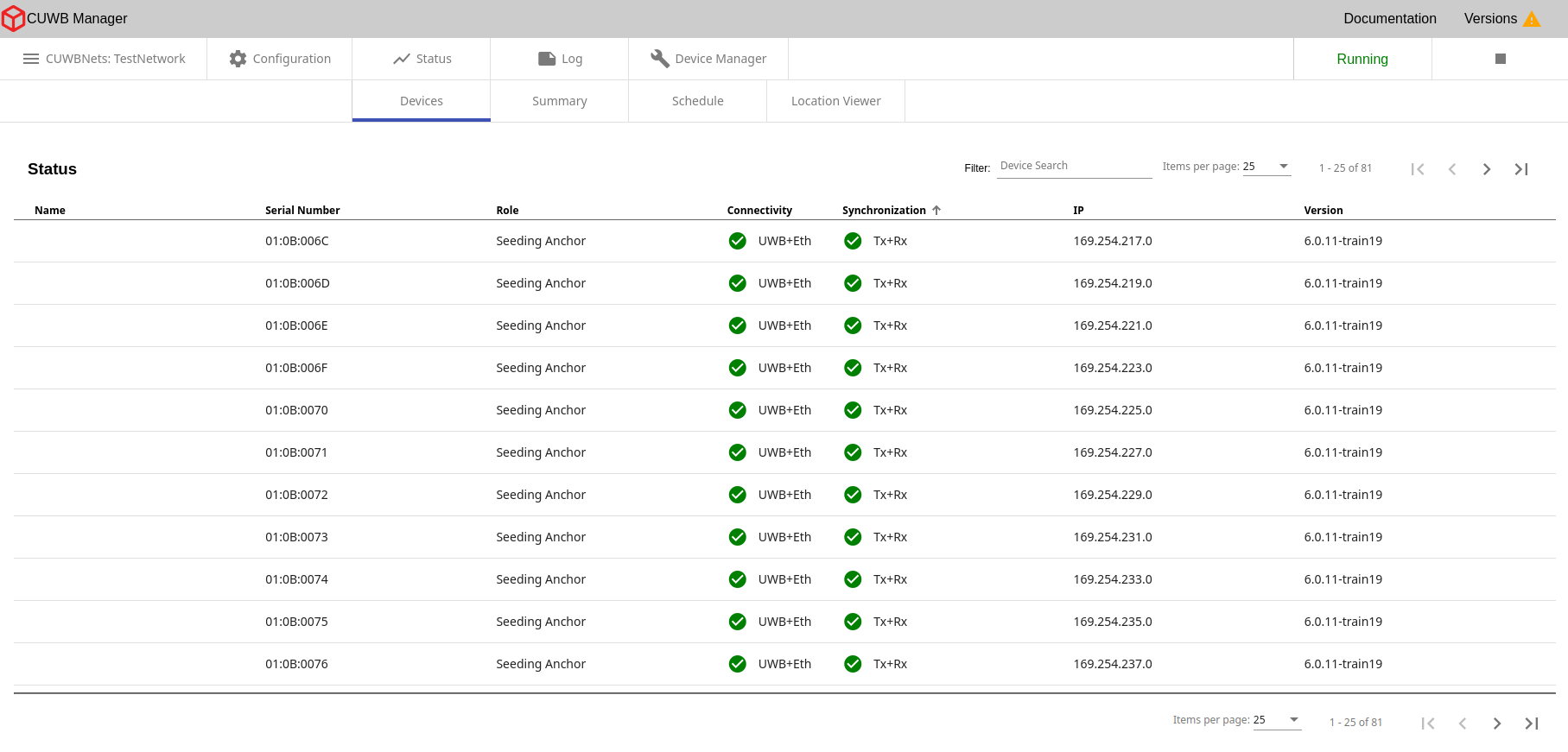

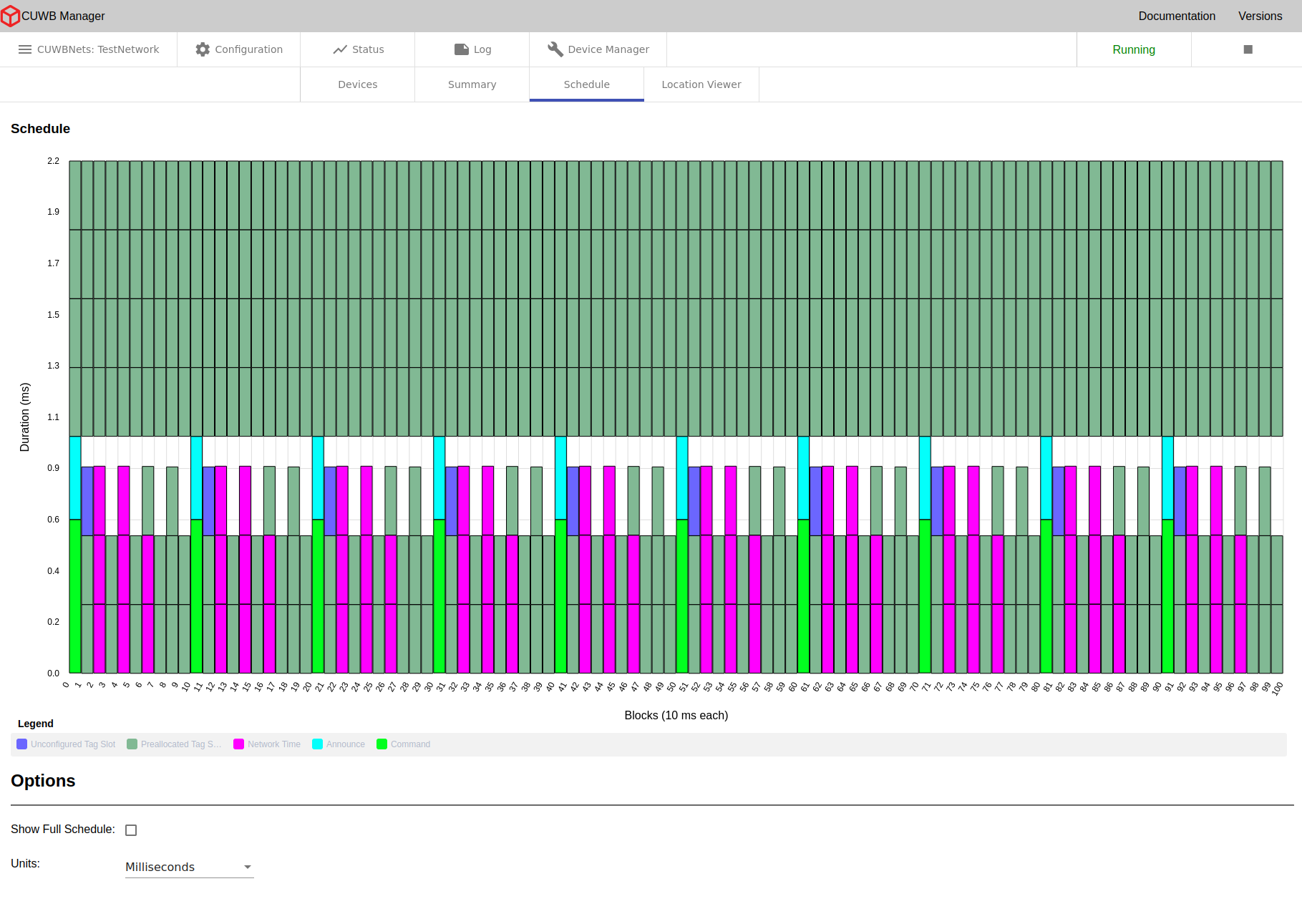

Additional diagnostics and system status information is available in the Log tab. For more information on common Log messages, see Common Log Messages.

Next Steps

Once the CUWBNet is active and devices are online, users can start tracking objects of interest. The CUWB Manager also provides advanced tools to customize and optimize tracking performance. See the CUWB Manager Reference Manual for advanced features of the CUWB Manager and CUWB Devices.

Additional CUWB RTLS tools:

Web Interface Walkthrough

The CUWB Manager Web Interface is the GUI through which users can set up one or more CUWB Configurations. Each CUWB Configuration controls the various settings that need to be used by an associated CUWBNet instance. This section describes the different tabs and configuration options within the CUWB Manager Web Interface in detail.

The terms “CUWB Configuration” and “CUWBNet Instance” are closely related. A CUWB Configuration is the set of parameters for a particular CUWBNet, while a CUWBNet Instance refers to the active, running system.

General Controls

CUWBNet Control

In the upper right-hand corner of most tabs, the stop / play button allows control of the CUWBNet. There are three modes for a CUWBNet: Running, Shutting down, and Stopped.

  • Running - The CUWBNet is enabled and active. The CUWBNet is running with the settings provided by the associated CUWB Configuration. Certain settings cannot be adjusted in this state.
  • Shutting down - The CUWBNet is shutting down its processes. This may take a few seconds. Settings that are unable to be set while the CUWBNet is running are not allowed to be adjusted while the CUWBNet is shutting down.
  • Stopped - The CUWBNet is not running. All settings in the associated CUWB Configuration can be adjusted.

Shutting Down a CUWBNet involves ensuring all active devices within the CUWBNet return to a nominal state. The process of sending wireless UWB commands to all devices directing them to leave the CUWBNet can take several seconds.

Basic and Expert Settings View

The Configuration tabs can be set to basic and expert views. The basic mode provides a reduced set of common features that cover the majority of users. Expert mode can be enabled via the expert mode checkbox.

Basic view is recommended unless more complex settings are needed.

List Control

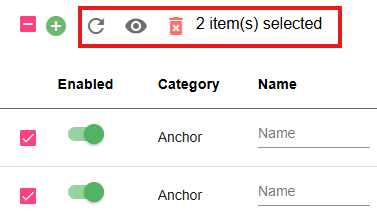

The CUWB Manager displays CUWBNets and devices in list format, supporting the following controls:

  • Filter & Search - Narrow displayed items by name or parameter.
  • Sorting - Click column headers to sort in ascending or descending order.
  • Items per Page - Item display counts can be selected from the drop down menu.
  • Page Control - Includes: Fast forward to beginning of list, Previous Page, Next Page, and Fast forward to end of list

Along the top of the Web Interface are links to the CUWB.IO Documentation site and a Version Page which displays the currently available versions of the CUWB Software Package from the PPA.

The PPA version table may be invalid if the Host PC is not connected to the external internet.

CUWB Configuration

The landing page of the CUWB Manager Web Interface is a listing of all available CUWB Configurations.

Name

This is the name of a particular CUWB Configuration and the name of the associated CUWBNet instance. Spaces and other special characters are not allowed in the name field. The field is restricted to 100 characters.

Valid Naming Examples: “Warehouse_Test” or “Floor_2_Building_5”

Invalid Naming Examples: “Warehouse Test” or “Floor 2 Building 5”

Instance ID

The instance ID is a unique identifier starting with FE:xx:xxxx, that represents a CUWB Configuration and CUWBNet instance.

When using more than one CUWBNet, the instance ID can be used to filter CDP packets.

See CUWBNet Instance ID for setting a custom ID.

Status

This column indicates the CUWBNet status: stopped, shutting down, or running. See CUWBNet Control for additional detail.

Mode

Indicates the mode, MultiTime™ or MultiRange™, for the given CUWB Configuration. The dropdown selector in this column can be used to change the mode for the CUWB Configuration.

Actions

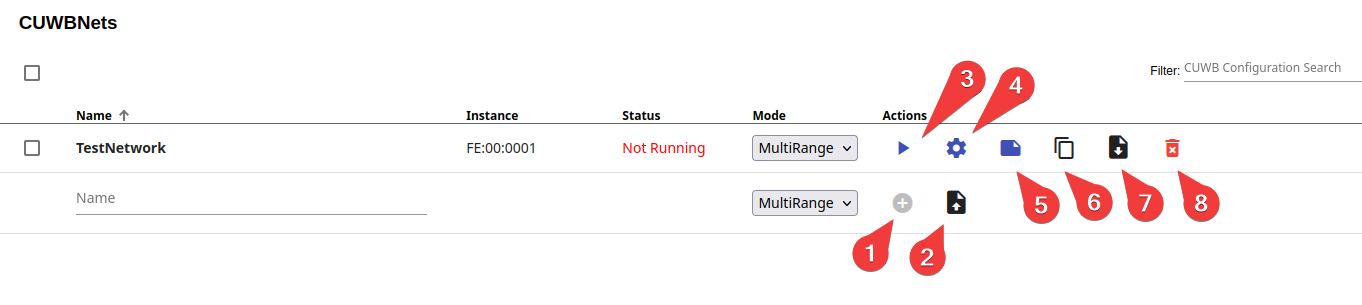

The Actions column provides controls for each individual CUWBNet. Available actions are as follows:

When first adding a new CUWB Configuration:

  1. Plus Icon - Add a new CUWB Configuration
  2. Upload Icon - Upload a CUWB Configuration file to a new CUWB Configuration instance

After a CUWB Configuration is Added:

  1. Play / Stop Button - Start or stop the CUWBNet
  2. Gear Icon - Shortcut to Device Configuration tab
  3. Page Icon - Shortcut to the Summary tab
  4. Copy Icon - Duplicate the CUWB Configuration to a new CUWB Configuration
  5. Download Icon - Download a copy of the CUWB Configuration
  6. Trashcan Icon - Delete the CUWB Configuration

Group Actions

Group actions, such as play/stop and delete, can be performed on multiple selected CUWBNets using the checkboxes. The group actions and a number of items selected will appear at the top of the list.

Configuration - Devices

The Configuration -> Devices tab provides the interface for adding devices to the CUWB configuration. Here, users can input device serial numbers and configure necessary parameters needed by the system for each device.

Enabled

Toggle devices on or off in the configuration.

In MultiRange mode, Anchors and Tags can be enabled within the CUWB Configuration, regardless of whether the CUWBNet is running. In MultiTime mode, Tags can be enabled at any time; however Anchors can only be enabled when the CUWBNet is stopped. All devices can be disabled while the CUWBNet is running.

Category and Role

Devices can be configured as either an Anchor or a Tag. Anchors are static devices placed in a region of interest that act as reference points. Tags are mobile devices that are trackable in the region of interest.

When entering a new device, the device type is determined based on the device’s role. A role of Seeder, Initial Seeder, or Quiet Anchor will result in the device being recognized as an Anchor. When configuring an Anchor, the following pieces of information are required: serial number, role, and survey location. All fields must be provided by the user before the Anchor can be added to the CUWB Configuration. See Anchors for an in-depth view of the different Anchor roles.

The Initial Seeder role is only available when using MultiTime operational mode.

A role other than the ones mentioned above will result in the device being a Tag in the configuration. When configuring a Tag, the only pieces of information that are required are the serial number and role. If using Default Tag, a Tag uses a role which beacons at 10Hz.

To set a custom Tag Role, see Tag Roles.

Serial Number and Name

The serial number is the 8 digit number listed on the device, e.g., 01:12:0068, 01:23:4567.

The name is a customizable name for a particular device. The custom names configured here can be seen in the CUWB Viewer, accessed by API request, or from CDP data item 0x013f.

Wildcards for Tags

A Wildcard is a special character used in the serial number field to match an unknown digit in the serial number. Wildcards can be used to assign roles to groups of devices. A capital X can replace any character in the Tag serial number. It will wildcard that particular number.

Anchors cannot use wildcards.

Wildcards are prioritized to the most specific wildcard. Using the exact serial number is prioritized over any wildcards that the device would match.

01:12:0123 would match the 01:12:XXXX wildcard instead of 01:XX:XXXX, if both wildcards are present in the device list.

Wildcards will cause the Status -> Devices tab to display a yellow exclamation mark in the role column instead of the role name. This is due to devices potentially having different roles configured.

X, Y, and Z

These columns provide the survey location for Anchors. The survey must be entered in meters and can be specified up to three decimal places. The system supports using a period, or full stop, as the standard decimal separator.

Commas are not supported in entering X, Y, and Z location data.

Although the X, Y, and Z fields can be entered for a Tag, these values are not used by the system while the device is configured as a Tag.

Actions

When first adding a new Device:

  1. Plus Icon - Add a new device to the CUWB configuration after device information is provided

After adding a Device:

  1. Reset Icon - Open a menu to send a hard or soft reset command to a device on a running CUWBNet instance. A soft reset will reset the device’s network state without rebooting. A hard reset will reboot the device.
  2. Brightness Icon - Trigger LED identification sequence: solid, flashing, or serial number flash.
  3. Trash Icon - Delete a device from the configuration

While editing a Device entry:

  • Undo Button - Undo the last edit
  • Save Icon - Save the edit(s)

Expert Mode enables the following:

  • Gear Icon - Add a device setting key to a specific device. See Appendix A for additional details on available settings.

Group Actions

The Reset, Brightness, and trash actions can be used as a group action if more than one device is selected by checkbox. These controls appear at the top of the device list, highlighted in the red box. A count of devices selected will also be present. The Plus and Gear actions are not available as group actions.



LED Identification

The CUWB Manager has the ability to modify device colors via the Brightness Icon. This feature is useful for identifying devices, particularly Anchors when surveying. Available options are solid color, flashing color, or serial number flash.

Solid Color

The following options are available to set devices to a solid color:

Color Options Duration Options
Red, Green, Blue, Magenta, Yellow, or White 30 seconds, 5 minutes, or 30 minutes

Flashing Color

The LEDs for devices can be set to a flashing pattern of 750 ms ON and 750 ms OFF. This is to help differentiate the pattern from other standard LED behaviors. See LED Pattern Section for the typical Role led patterns.

The following options are available to set devices to a flashing color:

Color Options Duration Options
Red, Green, Blue, Magenta, Yellow, or White 30 seconds, 5 minutes, or 30 minutes

Serial Number Flash

Serial number flash is a pattern of colors that encode the device’s serial number. This can be used to clarify Anchor serial numbers during installation.

The serial number of the device is 4 bytes long and color coded via 8 nibbles. There is a short delay between 2 nibbles and a long delay between the full 4 bytes of serial number.

Color Cheat Sheet
Nibble Colors Bit Value Hex Value
Red Red 0000 0
Red Green 0001 1
Red Blue 0010 2
Red White 0011 3
Green Red 0100 4
Green Green 0101 5
Green Blue 0110 6
Green White 0111 7
Blue Red 1000 8
Blue Green 1001 9
Blue Blue 1010 A
Blue White 1011 B
White Red 1100 C
White Green 1101 D
White Blue 1110 E
White White 1111 F

Additional Tab Actions and Icons

Calculator Icon

When using MultiTime mode, the calculator icon pop-ups a calculator which can be used to determine the maximum number of Tags based on a supported Tag Role in the CUWBNet or CUWB Configuration.

Plus Icon

The Plus Icon will highlight and jump to the new device entry line. This can be useful when adding large quantities of devices.

Show Unconfigured

Display serial numbers of available devices that are not currently configured in the CUWBNet.

Configuration - General

CUWBNet Instance ID

The Instance ID will auto-populate with a unique ID in the Ciholas Serial number format, e.g., FE:XX:XXXX. This ID is configurable, but must start with “FE”. The Instance ID appears in CDP output data and can be used to filter data by CUWBNet instance.

No CUWBNet can have the same instance ID as another CUWBNet within the same LAN.

Position Settings

Position settings control the globally applied smoothing mode and smoothing factor.

  • Simple - is a moving average of the position data over the last number of positions as determined by the smoothing factor.
  • Weighted - is an average of the last number of positions determined by the smoothing factor, weighing each position based on its quality.

Bounding Box

The bounding box values globally limit the area the location algorithm uses for calculating the position of Tag beacons. The algorithm will not allow Tags to travel beyond the configured values. These values should be configured to reasonably cover the area of interest for the Tags.

Anchors installed in a planar geometry, i.e., mounted to the ceiling, present an issue to the location engine. Such geometries can result in Tags ‘sticking’ to the plane of the Anchors. The bounding box should not include the plane of the Anchors in these cases. Alternatively, users can install Anchors with diversity in all dimensions preventing Tags from sticking to planar geometries.

When more than one Anchor is configured with X, Y, and Z survey position, the “Use Anchor Bounds” option can be used to set the bounding box to just beyond the X, Y, and Z limits of the Anchor positions. An optional minimum/maximum padding can also be added.

Troubleshooting details can be found under Planar Anchors.

Device Updates

Automatic firmware updates can be enabled or disabled. When enabled, wired devices configured as Tags or Anchors will get updated over their wired connection. For wireless devices, users can use the default setting of Auto or if using MultiTime, select an individual Anchor to be the Wireless Updating Anchor. Wireless devices configured as Tags will be updated over the air when within range of the Wireless Updating Anchor. Auto allows the CUWB Engine to select the best Anchor for wireless updates instead of using a predefined Anchor.

If an Anchor happens to be using a Tag role, the Anchor will still update over the wire and not wirelessly.

See Tag Bootloading and Anchor Bootloading for additional details and instructions.

RF Settings

Drop downs provide configurable RF settings.

Devices are region locked. Observe all local and regional regulatory restrictions for use.

The following combinations are generally available; note that not all settings are available in all regions:

Channel PRF Description
5 64 Default channel for use in FCC, CE, ISED regions
9 64 Default channel for use in the MIC region; also available for use in FCC, CE, and ISED regions

Always verify regulatory region requirements and restrictions prior to use.

The Tags can only join CUWBNets that are configured to use the same RF Settings. Tags do not support all channel combinations by default. Some RF settings combinations can only be enabled on Tags by using Persistent Properties via the Device Manager.

Additional details on RF parameters, such as center frequency and bandwidth are provided in the respective device datasheets.

RF Settings in Expert Mode

Expert mode enables a user to configure the PRF and Preamble Code:

Channel PRF Preamble Code Description
5 16 3 or 4 Alternative channel for use in FCC, CE, ISED regions
5 64 9, 10 , 11 or 12 Default channel for use in FCC, CE, ISED regions
9 16 3 or 4 Alternative channel for use in FCC, CE, ISED, and MIC regions
9 64 9, 10, 11 or 12 Default channel for use in the MIC region; also available for use in FCC, CE, and ISED regions

Always verify regulatory region requirements and restrictions prior to use.

Operational Mode

The CUWB System can operate in two fundamentally different operational modes: MultiRange™, and MultiTime™. Each mode provides users with low-latency location data output and can be used for large scale deployments. MultiRange utilizes ranging beacons between each Tag and multiple Anchors to produce location data, while MultiTime utilizes timing beacons between each Tag and the Anchor array.

The default CUWBNet setting is MultiRange. MultiRange is more tolerant to survey error and generally easier to set up for small installations. Users are encouraged to experiment with both modes to determine what is right for their application.

Additional detail regarding MultiTime vs MultiRange modes and when to use them can be found in CUWB Operational Modes.

The CUWB Manager software tabs adjust dynamically based on the available settings for the selected operational mode.

LED Pattern

This setting is only available in MultiTime mode.

Use this dropdown to globally control the LED Pattern behavior for devices in the CUWB Configuration. LEDs can be configured for Device mode or Role mode.

Device Mode

When configured in Device mode the LEDs are controlled by the device firmware. LED state definitions for Device mode can be found in the respective product datasheets. Each device will have varying LED state definitions.

Role Mode

Setting the CUWB Manager LED mode to Role mode will enable the devices to flash their individual roles within the CUWB Configuration. Role mode is useful, particularly during system setup and testing, to identify device roles and configuration from the tracking area. The table below shows the colors used in this mode.

Color ON Time OFF Time Role
Blue 100 ms 1900 ms TAG
Green 100 ms 1900 ms QUIET ANCHOR
Magenta 100 ms 1900 ms SEEDERS & INITIAL SEEDERS
White 100 ms 1900 ms UNCONFIGURED

Ethernet Settings

Ethernet settings allow users to configure the Anchor, User Data ports, and IP addresses for the system. Anchor data refers to the data used by the CUWB Manager to generate locations, while user data is the output stream of locations published for user consumption. See Architecture Diagram. By default, user data is configured for multicast, making it accessible to other subscribers on the network. The configuration channel, used for system configuration and discovery, cannot be modified.

  • Configuration Stream - used for discovery, device and system configuration. This stream cannot be modified.
  • Anchor Stream - handles data communication between the CUWB Engine and the Anchor Array.
  • User Stream - provides output data from the CUWB Engine for users to consume, i.e., position data.

Optional Ethernet Settings [Expert Only]

In Expert mode, additional Ethernet streams are available. They include:

  • Command Stream - send commands from the CUWB Engine to the anchors. The user should not send any data on this stream.
  • Debug Stream - used by the anchors to publish debug CDP data for Ciholas debugging purposes. The user should not send any data on this stream.
  • Data to Device Stream - accepts commands from user applications bound for CUWB Tags or Anchors.
  • Duplicate streams - for Config, Anchor, and User Streams. These streams are allowed multiple entries to send data around complex networking systems.

Expert mode also enables the ability to set Port and TTL values for the Config, Anchor, and User streams.

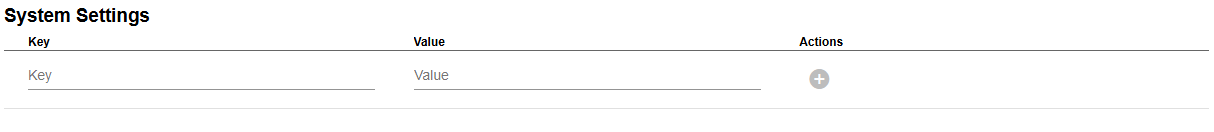

System Settings [Expert Only]

These optional expert settings allow users to enable features, adjust feature thresholds, and adjust other system settings. The UI provides a short list of available options when the key text box is selected. See System Setting Keys in the Settings Key Appendix for available settings options.

Some system keys duplicate functionality of the CUWB Manager Web Interface. Updating a setting in one location will update the same setting elsewhere. If a setting dropdown is blank, it may be due to a system key setting selecting a value not available normally in the dropdown menu.

Configuration - Schedules

This page is for configuring different roles and role parameters that impact the CUWB Configuration schedule.

In MultiTime mode, the CUWB Manager generates an air-time schedule for every Tag and Seeder listed in the CUWB Configuration. The schedule defines a dedicated timeslot in which to beacon or listen. Under Status -> Schedule, a visual representation of the CUWB Configuration’s schedule is provided for running CUWBNets. For additional information, check out the CUWB Operational Modes Application Note.

In MultiRange mode, devices transmit at arbitrary times using an Aloha protocol. There is no fixed schedule in this mode. The role parameters define the relative beacon rates.

Tag Roles

Roles consist of beacon rate definitions and other settings that can be assigned to Tags as a group. Roles can be created in the Configuration -> Schedules tab.

A user might, for example, desire to have a slow beacon rate role for a Tag that is used to track objects that rarely move and have a fast rate for other objects that move quickly through the environment.

Once a role is created, it will be available for use on the Configuration -> Devices tab under the role dropdown menu.

Name

A custom name for a Tag role must be added. Names should be descriptive enough to separate them from other roles. Two Tag roles are always available: UNCONFIGURED and DEFAULT TAG.

  • Unconfigured - Tag Role assigned to devices that are not configured to participate in the CUWBNet but may still appear nearby.
  • Default - Tag Role used by Tags unless another role is selected

If a Configuration is set up with unconfigured Tag slots, Anchors may initially join the associated CUWBNet as an unconfigured Tag. This will cause the Anchor to use the unconfigured Tag LED settings.

Beacon Rate

The beacon rate should be set to the desired rate for the given role.

  • For basic users, the beacon rate is selectable from a drop down menu.
  • For expert users, the beacon rate can either be entered in Hz or ticks when in MultiTime mode. In MultiRange mode, the beacon rate can only be entered in Hz.

A tick is an arbitrary unit used for scheduling by the CUWB system. There are exactly 97500 ticks every second. Ticks are provided as an option due to rounding errors when entering beacon rates in Hz.

Tag Count

MultiTime adds an additional column called Tag Count. The Tag Count is the maximum number of Tags that can participate in the CUWBNet simultaneously for the given role. Users should set the count to a value equal to, or larger than, the number of Tags they expect to participate in the role at any given time.

Tags can not participate in a MultiTime CUWBNet if their assigned role does not have a Tag count set. If the Tag count is too low for the number of Tags using that role, then Tags will only participate on a first come first served basis.

LED Brightness

LED Brightness can be set to Device’s Settings, On, or Off. Roles will default to Device’s Settings when first created.

  • Device’s Settings - Tags follow firmware-based LED behaviors while participating in a CUWBNet. See respective product datasheets for additional information.
  • Off - Tags do not display LED behaviors while participating in a CUWBNet. This effectively turns all LEDs off and could lead to confusion depending on the user’s application.
  • On - Tags display LED behaviors which follow the CUWB Configuration global setting while participating in a CUWBNet.

Use the LED Off settings to achieve lower power, longer battery life, on the Tags.

User Data [Expert Only]

User data options are only available in expert mode.

The following fields become available per role:

  • User Data Rate - Rate in Hz (or ticks) of expected user data delivery
  • User Data Size - Size of user data in bytes
  • Payload Overhead Size - Padding for user data payload in bytes, typically 5 bytes

Actions

The following actions are available:

  • Trashcan Icon - Deletes a role from the configuration.
  • Undo Button - Visible when editing a role; reverts the most recent change.
  • Save Icon - Saves the current edits made to the role.

Expert Mode enables the additional action:

  • Gear Icon - Adds a role settings key to the selected role. Multiple keys can be added as needed. A small numerical indicator is displayed on the icon, showing the total number of settings currently applied to that role.

Anchor Roles

Anchor roles are only available when using MultiTime. All Anchors are scheduled to transmit at the same seeder rate, which can be selected from the drop down menu. Available rates are 10Hz, 20 Hz, and 40 Hz.

Selecting a rate faster than 10Hz will help the Anchor Array synchronize time more quickly, but it will do so at the cost of locates per second. In nearly all situations, 10Hz is adequate.

If using expert mode, the seeder rate can be specified by typing in a rate in either Hz or ticks.

LED Brightness

LED Brightness can be set to Device’s Settings, On, or Off. Roles will default to Device’s Settings when first created.

  • Device’s Settings - Anchors follow the firmware-defined LED behaviors while participating in a CUWBNet. See respective product datasheets for additional information.
  • Off - Anchors will not display LED behaviors while participating in a CUWBNet. This setting effectively turns off all LEDs, which may cause confusion in some applications.
  • On - Anchors will display LED behaviors which follow the CUWB Configuration global setting while participating in a CUWBNet.

Use the LED Off setting to prevent anchor LED patterns and illumination from interfering with environmental aesthetics.

Configuration - Pairs

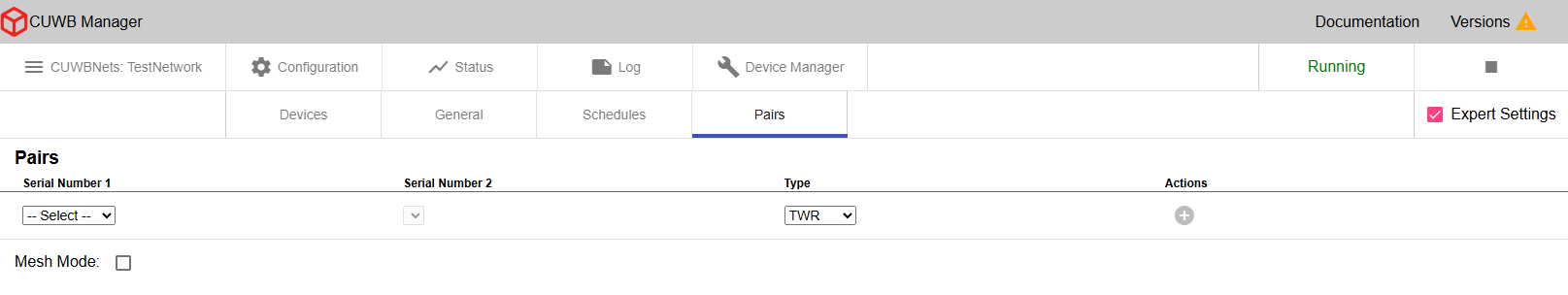

Distance Measurement from Two-Way Ranging (TWR)

In the Pairs tab under Configuration, users can configure distance measurements from individual pairs in the Anchor Array. Once configured, Distance data is reported over the User Stream in DistanceV2 CDP Packets and is calculated using TWR timing data from packets already transmitted by the Anchors. This setting does not increase UWB airtime usage and is available in both MultiRange and MultiTime modes.

Distance from TWR data can be configured using the dropdown menus, and can be configured between individual Anchors or one Anchor and all other Anchors in the Anchor Array.

MultiRange additionally supports TWR from Tag to Anchor, but MultiTime only supports TWR between Anchors.

Below are some suggested reasons a user might want to enable TWR Distance measurements:

  • Survey Checking: Distances between Anchors, measured using UWB transmissions, can be compared to nominal survey distances to find errors in survey.
  • Identification of LoS Issues: Distances measured between Anchors that lack LoS will be larger than their nominal surveyed distances. In general the CUWB Engine will ignore timing data between these pairs, but it may be useful to add them as blacklist pairs to improve overall time synchronization.
  • Pure Distance Applications: Users may want distance measurements Anchors-to-Anchor or Tag-to-Tag for unique applications that rely solely on ranging data and don’t require time synchronization.

Blacklist Ranging Pair [Expert Only]

Only available while using MultiTime mode, this allows expert users to have the CUWB Engine ignore data between certain Anchor pairs. This can help resolve time synchronization issues caused by environmental issues or poor line-of-sight.

Mesh TWR Mode [Expert Only]

Only available while using expert settings, this mode allows users to configure distance measurement for all devices on the CUWBNet. For MultiTime, this is all Anchors. For MultiRange, this would be all devices (Tag to Anchor and Anchor to Anchor).

Enabling TWR Mesh Mode causes significant additional Ethernet traffic on the User Stream in large Anchor Arrays.

Status - Devices

In the CUWB Manager, under Status -> Devices, users can view various details about the currently running CUWBNet. This section displays information for each device, including the current connectivity status, synchronization status, firmware version and IP address, if applicable.

Status Indicators

The status uses red exclamation points for errors, yellow triangles for warnings, and green checks for good status.

Connectivity Status

In MultiTime mode, the connectivity status indicates whether each device has an active wired Ethernet connection, a wireless UWB connection, or both.

In MultiRange mode, the connectivity status will only indicate if an Anchor has an Ethernet connection. Tags will display a UWB connection.

Synchronization Status

This status is only reported when using MultiTime. Synchronization status indicates whether an Anchor is Transmit (Tx) synchronized, Receive (Rx) synchronized, or both. Transmit synchronization is necessary to spread synchronization to other devices. Receive synchronization is required for contributing to Tag position calculations.

Quiet Anchors will only have Rx synchronization.

Other Status

  • IP Address: If a device is connected via Ethernet, the IP address will be displayed.
  • Firmware Version: Displays the firmware version number of each device in the CUWBNet.

When a device is selected, a panel at the bottom of the page will display additional detailed information for the device:

Status - Summary

This tab provides an overview of various CUWBNet metrics:

  • Roles: Displays device counts for different device roles
  • Sync: Shows the total number of devices that are Transmit (Tx) and Receive (Rx) synchronized.
  • Category: Shows devices listed by category: Anchors, Tags, and Unconfigured Devices

For items displayed as a fraction, the numerator is the count of devices currently online and the denominator is the total of devices defined in the configuration.

Status - Schedule

The schedule tab is only for use with MultiTime mode. The tab is hidden in MultiRange mode.

The schedule tab displays the schedule that the system has created for the devices in a chart format with each cell giving information on what it represents. This chart is a representation of the UWB events that occur over time. The chart shows all the UWB activity that occurs over the course of one second. In this chart, time starts in the bottom-left corner and progresses up the column. After reaching the top of the column, time continues from the bottom of the column immediately to the right. The height of each column (and the total number of columns) is determined by the rate of the fastest scheduled event. For example, on a default MultiTime CUWBNet, all events will run at 10 Hz, so each column will be 100 ms long, and there will be 10 columns.

Each cell in the chart represents a single UWB transmission. Highlighting any single cell will highlight all the cells representing repeated events where that transmission is repeated in a one second window.

There are multiple types of UWB packets that are used in transmissions in the CUWB system; these different types are represented with different colors in the schedule chart. For example, the Command Window - where commands are sent to have new devices join the CUWBNet - is displayed in neon green.

Options

  • Show Full Schedule - select this checkbox to expand the schedule view from displaying only the occupied time slice to showing the entire schedule.
  • Units - Select the schedule to be displayed in milliseconds or ticks

Status - Location Viewer

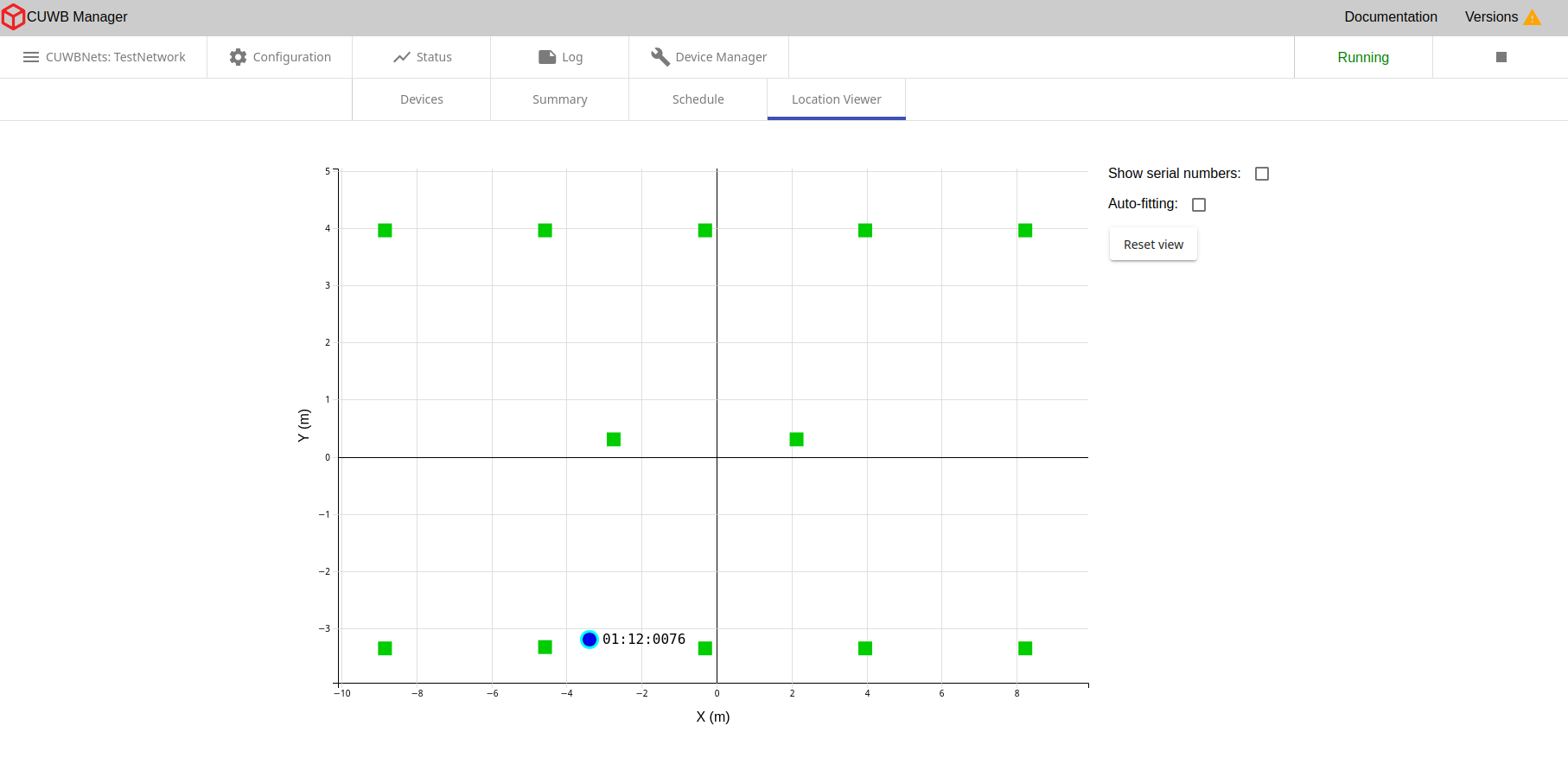

The Location Viewer is a 2D map showing the current locations and status of network devices with a slow refresh rate. For a faster refresh rate and 3D modeling, see our standalone CUWB Viewer. Anchors are represented as squares and Tags are represented as circles. The table below shows how device connectivity and synchronization status is represented by color.

Color Description
Gray For Anchors, after 15 seconds, and Tags, after 5 seconds, if new data has not been received for the time period.
Orange For Anchors that are only partially connected and synchronized to the Anchor Array.
Green For Anchors that are fully connected and synchronized to the Anchor Array.
Blue For Tags that are constantly receiving new data.

Anchors in MultiRange will appear in the viewer as an orange color, instead of green.

Inactive Tags will be removed from the plot after 5 seconds, and will reappear once new data is received.

2D Viewer Controls:

  • Pan - Click and drag to pan around the plot
  • Zoom - Scroll with the mousewheel to zoom in and out
  • Device Selection - Click on a device to select it, highlighting it and revealing its serial number. To deselect a device, select another device or click on any empty space in the plot.

Options

  • Show Serial Numbers - Toggle serial number display
  • Auto-fitting - Fit all devices on the viewable plot, resizing dimensions as needed. Auto-fitting will stop when the box is unchecked or the user pans / zooms around on the plot.
  • Reset View - Undo panning or zooming done by the user. This setting does not affect auto-fitting.

Log

In the Log tab, users can view useful CUWB activity information. Whenever any significant change occurs in the CUWBNet state, such as a new device joining the CUWBNet or timing out, a message will be printed to this log. This information can be invaluable when debugging setup issues. See Logging for a list of common log messages.

The Log tab only logs messages that the CUWBNet sends while the tab is open. If the user switches to a different tab, all currently recorded log messages will be cleared out of the Log tab, and if the tab isn’t opened until after a particular event has occurred, the Log tab won’t capture that log message. Thus, when attempting to view the log data, it’s best to leave the Log tab open in the browser.

When attempting to view the log data, it’s best to leave the Log tab open in the browser.

Logs are located on the Host PC at /var/log/cuwb/network. The download button will provide a pruned version of the /var/log/cuwb/network/ logs. The pruned version removes extraneous and non-critical warning messages.

The following logs are available:

  • cuwb-manager.log - Logs UI-related errors and issues.
  • cuwb-websocket.log - Logs errors and issues occurring between the backend and CUWB Engine.
  • <name_of_CUWBNet>.log - Logs errors and issues specific to the selected CUWBNet. This info is displayed in the Log tab of the CUWB Manager.

The Log tab is configured to auto-scroll as new messages are posted by default. Use the auto-scroll checkbox to enable or disable auto-scrolling.

Device Manager

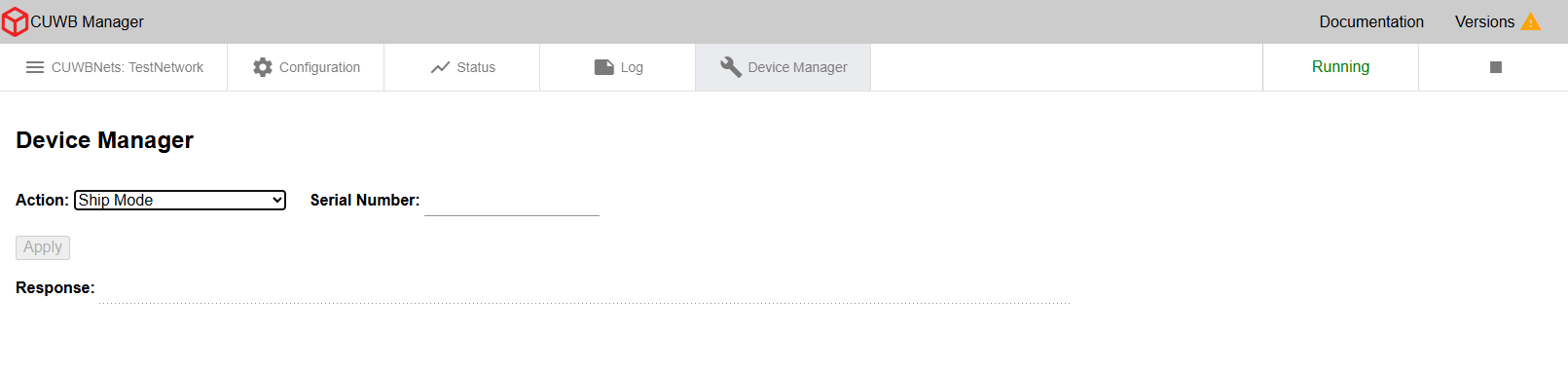

The Device Manager tab allows users to issue commands to devices individually by serial number. This includes resets, enabling ship mode, and setting persistent properties.

Upon pressing the Apply button, the Device Manager sends commands once. Like any RF signal, UWB transmissions are susceptible to interference, so over-the-air command delivery is not guaranteed.

The Device Manager can be used in conjunction with the CUWB USB Driver allowing commands to be sent to devices that support a USB connection.

Resets

Devices can be sent a reset command through the UI.

A soft reset will reset the device’s network state without rebooting. A hard reset will reboot the device.

To reset a device:

  1. Select Soft Reset or Hard Reset
  2. Provide the device serial number, including colons.
  3. Hit Apply

If the command is successful, the UI will display the following message and the device will reset:

Successfully reset device 12:34:5678

Ship Mode

Ship mode is a special mode for rechargeable, battery powered-devices that disconnects the battery internally to allow safe shipment. Once in ship mode the devices are not operational until they exit ship mode, which typically occurs by plugging the device into power. Devices that are in ship mode will not search for or operate within CUWBNets. See device datasheets for support and specific ship mode information.

To return a device to ship mode:

  1. Select the ship mode action
  2. Provide the device serial number, including colons
  3. Hit Apply

If the command is successful, the UI will display the following message and the device will enter ship mode:

Successfully readied device 12:34:5678 for ship mode

If using the CUWB USB driver to send ship mode commands, the device will enter ship mode once removed from USB power.

Persistent Properties [Expert Only]

Persistent Properties are device properties that will persist after a device reboots. Persistent Properties are for expert users only; the default settings will work for most users.

Known Properties vs Custom Properties

Persistent Properties use a hex-based ID number. For a listing of currently supported properties, see Appendix A in the CUWB Manager Feature Reference.

Custom Persistent Properties can be manually entered through the device manager by selecting the custom property option from the dropdown menu.

Defined Properties may have more detailed UI messages. See Persistent Property Appendix for additional details on expected messages.

Get Property List

The get persistent property list command provides a list of all the Persistent Property IDs that a device possesses. This list output is a comma separated message.

  1. Select get persistent property list action
  2. Provide the device serial number, including colons
  3. Hit Apply

If the command is successful, the UI will display the following message and a list of the property IDs.

Device 12:34:5678 has properties: 0x40a0,0x40a1,0x4086,0x4085

Get Property

The get persistent property command retrieves the value of the provided Persistent Property ID.

  1. Select get persistent property action
  2. Select the Persistent Property from the dropdown menu
  3. Provide the device serial number
  4. Hit Apply

If the command is successful, the UI will display:

Device 12:34:5678 has property 0x4086 with value {TBD}.

Set Property

The set persistent property command sets a value for a Persistent Property ID.

  1. Select set persistent property action
  2. Provide the device serial number, including colons
  3. Select the Persistent Property from the dropdown menu
  4. Select the property value from the dropdown menu or provide the property value in hex
  5. Hit Apply
  6. Select the Hard Reset action
  7. Provide the device serial number, including colons
  8. Hit Apply

If the command is successful, the UI will display:

Set property 0x4086 for device 12:34:5678

Clear Property

The clear persistent property command will remove the value that is set for a Persistent Property ID. This will revert the setting to firmware controlled defaults.

  1. Select clear persistent property action
  2. Provide the device serial number, including colons
  3. Select the Persistent Property from the dropdown menu
  4. Hit Apply
  5. Select the Hard Reset action
  6. Provide the device serial number, including colons
  7. Hit Apply

Property Command Failure

If one of the above commands fails, the following message will be displayed:

Persistent Property request for device 12:34:5678 failed.

Revision

Version Date Change Description
v5.0.1 2025-11-14 Updating Host PC Requirements; Streamlining Common General Settings; Adding colon requirement for Device Manager;
v5.0.0 2025-10-31 Initial Release

APPENDIX A : Settings Keys

Device Settings Keys

This section describes the different optional device settings keys that can be added to a CUWB Configuration on a per device basis. These are added per device under Configuration -> Devices via the gear icon. These settings are for expert users only.

These are also called interface settings in the API documentation.

position_delivery_probabilities

This device settings key specifies a comma-separated list of integer percentages that determine which position windows a particular anchor participates in transmitting position delivery packets.

Device Key Definition Value Description
position_delivery_probabilities x Comma-separated list of probabilities
position_delivery_probabilities 0 Default - Position Delivery Disabled

rx_antenna_delay_offset

This device settings key is a signed integer that specifies the adjustment to the device’s local antenna delay for any packets received by the device. This setting key should only be used with custom hardware.

For use with custom hardware only. Do not modify without express Ciholas guidance.

Device Key Definition Value Description
rx_antenna_delay_offset 0 Default - Do not modify

tx_antenna_delay_offset

This device settings key is a signed integer that specifies the adjustment to he device’s local antenna delay for any packets transmitted by the device. This setting key should only be used with custom hardware.

For use with custom hardware only. Do not modify without express Ciholas guidance.

Device Key Definition Value Description
tx_antenna_delay_offset 0 Default - Do not modify

Role Settings Keys

This section describes the different optional role settings keys that can be added to a CUWB Configuration. These are added per device role under Configuration -> Schedules. These settings are for expert users only.

Some of these role keys duplicate functionality of the CUWB Manager Web Interface. Updating a setting in one location will update the same setting elsewhere. If a setting dropdown is blank, it may be due to a role key setting selecting a value not normally available in the dropdown menu.

If the value for the role settings key is not provided, the setting will be set to the default value.

command_window_divisor

This role settings key specifies how many command subgroups each role should have.

Role Key Definition Value Description
command_window_divisor x Number of Command Subgroups per Role
command_window_divisor 10 Default - Number of Command Subgroups per Role

emit_network_time_period

This role settings key specifies the rate that a Tag will emit CDP Network Time packets 0x0149 over CSP.

Role Key Definition Value Description
emit_network_time_period x Time in microseconds
emit_network_time_period 0 Default - Device will not emit Network Time packets over CSP

max_role_velocity

This role settings key specifies a limit used for sanity checking incoming data by the CUWB Engine. The maximum role velocity is given in meters per second and affects any tag in a given role.

The max_role_velocity should be set to 2-3x the maximum speed of tags used in the role for MultiRange and 5x the maximum speed in MultiTime. Lower values will result in less noise in output position measurement, but will also result in rejected input data and can negatively impact CUWB Engine operation if set too low.

If this role setting is present, then it overrides the System Setting of max_tag_velocity.

Role Key Definition Value Description
max_role_velocity x Maximum velocity in meters per second
max_role_velocity 0 Default - Uses system wide max velocity instead of role based velocity

mr_num_anchors

This role settings key specifies the number of Anchors that should be used in the MultiRange selection algorithm for the role. The value for this setting can be lowered to save battery power on Tags by reducing UWB transmissions. Changing this value can impact the overall quality of the output location. This role key is ignored when using MultiTime.

This role settings key can be overridden by the system settings key mr_num_anchors.

Role Key Definition Value Description
mr_num_anchors x Anchor Quantity used in MultiRange algorithm
mr_num_anchors 8 Default - Anchor Quantity used in MultiRange algorithm

no_network_timeout

This role settings key specifies the amount of time, in seconds, before a Tag falls off the network if it has not heard any MultiRange UWB Packets. This role key is ignored when using MultiTime.

Role Key Definition Value Description
no_network_timeout x Time in seconds
no_network_timeout 0 Default - device_timeout will be used instead of this value

position_delivery_divisor

This role settings key enables or disables position delivery for a role.

Role Key Definition Value Description
position_delivery_divisor 1 Position Delivery for the role is enabled
position_delivery_divisor 0 Default - position delivery for the role is disabled

position_delivery_smoothing

This role settings key sets the amount of smoothing for position calculations that are delivered via position delivery for a given role.

Role Key Definition Value Description
position_delivery_smoothing x Amount of smoothing for calculations
position_delivery_smoothing 0 Default - No smoothing applied

wake_on_shake_threshold

This role settings key sets the minimum accelerometer value needed to trigger a “shake” event for the Wake-on-Shake Leave behavior. This is a positive integer value of milligravities.

Role Key Definition Value Description
wake_on_shake_threshold x Threshold of movement in mg
wake_on_shake_threshold 125 Recommended Value - Threshold of movement in mg m
wake_on_shake_threshold 0 Default - Wake on Shake is disabled

wake_on_shake_timeout

This role settings key sets the time for a device to leave a CUWBNet if it has not experienced a “shake” event. Only positive values are valid.

Role Key Definition Value Description
wake_on_shake_timeout x Stationary timeout in seconds
wake_on_shake_timeout 30 Recommended Value - Stationary timeout in seconds
wake_on_shake_timeout 0 Default - Wake on Shake is disabled

System Settings Keys

This section describes the different optional system settings keys that can be added to a CUWB Configuration. These settings are for expert users only.

Some of these system keys duplicate functionality of the CUWB Manager Web Interface. Updating a setting in one location will update the same setting elsewhere. If a setting dropdown is blank, it may be due to a system key setting selecting a value not available normally in the dropdown menu.

If the value for the system settings key is not provided, the setting will be set to the default value.

anchor_announce_timeout

This system key specifies the time an anchor will wait to send an Anchor Announce packet for MultiRange mode.

System Key Definition Value Description
anchor_announce_timeout x Time in milliseconds
anchor_announce_timeout 25 Default - time in milliseconds

anchor_health_report_period

This system key specifies the period, in seconds, at which the CUWB Engine should emit anchor health data items.

System Key Definition Value Description
anchor_health_report_period x Period of x seconds which the CUWB Engine emits anchor health data items
anchor_health_report_period 0 Default - Anchor health packets are disabled and not emitted

announce_window_period

This system key specifies the rate in ticks for the announce window for MultiTime mode. If set to 0, then the announce window will be scheduled at the same rate as the Seeder Rate.

The announce_window_period must be an even multiple of the Seeder Rate in ticks.

System Key Definition Value Description
announce_window_period x Announce window rate in ticks
announce_window_period 0 Default

cdp_aggregation_network_period

This system key specifies the CDP aggregation rate for anchors. The CDP aggregation rate is how long anchors hold onto CDP data before sending. CDP aggregation collects CDP data items at the anchors and combines the items into a larger UDP packet. This can help reduce Ethernet traffic load for switches.

System Key Definition Value Description
cdp_aggregation_network_period x Time in ticks
cdp_aggregation_network_period 0 Default - Time in ticks

cdp_aggregation_mode

This system key enables or disables CDP aggregation for anchors. CDP aggregation collects CDP data items at the anchors and combines the items into a larger UDP packet. This can help reduce Ethernet traffic load for switches.

System Key Definition Value Description
cdp_aggregation_mode disabled CDP aggregation is disabled.
cdp_aggregation_mode enabled Default - CDP aggregation is enabled.

cdp_logging_enabled

This system key specifies if text log messages from the CUWB Engine will be emitted over CDP.

System Key Definition Value Description
cdp_logging_enabled true CUWB Engine log messages will be emitted over CDP
cdp_logging_enabled false Default - CUWB Engine log messages will not be emitted over CDP

command_window_period

This system key specifies the rate in ticks for the command window for MultiTime mode. If provided a value of 0, then the command window will be scheduled for the same rate as the Seeder Rate.

System Key Definition Value Description
command_window_period x Command window rate in ticks
command_window_period 0 Default

device_timeout

This system key specifies the CUWB Engine global device timeout in seconds. The global device timeout is the number of seconds the CUWB Engine can go without hearing data from a device before it recognizes the device as timed out and starts sending it reset commands. If a device doesn’t have a specific lease or CUWBNet timeout configured, then it will use the device timeout on the device-side as well.

System Key Definition Value Description
device_timeout x Global device timeout in seconds
device_timeout 30 Default

device_update_mode

This system key specifies how the CUWB Engine will update devices.

This setting is also available in the CUWB Manager Web Interface under Configuration -> General tab. The Dropdown “Enabled” is the equivalent of the “auto” setting as a system key.

System Key Definition Value Description
device_update_mode auto The CUWB Engine will automatically look in /usr/lib/cuwb/device-images/ for images to use for updating devices
device_update_mode disabled Default - no bootloading will occur

ignore_network_duration

This system key specifies the duration, in seconds, that unconfigured devices will ignore the CUWBNet when all unconfigured Tag slots are full.

System Key Definition Value Description
ignore_network_duration x Duration, in seconds, to ignore the CUWBNet
ignore_network_duration 30 Default - Duration, in seconds, to ignore the CUWBNet

led_mode

This system key specifies whether the LED for a device, while participating in a CUWBNet, is controlled by the device or by the role.

This setting can also be set in the Configuration -> General tab of the CUWB Manager via the LED Pattern dropdown menu.

System Key Definition Value Description
led_mode device Device controls the LED based on device status behavior
led_mode role Default - CUWB Configuration controls the LED based on role behaviors

Additional information about device-based LED behaviors can be found in the device datasheets.

log_playback_mode

This system key allows the CUWBNet to receive CDP data played back from the Host PC’s internal stream as if the data is coming from actual devices.

System Key Definition Value Description
log_playback_mode disabled Default - Log playback is disabled.
log_playback_mode full_playback Log playback is enabled.

low_anchor_count_tracking

Enabling low Anchor count tracking allows the CUWB Engine to compute position output data when not enough Anchor data is received for good tracking. When enabled, the CUWB Engine uses a different, low-accuracy, algorithm to compute output positions any time fewer than four Anchors report beacon receptions.

System Key Definition Value Description
low_anchor_count_tracking enabled Allows the CUWB Engine to use an additional imprecise tracking algorithm
low_anchor_count_tracking disabled Disables the imprecise tracking algorithm

By default, this setting is enabled in MultiTime and disabled in MultiRange.

max_position_calculation_delay

This system key specifies the delay between reception of initial Ping V5 CDP packet and calculation of position associated with that Ping V5 packet along with ping data received from all anchors. This setting intentionally adds delay to allow for variable latency in a user’s Ethernet LAN or when using CDP aggregation.

System Key Definition Value Description
max_position_calculation_delay x Time in milliseconds
max_position_calculation_delay 5 Default - Time in milliseconds. This delay is added to the CDP aggregation period.

max_tag_velocity

This max Tag velocity key specifies a limit used for sanity checking incoming data by the CUWB Engine. The max_tag_velocity is given in meters per second and affects all Tags in the system.

The max_tag_velocity should be set to the 2-3x the maximum speed expected for Tags in the CUWBNet. Lower values will result in less noise in output position measurement, but will also result in rejected input data and can negatively impact CUWB Engine operation if set too low.

This settings key can be overridden by max_role_velocity.

Role Key Definition Value Description
max_tag_velocity x Maximum velocity in meters per second
max_tag_velocity 20 Default when in MultiRange mode
max_tag_velocity 250 Default when in MultiTime mode

mr_num_anchors

This system key specifies the number of Anchors that a Tag will range to at any given time in MultiRange mode. The value for this setting can be lowered to save battery power on Tags by reducing UWB transmissions. Changing this value can impact the overall quality of the output location.

This system settings key can be overridden by the role settings key mr_num_anchors.

System Key Definition Value Description
mr_num_anchors x Anchor Quantity used by Tags in MultiRange algorithm
mr_num_anchors 8 Default - Anchor Quantity used by Tags in MultiRange algorithm

position_delivery_max_positions

This system key specifies the maximum number of Tags that can receive positions from position delivery.

System Key Definition Value Description
position_delivery_max_positions x Maximum quantity of Tags receiving Position Delivery
position_delivery_max_positions 0 Default - Position Delivery is disabled

position_delivery_max_subwindow_positions

This system key specifies the maximum number of positions to be delivered during a position delivery transmission.

System Key Definition Value Description
position_delivery_max_subwindow_positions x Maximum number of Positions in Position Delivery Transmission
position_delivery_max_subwindow_positions 10 Default - Maximum number of positions in Position Delivery Transmission

position_delivery_period

This system key specifies the rate of position reports from the Anchors.

System Key Definition Value Description
position_delivery_period x Rate of Position Reports from Anchors in Hz
position_delivery_period 0 Default - Position Delivery is Disabled

position_delivery_windows

This system key specifies the number of position windows that exist for position delivery.

System Key Definition Value Description
position_delivery_windows x Number of Position Windows for Position Delivery scheduling
position_delivery_windows 0 Default - Position Delivery is disabled

position_smoothing

This system key specifies the global amount of smoothing to be done on position calculations.

This setting can also be set in the Configuration -> General tab of the CUWB Manager via the Smoothing Factor.

System Key Definition Value Description
position_smoothing x Amount of smoothing for position calculations
position_smoothing 0 Default - No smoothing applied on position calculations

position_smoothing_mode

This system key specifies the global type of smoothing algorithm used by the CUWB Engine when non-zero position smoothing is applied.

This setting can also be set in the Configuration -> General tab of the CUWB Manager via the Smoothing Factor.

Kalman Filtering is only available when using the system setting key.

System Key Definition Value Description
position_smoothing_mode weighted_average Uses a weighted average algorithm
position_smoothing_mode simple_kalman_filter Uses a simple kalman filter algorithm
position_smoothing_mode simple_average Default - Uses a simple average algorithm

transmit_anchor_status

This system key configures the CUWB Engine to emit Anchor status data items along with the Tag’s position CDP item.

Anchor status data items specify which Anchors were used, what their qualities were, and what sanity checks they failed, if any.

  • If set to “false” or “none”, then Anchor status data items will not be emitted.
  • If set to “true” or “position”, then the data items will be emitted and will provide the status for position data.
System Key Definition Value Description
transmit_anchor_status position Adds Anchor status data items to the Tag’s position cdp data item
transmit_anchor_status true Adds Anchor status data items to the Tag’s position cdp data item
transmit_anchor_status false Does not add Anchor status data items to the Tag’s position cdp data item
transmit_anchor_status none Default - Does not add Anchor status data items to the Tag’s position cdp data item

twr_mesh_mode

This system key is used to enableTWR mesh mode.

This setting can also be set in the Configuration - Pairs tab of the CUWB Manager while in expert mode.

System Key Definition Value Description
twr_mesh_mode true Enables TWR mesh mode
twr_mesh_mode false Default - Disables TWR mesh mode

APPENDIX B : License Terms and Conditions


APPENDIX C : Software License Attributions
